IMPRESJA RTV-SAT socket with two SAT outputs, silver GPA-Y2S/M/18

local index:
MEA347OSPE
Catalog No:
GPA-Y2S/M/18
EAN code:
5907577440077
Manufacturer: OSPEL
Depth [mm]: 38
Number of sockets: 3
Color: Silver
Price:
26,11 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

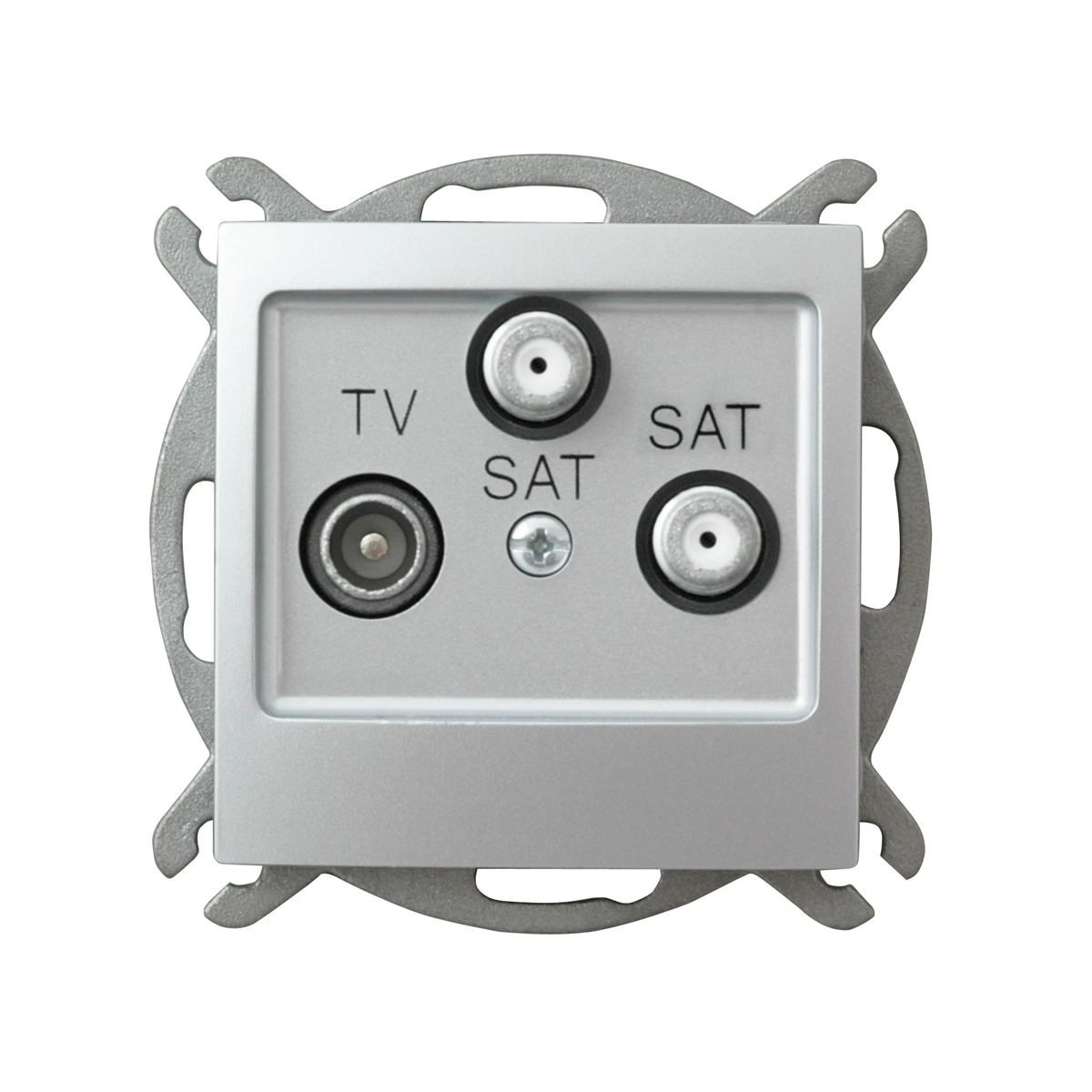

TV socket with two SAT outputs. To be equipped with a frame.



SERIES DESCRIPTION

The Impression series is characterized by discreet elegance, unobtrusive shapes and sophisticated design . It gives many arrangement possibilities due to the rich colors.

The Impression collection combines functionality important for electrical equipment with an elegant, slightly convex line based on a square. Elements from the Impresja series are available in five colors: white, ecru, silver, titanium, anthracite and gold with a metallic sheen. Such a wide selection allows you to match the accessories both to a modern, almost ascetic arrangement, industrial decor, as well as to a classic, richly decorated interior. The combination of an interesting line with complementary colors on the one hand makes the accessories a neutral element of the interior, and on the other hand makes it a strong, arrangement detail.

Technical data

  • Depth [mm]
    38
  • Color
    Silver
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Type
    Antenna
  • Level of security
    IP20
  • Attenuation [dB]
    RTV: 0.5-1.5 Sat: 10-12 SAT2: 6-8
  • Height [mm]
    71
  • Frequency Range [MHz]
    For SAT input: 5-2400
  • Mounting depth [mm]
    24
  • Variant
    RTV sat sat2
  • For the frame system
    Yes
  • PKWIU
    26.40.52.0
  • Number of sockets
    3
  • Shape
    Square
  • Fixing
    claws screws
  • Overprint
    Yes
  • Family
    IMPRESSION
  • Width [mm]
    71
  • Type
    Flush-mounted
  • Surface protection
    varnishing
  • Backlight
    NO
  • Terminal type
    Threaded
  • F-type input
    NO
  • Exact material
    Plastic Metal

Other technical data

  • Model
    End socket
  • Number of modules (module system)
    1
  • Tap loss at 860 MHz
    1 dB
  • Number of outlets
    1
  • Through loss at 860 MHz
    0 dB
  • Suitable for remote power supply
    No
  • Type of fastening
    Mounting with claw and screw
  • RAL-number (similar)
    9006
  • Surface finishing
    Glossy
  • Material quality
    Thermoplastic
  • Mounting method
    Flush-mounted
  • Cover
    Complete housing
  • Tap loss at 2150 MHz
    2.5 dB
  • Suitable for cable modem
    No
  • Through loss at 2150 MHz
    0 dB
  • Frequency
    5 ... 860 MHz
  • Colour
    Silver
  • Surface protection
    Lacquered
  • Material
    Plastic
  • Halogen free
    Yes

Bulk packaging

A kind of package Pudełko
Quantity 4 pcs.
Width (m) 0,140
Length (m) 0,162
Depth (m) 0,090
