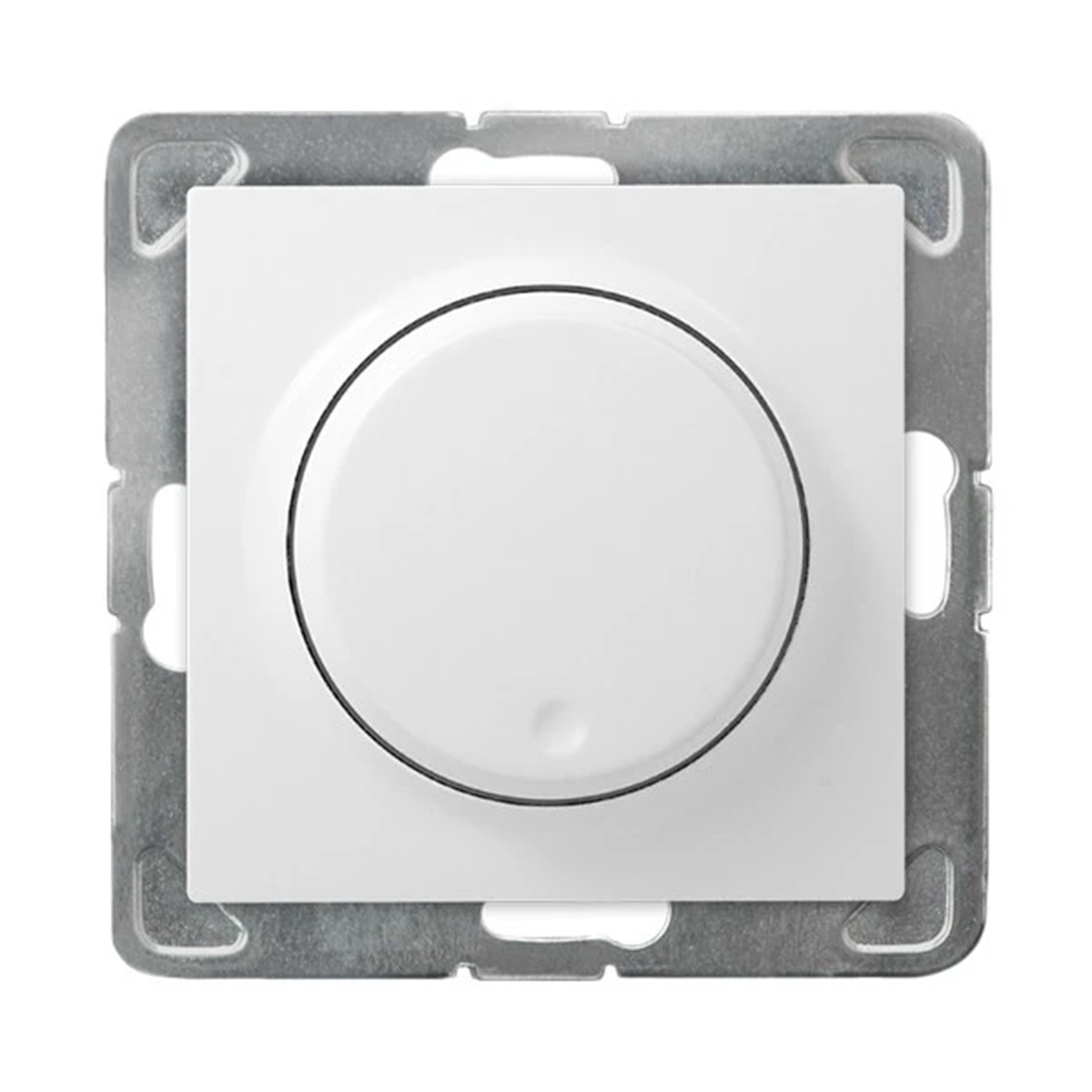

IMPRESJA Push-turn dimmer, adapted to incandescent and other loads, white, without frame ŁP-8Y/M/00

local index:
MMC066OSPE
Catalog No:
ŁP-8Y/M/00
EAN code:
5907577436780
Manufacturer: OSPEL
Depth [mm]: 43
Number of keys: Knob
Color: White
Price:
28,13 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Push-turn dimmerfrom Impression series, from Ospel. The product catalog number is ŁP-8Y/M/00.



FEATURES

  • Adjusted to incandescent load and halogen.
  • Load power: 40-400W.



SERIES DESCRIPTION

Wide range of available colors are the main advantage of the elegant Impression collection. Dimmercharacterize the features of this unique series.

Technical data

  • Depth [mm]
    43
  • Color
    White
  • Material
    Plastic
  • Rated voltage [V]
    230
  • Family
    IMPRESSION
  • Width [mm]
    71
  • Version
    For incandescent lighting For halogen lighting
  • Surface protection
    Natural
  • Mounting depth [mm]
    23
  • Terminal type
    Threaded
  • For the frame system
    Yes
  • Number of keys
    Knob
  • Shape
    Square
  • Fixing
    claws screws
  • Type
    dimmers
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Height [mm]
    71
  • Backlight
    NO
  • load power [W]
    40-400
  • Variant
    Rotary Button
  • PKWIU
    27.33.11.0

Other technical data

  • Assembly arrangement
    Basic element with complete housing
  • Number of modules (module system)
    1
  • Serial dimmer
    Yes
  • Substation input
    No
  • Applicable with button
    No
  • Applicable with presence indicator
    No
  • Applicable with transmission button
    No
  • Mounting method
    Flush-mounted
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • RAL-number (similar)
    9003
  • Suitable for degree of protection (IP)
    IP20
  • Nominal voltage
    230 ... 230 V
  • Control voltage
    230 ... 230 V
  • Device width
    71 mm
  • Device depth
    50 mm
  • Method of operation
    Turn/push button
  • App control via Bluetooth
    No
  • Type of load
    Resistive load
  • Light value memory
    No
  • Applicable with movement sensor
    Yes
  • Applicable with time switch/timer
    No
  • Applicable with infrared button
    Yes
  • Type of fastening
    Mounting with claw and screw
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Colour
    White
  • Transparent
    No
  • Impact strength
    IK03
  • Frequency
    50 ... 50 Hz
  • Core cross section
    1 ... 1.5 mm²
  • Device height
    71 mm
  • Min. depth of built-in installation box
    60 mm

Bulk packaging

A kind of package Pudełko
Quantity 5 pcs.
Width (m) 0,162
Length (m) 0,237
Depth (m) 0,090
