IMPRESJA Pass-through RTV socket ZAP-14 gold metallic GPA-14YP/M/28

Indice locale:
MEA112OSPE
Numero di catalogo:
GPA-14YP/M/28
Codice EAN:
5907577440381
Produttore: OSPEL
Depth [mm]: 38
Number of sockets: 2
Color: Golden
Prezzo:
73,92 zł
gross / pezzi
(inclusa IVA 23%)
Consegna in 3 ore
fino a 2 settimane (giorni lavorativi)
Raccolta in 1h
Quantità pezzi
(multiplo:
1
)
Aggiungi alla richiesta di preventivo
Aggiungi agli appunti
Stampa

Descrizione del prodotto

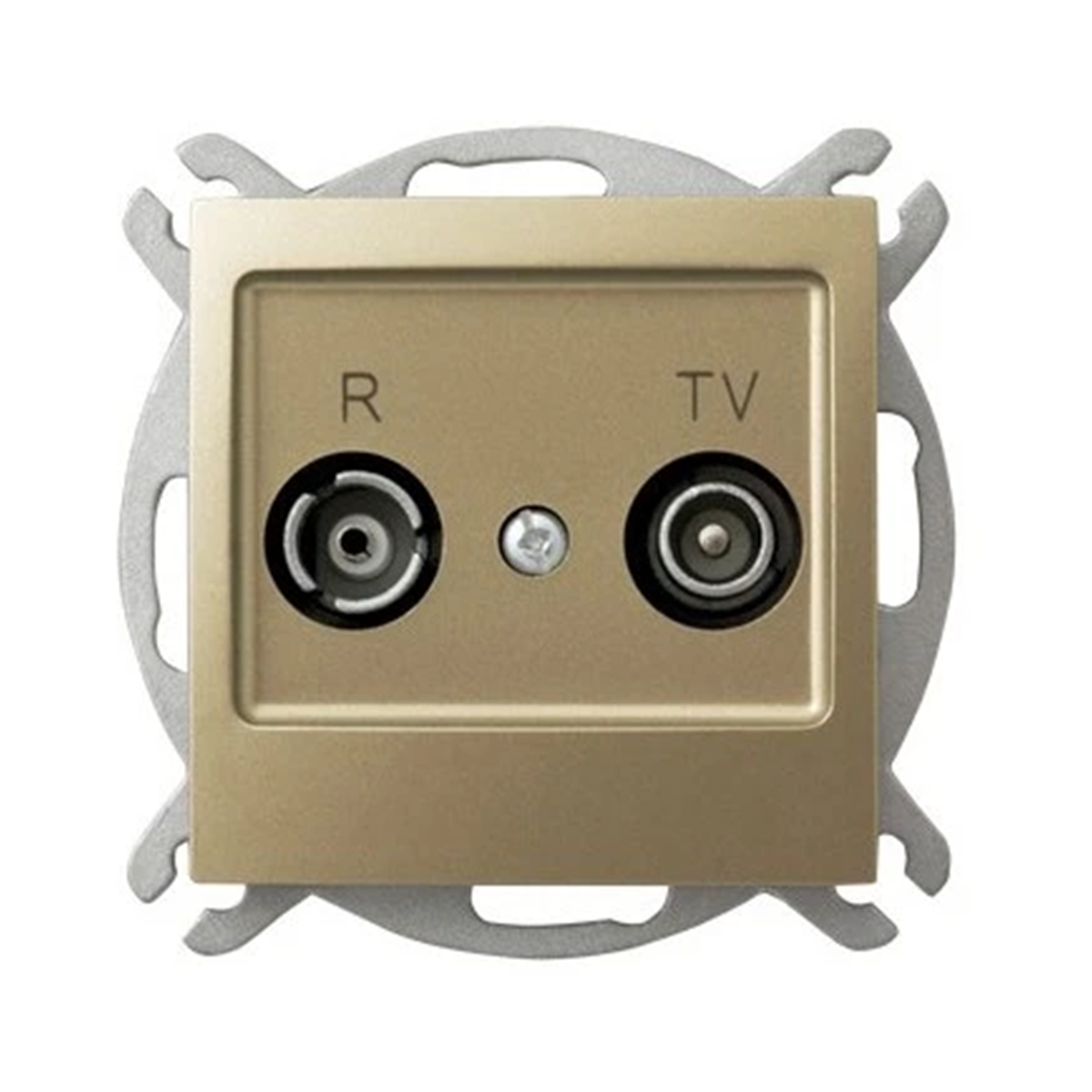

RTV antenna socket pass-through. It is designed for serial installation, where one cable passes through various receivers. To be equipped with a frame.



SERIES DESCRIPTION

The Impression series is characterized by discreet elegance, unobtrusive shapes and sophisticated design . It gives many arrangement possibilities due to the rich colors.

The Impression collection combines functionality important for electrical equipment with an elegant, slightly convex line based on a square. Elements from the Impresja series are available in five colors: white, ecru, silver, titanium, anthracite and gold with a metallic sheen. Such a wide selection allows you to match the accessories both to a modern, almost ascetic arrangement, industrial decor, as well as to a classic, richly decorated interior. The combination of an interesting line with complementary colors on the one hand makes the accessories a neutral element of the interior, and on the other hand makes it a strong, arrangement detail.

Dati tecnici

  • Depth [mm]
    38
  • Color
    Golden
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Type
    Antenna
  • Level of security
    IP20
  • Attenuation [dB]
    R: 14 TV: 14
  • Version
    through
  • Surface protection
    varnishing
  • Accurate color
    Golden metallic
  • Mounting depth [mm]
    24
  • Variant
    R TV
  • For the frame system
    Yes
  • PKWIU
    26.40.52.0
  • Number of sockets
    2
  • Shape
    Square
  • Fixing
    claws screws
  • Overprint
    Yes
  • Family
    IMPRESSION
  • Width [mm]
    71
  • Type
    Flush-mounted
  • Height [mm]
    71
  • Frequency Range [MHz]
    R: 88-108 TV: 5-70 TV: 120-862
  • Backlight
    NO
  • Terminal type
    Threaded
  • F-type input
    NO
  • Exact material
    Plastic Metal

Altri dati tecnici

  • Model
    Loop-through socket
  • Number of modules (module system)
    1
  • Tap loss at 2150 MHz
    0 dB
  • Suitable for cable modem
    No
  • Through loss at 2150 MHz
    0 dB
  • Type of fastening
    Mounting with claw and screw
  • RAL-number (similar)
    1036
  • Surface finishing
    Glossy
  • Material quality
    Thermoplastic
  • Mounting method
    Flush-mounted
  • Tap loss at 860 MHz
    0 dB
  • Number of outlets
    1
  • Through loss at 860 MHz
    14 dB
  • Suitable for remote power supply
    No
  • Colour
    Gold
  • Surface protection
    Lacquered
  • Material
    Plastic
  • Halogen free
    Yes

Dettagli del produttore

  • Produttore
    OSPEL S.A.
  • Indirizzo
    42-436 Wierbka Główna 128 Polska

Imballaggio sfuso

Una specie di pacchetto Pudełko
Quantità 4 pezzi
Larghezza (m) 0,140
Lunghezza (m) 0,162
Profondità (m) 0,090
