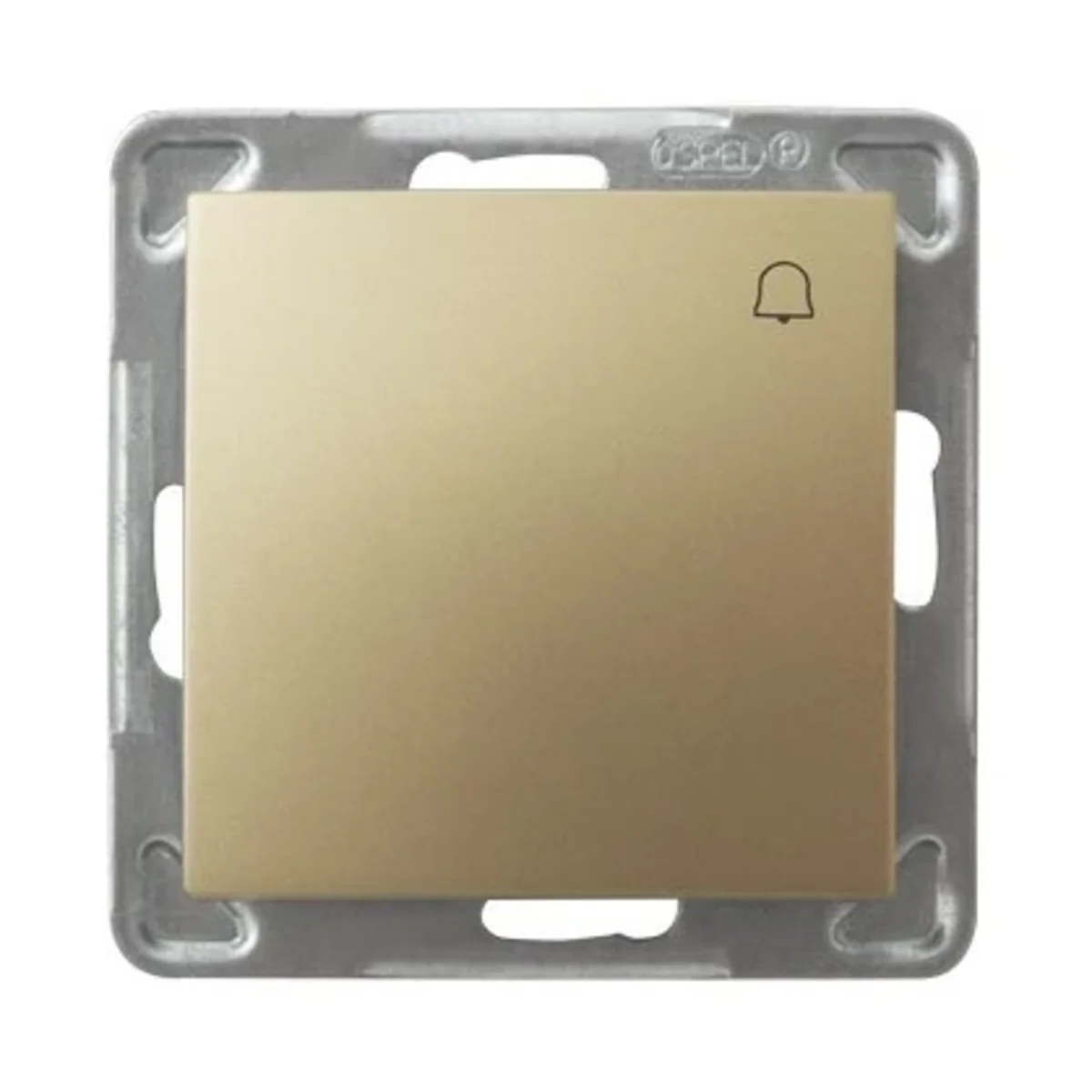

IMPRESJA Opening switch "bell" gold metallic, without a frame ŁP-6Y/M/28

local index:
MMZ167OSPE
Catalog No:
ŁP-6Y/M/28
EAN code:
5907577440138
Manufacturer: OSPEL
Depth [mm]: 40
Number of keys: 1
Color: Golden
Price:
6,92 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

The "bell" switch from the Impression series, from the manufacturer Ospel. The product catalog number is ŁP-6Y/M/28. In golden metallic color.



FEATURES

  • To be equipped with frame.
  • The "bell" symbol on the key.
  • To obtain IP44 splash-proof class, use a sealing kit for switches.



SERIES DESCRIPTION

< p>The Impression series is characterized by discreet elegance, unobtrusive shapes and sophisticated design. It gives many arrangement possibilities due to the rich colors.

The Impression collection combines functionality important for electrical equipment with an elegant, slightly convex line based on a square. A wide selection of colors allows you to match the accessories to both modern, almost ascetic arrangements, industrial decor, as well as to a classic, richly decorated interior. The combination of an interesting line with complementary colors on the one hand makes the accessories a neutral element of the interior, and on the other hand makes it a strong, arrangement detail.

Technical data

  • Depth [mm]
    40
  • Color
    Golden
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    10
  • Family
    IMPRESSION
  • Symbol
    Bell
  • Type
    Flush-mounted
  • Height [mm]
    71
  • Accurate color
    Golden metallic
  • Mounting depth [mm]
    23
  • Variant
    Bell
  • Exact material
    Plastic Metal
  • Number of keys
    1
  • Shape
    Square
  • Fixing
    claws screws
  • Rated voltage [V]
    230
  • Type
    Short
  • Level of security
    IP20
  • Width [mm]
    71
  • Version
    Confident
  • Surface protection
    varnishing
  • Backlight
    NO
  • Terminal type
    Threadless
  • For the frame system
    Yes
  • PKWIU
    27.33.11.0

Other technical data

  • Method of operation
    Rocker/button
  • Number of modules (module system)
    1
  • Number of rockers
    1
  • Type of fastening
    Mounting with claw and screw
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • RAL-number (similar)
    1036
  • Illumination
    No
  • Nominal voltage
    250 V
  • Switching current for fluorescent lamps
    10 AX
  • Connection type
    Push-in clamp
  • Device width
    71 mm
  • Device depth
    40 mm
  • Min. depth of built-in installation box
    60 mm
  • Assembly arrangement
    Basic element with complete housing
  • Push button switch
    Yes
  • Mounting method
    Flush-mounted
  • With mounting plate
    No
  • Material quality
    Thermoplastic
  • Surface protection
    Lacquered
  • Colour
    Gold
  • Label space/information surface
    No
  • Suitable for degree of protection (IP)
    IP20
  • Rated current
    10 A
  • Feedback-signal contact
    No
  • Washing machine switch
    No
  • Device height
    71 mm
  • Built-in depth
    23 mm

Bulk packaging

A kind of package Pudełko
Quantity 4 pcs.
Width (m) 0,140
Length (m) 0,162
Depth (m) 0,090
