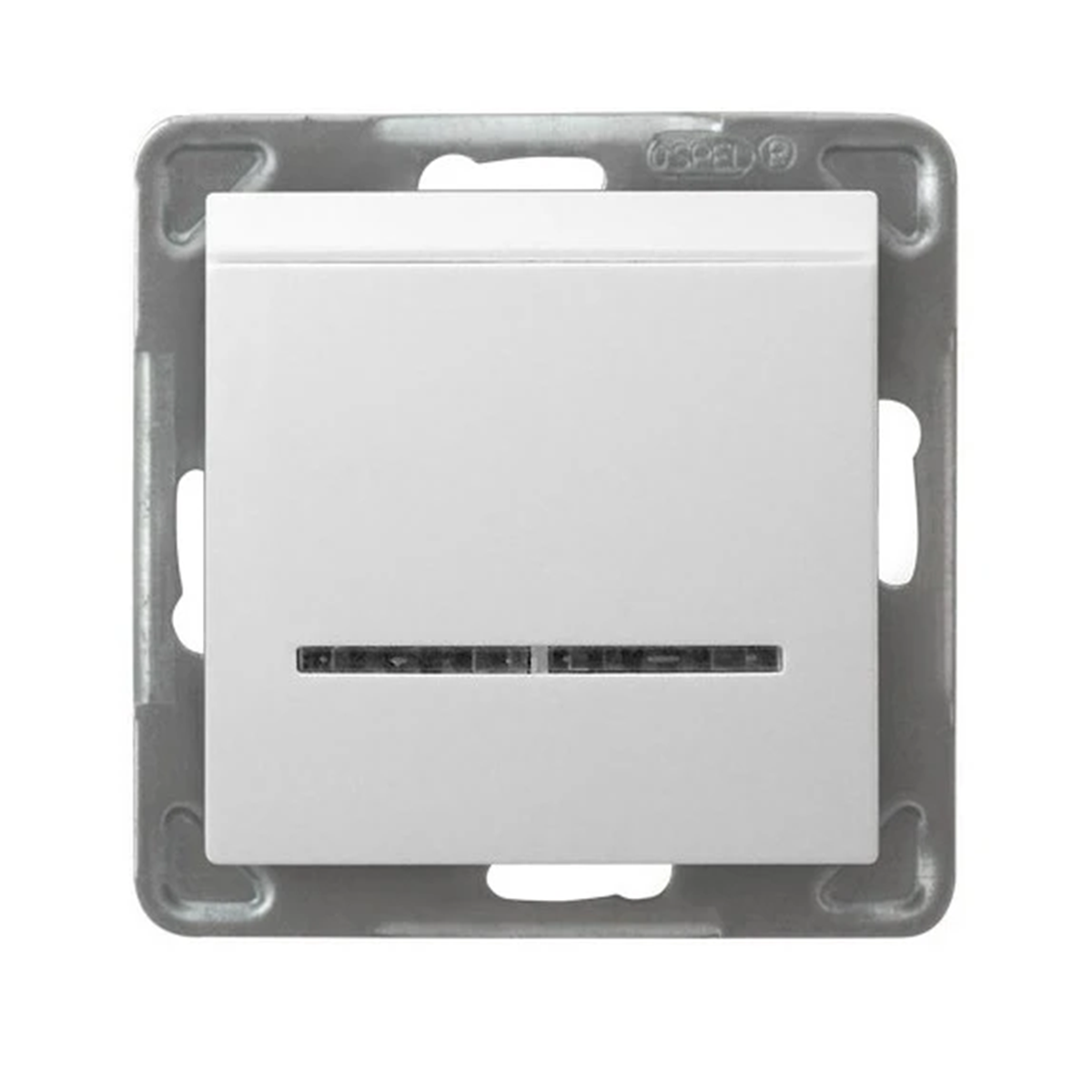

IMPRESJA Hotel switch with orange backlight ŁP-15YS/M/00

Name: IMPRESJA Hotel switch with orange backlight
Brand: OSPEL
SKU: MMH023OSPE
Price: 131.81 PLN

local index:

MMH023OSPE

Catalog No:

ŁP-15YS/M/00

EAN code:

5907577437763

IMPRESJA Hotel switch with orange backlight

Click on the photo to enlarge

Manufacturer: OSPEL

Depth [mm]: 50

Number of keys: hotel card

Color: White

See full description

Price:

131,81 zł

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 2 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

1

)

Add to inquiry

Add to clipboard

Print

Ask about the product

Product description Technical data Manufacturer details Bulk packaging

Product description

Hotel connector from the Impression series, from Ospel. The product catalog number is ŁP-15YS/M/00.

FEATURES

With backlight.
Relay off delay 3s.
Trigger type - electronic, photocell.

SERIES DESCRIPTION

A wide range of available colors is the main advantage of the elegant Impression collection. Hotel connector characterizes the features of this unique series.< /p>

Technical data

Depth [mm]

50
Color

White
Material

Plastic
Rated voltage [V]

230
Rated current [A]

16
Family

IMPRESSION
Width [mm]

71
Height [mm]

71
Backlight

Yes
load power [W]

Incandescent: 3200 Induction, fluorescent: 750
For the frame system

Yes
Backlight color

Orange

Number of keys

hotel card
Shape

Square
Fixing

claws screws
Shutdown delay [s]

3
Type

Hotel
Level of security

IP20
Type

Flush-mounted
Surface protection

Natural
Mounting depth [mm]

29
Terminal type

Threaded
Backlight type

LED
PKWIU

27.33.11.0

Other technical data

Wiring system

Off switch 1-pole
Assembly arrangement

Basic element with complete housing
Push button switch

No
Mounting method

Flush-mounted
With mounting plate

No
Material quality

Thermoplastic
Surface protection

Untreated
Colour

White
Label space/information surface

No
Function lighting

Orientation
Suitable for degree of protection (IP)

IP20
Rated current

16 A
Feedback-signal contact

No
Washing machine switch

No
Device height

71 mm
Built-in depth

29 mm

Method of operation

Hotel card
Number of modules (module system)

1
Number of rockers

0
Type of fastening

Mounting with claw and screw
Material

Plastic
Halogen free

Yes
Surface finishing

Glossy
RAL-number (similar)

9003
Illumination

Yes
Type of lighting

Glow lamp
Nominal voltage

230 V
Switching current for fluorescent lamps

10 AX
Connection type

Push-in clamp
Device width

71 mm
Device depth

50 mm

Manufacturer details

Manufacturer

OSPEL S.A.
Address

42-436 Wierbka Główna 128 Polska
E-mail

ospel@ospel.com.pl

Bulk packaging

A kind of package	Pudełko
Quantity	5 pcs.
Width (m)	0,162
Length (m)	0,237
Depth (m)	0,090
