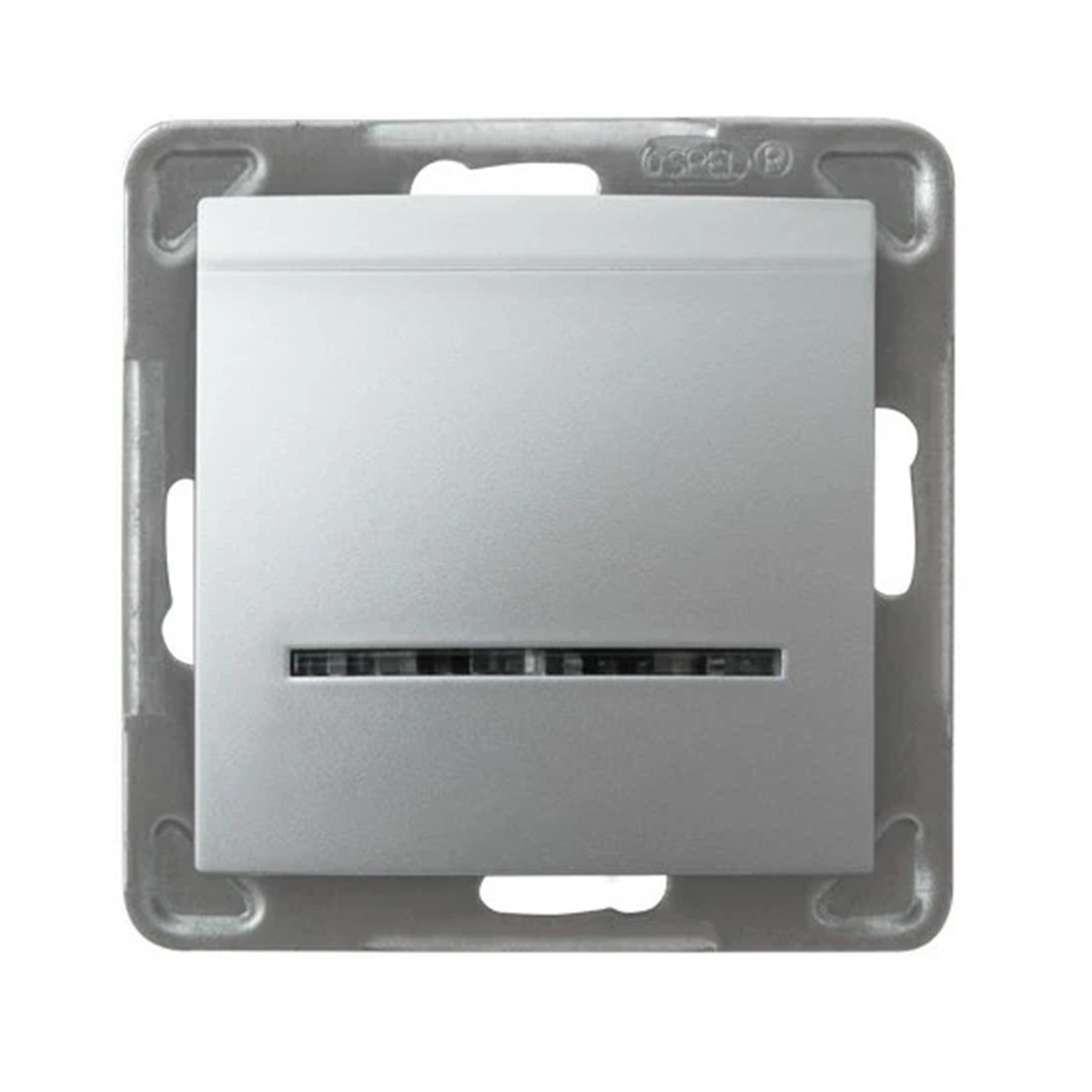

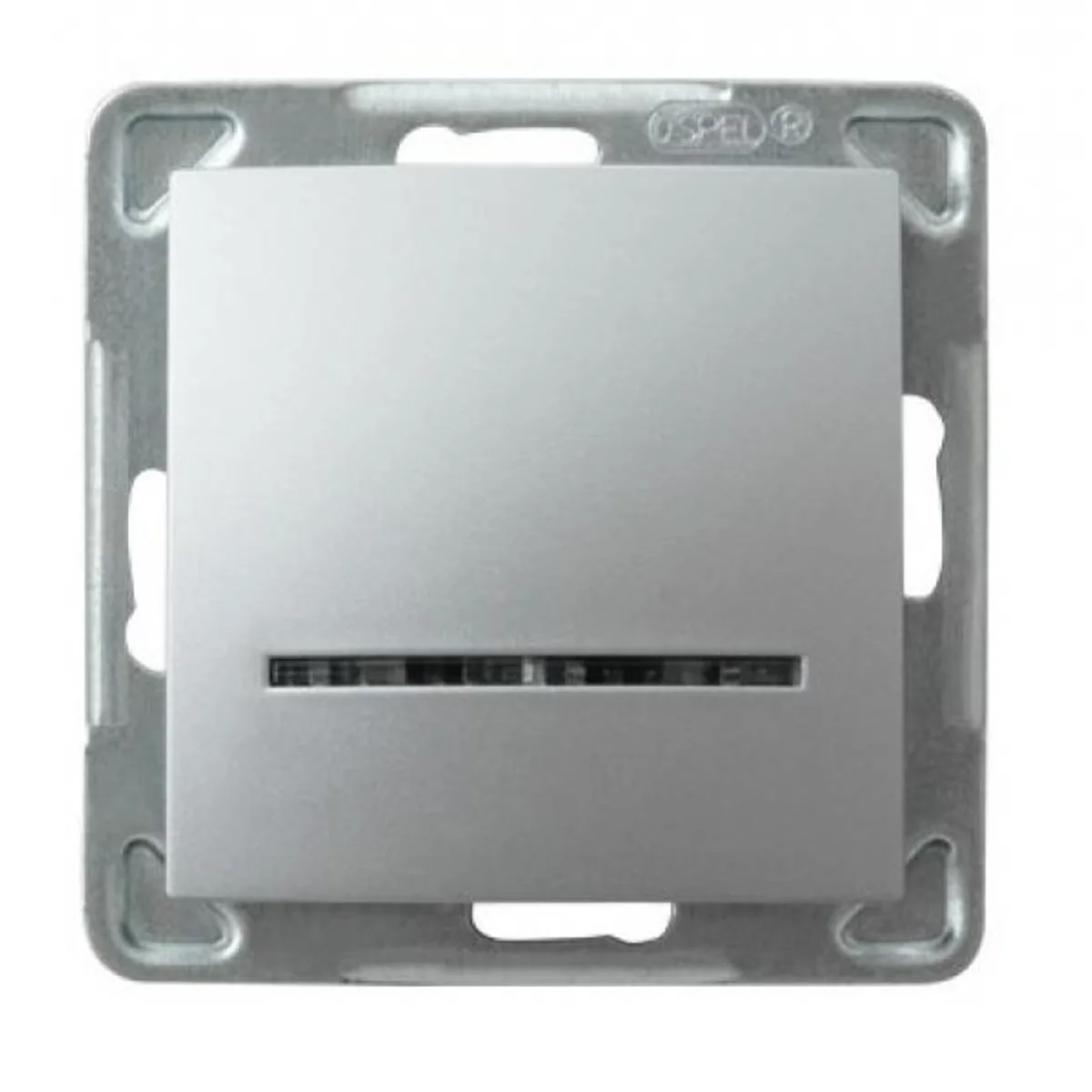

IMPRESJA Hotel connector, silver without frame ŁP-15YS/M/18

local index:
MMH024OSPE
Catalog No:
ŁP-15YS/M/18
EAN code:
5907577439989
Manufacturer: OSPEL
Depth [mm]: 50
Number of keys: hotel card
Color: Silver
Price:
28,95 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Hotel connector from the Impression series, from Ospel. The product catalog number is ŁP-15YS/M/18.



FEATURES

  • With backlight.
  • Relay off delay 3s.
  • Trigger type - electronic, photocell.



SERIES DESCRIPTION

A wide range of available colors is the main advantage of the elegant Impression collection. Hotel connector characterizes the features of this unique series.< /p>

Technical data

  • Depth [mm]
    50
  • Color
    Silver
  • Material
    Plastic
  • Rated voltage [V]
    230
  • Rated current [A]
    16
  • Family
    IMPRESSION
  • Width [mm]
    71
  • Height [mm]
    71
  • Backlight
    Yes
  • load power [W]
    Incandescent: 3200 Induction, fluorescent: 750
  • For the frame system
    Yes
  • PKWIU
    27.33.11.0
  • Number of keys
    hotel card
  • Shape
    Square
  • Fixing
    claws screws
  • Shutdown delay [s]
    3
  • Type
    Hotel
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Surface protection
    varnishing
  • Mounting depth [mm]
    29
  • Terminal type
    Threaded
  • Backlight type
    LED

Other technical data

  • Wiring system
    Off switch 1-pole
  • Assembly arrangement
    Basic element with complete housing
  • Push button switch
    No
  • Mounting method
    Flush-mounted
  • With mounting plate
    No
  • Material quality
    Thermoplastic
  • Surface protection
    Lacquered
  • Colour
    Silver
  • Label space/information surface
    No
  • Function lighting
    Orientation
  • Suitable for degree of protection (IP)
    IP20
  • Rated current
    16 A
  • Feedback-signal contact
    No
  • Washing machine switch
    No
  • Device height
    71 mm
  • Built-in depth
    29 mm
  • Method of operation
    Hotel card
  • Number of modules (module system)
    1
  • Number of rockers
    0
  • Type of fastening
    Mounting with claw and screw
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • RAL-number (similar)
    9006
  • Illumination
    Yes
  • Type of lighting
    Glow lamp
  • Nominal voltage
    230 V
  • Switching current for fluorescent lamps
    10 AX
  • Connection type
    Push-in clamp
  • Device width
    71 mm
  • Device depth
    50 mm

Bulk packaging

A kind of package Pudełko
Quantity 5 pcs.
Width (m) 0,162
Length (m) 0,237
Depth (m) 0,090
