IMPRESJA Hotel connector, ecru frameless ŁP-15YS/M/27
local index:
MMH026OSPE
Catalog No:
ŁP-15YS/M/27
EAN code:
5907577438654
Price:
28,04 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

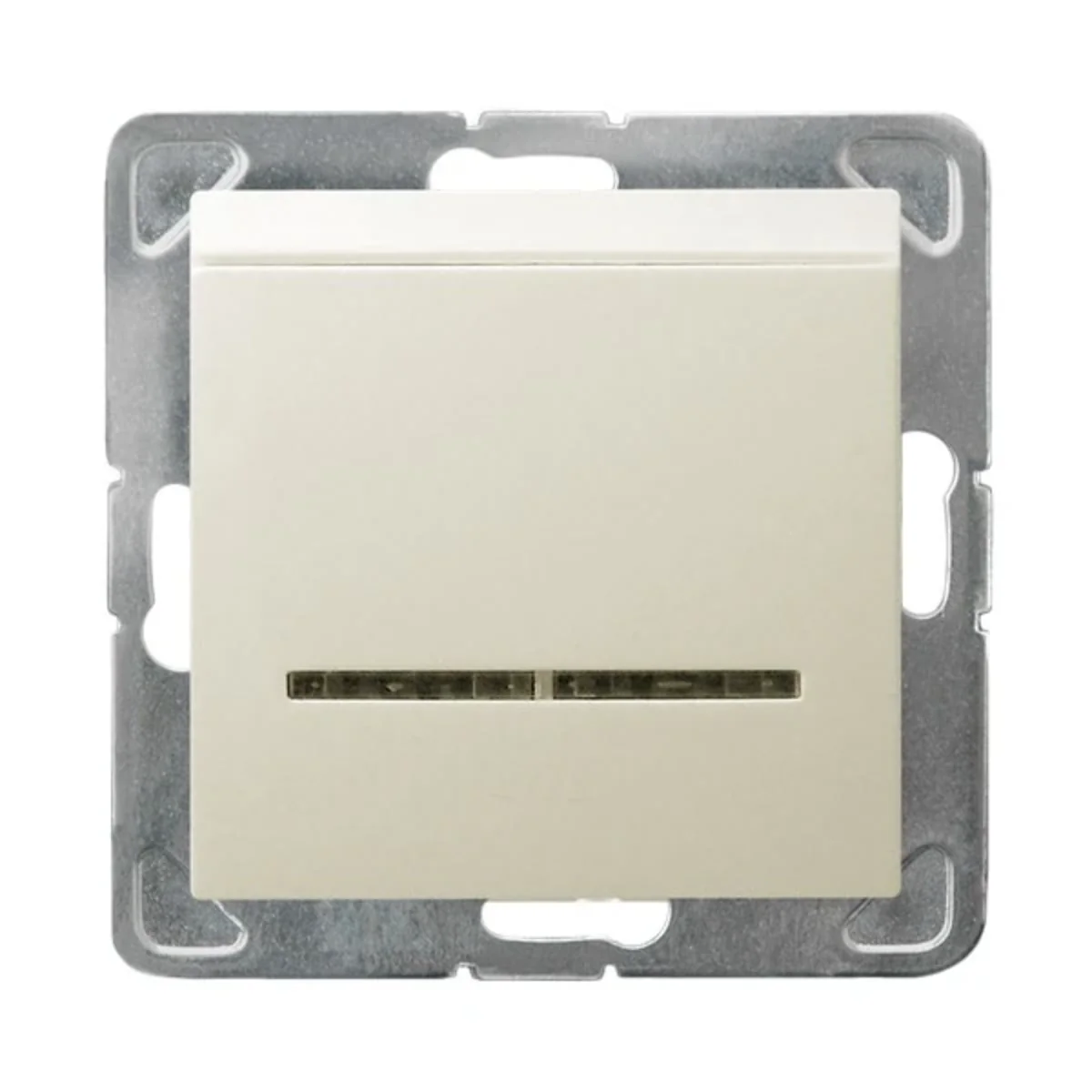

Hotel connector from the Impression series, from Ospel. The product catalog number is ŁP-15YS/M/27.
FEATURES
- With backlight.
- Relay off delay 3s.
- Trigger type - electronic, photocell.
SERIES DESCRIPTION
A wide range of available colors is the main advantage of the elegant Impression collection. Hotel connector characterizes the features of this unique series.< /p>

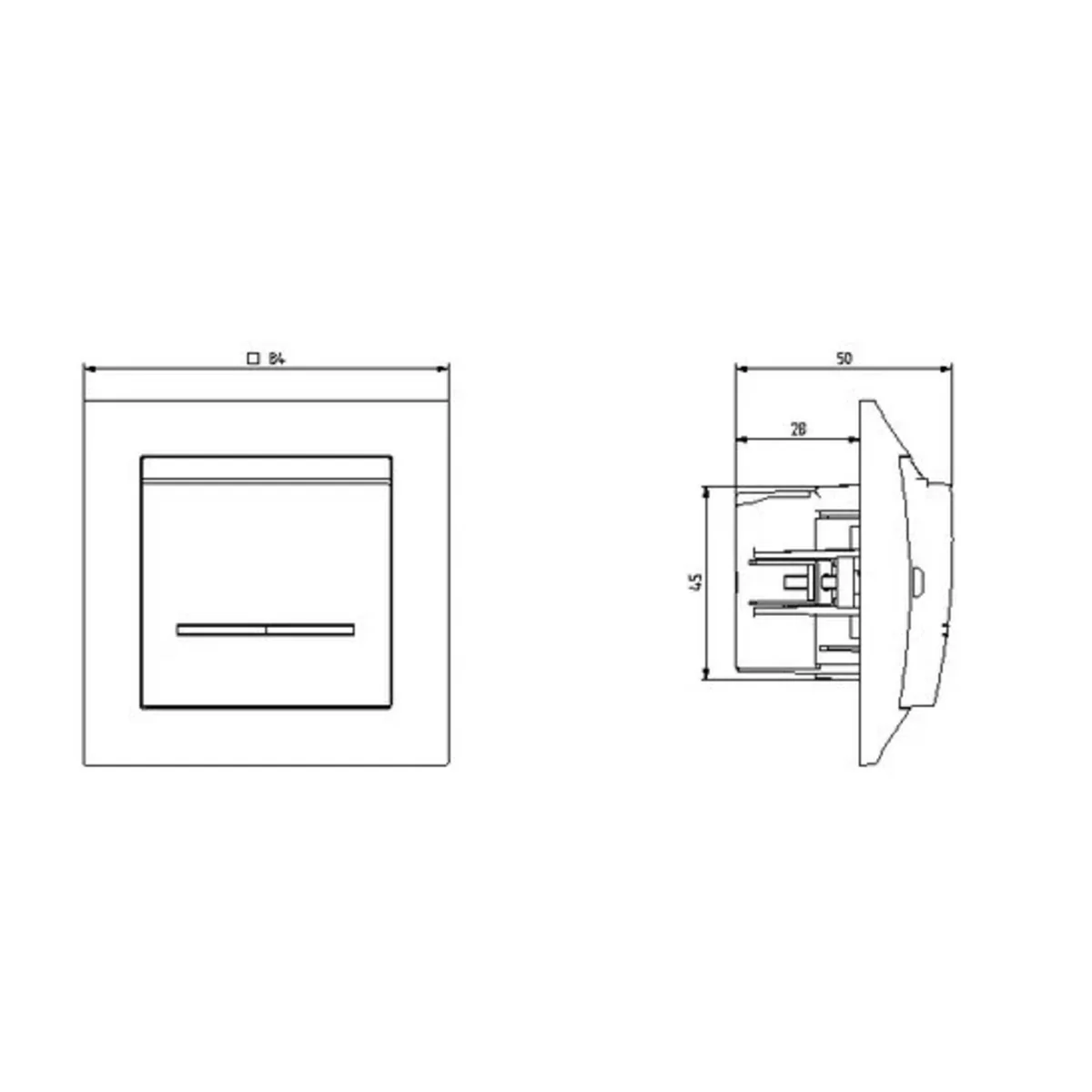

Technical data
-
Depth [mm]50
-
ColorBeige
-
MaterialPlastic
-
Rated voltage [V]230
-
Rated current [A]16
-
FamilyIMPRESSION
-
Width [mm]71
-
Height [mm]71
-
Accurate colorEcru
-
Mounting depth [mm]29
-
Terminal typeThreaded
-
Backlight typeLED
-
PKWIU27.33.11.0
-
Number of keyshotel card
-
ShapeSquare
-
Fixingclaws screws
-
Shutdown delay [s]3
-
TypeHotel
-
Level of securityIP20
-
TypeFlush-mounted
-
Surface protectionNatural
-
BacklightYes
-
load power [W]Incandescent: 3200 Induction, fluorescent: 750
-
For the frame systemYes
-
Backlight colorOrange
Other technical data
-
Wiring systemOff switch 1-pole
-
Assembly arrangementBasic element with complete housing
-
Push button switchNo
-
Mounting methodFlush-mounted
-
With mounting plateNo
-
Material qualityThermoplastic
-
Surface protectionUntreated
-
ColourWhite
-
Label space/information surfaceNo
-
Function lightingOrientation
-
Suitable for degree of protection (IP)IP20
-
Rated current16 A
-
Feedback-signal contactNo
-
Washing machine switchNo
-
Device height71 mm
-
Built-in depth29 mm
-
Method of operationHotel card
-
Number of modules (module system)1
-
Number of rockers0
-
Type of fasteningMounting with claw and screw
-
MaterialPlastic
-
Halogen freeYes
-
Surface finishingGlossy
-
RAL-number (similar)1013
-
IlluminationYes
-
Type of lightingGlow lamp
-
Nominal voltage230 V
-
Switching current for fluorescent lamps10 AX
-
Connection typePush-in clamp
-
Device width71 mm
-
Device depth50 mm
Bulk packaging
| A kind of package | Pudełko |
| Quantity | 5 pcs. |
| Width (m) | 0,162 |
| Length (m) | 0,237 |
| Depth (m) | 0,090 |
