IMPRESJA Gold metallic two-group connector without a frame ŁP-2Y/M/28

Indice locale:
MMT064OSPE
Numero di catalogo:
ŁP-2Y/M/28
Codice EAN:
5907577440091
Produttore: OSPEL
Depth [mm]: 40
Number of keys: 2
Color: Golden
Prezzo:
36,44 zł
gross / pezzi
(inclusa IVA 23%)
fino a 2 settimane
Su ordinazione
Quantità pezzi
(multiplo:
1
)
Aggiungi alla richiesta di preventivo
Aggiungi agli appunti
Stampa

Descrizione del prodotto

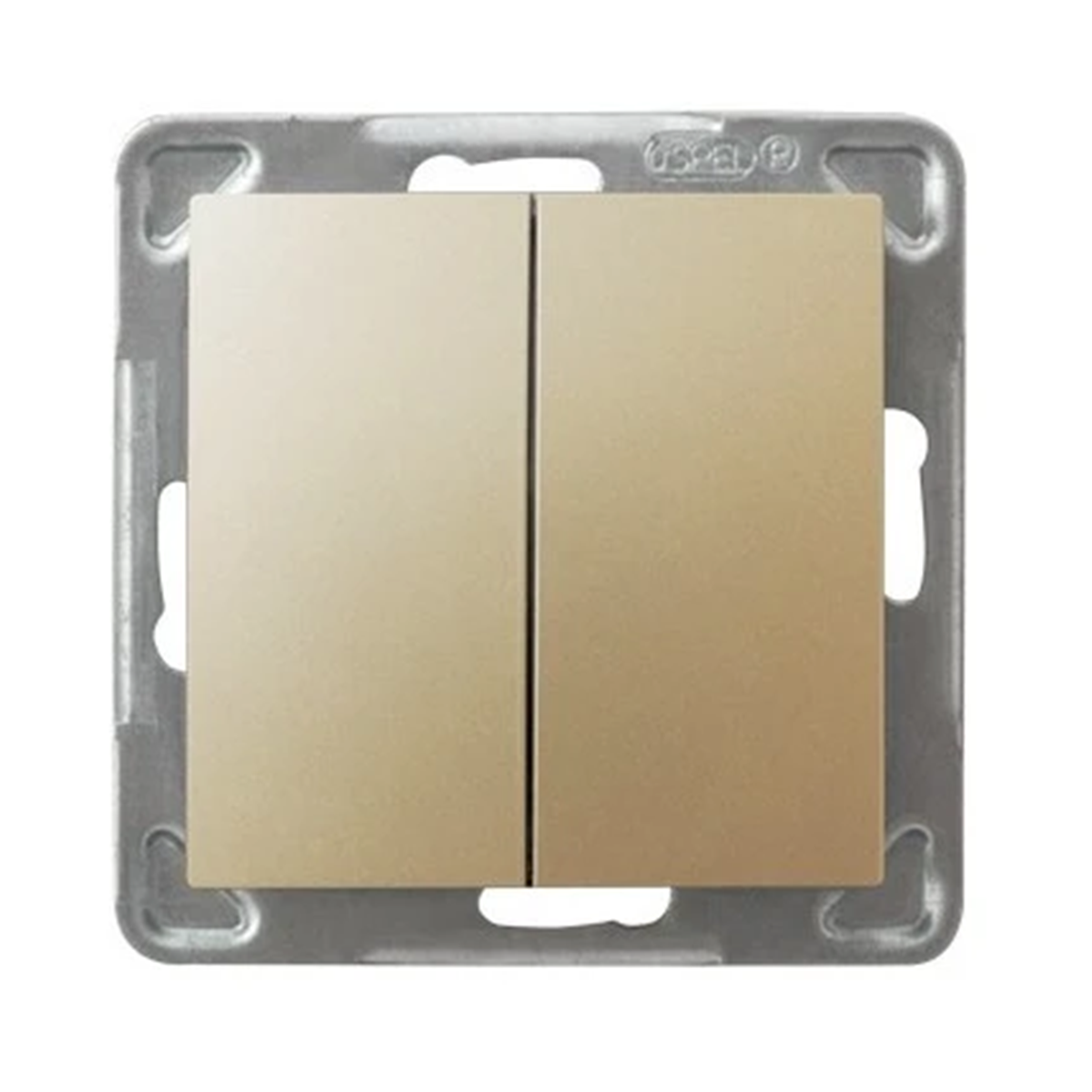

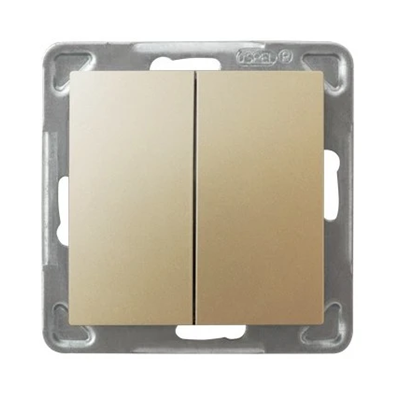

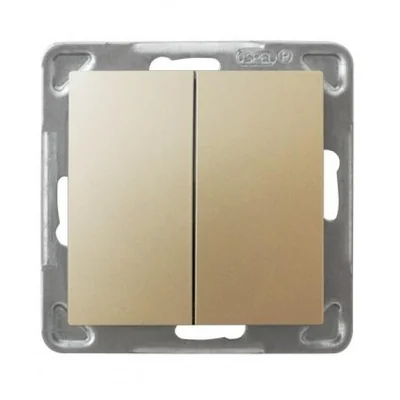

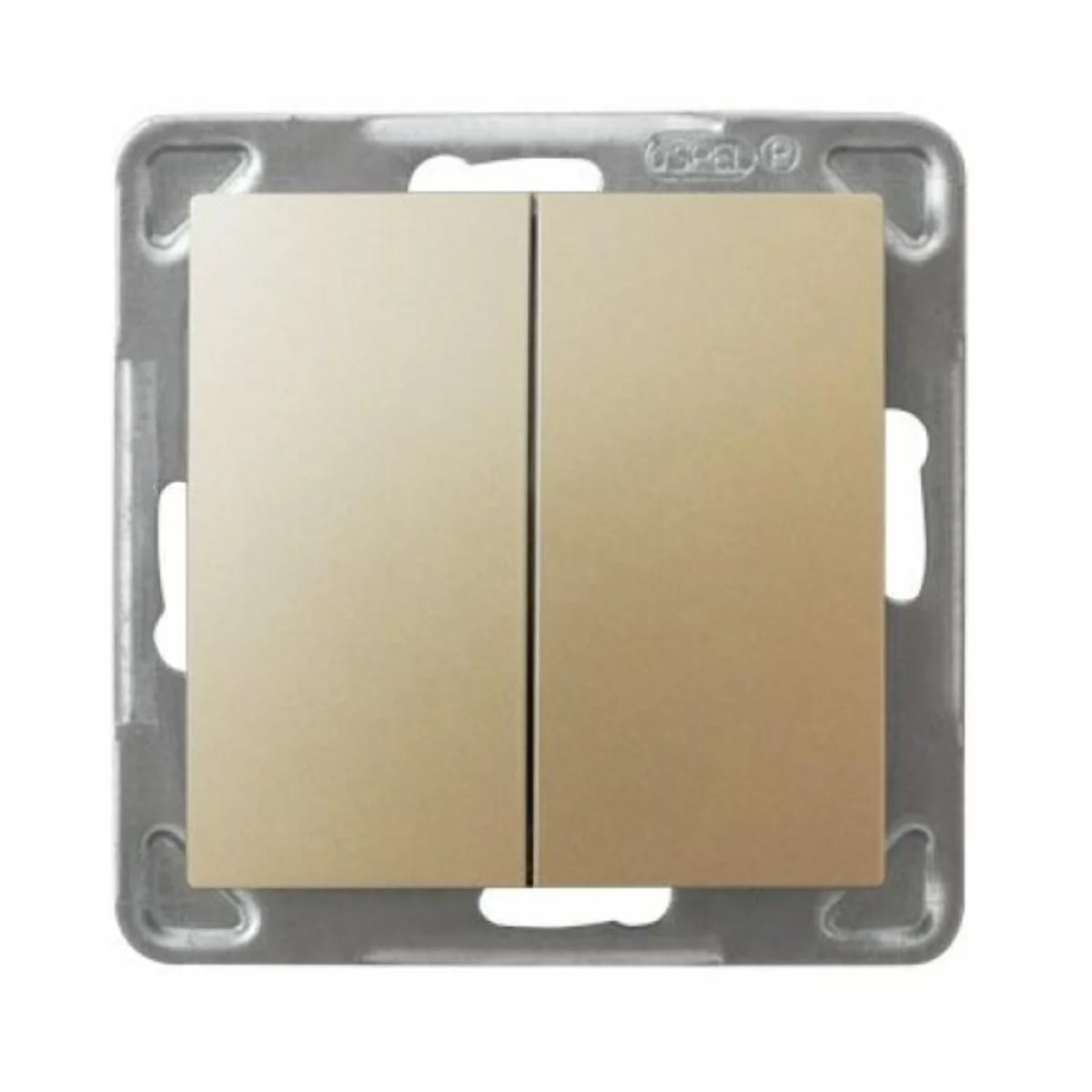

Candlestick connector from the Impression series, from Ospel. The product catalog number is ŁP-2Y/M/28.



FEATURES

  • Two-group.
  • Module without frame.
  • Threadless terminals.
  • Color < strong>gold metallic.
  • Rated current 16AX.
  • Rated voltage 230V.
  • Flush mounting.
  • Ingress protection IP20.
  • Dimensions: 71 x 71 mm (height x width ).



SERIES DESCRIPTION

The Impression series is characterized by discreet elegance, unobtrusive shapes and sophisticated design. It gives many arrangement possibilities due to the rich colors.

The Impression collection combines functionality important for electrical equipment with an elegant, slightly convex line based on a square. A wide selection of colors allows you to match the accessories to both modern, almost ascetic arrangements, industrial decor, as well as to a classic, richly decorated interior. The combination of an interesting line with complementary colors on the one hand makes the accessories a neutral element of the interior, and on the other hand makes it a strong, arrangement detail.

Dati tecnici

  • Depth [mm]
    40
  • Color
    Golden
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    16
  • Family
    IMPRESSION
  • Width [mm]
    71
  • Height [mm]
    71
  • Accurate color
    Golden metallic
  • Mounting depth [mm]
    23
  • For the frame system
    Yes
  • PKWIU
    27.33.11.0
  • Number of keys
    2
  • Shape
    Square
  • Fixing
    claws screws
  • Rated voltage [V]
    230
  • Type
    Candlestick
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Surface protection
    varnishing
  • Backlight
    NO
  • Terminal type
    Threadless
  • Exact material
    Plastic Metal

Altri dati tecnici

  • Wiring system
    Off switch 2x1-pole
  • Assembly arrangement
    Basic element with complete housing
  • Push button switch
    No
  • Mounting method
    Flush-mounted
  • With mounting plate
    No
  • Material quality
    Thermoplastic
  • Surface protection
    Lacquered
  • Colour
    Gold
  • Label space/information surface
    No
  • Suitable for degree of protection (IP)
    IP20
  • Rated current
    16 A
  • Feedback-signal contact
    No
  • Washing machine switch
    No
  • Device height
    71 mm
  • Built-in depth
    23 mm
  • Method of operation
    Rocker/button
  • Number of modules (module system)
    1
  • Number of rockers
    2
  • Type of fastening
    Mounting with claw and screw
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • RAL-number (similar)
    1036
  • Illumination
    No
  • Nominal voltage
    250 V
  • Switching current for fluorescent lamps
    16 AX
  • Connection type
    Push-in clamp
  • Device width
    71 mm
  • Device depth
    40 mm

Dettagli del produttore

  • Produttore
    OSPEL S.A.
  • Indirizzo
    42-436 Wierbka Główna 128 Polska

Imballaggio sfuso

Una specie di pacchetto Pudełko
Quantità 4 pezzi
Larghezza (m) 0,140
Lunghezza (m) 0,162
Profondità (m) 0,090
