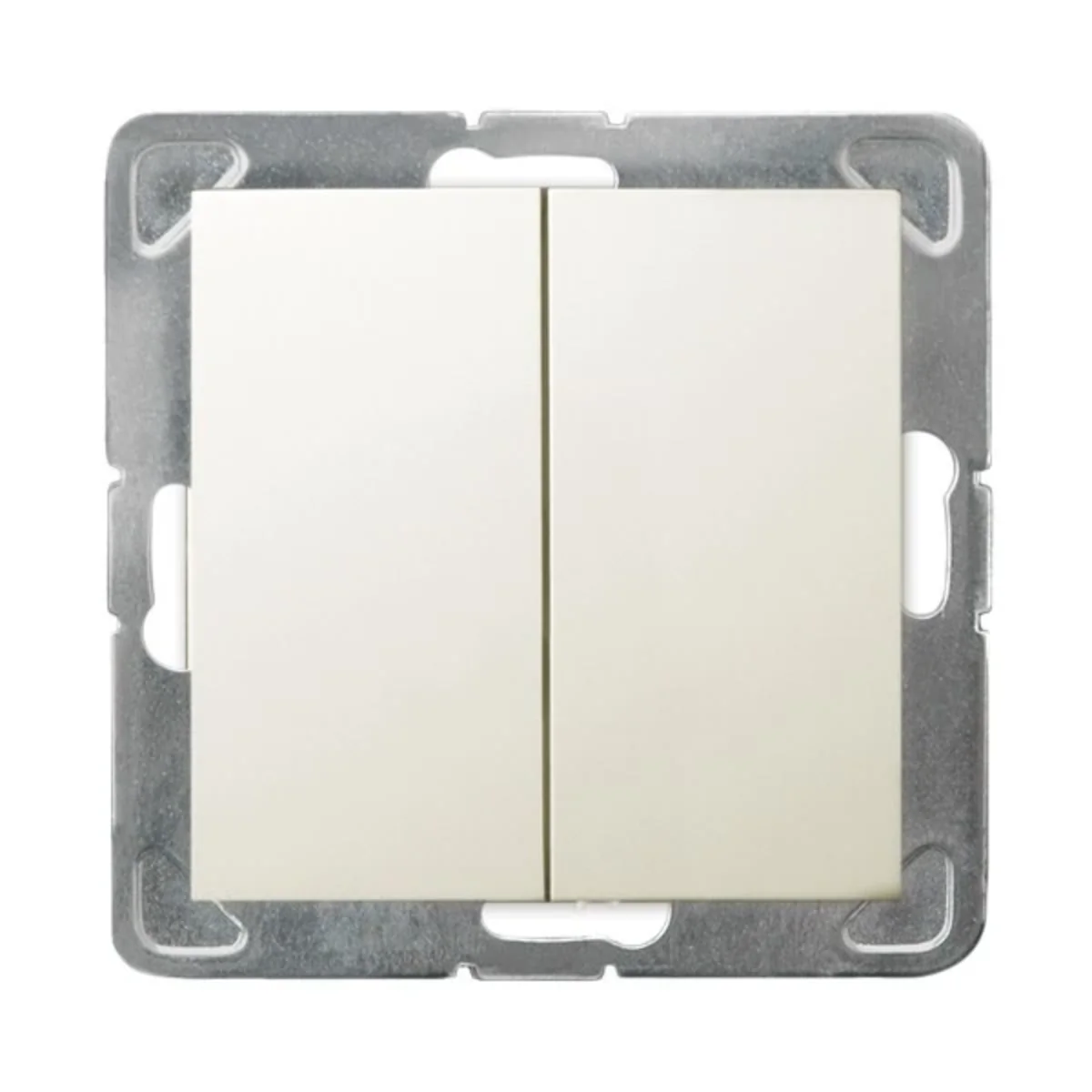

IMPRESJA Ecru two-group connector, without a frame ŁP-2Y/M/27

local index:
MMT072OSPE
Catalog No:
ŁP-2Y/M/27
EAN code:
5907577438050
Manufacturer: OSPEL
Depth [mm]: 40
Number of keys: 2
Color: Beige
Price:
5,50 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Candlestick connector from the Impression series, from Ospel. The product catalog number is ŁP-2Y/M/27.



FEATURES

  • Two-group.
  • Module without frame.
  • Threadless terminals.
  • Color < strong>ecru.
  • Rated current 16AX.
  • Rated voltage 230V.
  • < li>flush mounting.
  • Rating IP20.

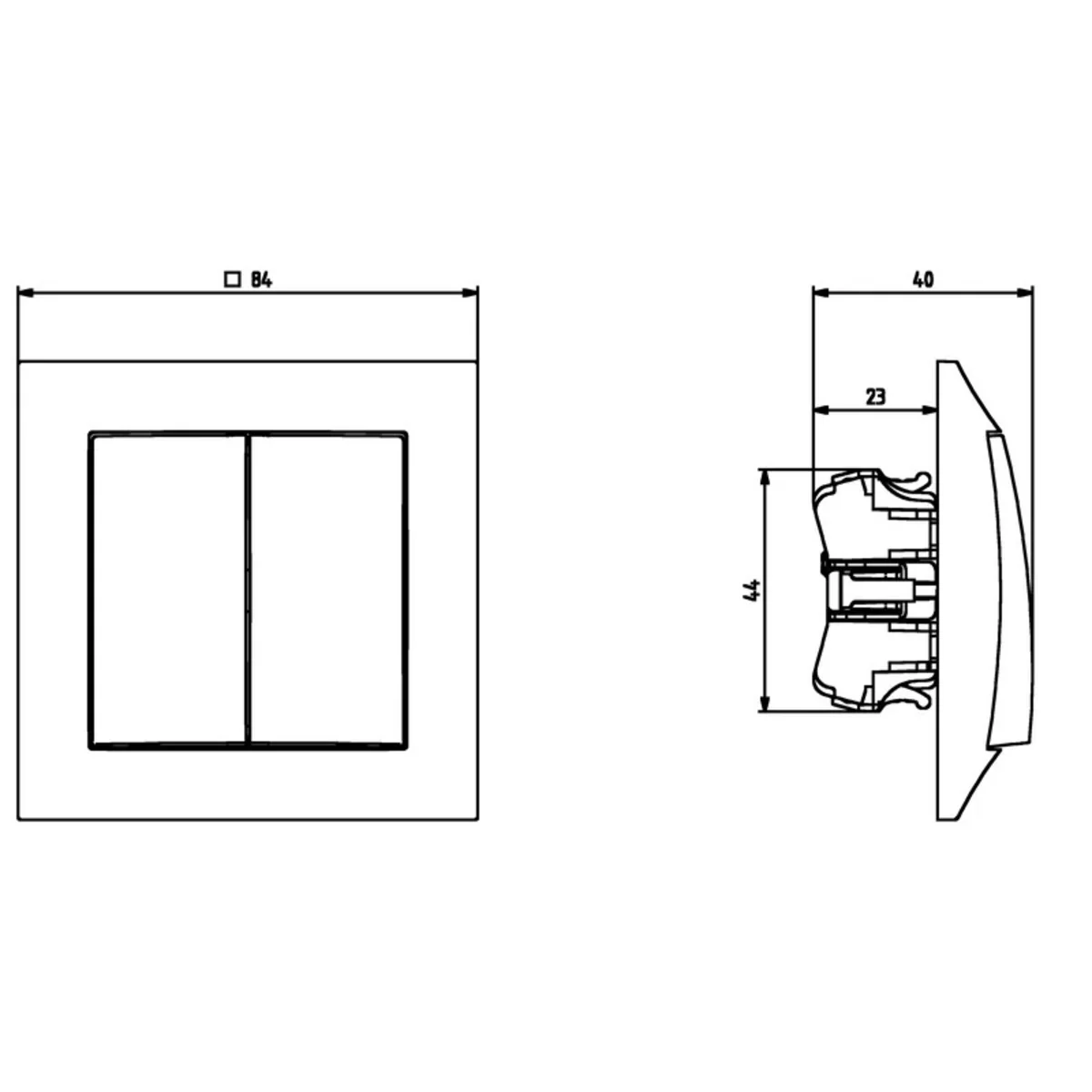

  • Dimensions: 71 x 71 mm (height x width) .



SERIES DESCRIPTION

The Impression series is characterized by discreet elegance, unobtrusive shapes and sophisticated design . It gives many arrangement possibilities due to the rich colors.

The Impression collection combines functionality important for electrical equipment with an elegant, slightly convex line based on a square. A wide selection of colors allows you to match the accessories to both modern, almost ascetic arrangements, industrial decor, as well as to a classic, richly decorated interior. The combination of an interesting line with complementary colors on the one hand makes the accessories a neutral element of the interior, and on the other hand makes it a strong, arrangement detail.

Technical data

  • Depth [mm]
    40
  • Color
    Beige
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    16
  • Family
    IMPRESSION
  • Width [mm]
    71
  • Height [mm]
    71
  • Accurate color
    Ecru
  • Mounting depth [mm]
    23
  • For the frame system
    Yes
  • PKWIU
    27.33.11.0
  • Number of keys
    2
  • Shape
    Square
  • Fixing
    claws screws
  • Rated voltage [V]
    230
  • Type
    Candlestick
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Surface protection
    Natural
  • Backlight
    NO
  • Terminal type
    Threadless
  • Exact material
    Plastic Metal

Other technical data

  • Wiring system
    Off switch 2x1-pole
  • Assembly arrangement
    Basic element with complete housing
  • Push button switch
    No
  • Mounting method
    Flush-mounted
  • With mounting plate
    No
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Colour
    White
  • Label space/information surface
    No
  • Suitable for degree of protection (IP)
    IP20
  • Rated current
    16 A
  • Feedback-signal contact
    No
  • Washing machine switch
    No
  • Device height
    71 mm
  • Built-in depth
    23 mm
  • Method of operation
    Rocker/button
  • Number of modules (module system)
    1
  • Number of rockers
    2
  • Type of fastening
    Mounting with claw and screw
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • RAL-number (similar)
    1013
  • Illumination
    No
  • Nominal voltage
    250 V
  • Switching current for fluorescent lamps
    16 AX
  • Connection type
    Push-in clamp
  • Device width
    71 mm
  • Device depth
    40 mm

Bulk packaging

A kind of package Pudełko
Quantity 10 pcs.
Width (m) 0,162
Length (m) 0,237
Depth (m) 0,090
