IMPRESJA Double titanium speaker terminal GG-2Y/M/23

Místní index:
MEG052OSPE
Katalogové číslo.:
GG-2Y/M/23
EAN kód:
5907577439262
Výrobce: OSPEL
Depth [mm]: 41
Number of sockets: 2
Color: Silver
Cena:
57,86 zł
gross / kusů.
(včetně DPH 23%)
do 2 týdnů
Na zakázku
Množství kusů.
(vícenásobné:
1
)
Přidat do žádosti o cenovou nabídku
Přidat do schránky
Vytisknout

Popis produktu

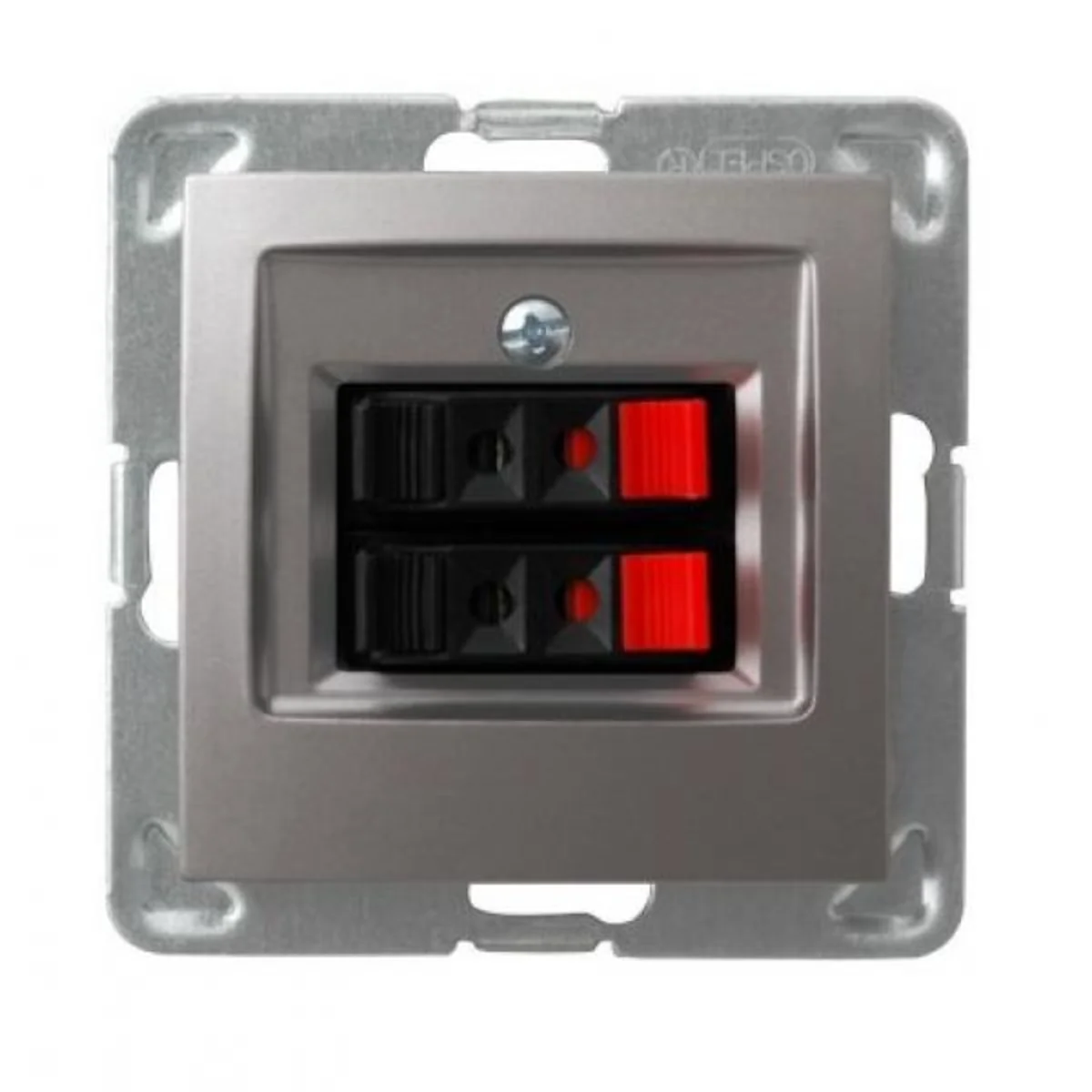

Speaker socket from the Impression series, from Ospel. The product catalog number is GG-2Y/M/23.



FEATURES

  • Double ;jne.
  • Borderless module.
  • Color titanium.
  • Mounting flush.
  • Wire connectivity 0.75 mm2.



SERIES DESCRIPTION

The Impression series is characterized by discreet elegance, unobtrusive shapes and sophisticated design. A wide selection of colors allows you to match the accessories to a modern, almost ascetic arrangement, industrial decor, as well as to a classic, richly decorated interior. Speaker socket has all the features of this unique series.

Technické údaje

  • Depth [mm]
    41
  • Color
    Silver
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Family
    IMPRESSION
  • Width [mm]
    71
  • Height [mm]
    71
  • Accurate color
    Titanium
  • Mounting depth [mm]
    21
  • Variant
    Pin-type plugs
  • Exact material
    Plastic Metal
  • Number of sockets
    2
  • Shape
    Square
  • Fixing
    claws screws
  • Type
    speaker
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Surface protection
    varnishing
  • Backlight
    NO
  • Terminal type
    For soldering
  • For the frame system
    Yes
  • PKWIU
    26.40.52.0

Další technické údaje

  • Surface mounting
    No
  • Floor box/subfloor mounted
    No
  • Assembly arrangement
    Basic element with housing top
  • With buses/couplings
    Yes
  • Category
    Other
  • RAL-number
    7048
  • Shielded buses
    No
  • Separate earthing connection
    No
  • Compatible with third-party covers
    No
  • Mounting method shielding connection
    None
  • With dust cover
    No
  • Mechanical coding
    No
  • Device width
    71 mm
  • Device depth
    41 mm
  • Duct installation
    No
  • Type of fastening
    Screwing
  • Type of connector
    Other
  • Suitable for number of connectors
    2
  • Colour
    Titanium
  • Connection type
    Other
  • Shielded housing
    No
  • With label space
    No
  • Separate strain relief
    No
  • Outlet direction
    Straight
  • Degree of protection (IP)
    IP20
  • Colour coding
    No
  • Device height
    71 mm

Podrobnosti o výrobci

Velkoobjemová balení

Typ obalu Pudełko
Množství 4 kusů.
Šířka (m) 0,710
Délka (m) 0,710
Hloubka (m) 0,210
