IMPRESJA Double socket with earthing, white GP-2YRZ/M/00
local index:
MEE673OSPE
Catalog No:
GP-2YRZ/M/00
EAN code:
5907577437206
Price:
5,01 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

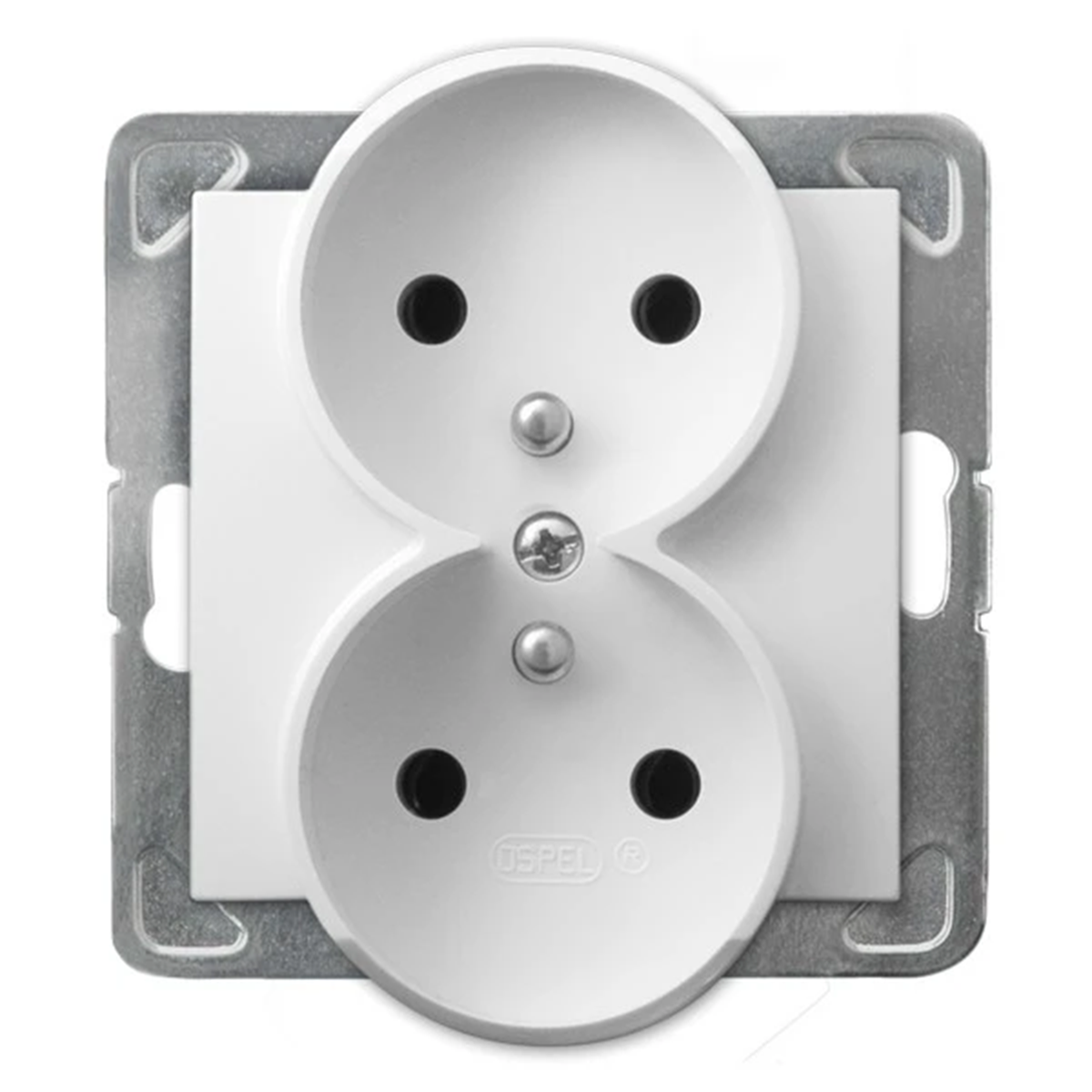

Electric socket from the Impression series, from the manufacturer Ospel. The product part number is GP-2YRZ/M/00.
FEATURES
- Double.
- Earth; ground pin.
- Thread terminals.
- Module without frame; for frames from the Standard line.
- Color white.
- Rated current 16A.
- Rated voltage 230V.
- flush mounting.
- Rating IP20. < /ul>
Technical data
-
Depth [mm]45
-
ColorWhite
-
MaterialPlastic
-
InstallationFlush-mounted
-
Rated current [A]16
-
FamilyIMPRESSION
-
Width [mm]71
-
GroundHurt
-
Surface protectionNatural
-
Mounting depth [mm]27
-
StandardEuropean
-
On the DATA keyNO
-
Exact materialPlastic Metal
-
Number of sockets2
-
ShapeSquare
-
Fixingclaws screws
-
Rated voltage [V]230
-
TypeElectric
-
Level of securityIP20
-
TypeFlush-mounted
-
Height [mm]71
-
BacklightNO
-
Terminal typeThreaded
-
Shutters of current pathsNO
-
For the frame systemYes
-
PKWIU27.33.13.0
Other technical data
-
ModelMulti-standard socket
-
Okrągły styk ochronnyNo
-
Number of active contacts (flat)0
-
With built-in USB power supplyNo
-
Number of modules (module system)1
-
Connection typeScrewed terminal
-
With enhanced contact protectionNo
-
ColourWhite
-
TransparentNo
-
Eject-mechanismNo
-
With function lightingNo
-
Over voltage protectionNo
-
With miniature fuseNo
-
Mounting methodFlush-mounted
-
MaterialPlastic
-
Halogen freeYes
-
Surface finishingGlossy
-
With on/off switchNo
-
Rotated central insertNo
-
Nominal voltage250 V
-
Rated fault current0 mA
-
Impact strengthIK03
-
Device height71 mm
-
Min. depth of built-in installation box60 mm
-
Protective contactYes
-
Number of active contacts (round)2
-
With signal lampNo
-
Number of units2
-
Number of socket outlets switchable0
-
With hinged lidNo
-
Label space/information surfaceNo
-
RAL-number (similar)9003
-
LockableNo
-
Insulated mountingNo
-
With orientation lightingNo
-
Fault current protectionNo
-
Special power supplyNo special power supply
-
Type of fasteningMounting with claw and screw
-
Material qualityThermoplastic
-
Surface protectionUntreated
-
Anti-bacterial treatmentNo
-
With loop through functionNo
-
Nominal current16 A
-
Frequency0 ... 0 Hz
-
Suitable for degree of protection (IP)IP20
-
Device width71 mm
-
Device depth45 mm
Manufacturer details
-
ManufacturerOSPEL S.A.
-
Address42-436 PILICA Wierbka, ul. Główna 128
-
Phone number
-
E-mail
-
Tax identification number6490010864
-
GLN5909002028034
Bulk packaging
| A kind of package | Pudełko |
| Quantity | 10 pcs. |
| Width (m) | 0,162 |
| Length (m) | 0,290 |
| Depth (m) | 0,090 |
