IMPRESJA Double ecru loudspeaker socket GG-2Y/M/27
local index:
MEG053OSPE
Catalog No:
GG-2Y/M/27
EAN code:
5907577438647
Price:
11,23 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

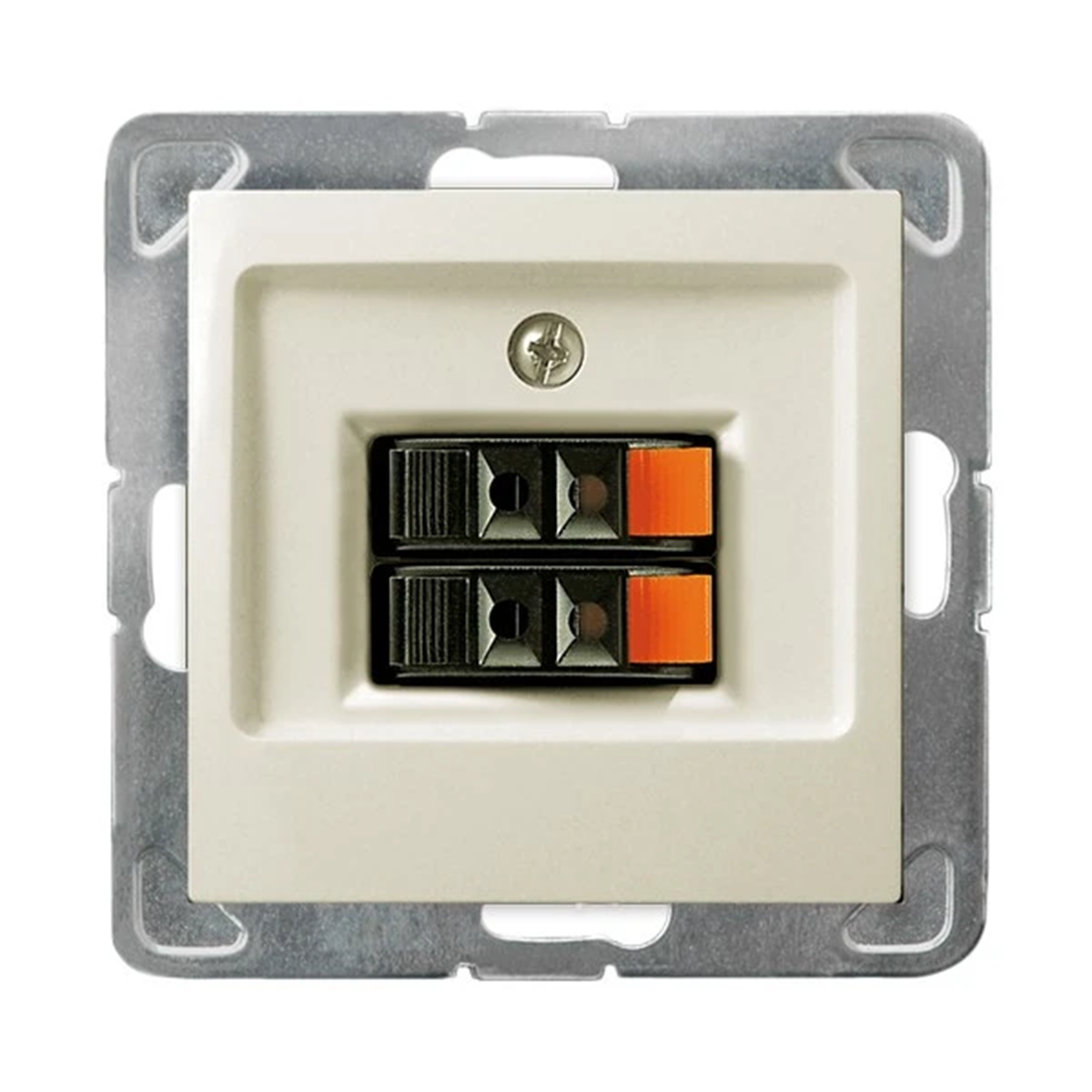

Speaker socket from the Impression series, from Ospel. The product catalog number is GG-2Y/M/27.
FEATURES
- Double ;jne.
- Module without frame.
- Color ecru.
- Mounting flush.
- Wire connectivity 0.75 mm2.
SERIES DESCRIPTION
The Impression series is characterized by discreet elegance, unobtrusive shapes and sophisticated design. A wide selection of colors allows you to match the accessories to a modern, almost ascetic arrangement, industrial decor, as well as to a classic, richly decorated interior. Speaker socket has all the features of this unique series.
Technical data
-
Depth [mm]41
-
ColorBeige
-
MaterialPlastic
-
InstallationFlush-mounted
-
FamilyIMPRESSION
-
Width [mm]71
-
Height [mm]71
-
Accurate colorEcru
-
Mounting depth [mm]21
-
VariantPin-type plugs
-
Exact materialPlastic Metal
-
Number of sockets2
-
ShapeSquare
-
Fixingclaws screws
-
Typespeaker
-
Level of securityIP20
-
TypeFlush-mounted
-
Surface protectionNatural
-
BacklightNO
-
Terminal typeFor soldering
-
For the frame systemYes
-
PKWIU26.40.52.0
Other technical data
-
Surface mountingNo
-
Floor box/subfloor mountedNo
-
Assembly arrangementBasic element with housing top
-
With buses/couplingsYes
-
CategoryOther
-
RAL-number1013
-
Shielded busesNo
-
Separate earthing connectionNo
-
Compatible with third-party coversNo
-
Mounting method shielding connectionNone
-
With dust coverNo
-
Mechanical codingNo
-
Device width71 mm
-
Device depth41 mm
-
Duct installationNo
-
Type of fasteningScrewing
-
Type of connectorOther
-
Suitable for number of connectors2
-
ColourWhite
-
Connection typeOther
-
Shielded housingNo
-
With label spaceNo
-
Separate strain reliefNo
-
Outlet directionStraight
-
Degree of protection (IP)IP20
-
Colour codingNo
-
Device height71 mm
Manufacturer details
-
ManufacturerOSPEL S.A.
-
Address42-436 PILICA Wierbka, ul. Główna 128
-
Phone number
-
E-mail
-
Tax identification number6490010864
-
GLN5909002028034
Bulk packaging
| A kind of package | Pudełko |
| Quantity | 10 pcs. |
| Width (m) | 0,162 |
| Length (m) | 0,290 |
| Depth (m) | 0,090 |
