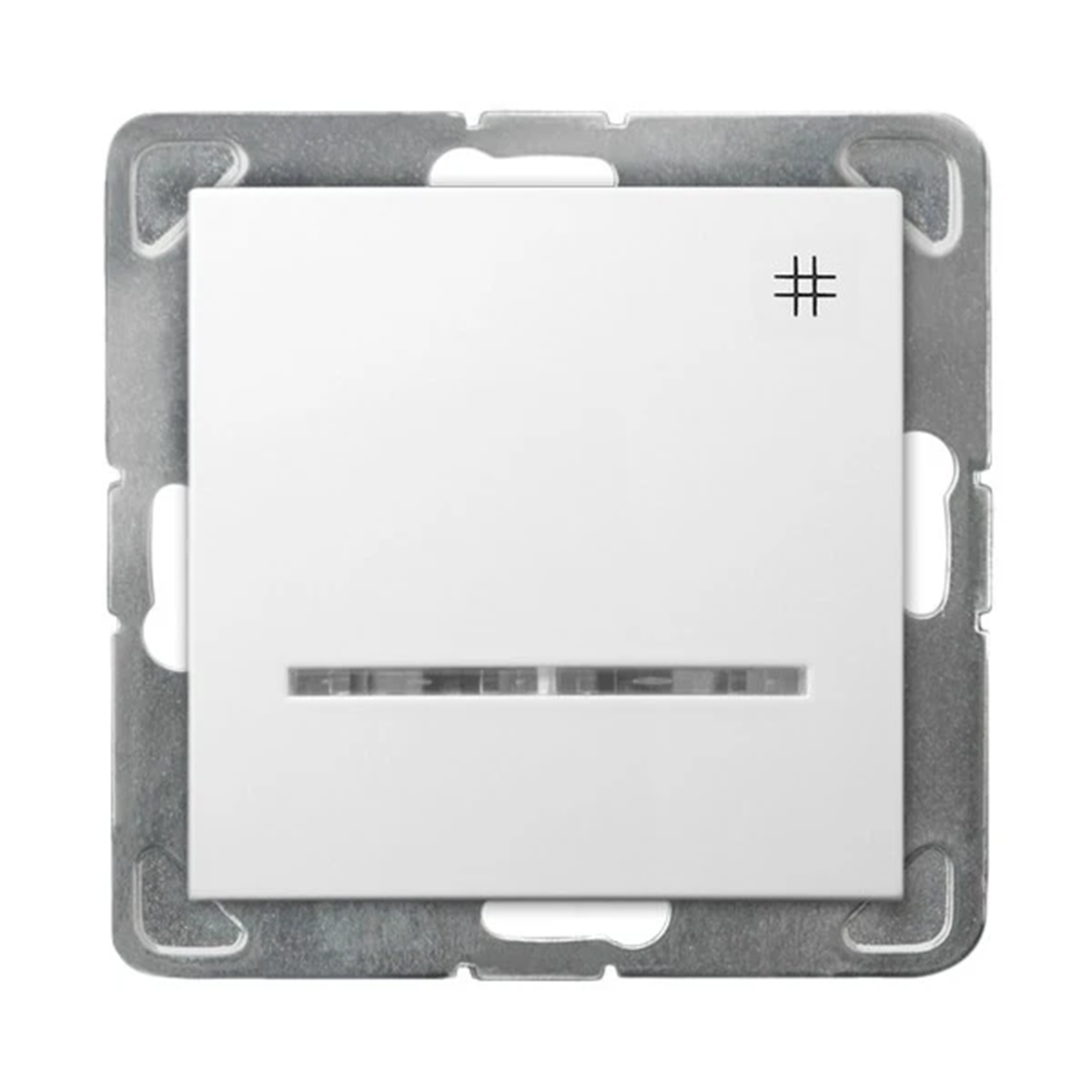

IMPRESJA Cross connector with backlight white, without frame ŁP-4YS/M/00

Name: IMPRESJA Cross connector with backlight white, without frame
Brand: OSPEL
SKU: MMK061OSPE
Price: 8.76 PLN

Indeks lokalny:

MMK061OSPE

Nr katalogowy:

ŁP-4YS/M/00

Kod EAN:

5907577436544

IMPRESJA Cross connector with backlight white, without frame

Kliknij zdjęcie, aby powiększyć

Producent: OSPEL

Depth [mm]: 40

Number of keys: 1

Color: White

Zobacz cały opis

Cena:

8,76 €

gross / szt.

(w tym VAT 23%)

Dostawa do 3h

do 2 tygodni (dni robocze)

Odbiór za 1h

Ilość szt.

(wielokrotność:

1

)

Dodaj do schowka

Drukuj

Zapytaj o produkt

Opis produktu Dane techniczne Dane producenta Opakowania zbiorcze

Opis produktu

An illuminated cross connector from the Impression series, from Ospel. The product catalog number is ŁP-4YS/M/00.

SERIES DESCRIPTION

Wide range of available colorsó ;w is the main asset of the elegant collection Impression. The cross connector characterizes the features of this unique series.

Dane techniczne

Depth [mm]

40
Color

White
Material

Plastic
Installation

Flush-mounted
Rated current [A]

16
Family

IMPRESSION
Width [mm]

71
Height [mm]

71
Backlight

Yes
Terminal type

Threadless
Exact material

Plastic Metal
Backlight color

Orange

Number of keys

1
Shape

Square
Fixing

claws screws
Rated voltage [V]

230
Type

Cross
Level of security

IP20
Type

Flush-mounted
Surface protection

Natural
Mounting depth [mm]

23
For the frame system

Yes
Backlight type

LTS lamp
PKWIU

27.33.11.0

Pozostałe dane techniczne

Wiring system

Intermediate switch
Assembly arrangement

Basic element with complete housing
Push button switch

No
Mounting method

Flush-mounted
With mounting plate

No
Material quality

Thermoplastic
Surface protection

Untreated
Colour

White
Label space/information surface

No
Function lighting

Orientation
Suitable for degree of protection (IP)

IP20
Rated current

16 A
Feedback-signal contact

No
Washing machine switch

No
Device height

71 mm
Built-in depth

23 mm

Method of operation

Rocker/button
Number of modules (module system)

1
Number of rockers

1
Type of fastening

Mounting with claw and screw
Material

Plastic
Halogen free

Yes
Surface finishing

Glossy
RAL-number (similar)

9003
Illumination

Yes
Type of lighting

Glow lamp
Nominal voltage

250 V
Switching current for fluorescent lamps

16 AX
Connection type

Push-in clamp
Device width

71 mm
Device depth

40 mm

Dane producenta

Producent

OSPEL S.A.
Adres

42-436 Wierbka Główna 128 Polska
Email

ospel@ospel.com.pl

Opakowania zbiorcze

Rodzaj opakowania	Pudełko
Ilość	10 szt.
Szerokość (m)	0,162
Długość (m)	0,237
Głębokość (m)	0,090
