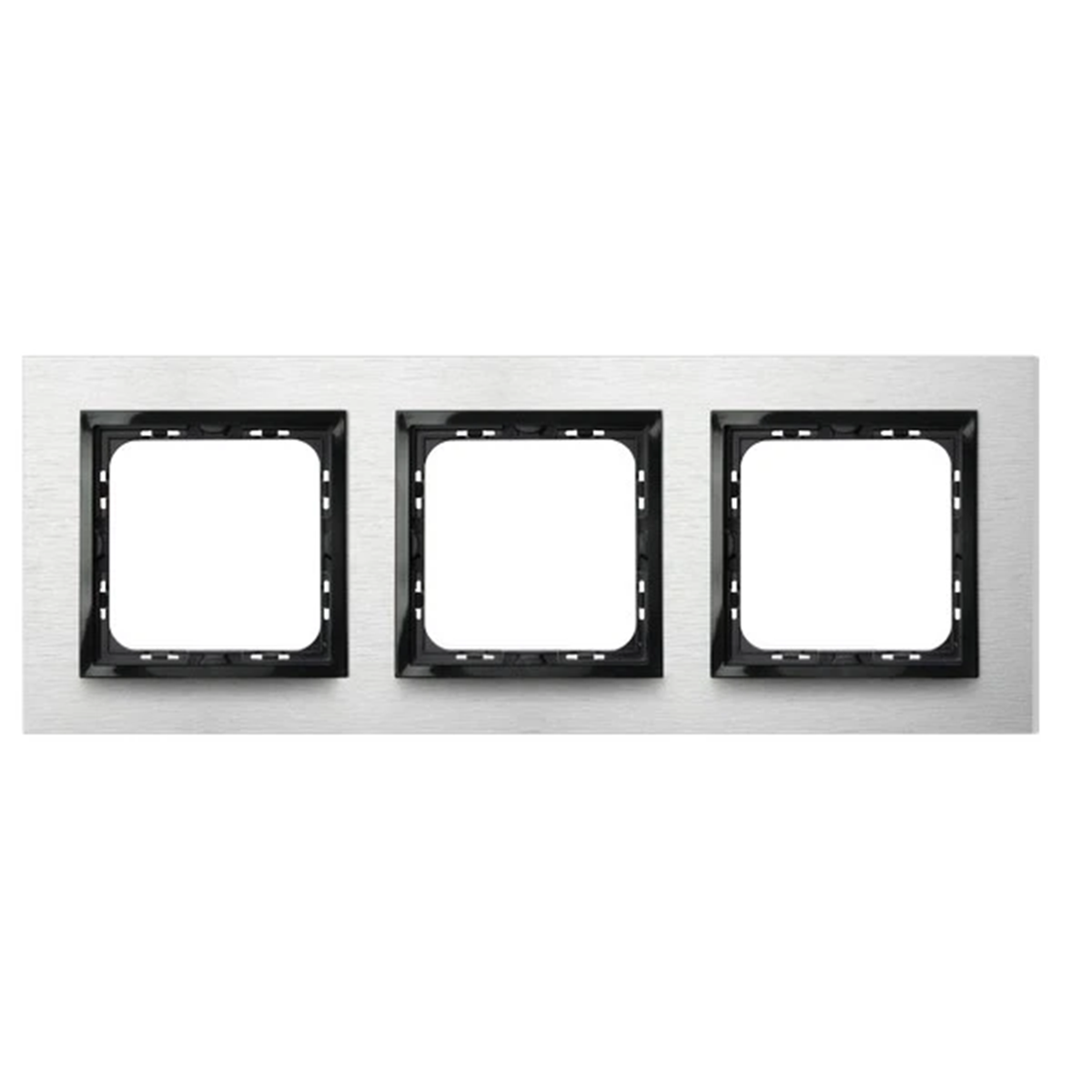

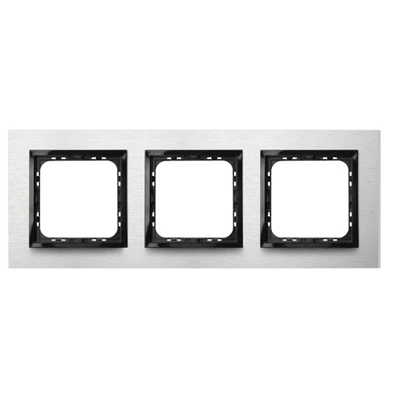

IMPRESJA Brushed aluminum triple frame R-3YAC/62/25

local index:
MAR223OSPE
Catalog No:
R-3YAC/62/25
EAN code:
5907577478148
Manufacturer: OSPEL
Depth [mm]: 11.5
Number of modules: 3
Color: Silver
Price:
41,36 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Triple frame from the Impression series, from Ospel. The product catalog number is R-3YAC/62/25.

  • Aluminium+PC 4mm thick.
  • Prestige series frame.
  • Only in IP-20 version.



SERIES DESCRIPTION

The wide range of available frame colors is mainly An important advantage of the elegant series Impression

Technical data

  • Depth [mm]
    11.5
  • Color
    Silver
  • Material
    Plastic Metal
  • Family
    IMPRESSION
  • Width [mm]
    234
  • Accurate color
    Brushed aluminum
  • For modular equipment
    Not applicable
  • The shape of the matching accessory
    Square, Rectangular
  • Number of modules
    3
  • Shape
    Rectangular
  • Type
    Standard + Intermediate
  • Level of security
    IP20
  • Height [mm]
    92
  • Mounting direction
    Universal
  • Exact material
    PC Aluminum
  • PKWIU
    27.33.13.0

Other technical data

  • Number of units
    3
  • Number of units horizontal
    3
  • Number of modules horizontal (module system)
    3
  • With mounting grid
    Yes
  • Suitable for wall duct
    No
  • Label space/information surface
    No
  • Material quality
    Aluminium
  • Surface protection
    Brushed
  • Colour
    Aluminium
  • Transparent
    No
  • Degree of protection (IP)
    IP20
  • Type of fastening
    Other
  • Height
    84 mm
  • Built-in width
    58 mm
  • Diameter bore hole (opening)
    60 mm
  • Mounting direction
    Horizontal and vertical
  • Number of units vertical
    3
  • Number of modules vertical (module system)
    3
  • Suitable for subfloor installation duct box
    No
  • Suitable for built-in installation
    No
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • RAL-number (similar)
    9022
  • With hinged lid
    No
  • Impact strength
    IK03
  • Width
    226 mm
  • Depth
    12 mm
  • Built-in height
    58 mm

Bulk packaging

A kind of package Pudełko
Quantity 5 pcs.
Width (m) 0,110
Length (m) 0,285
Depth (m) 0,105
