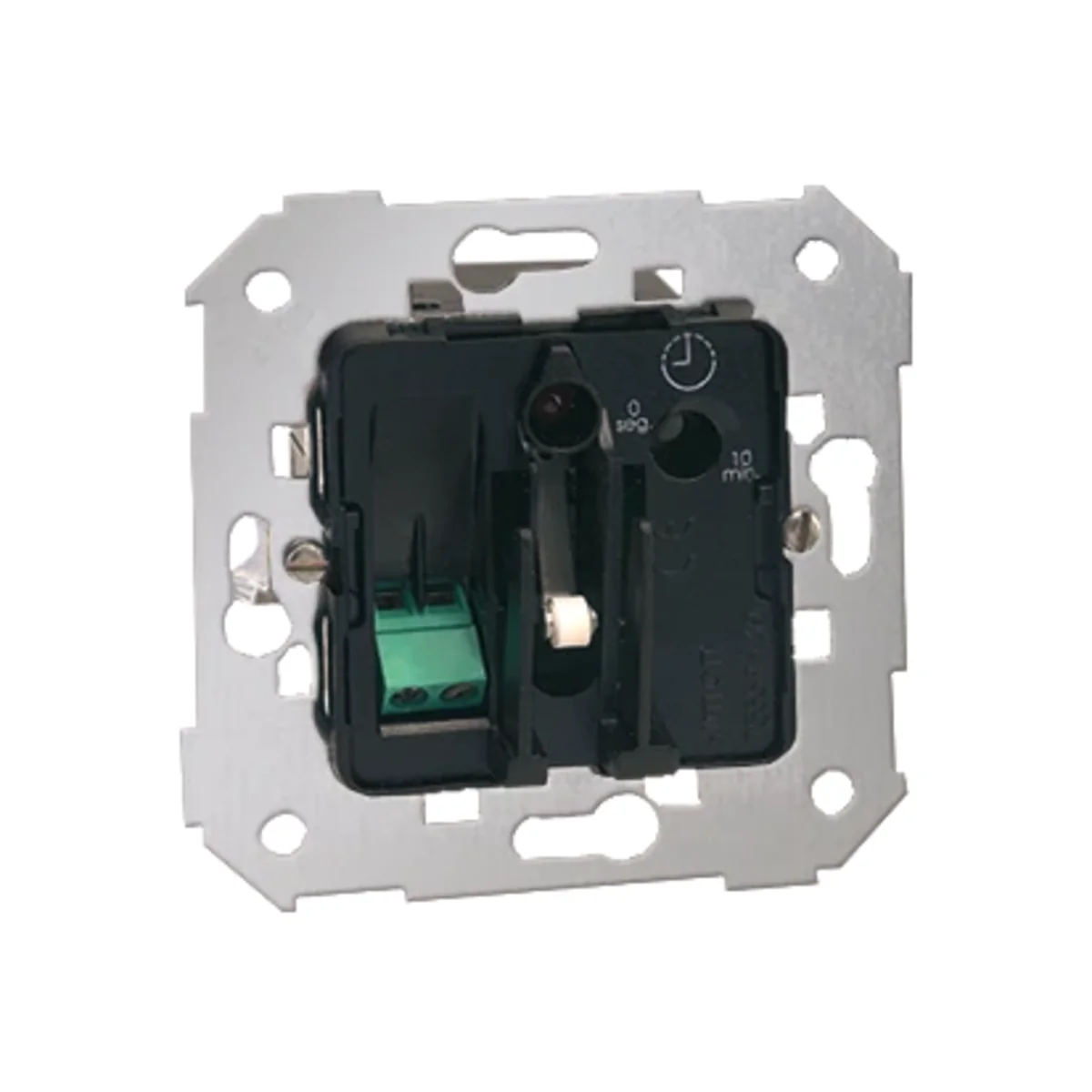

Hotel switch 1 microswitch 5A with time delay 75558-39
local index:
MPH001KONT
Catalog No:
75558-39
EAN code:
8421053058381
Price:
62,03 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Hotel connector from the Simon 82 series, from the manufacturer Contact Simon. Product part number is 75558-39.
FEATURES
- With built-in backlight.
- With adjustable 0.5 sec shutdown time. - 10 min.
- Connection type / Terminal type: plug, crimp (pincer terminal).
- Hotel card operation.
- 1-pole connector.
Technical data
-
Depth [mm]45
-
ShapeSquare
-
Fixingscrew
-
Rated voltage [V]230
-
TypeHotel
-
Level of securityIP20
-
TypeThe linkage mechanism
-
Surface protectionNatural
-
Mounting depth [mm]32
-
Backlight typeOrientation Smoldering lamp
-
PKWIU27.33.11.0
-
Number of keyshotel card
-
MaterialMetal
-
InstallationFlush-mounted
-
Rated current [A]5
-
FamilySimon 82
-
Width [mm]75
-
Height [mm]75
-
BacklightYes
-
For the frame systemYes
-
Backlight colorRed
Other technical data
-
Wiring systemOff switch 1-pole
-
Assembly arrangementBasic element
-
MaterialMetal
-
Suitable for degree of protection (IP)IP20
-
Method of operationHotel card
-
Mounting methodFlush-mounted
-
Surface protectionUntreated
-
Nominal voltage230 V
Bulk packaging
| A kind of package | Paczka | Karton | |
| Quantity | 1 pcs. | 1 pcs. | 1 pcs. |
| Weight (kg) | 0,090 | 0,090 | 0,090 |
| Width (m) | 0,075 | 0,081 | - |
| Length (m) | 0,075 | 0,044 | - |
| Depth (m) | 0,045 | 0,082 | - |
