High End loudspeaker socket 450502

local index:
MJG001BERK
Catalog No:
450502
EAN code:
4011334186564
Manufacturer: BERKER
Number of sockets: 1
Shape: square | Round
Material: Plastic | Metal
Price:
49,10 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print

Product description

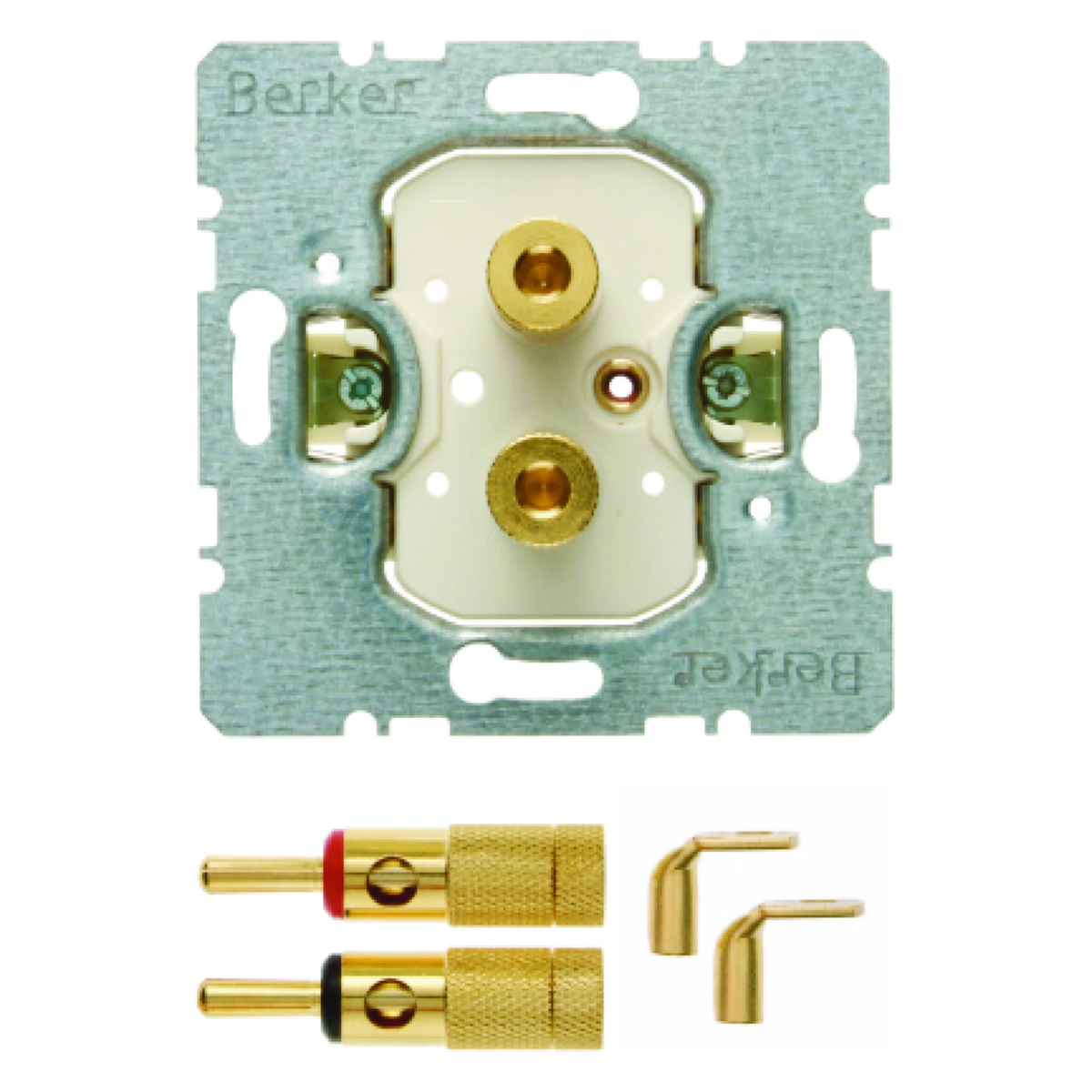

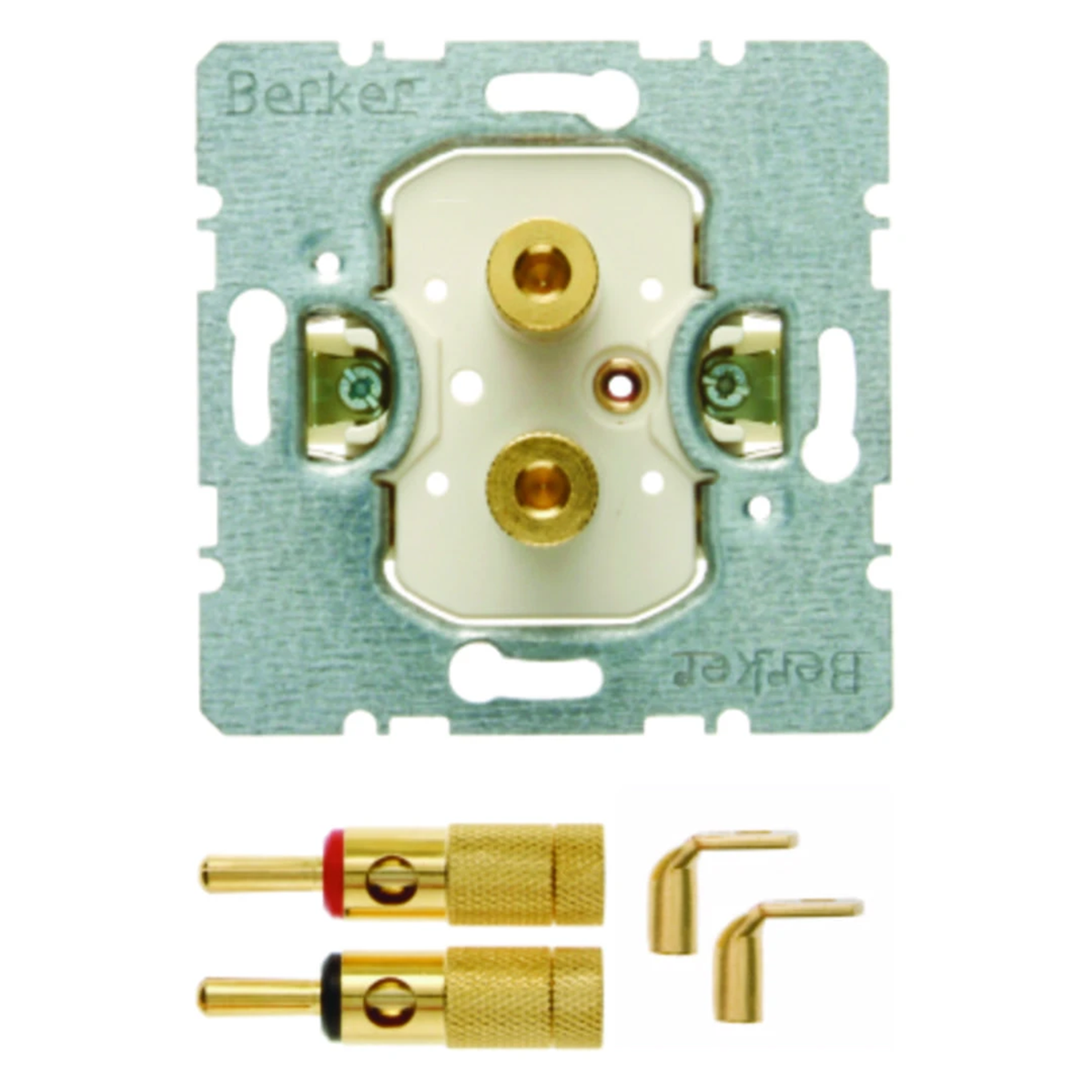

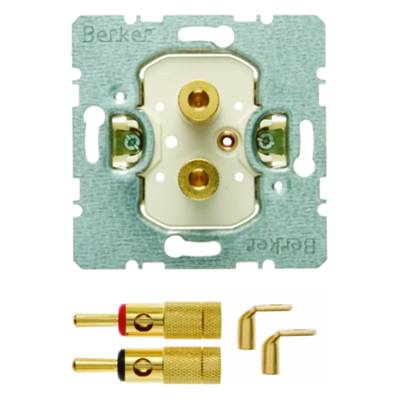

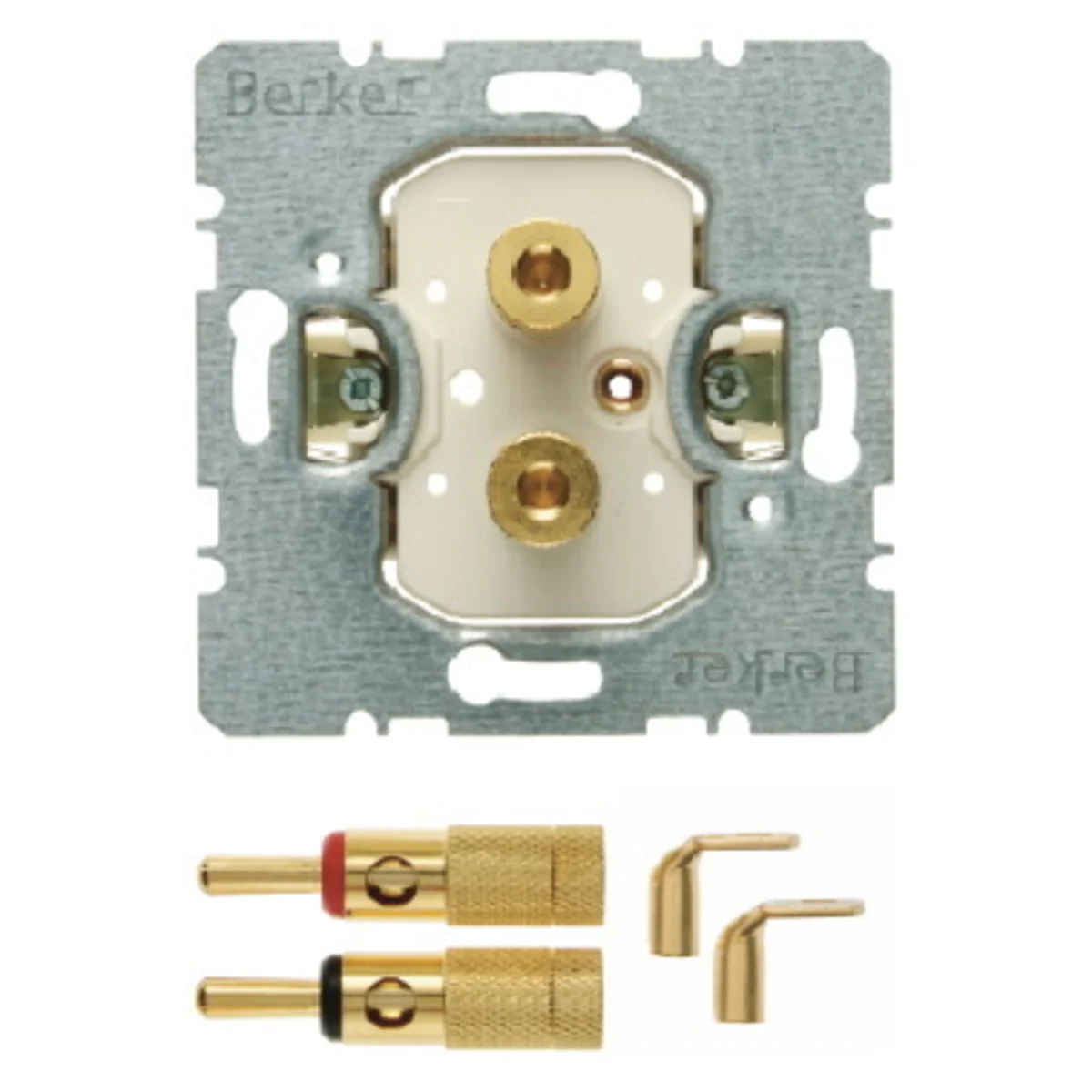

High End loudspeaker jack mechanism from the one.platform series, from Berker. The product part number is 450502.



FEATURES

  • Also suitable as low voltage plug connector
  • For order numbers 1184 00 0.., 1185 00 .., 1196 1.., 53 1197 8..
  • With 2 gold-plated metal banana plugs.
  • With 2 gold-plated metal banana plugs.
  • With 2 gold-plated metal cable lugs.
  • Banana sockets are also suitable for screw connection.
  • Plug transition resistance: < 0.15mΩ.
  • Terminal transition resistance: < 0.1 mΩ.
  • Socket and plug with red or black rating ring.

Technical data

  • Number of sockets
    1
  • Material
    Plastic Metal
  • Type
    speaker
  • Level of security
    IP20
  • Maximum conductor cross-section [mm²]
    10
  • Mounting depth [mm]
    31
  • For the frame system
    Yes
  • Shape
    square Round
  • Fixing
    With spreaders
  • Family
    ONE.PLATFORM
  • Type
    Socket mechanism
  • Backlight
    NO
  • Variant
    For banana plugs
  • PKWIU
    27.33.13.0

Manufacturer details

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 10 pcs. 40 pcs. 1280 pcs.
Weight (kg) 1,260 5,040 161,280
Width (m) 0,180 0,300 0,800
Length (m) 0,080 0,220 1,050
Depth (m) 0,250 0,400 1,200
