Hermetic stair switch without a white gasket 1591201B-030
Indice locale:
MMS004KONT
Numero di catalogo:
1591201B-030
Codice EAN:
5902787559335
Prezzo:
4,31 €
gross / pezzi
(inclusa IVA 23%)
Consegna in 3 ore
Raccolta in 1h
Quantità pezzi
(multiplo:
1
)
Aggiungi alla richiesta di preventivo
Stampa
Chiedi informazioni sul prodotto
Descrizione del prodotto

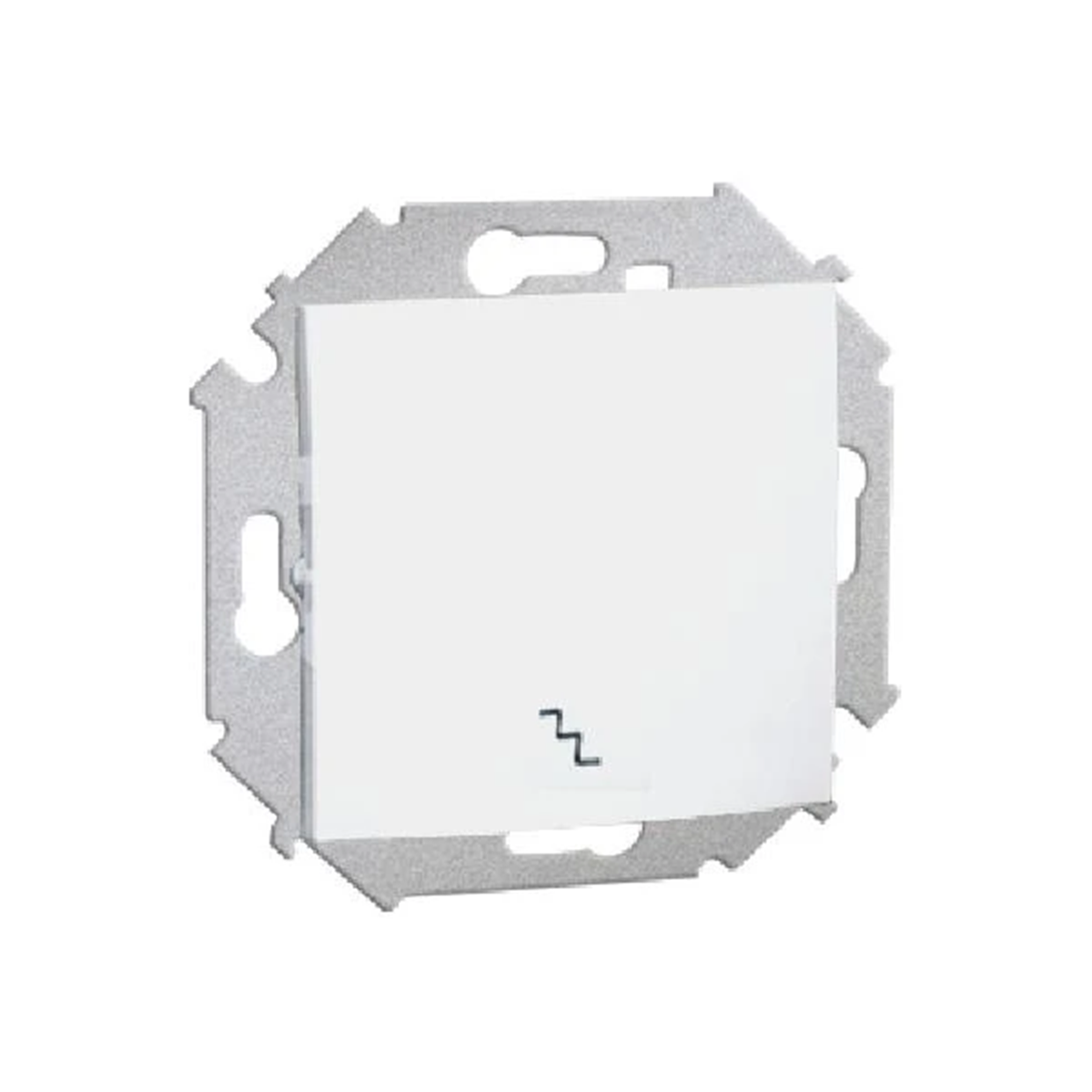

Stair switch from the Simon 15 series, from the manufacturer Contact Simon. The product part number is 1591201B-030.
FEATURES
- Module without frame< /strong>.
- For IP44 (to obtain IP44 splash-proof class use gasket of the frame).
- Screw terminals.
- Symbol "stairs" on the rocker.
- Color white.
- Rated current of fluorescent lamps 16AX.
- Rated voltage 230V.
- flush mounting strong>.
- Dimensions: 74 x 74 mm (height x width).
- Made of ABS.
- Switch rocker.
- Bistable switch.
SERIES DESCRIPTION
Simon 15 are elegant and practical solutions. Thanks to the mild colors, the series gives the possibility of subtly adapting the accessories to the needs of a functional apartment or office. The clean design form guarantees a composition with many interiors.
Dati tecnici
-
Halogen freeYes
-
Number of keys1
-
ShapeSquare
-
Fixingclaws Screws
-
Rated voltage [V]230
-
Typestairs
-
Level of securityIP20
-
Width [mm]74
-
Height [mm]74
-
Surface finishShiny
-
Mounting depth [mm]25
-
For the frame systemYes
-
PKWIU27.33.11.0
-
Depth [mm]40
-
ColorWhite
-
MaterialPlastic
-
InstallationFlush-mounted
-
Rated current [A]16
-
FamilySimon 15
-
SymbolStairs
-
TypeFlush-mounted
-
Surface protectionNatural
-
BacklightNO
-
Terminal typeThreaded
-
Exact materialABS
Altri dati tecnici
-
Wiring systemTwo-way switch
-
Assembly arrangementBasic element with central cover plate
-
MaterialPlastic
-
Surface protectionUntreated
-
ColourWhite
-
Nominal voltage250 V
-
Connection typeScrewed terminal
-
Method of operationRocker/button
-
Mounting methodFlush-mounted
-
Material qualityThermoplastic
-
Surface finishingGlossy
-
Suitable for degree of protection (IP)IP20
-
Switching current for fluorescent lamps16 AX
Dettagli del produttore
-
ProduttoreKONTAKT - SIMON S.A.
-
Indirizzo43-500 Czechowice-Dziedzice Bestwińska 21
-
NIP6520005366
