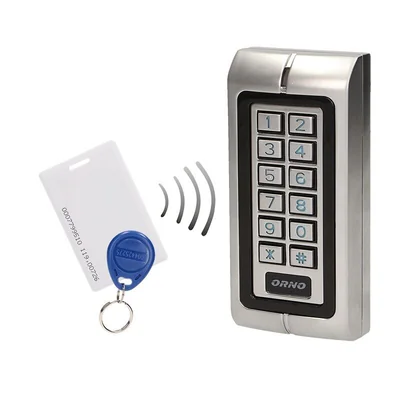

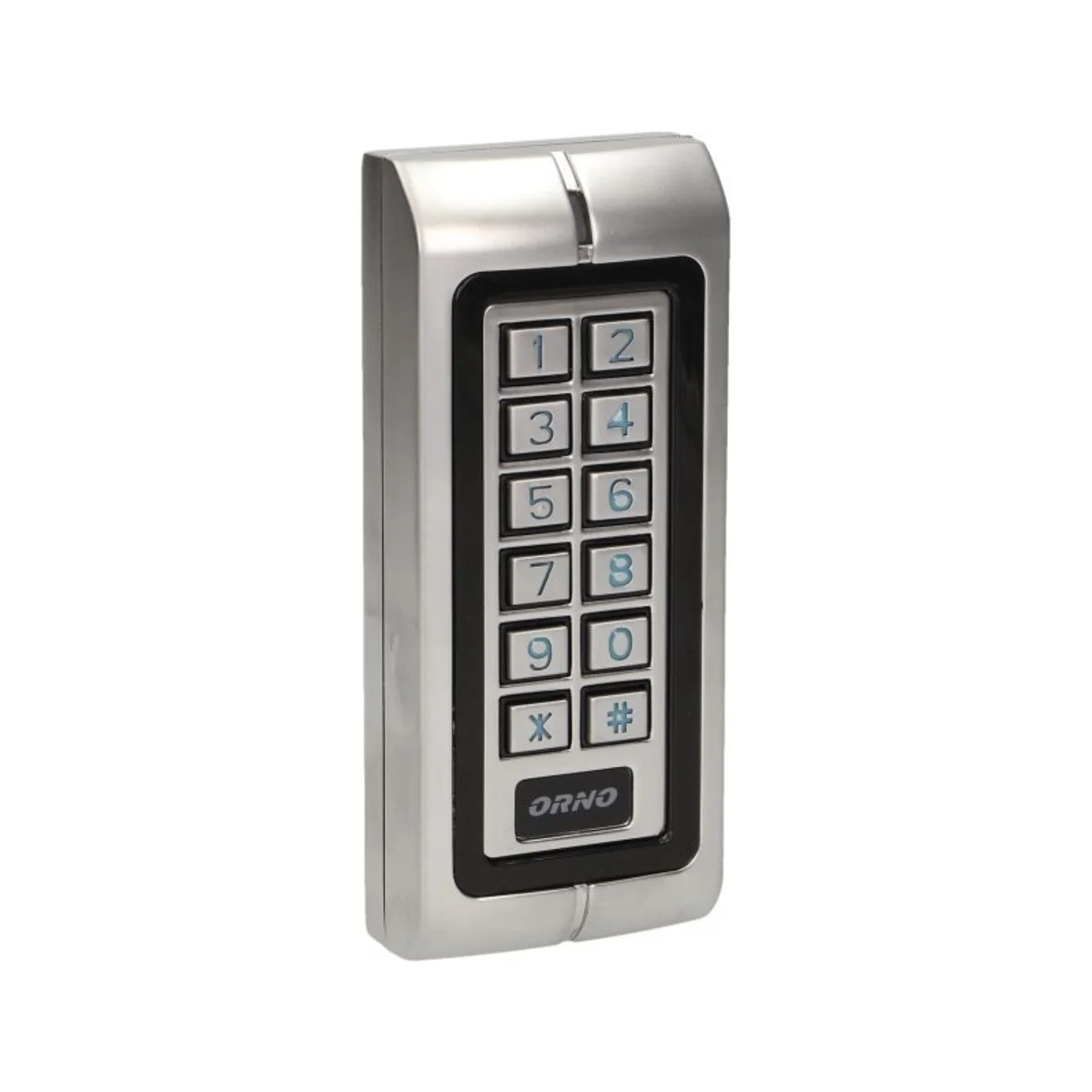

Hermetic code lock with a card and proximity tag reader is an autonomous device that combines the functions of a digital access control keypad and a proximity card reader. It can work alone or as part of a more complex system (with devices such as intercoms, video intercoms, alarm systems).
- cooperates with electromagnetic locks and access control systems
- controls other electrical devices or alarm
- 2 relay outputs
- card and PIN operation (100 million possible combinations)
- 1200 user PINs
- user identification number (ID)
- non-volatile EPROM memory (remembers stored codes and parameters in the memory in the event of a power failure)
- backlit keypad covered with epoxy coating
- vandal-proof and waterproof casing
- surface mounting
- signalling the operating status of the encoder by means of a LED diode
- light and sound signaling
Specification:< /p>
- power supply: 12VDC
- protection level: IP68
- frequency: 125 KHz
- temperature range: -25C to +60C
- adjustable door relay time: 1 - 99 seconds
- adjustable alarm time: 0 - 3 minutes
