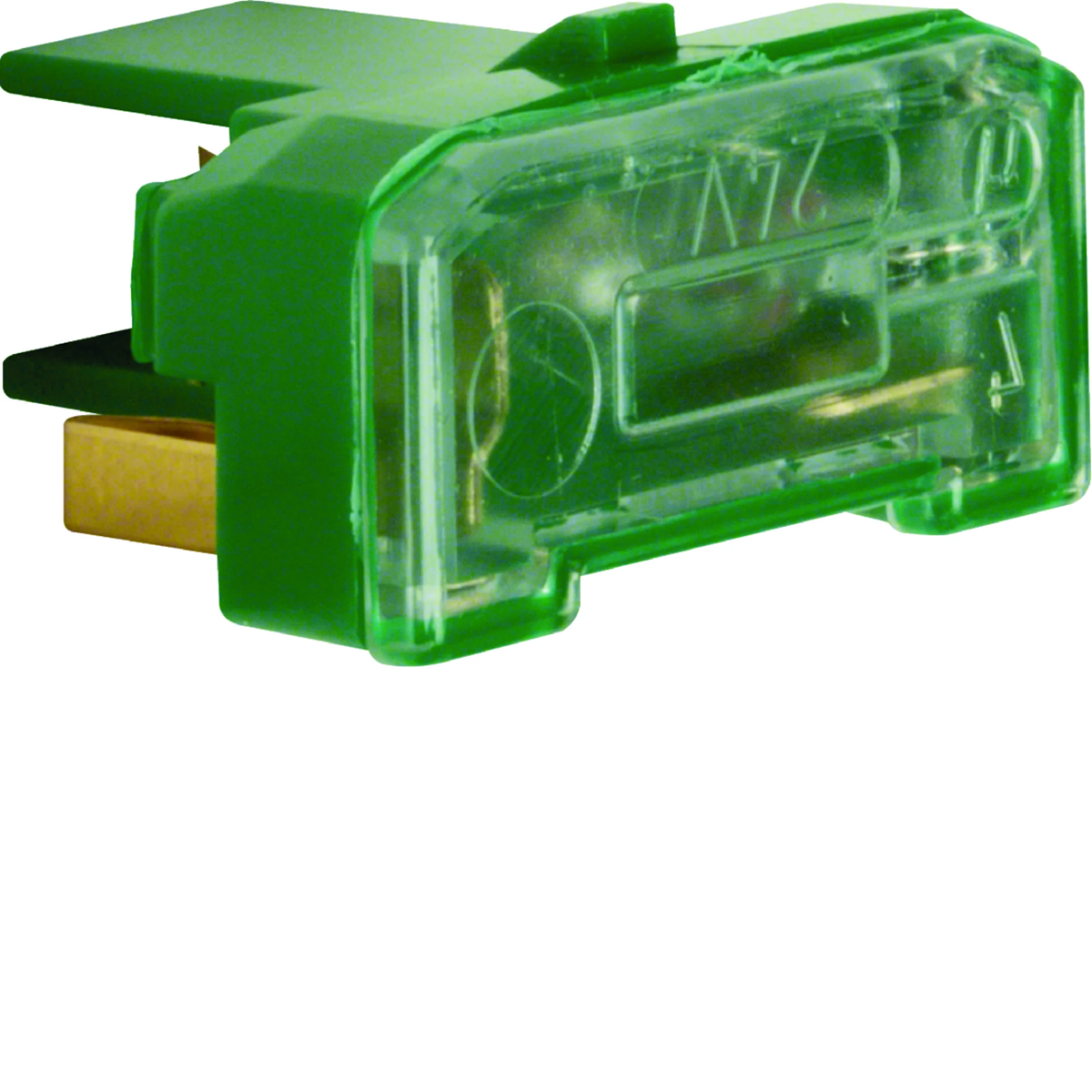

Manufacturer: BERKER
Color: Green
Rated voltage [V]: 24
Rated current [mA]: 35
Price:
6,89 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Application:



  •  to connect to Highlighting and control link with Highlighting
  • color orange highlights

Technical data

  • Color
    Green
  • Rated current [mA]
    35
  • Accurate color
    Green
  • Rated voltage [V]
    24
  • Source of light
    Smoldering lamp
  • PKWIU
    27.40.15.0

Other technical data

  • System configuration DC
    No
  • System configuration TN
    Yes
  • System configuration TN-C-S
    Yes
  • System configuration TT
    No
  • Number of conductors (without earthing)
    4
  • Nominal voltage AC
    335 V
  • Short-circuit breaking capacity (Isccr)
    0 kA
  • Max. discharge surge current (8/20)
    40 kA
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Max. PV-voltage
    0 V
  • Max. conductor cross section solid (solid, stranded)
    25 mm²
  • Voltage protection level L-N
    0 kV
  • With remote signalling contact
    No
  • Signalling at the device
    Optical
  • Degree of protection (IP)
    IP20
  • System configuration IT
    No
  • System configuration TN-C
    No
  • System configuration TN-S
    Yes
  • System configuration other
    Yes
  • Nominal discharge surge current (8/20)
    20 kA
  • Nominal voltage DC
    0 V
  • Max. continuous voltage AC
    335 V
  • Max. continuous voltage DC
    0 V
  • Construction size
    4 modular spacing
  • Voltage protection level
    1.6 kV
  • Max. conductor cross section flexible (fine-strand)
    35 mm²
  • Voltage protection level N-PE
    0 kV
  • Integrated backup fuse
    No
  • Category type 2
    Yes

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 10 pcs. 840 pcs. 37800 pcs.
Weight (kg) 0,004 0,050 4,485 224,825
Width (m) 0,011 0,080 0,315 0,800
Length (m) 0,017 0,035 0,215 1,050
Depth (m) 0,032 0,085 0,360 1,200
