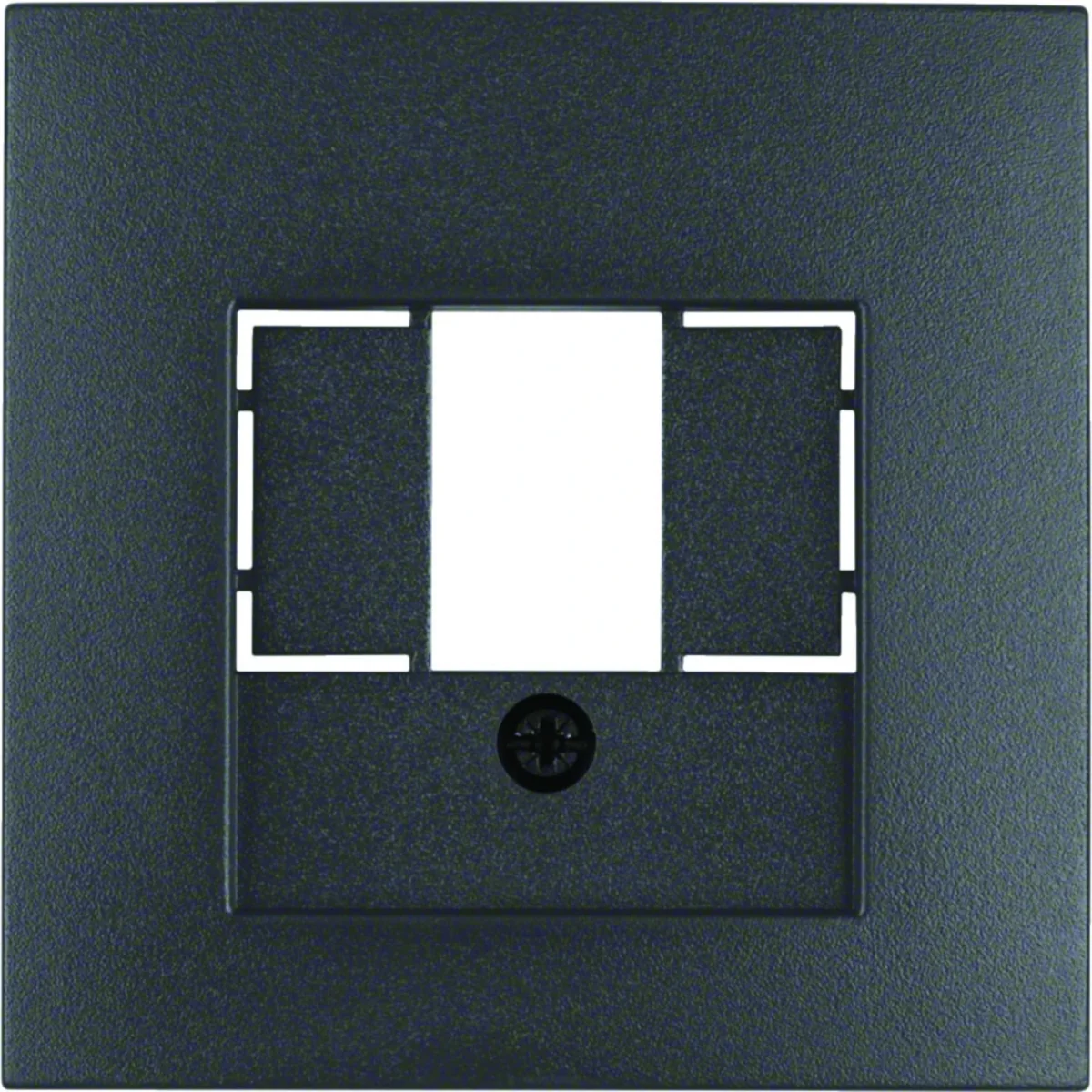

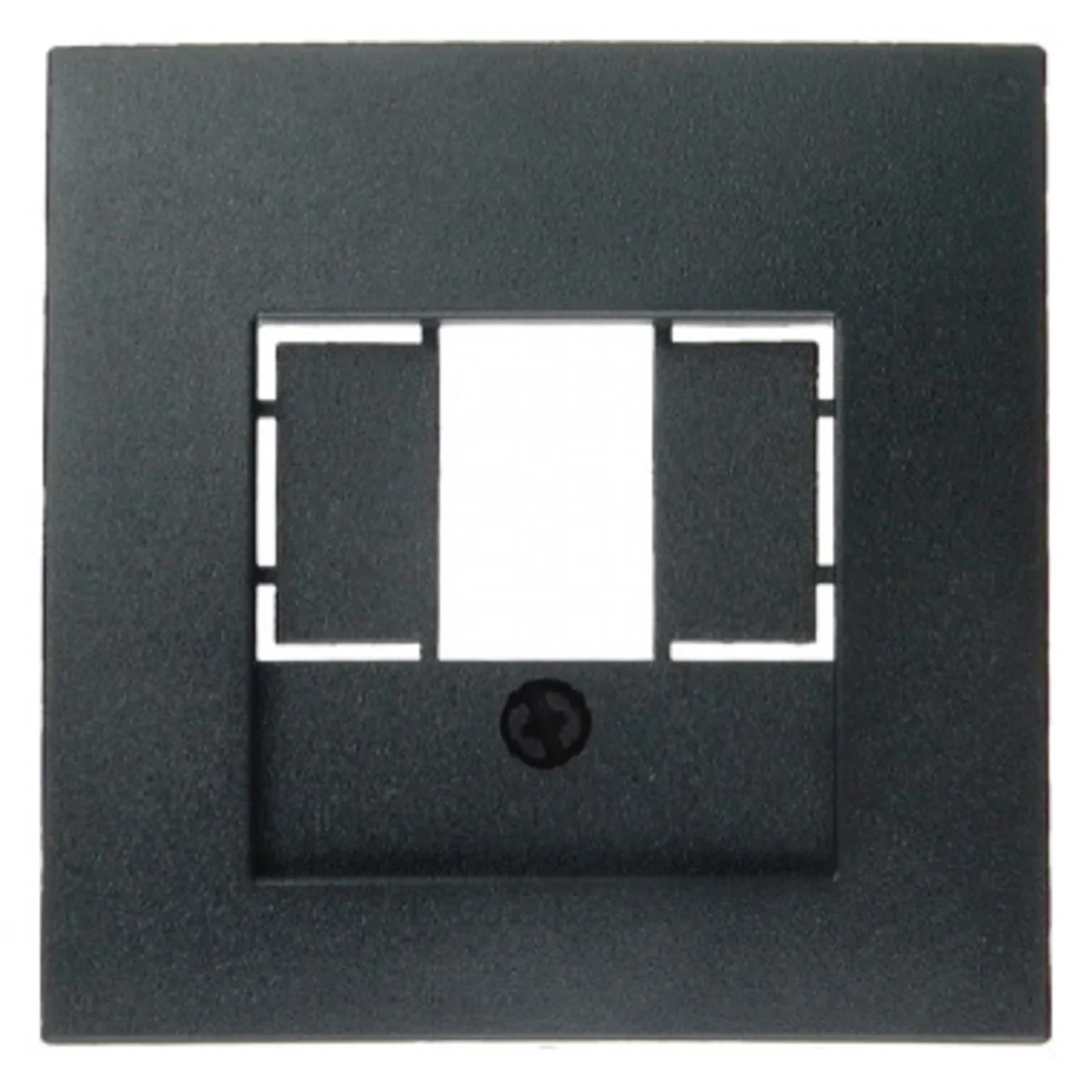

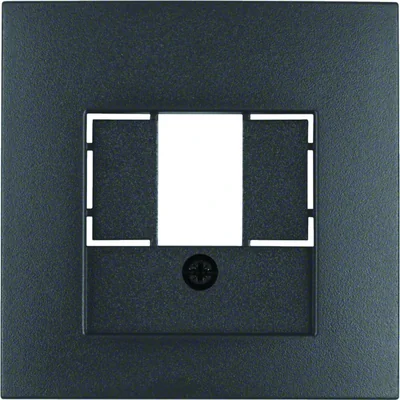

Front plate for USB and speaker socket anthracite mat 10331606
local index:
MAP004BERK
Catalog No:
10331606
EAN code:
4011334223375
Price:
7,08 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Frontplate for loudspeaker socket or USB charging socket , of the B.Kwadrat/B.3/B.7 series. The product catalog number is 10331606.
- With 2 breakout holes.
- For screw connection.
- Without ring carrier.
- To Order No. 4572 0.., 4573 0.., 2600 0..
Technical data
-
ColorGraphite
-
MaterialPlastic
-
FamilyB.SQUARE
-
Accurate colorAnthracite
-
PKWIU27.12.40.0
-
ShapeSquare
-
TypeTo the speaker terminal To the USB socket
-
Surface finishmatte
-
For modular equipmentNot applicable
Other technical data
-
Assembly arrangementCentral cover plate
-
Support ringNo
-
With hinged lidNo
-
Mounting methodFlush-mounted
-
Material qualityThermoplastic
-
Surface protectionUntreated
-
ColourAnthracite
-
TransparentNo
-
With buses/couplingsNo
-
Luster terminalNo
-
Device width55 mm
-
Device depth9 mm
-
UtilizationTAE
-
With dust coverNo
-
Imprintable labelWithout indication field
-
MaterialPlastic
-
Halogen freeYes
-
Surface finishingMatt
-
RAL-number (similar)7021
-
Type of fasteningMounting with screw
-
With strain reliefNo
-
Suitable for degree of protection (IP)IP20
-
Device height55 mm
-
Min. depth of built-in installation box0 mm
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 10 pcs. | 300 pcs. | 9600 pcs. |
| Weight (kg) | 0,010 | 0,122 | 4,092 | 150,932 |
| Width (m) | 0,056 | 0,080 | 0,300 | 0,800 |
| Length (m) | 0,009 | 0,066 | 0,225 | 1,050 |
| Depth (m) | 0,056 | 0,125 | 0,400 | 1,200 |
