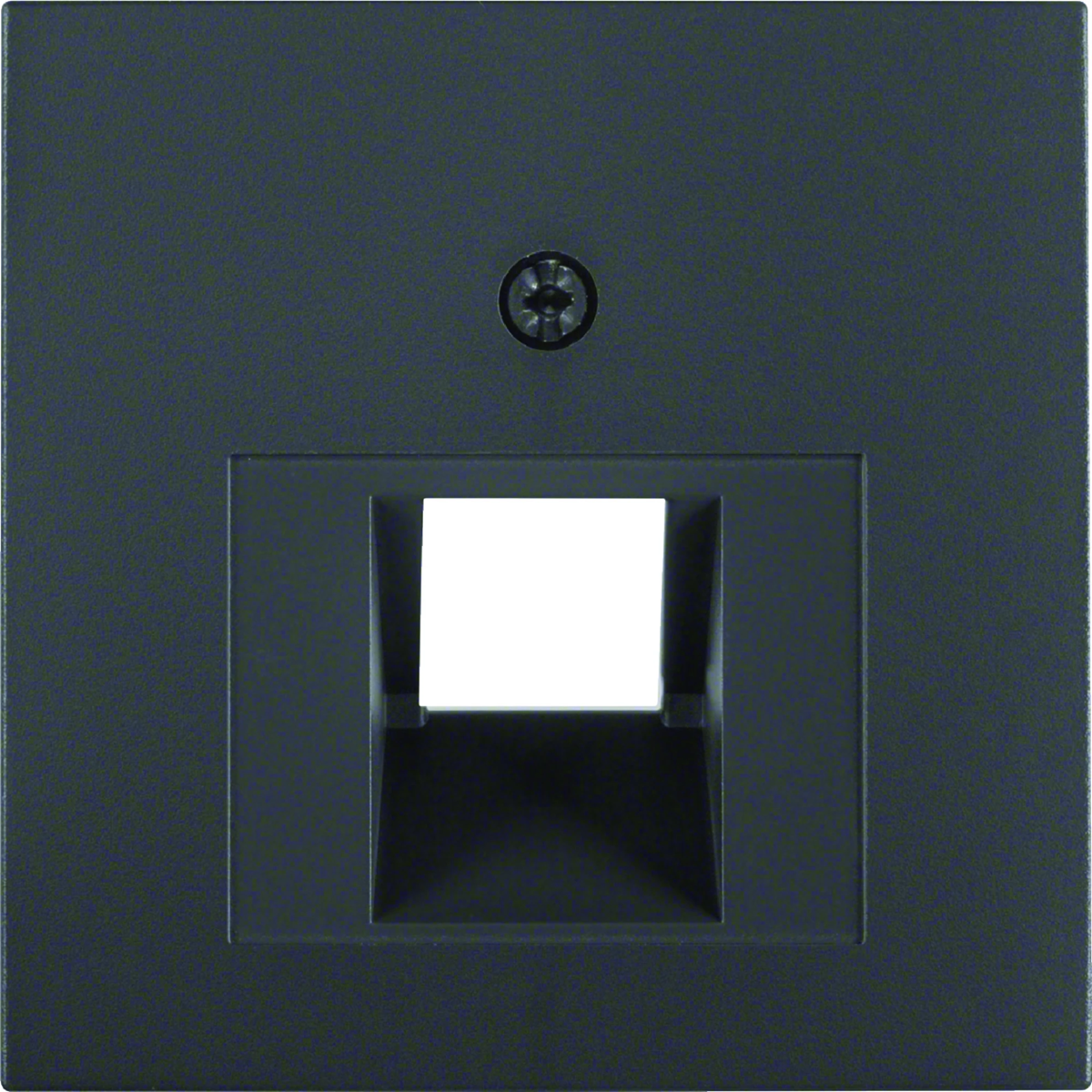

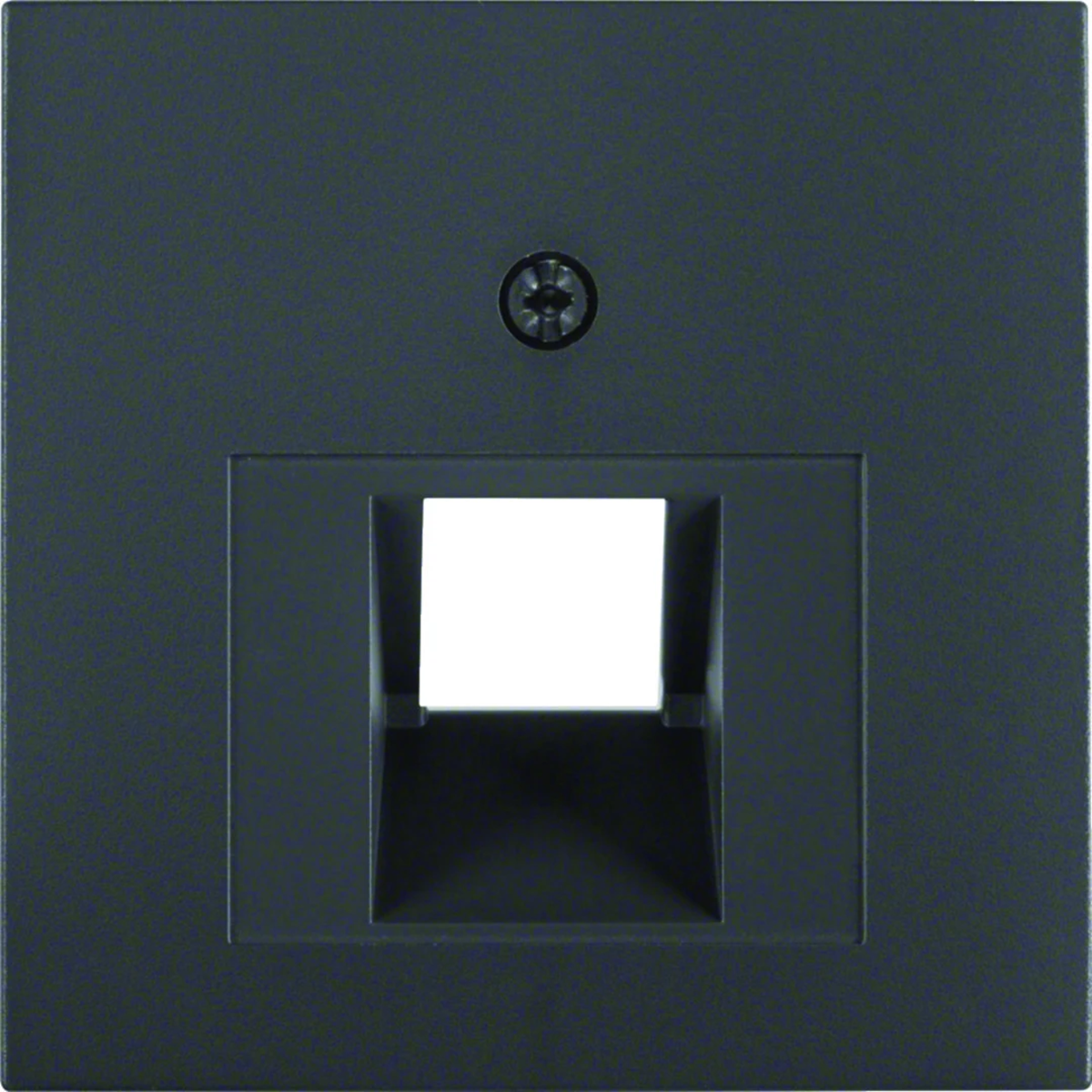

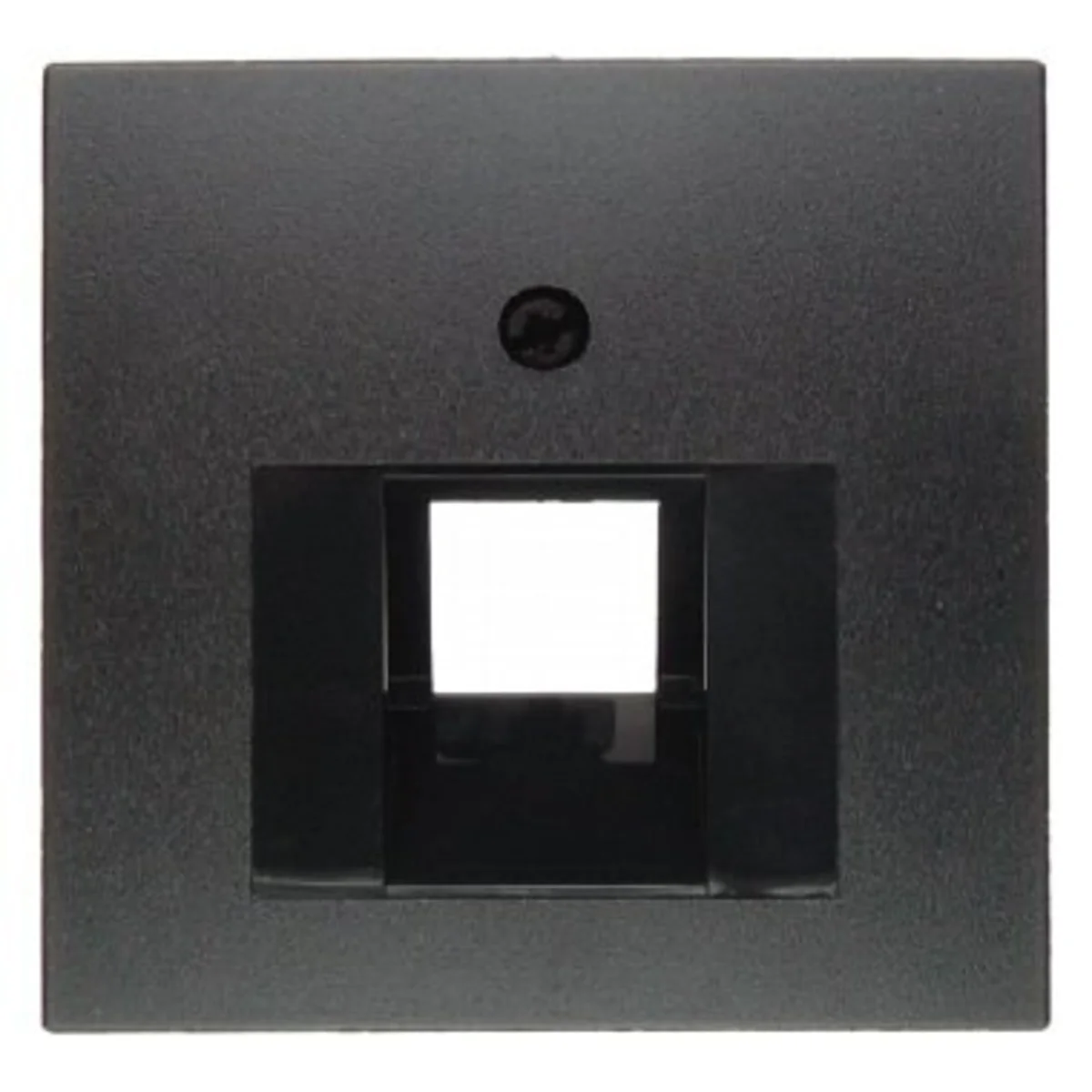

Front plate for UAE connection socket (telephone, computer) anthracite mat 14071606
local index:
MAP437BERK
Catalog No:
14071606
EAN code:
4011334222125
Price:
6,32 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Central element for 1-gang UAE connection socket, series Serie 1930/Glas.
- For order no. 4554 01, 53 4538, 53 4554, 53 4556
- UAE connection sockets: BTR; rutenbeck; teleärtner; Telena
- Cat. 3, cat. 5e and cat. 6
- With an angle of inclination of the outlet 45°
- For a single connection socket
Technical data
-
Number of holes1
-
ShapeSquare
-
TypeTo the internet socket To the telephone socket
-
Level of securityIP20
-
Accurate colorAnthracite
-
PKWIU27.12.40.0
-
ColorGraphite
-
MaterialPlastic
-
FamilyB.SQUARE
-
Surface finishmatte
-
For modular equipmentNot applicable
Other technical data
-
Assembly arrangementCentral cover plate
-
Support ringNo
-
With hinged lidNo
-
Imprintable labelWithout indication field
-
MaterialPlastic
-
Halogen freeYes
-
Surface finishingMatt
-
RAL-number (similar)7021
-
Type of fasteningMounting with screw
-
Suitable for number of connectors1
-
Luster terminalNo
-
Device width55 mm
-
Device depth16.6 mm
-
UtilizationUAE/IAE (ISDN)
-
With dust coverNo
-
Outlet directionInclined
-
Mounting methodFlush-mounted
-
Material qualityThermoplastic
-
Surface protectionUntreated
-
ColourAnthracite
-
TransparentNo
-
With buses/couplingsNo
-
With strain reliefNo
-
Suitable for degree of protection (IP)IP20
-
Device height55 mm
-
Min. depth of built-in installation box0 mm
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 10 pcs. | 300 pcs. | 9600 pcs. |
| Weight (kg) | 0,009 | 0,125 | 4,190 | 157,080 |
| Width (m) | 0,056 | 0,090 | 0,300 | 0,800 |
| Length (m) | 0,017 | 0,070 | 0,225 | 1,050 |
| Depth (m) | 0,056 | 0,125 | 0,400 | 1,200 |
