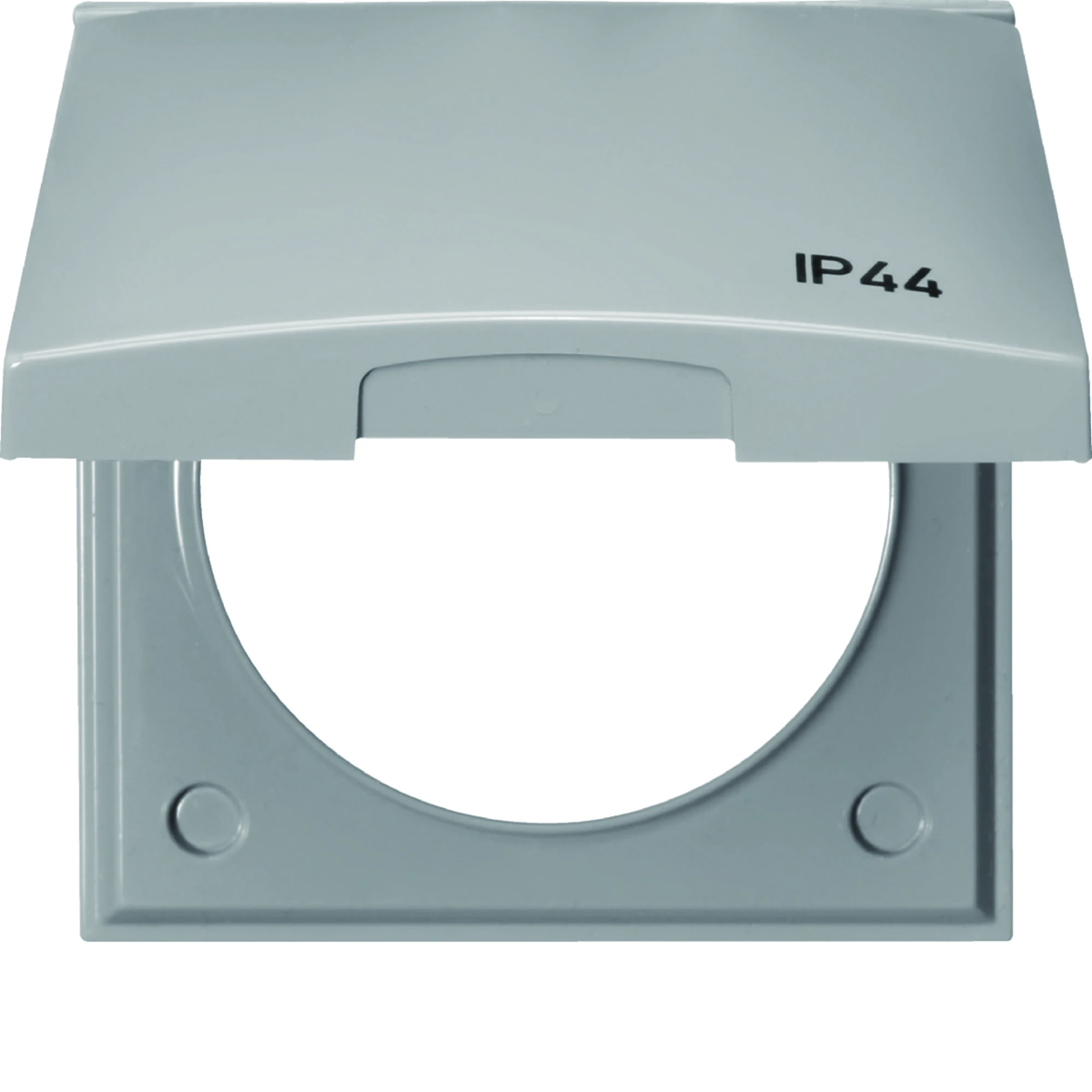

Frame with cover printed "IP44", grey, glossy, Integro Flow 918282597

local index:
MAR510BERK
Catalog No:
918282597
EAN code:
4011334239925
Manufacturer: BERKER
Depth [mm]: 9
Number of modules: 1
Color: Gray
Price:
5,52 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Single frame with cover with "IP44"print from the Integro Flow  series from the manufacturer < strong>Berker. Product reference number is 918282597.

  • For waterproof cover of plug sockets.
  • Without gasket.



SERIES DESCRIPTION

Berker Integro Flow perfectly suited to places where compact construction and comprehensive functionality are necessary.

Technical data

  • Depth [mm]
    9
  • Color
    Gray
  • Material
    Plastic
  • Type
    With cover
  • Level of security
    IP44
  • Height [mm]
    59.5
  • Surface finish
    Shiny
  • Mounting direction
    Vertical
  • Exact material
    Thermoplastic
  • The shape of the matching accessory
    Round
  • Number of modules
    1
  • Shape
    Square
  • Overprint
    IP44
  • Family
    INTEGRA FLOW
  • Width [mm]
    59.5
  • Surface protection
    Natural
  • Accurate color
    light gray
  • For modular equipment
    Not applicable
  • Seal
    NO
  • PKWIU
    27.12.40.0

Other technical data

  • Number of units
    1
  • Number of units horizontal
    1
  • Number of modules horizontal (module system)
    0
  • Liczba łączników
    1
  • Suitable for subfloor installation duct box
    No
  • Suitable for built-in installation
    Yes
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • RAL-number (similar)
    7038
  • With hinged lid
    Yes
  • Impact strength
    IK02
  • Width
    59.5 mm
  • Depth
    17.9 mm
  • Mounting direction
    Horizontal and vertical
  • Number of units vertical
    1
  • Number of modules vertical (module system)
    0
  • With mounting grid
    No
  • Suitable for wall duct
    Yes
  • Label space/information surface
    No
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Colour
    Grey
  • Transparent
    No
  • Degree of protection (IP)
    IP44
  • Type of fastening
    Clamp mounting
  • Height
    59.5 mm
  • Diameter bore hole (opening)
    42.5 mm

Bulk packaging

A kind of package Karton Pakiet
Quantity 1 pcs. 10 pcs. 190 pcs.
Weight (kg) 0,020 0,215 4,560
Width (m) 0,059 0,085 0,320
Length (m) 0,018 0,070 0,215
Depth (m) 0,059 0,180 0,365
