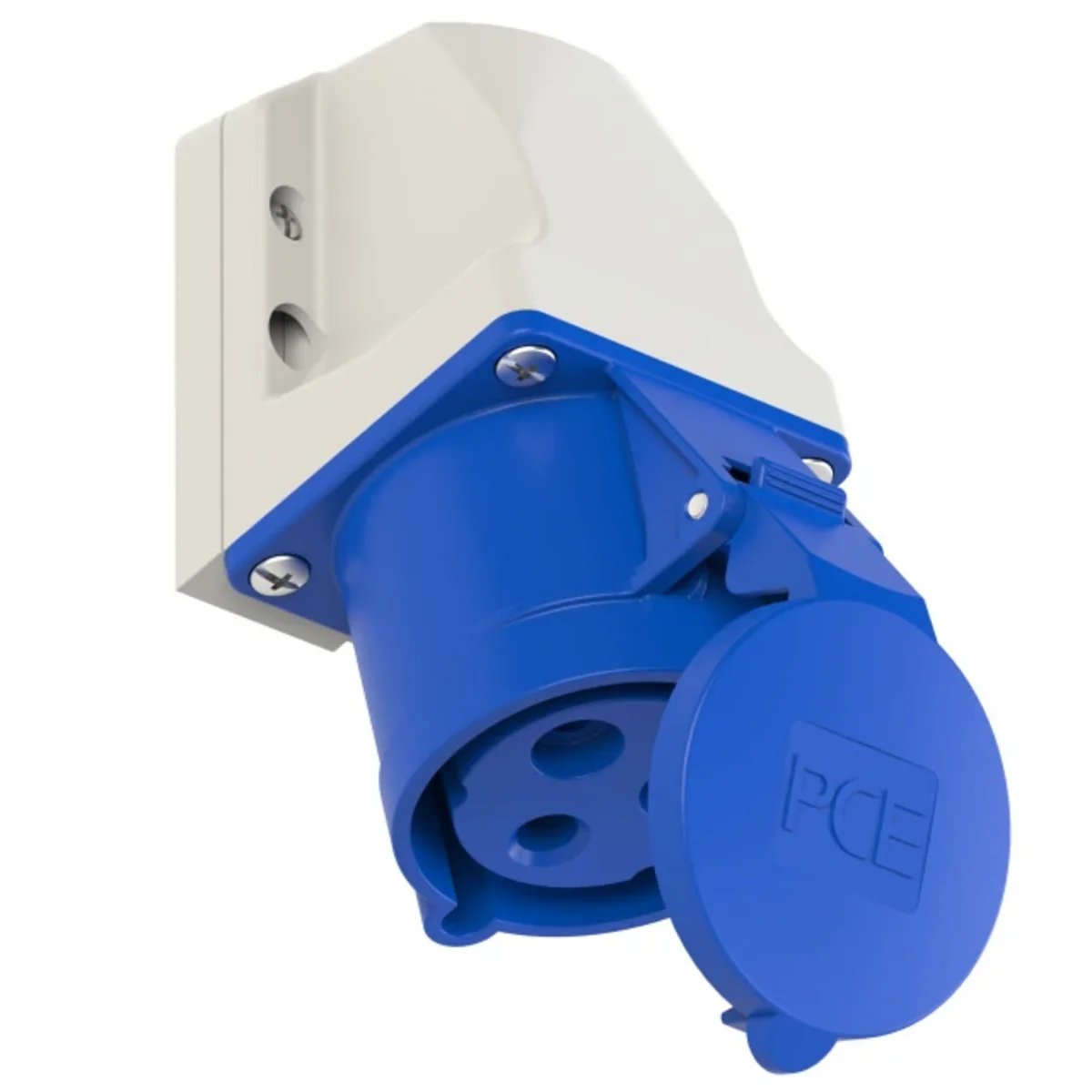

Fixed socket small housing 32A 2P+E 230V 50/60Hz 6h IP44 123-6K

Índice local:
MKM087PCEQ
Número de catálogo:
123-6K
Código EAN:
9003399021190
Fabricante: PCE
Rated frequency [Hz]: 50/60
Number of poles: 3
Rated voltage [V]: 230
Precio:
32,18 zł
gross / uds.
(IVA incluido 23%)
hasta 4 semanas
Por encargo
Cantidad uds.
(múltiple:
1
)
Añadir a solicitud de presupuesto
Añadir al portapapeles
Imprimir

Descripción del producto

Fixed socket small housing 32A 2P+E 230V 50/60Hz 6h IP44

Datos técnicos

  • Rated frequency [Hz]
    50/60
  • Rated voltage [V]
    230
  • Level of security
    IP44
  • Number of poles
    3
  • Rated current [A]
    32
  • PKWIU
    27.33.13.0

Otros datos técnicos

  • IEC-amperage
    32 A
  • Voltage according to EN 60309-2
    230 V (50+60 Hz) blue
  • Identification colour
    Blue
  • Connection system
    Screwed terminal
  • Material
    Plastic
  • Surface treatment contacts
    Untreated
  • Number of poles
    3
  • Clock hour position
    6 h
  • Degree of protection (IP)
    IP44
  • Cable entry
    Gland nut
  • Contact material
    CuZn
  • Type of fastening
    Inner lying mounting

Detalles del fabricante

  • Fabricante
    PCE Polska Sp. z o.o.
  • Dirección
    58-200 Dzierżoniów Podwalna 8A Polska
