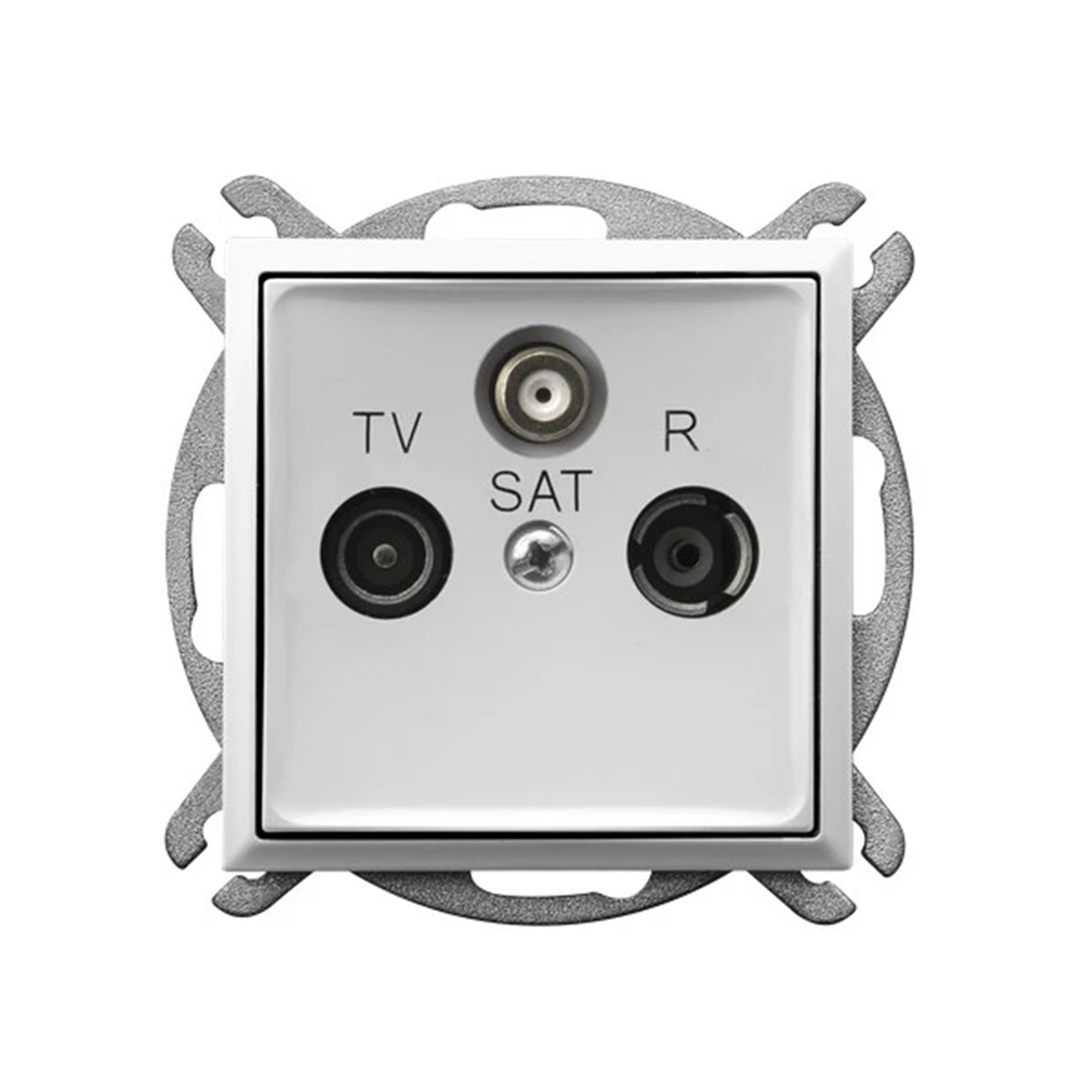

Final RTV-SAT socket white GPA-US/M/00
local index:
MEA379OSPE
Catalog No:
GPA-US/M/00
EAN code:
5907577482503
Price:
18,31 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Antenna socket from the Aria series, from the manufacturer Ospel. The product part number is GPA-US/M/00.
FEATURES
- RTV -SAT.
- Final.
- Attenuation factor 1.5 - 2 dB.< /li>
- Shielding efficiency: > 65 dB.
- Module without frame.
- Color white.
SERIES DESCRIPTION
The products from the Aria series have an internal decorative frame that adds originality and distinguishes them from other series. The flush-mounted antenna socket has all the features of this unique series.
Technical data
-
Depth [mm]38
-
ColorWhite
-
MaterialPlastic
-
InstallationFlush-mounted
-
TypeAntenna
-
Level of securityIP20
-
Attenuation [dB]R: 1.5 TV: 1-1.5 SAT: 1.5-2
-
VersionFinal
-
Surface protectionNatural
-
BacklightNO
-
Terminal typeThreaded
-
F-type inputNO
-
Exact materialPlastic Metal
-
Number of sockets3
-
ShapeSquare
-
Fixingclaws screws
-
OverprintYes
-
FamilyARIA
-
Width [mm]71
-
TypeFlush-mounted
-
Height [mm]71
-
Frequency Range [MHz]For entry: 5-2400
-
Mounting depth [mm]25
-
VariantR TV sat
-
For the frame systemYes
-
PKWIU26.40.52.0
Other technical data
-
ModelEnd socket
-
Number of modules (module system)1
-
Tap loss at 860 MHz1.5 dB
-
Number of outlets1
-
Through loss at 860 MHz0 dB
-
Suitable for remote power supplyNo
-
Type of fasteningMounting with claw and screw
-
RAL-number (similar)9003
-
Surface finishingGlossy
-
Material qualityThermoplastic
-
Mounting methodFlush-mounted
-
CoverComplete housing
-
Tap loss at 2150 MHz2 dB
-
Suitable for cable modemNo
-
Through loss at 2150 MHz0 dB
-
Frequency5 ... 860 MHz
-
ColourWhite
-
Surface protectionUntreated
-
MaterialPlastic
-
Halogen freeYes
Bulk packaging
| A kind of package | Pudełko |
| Quantity | 10 pcs. |
| Width (m) | 0,162 |
| Length (m) | 0,290 |
| Depth (m) | 0,090 |
