FALA Two-group switch, white candlestick ŁNH-2HS/00
local index:
MNT013OSPE
Catalog No:
ŁNH-2HS/00
EAN code:
5907577412081
Price:
5,33 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

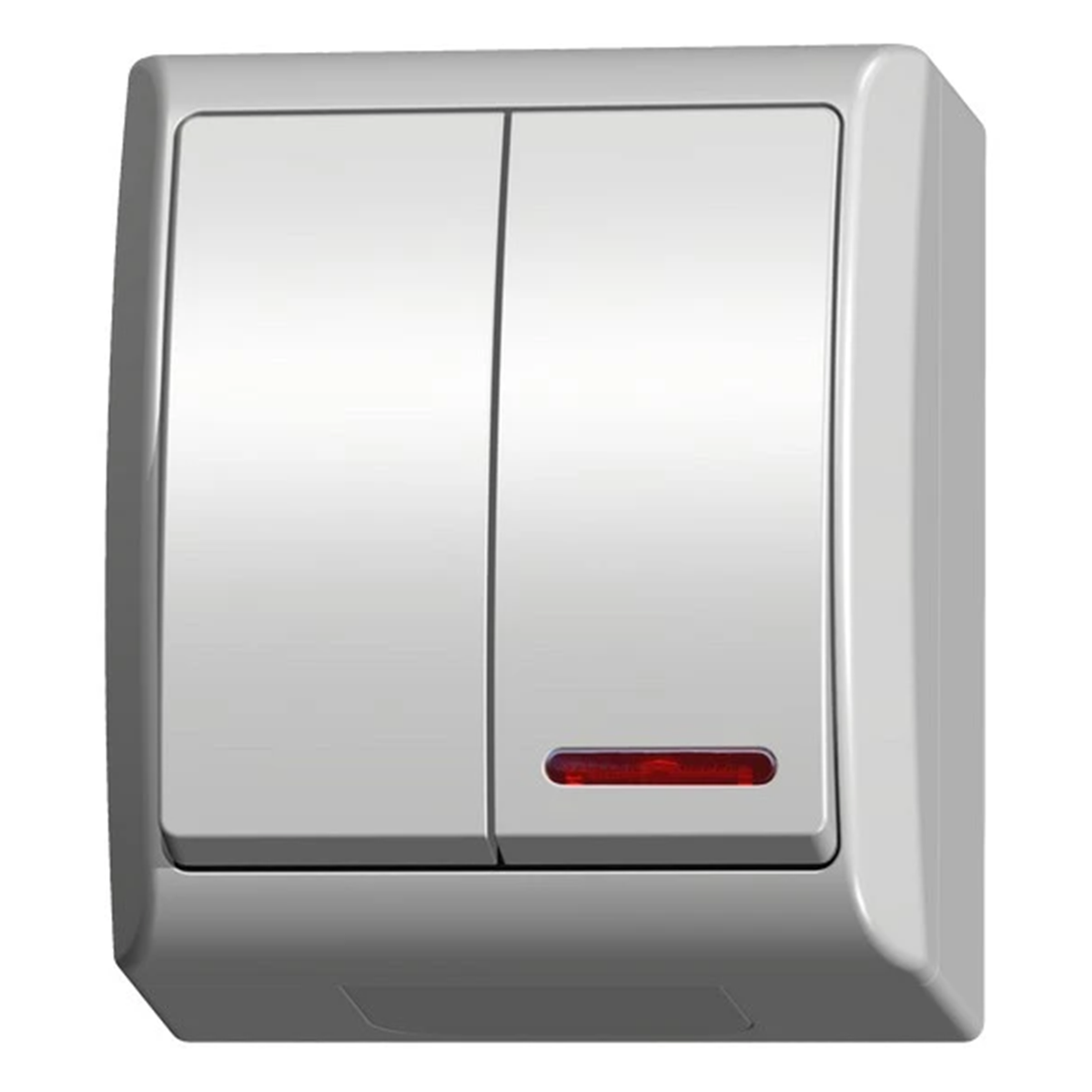

Two-group candlestick connector from the Wave series, from Ospel. The product catalog number is ŁNH-2HS/00.
- Hermetic.
- Surface mounted.
- With backlight.< /li>
Technical data
-
Depth [mm]48
-
ColorWhite
-
MaterialPlastic
-
InstallationSurface-mounted
-
Rated current [A]10
-
FamilyWAVE
-
Width [mm]60
-
Height [mm]70
-
BacklightYes
-
For the frame systemNO
-
Backlight typeLTS lamp
-
PKWIU27.33.11.0
-
Number of keys2
-
ShapeRectangular
-
Fixingscrews
-
Rated voltage [V]230
-
TypeCandlestick
-
Level of securityIP44
-
TypeSurface-mounted
-
Surface protectionNatural
-
Terminal typeThreaded
-
Exact materialPlastic Metal
-
Backlight colorOrange
Other technical data
-
Wiring systemOff switch 2x1-pole
-
Assembly arrangementBasic element with complete housing
-
Push button switchNo
-
Mounting methodSurface mounted
-
With mounting plateNo
-
Material qualityThermoplastic
-
Surface protectionUntreated
-
ColourWhite
-
Label space/information surfaceNo
-
Function lightingOrientation
-
Suitable for degree of protection (IP)IP44
-
Rated current16 A
-
Feedback-signal contactNo
-
Washing machine switchNo
-
Device height70 mm
-
Built-in depth0 mm
-
Method of operationRocker/button
-
Number of modules (module system)0
-
Number of rockers2
-
Type of fasteningMounting with claw and screw
-
MaterialPlastic
-
Halogen freeYes
-
Surface finishingGlossy
-
RAL-number (similar)9003
-
IlluminationYes
-
Type of lightingGlow lamp
-
Nominal voltage250 V
-
Switching current for fluorescent lamps16 AX
-
Connection typePush-in clamp
-
Device width60 mm
-
Device depth48 mm
Bulk packaging
| A kind of package | Pudełko |
| Quantity | 10 pcs. |
| Width (m) | 0,162 |
| Length (m) | 0,237 |
| Depth (m) | 0,079 |
