Manufacturer: BERKER
Number of keys: Knob
Shape: Square
Rated voltage [V]: 230
Price:
63,00 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

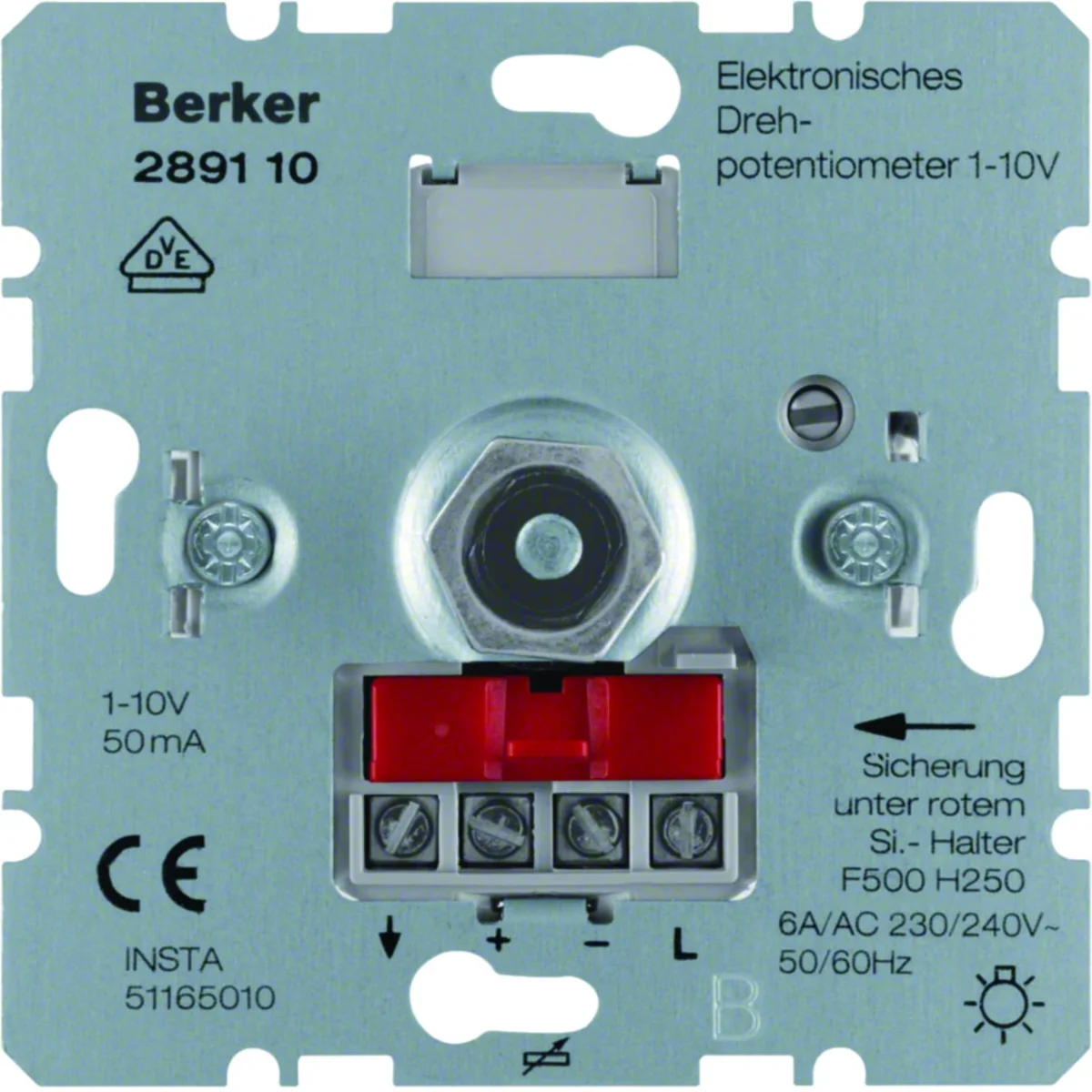

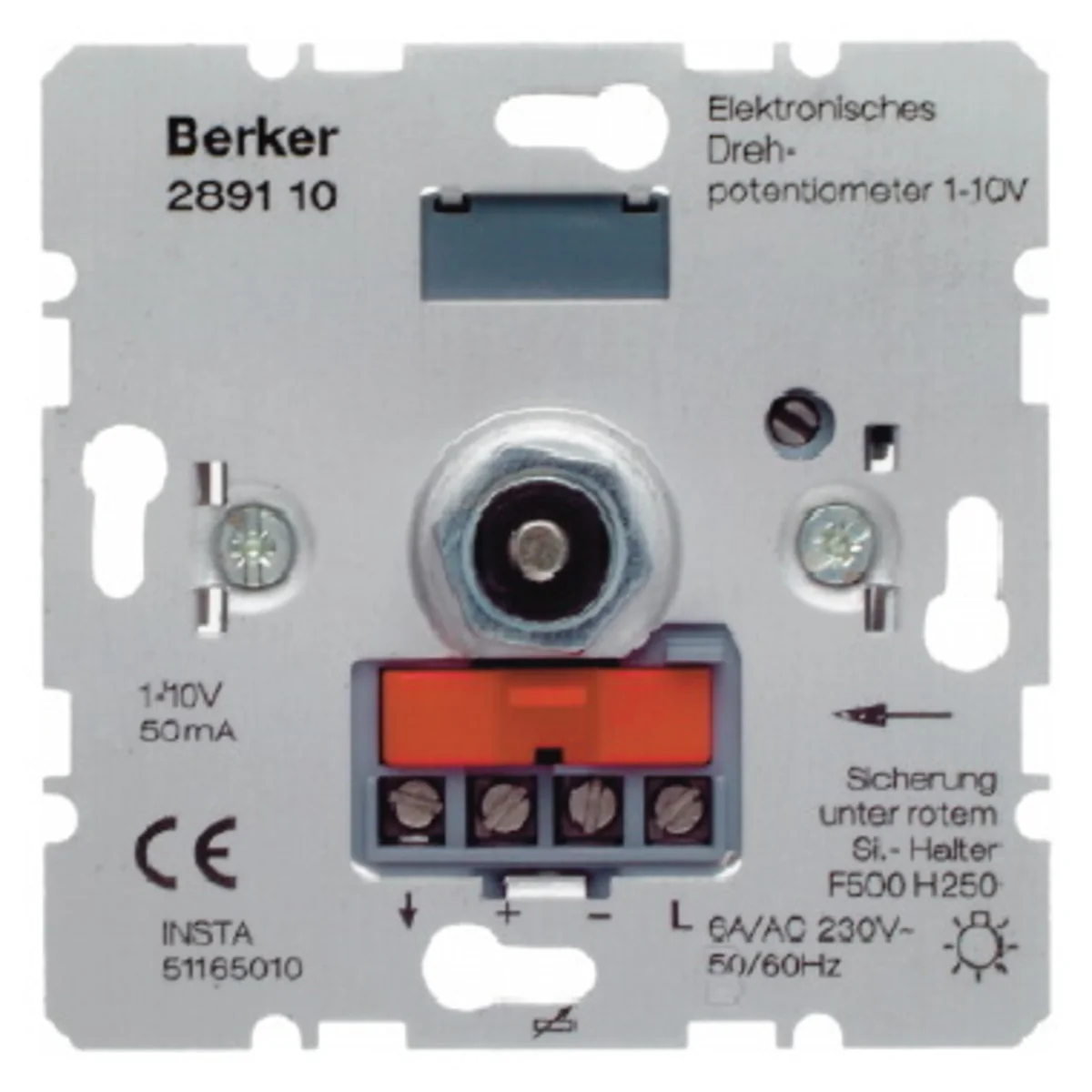

1-10 V Electronic Rotary Potentiometer Mechanism one.platform. Product part number is 289110.< /p>

  • For switching and control of EVG electronic ballasts and Tronic 1 transformers – 10 V 105 W.
  • Short-circuit and overload protection (fuse), with backup fuse.
  • Adjustable basic light intensity.
  • Eg. for fluorescent lamps and low-voltage halogen lamps with push button on/off switch.
  • To ensure uniform illuminance, use only EVG electronic ballasts and fluorescent lamps from the same manufacturers.
  • Replacement without removing the cover.
  • For order numbers 1134 .., 1135 .., 1137 .., 53 1137 ..
  • < /ul>

Technical data

  • Number of keys
    Knob
  • Rated voltage [V]
    230
  • Type
    dimmers
  • Type
    The linkage mechanism
  • Backlight
    NO
  • For the frame system
    Yes
  • Shape
    Square
  • Rated current [A]
    6
  • Family
    ONE.PLATFORM
  • Version
    For halogen lighting For LED
  • Variant
    Rotary
  • PKWIU
    27.90.60.0

Other technical data

  • Mounting method
    Flush-mounted
  • Nominal voltage
    230 V
  • Dimming DALI
    No
  • Applicable with button
    No
  • Device width
    71 mm
  • Device depth
    50 mm
  • Rated current
    6 A
  • Frequency
    50 ... 60 Hz
  • Method of operation
    Turn/push button
  • Applicable with infrared button
    No
  • Device height
    71 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 100 pcs. 1600 pcs.
Weight (kg) 0,060 0,085 8,995 168,920
Width (m) 0,071 0,080 0,430 0,800
Length (m) 0,050 0,070 0,300 1,650
Depth (m) 0,071 0,085 0,435 1,200
