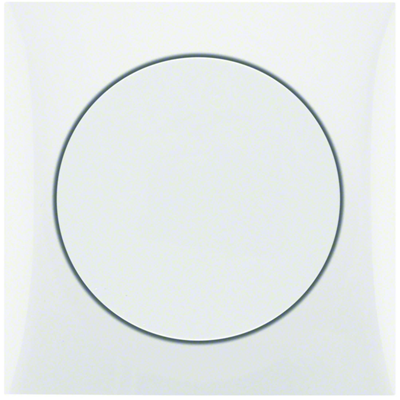

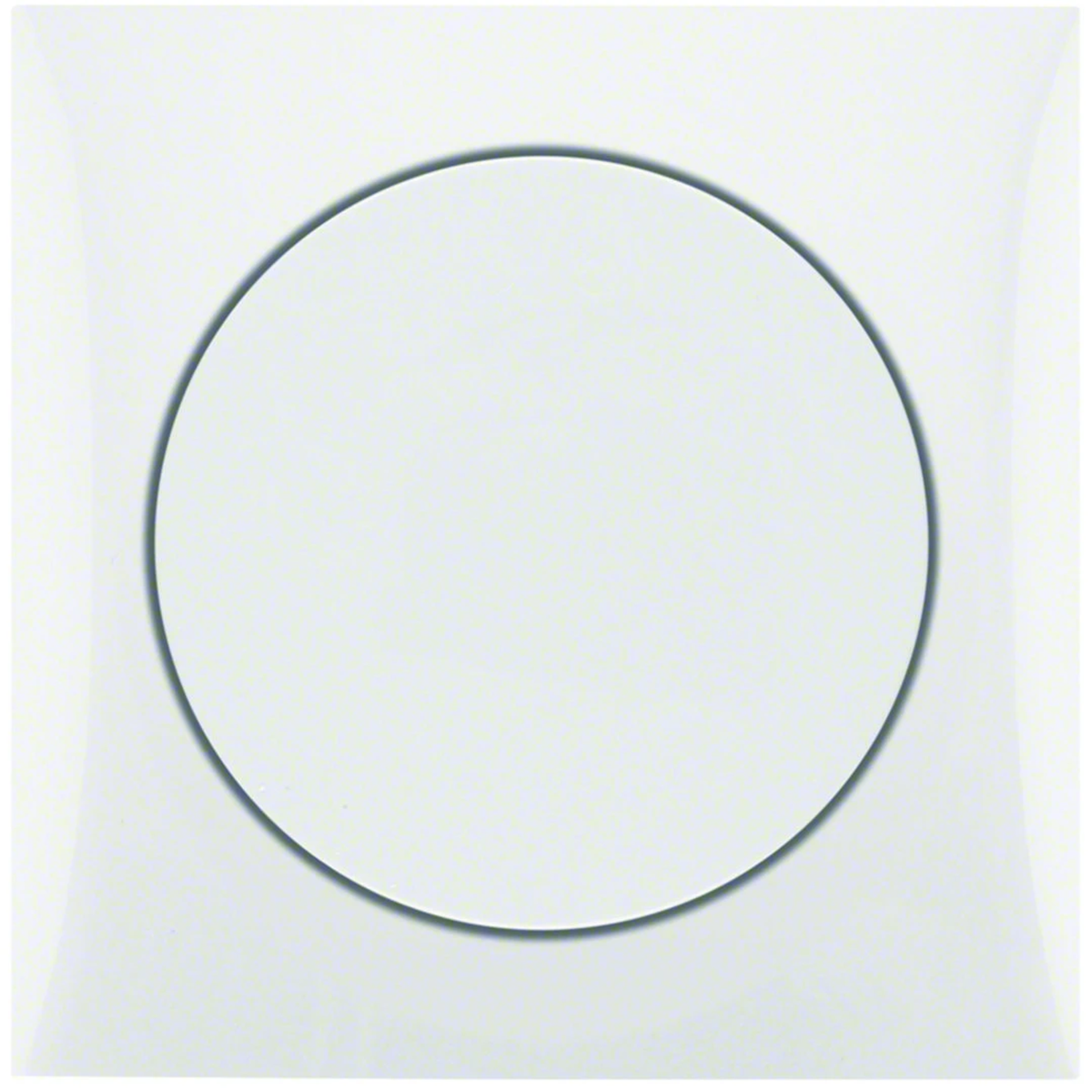

Electronic rotary potentiometer 1-10 V with adjustment knob snow white, glossy Integro Flow 928912509

Indeks lokalny:
MMC004BERK
Nr katalogowy:
928912509
Kod EAN:
4011334265214
Producent: BERKER
Number of keys: Knob
Color: White
Shape: Round
Cena:
133,17 €
gross / szt.
(w tym VAT 23%)
Dostawa do 3h
do 10 tygodni (dni robocze)
Odbiór za 1h
Ilość szt.
(wielokrotność:
1
)
Dodaj do schowka
Drukuj

Opis produktu

Electronic rotary potentiometer 1-10 V from the Integro Flow series, from Berker. Product part number is 928912509.

  • With adjustment knob.
  • For switching and control of EVG electronic ballasts and Tronic 1 transformers – 10V 105W.
  • Infinitely adjustable.
  • With backup fuse, short-circuit and overload protection (fuse).
  • Basic adjustable. illuminance.
  • Eg. for fluorescent lamps and low-voltage halogen lamps with push-button on/off switch.
  • In the case of too high inrush current, switch-on current limiters no. cat. 185. In order to ensure uniform illuminance, only EVG electronic ballasts and fluorescent lamps from the same manufacturers should be used. Fuse replacement is possible without removing the cover.

Dane techniczne

  • Number of keys
    Knob
  • Shape
    Round
  • Rated voltage [V]
    230
  • Type
    dimmers
  • Type
    Recessed Surface-mounted
  • Surface finish
    Shiny
  • Mounting depth [mm]
    22
  • PKWIU
    27.90.60.0
  • Color
    White
  • Material
    Plastic
  • Rated current [A]
    6
  • Family
    INTEGRA FLOW
  • Version
    For halogen lighting
  • Backlight
    NO
  • Terminal type
    Threaded

Pozostałe dane techniczne

  • Mounting method
    Built-in installation
  • Nominal voltage
    230 V
  • Dimming DALI
    No
  • Applicable with button
    No
  • Device width
    59.5 mm
  • Device depth
    58 mm
  • Rated current
    6 A
  • Frequency
    50 ... 60 Hz
  • Method of operation
    Turn/push button
  • Applicable with infrared button
    No
  • Device height
    59.5 mm

Dane producenta

Opakowania zbiorcze

Rodzaj opakowania Karton Pakiet Paleta
Ilość 10 szt. 40 szt. 1280 szt.
Waga (kg) 0,560 2,270 72,950
Szerokość (m) 0,160 0,300 0,800
Długość (m) 0,080 0,220 1,050
Głębokość (m) 0,270 0,400 1,200
