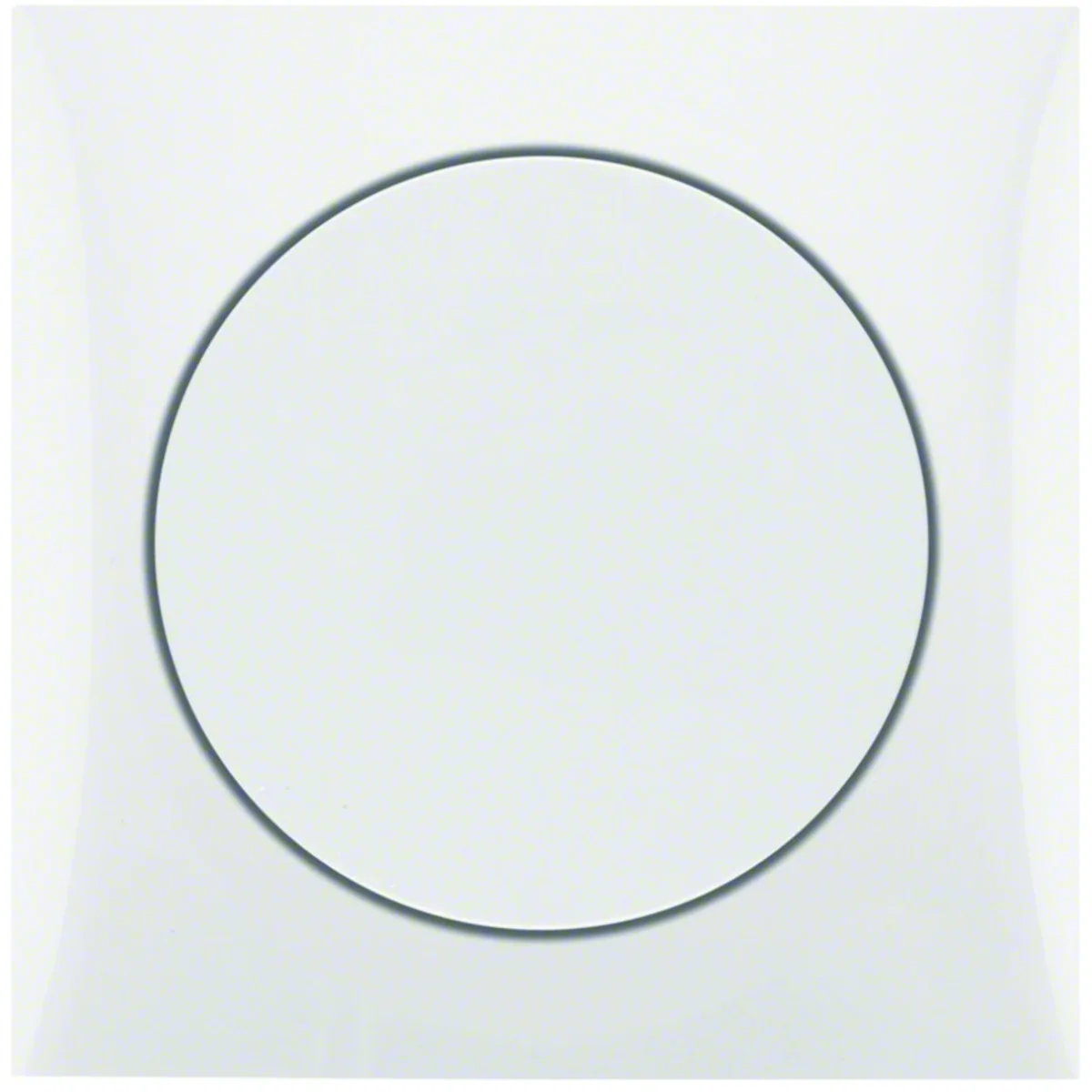

Electronic rotary potentiometer 1-10 V with adjustment knob snow white, glossy Integro Flow 928912509

Indice locale:
MMC004BERK
Numero di catalogo:
928912509
Codice EAN:
4011334265214
Produttore: BERKER
Number of keys: Knob
Color: White
Shape: Round
Prezzo:
133,12 €
gross / pezzi
(inclusa IVA 23%)
Consegna in 3 ore
fino a 10 settimane (giorni lavorativi)
Raccolta in 1h
Quantità pezzi
(multiplo:
1
)
Aggiungi agli appunti
Stampa

Descrizione del prodotto

Electronic rotary potentiometer 1-10 V from the Integro Flow series, from Berker. Product part number is 928912509.

  • With adjustment knob.
  • For switching and control of EVG electronic ballasts and Tronic 1 transformers – 10V 105W.
  • Infinitely adjustable.
  • With backup fuse, short-circuit and overload protection (fuse).
  • Basic adjustable. illuminance.
  • Eg. for fluorescent lamps and low-voltage halogen lamps with push-button on/off switch.
  • In the case of too high inrush current, switch-on current limiters no. cat. 185. In order to ensure uniform illuminance, only EVG electronic ballasts and fluorescent lamps from the same manufacturers should be used. Fuse replacement is possible without removing the cover.

Dati tecnici

  • Number of keys
    Knob
  • Shape
    Round
  • Rated voltage [V]
    230
  • Type
    dimmers
  • Type
    Recessed Surface-mounted
  • Surface finish
    Shiny
  • Mounting depth [mm]
    22
  • PKWIU
    27.90.60.0
  • Color
    White
  • Material
    Plastic
  • Rated current [A]
    6
  • Family
    INTEGRA FLOW
  • Version
    For halogen lighting
  • Backlight
    NO
  • Terminal type
    Threaded

Altri dati tecnici

  • Mounting method
    Built-in installation
  • Nominal voltage
    230 V
  • Dimming DALI
    No
  • Applicable with button
    No
  • Device width
    59.5 mm
  • Device depth
    58 mm
  • Rated current
    6 A
  • Frequency
    50 ... 60 Hz
  • Method of operation
    Turn/push button
  • Applicable with infrared button
    No
  • Device height
    59.5 mm

Dettagli del produttore

Imballaggio sfuso

Una specie di pacchetto Karton Pakiet Paleta
Quantità 10 pezzi 40 pezzi 1280 pezzi
Peso (kg) 0,560 2,270 72,950
Larghezza (m) 0,160 0,300 0,800
Lunghezza (m) 0,080 0,220 1,050
Profondità (m) 0,270 0,400 1,200
