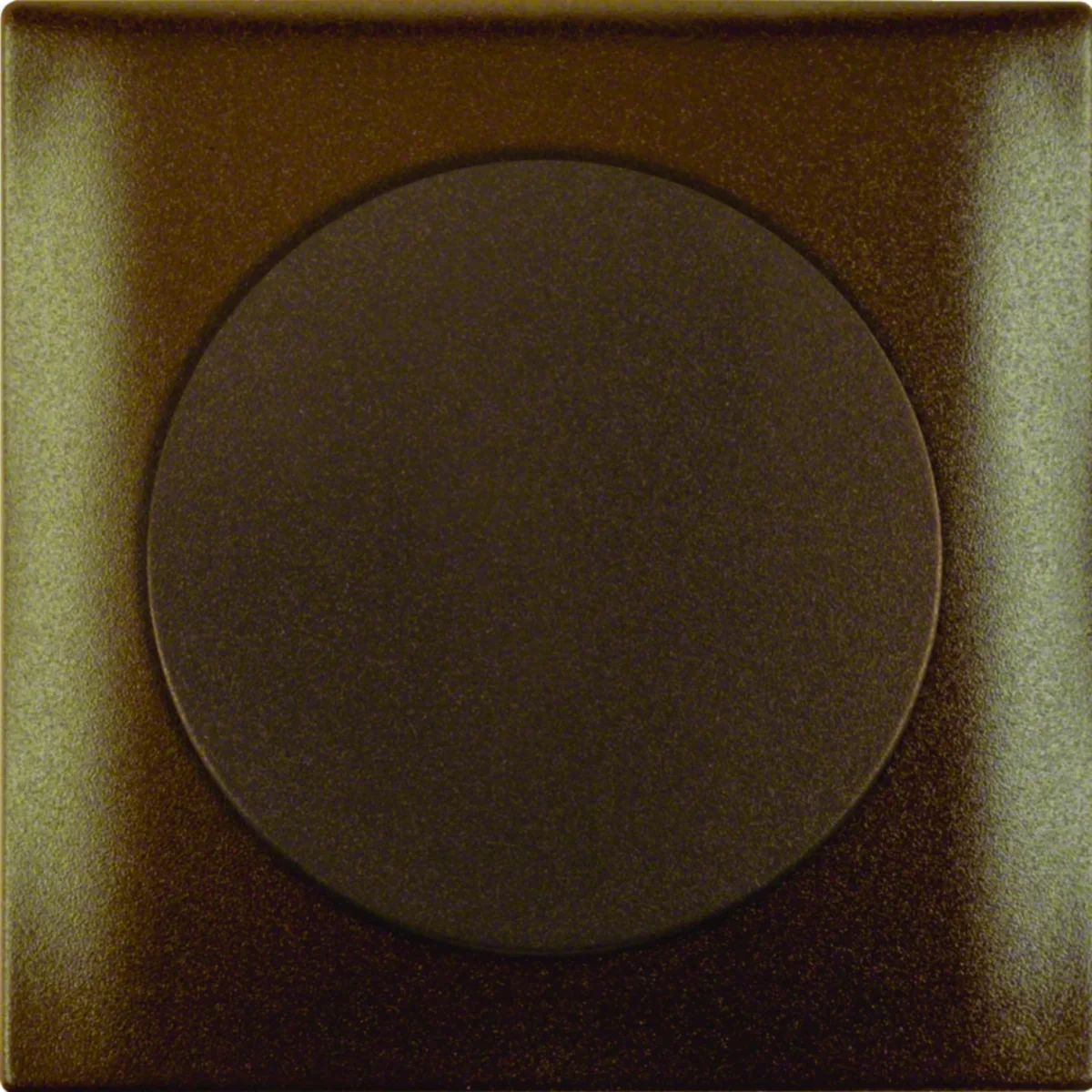

Electronic rotary potentiometer 1-10 V with adjustment knob brown, glossy Integro Flow 928912501

local index:
MMC001BERK
Catalog No:
928912501
EAN code:
4011334265184
Manufacturer: BERKER
Number of keys: Knob
Color: Brown
Shape: Round
Price:
126,03 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Electronic rotary potentiometer 1-10 V from the Integro Flow series, from Berker. Product part number is 928912501.

  • With adjustment knob.
  • For switching and control of EVG electronic ballasts and Tronic 1 transformers – 10V 105W.
  • With continuous regulation.
  • With backup fuse, short-circuit and overload protection (fuse).
  • Basic adjustable illuminance.
  • Eg. for fluorescent lamps and low-voltage halogen lamps with push-button on/off switch.
  • In the case of too high inrush current, switch-on current limiters no. cat. 185. In order to ensure uniform illuminance, use only EVG electronic ballasts and fluorescent lamps from the same manufacturers. Fuse replacement is possible without removing the cover.

Technical data

  • Number of keys
    Knob
  • Shape
    Round
  • Rated voltage [V]
    230
  • Type
    dimmers
  • Type
    Recessed Surface-mounted
  • Backlight
    NO
  • Terminal type
    Threaded
  • Color
    Brown
  • Material
    Plastic
  • Rated current [A]
    6
  • Family
    INTEGRA FLOW
  • Version
    For halogen lighting
  • Mounting depth [mm]
    22
  • PKWIU
    27.90.60.0

Other technical data

  • Mounting method
    Built-in installation
  • Nominal voltage
    230 V
  • Dimming DALI
    No
  • Applicable with button
    No
  • Device width
    59.5 mm
  • Device depth
    58 mm
  • Rated current
    6 A
  • Frequency
    50 ... 60 Hz
  • Method of operation
    Turn/push button
  • Applicable with infrared button
    No
  • Device height
    59.5 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 10 pcs. 40 pcs. 1280 pcs.
Weight (kg) 0,056 0,789 3,601 140,232
Width (m) 0,060 0,160 0,300 0,800
Length (m) 0,058 0,080 0,225 1,050
Depth (m) 0,060 0,275 0,400 1,200
