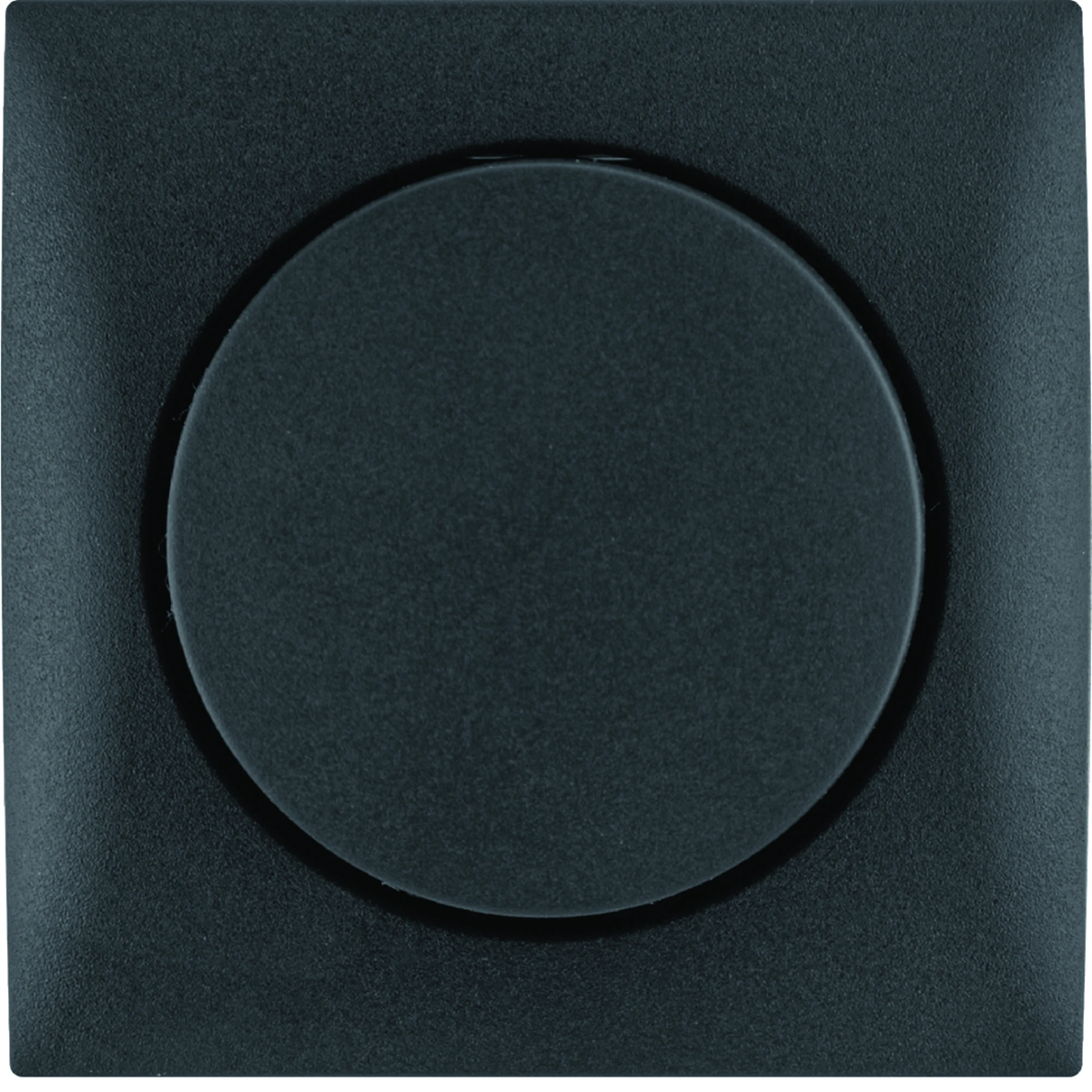

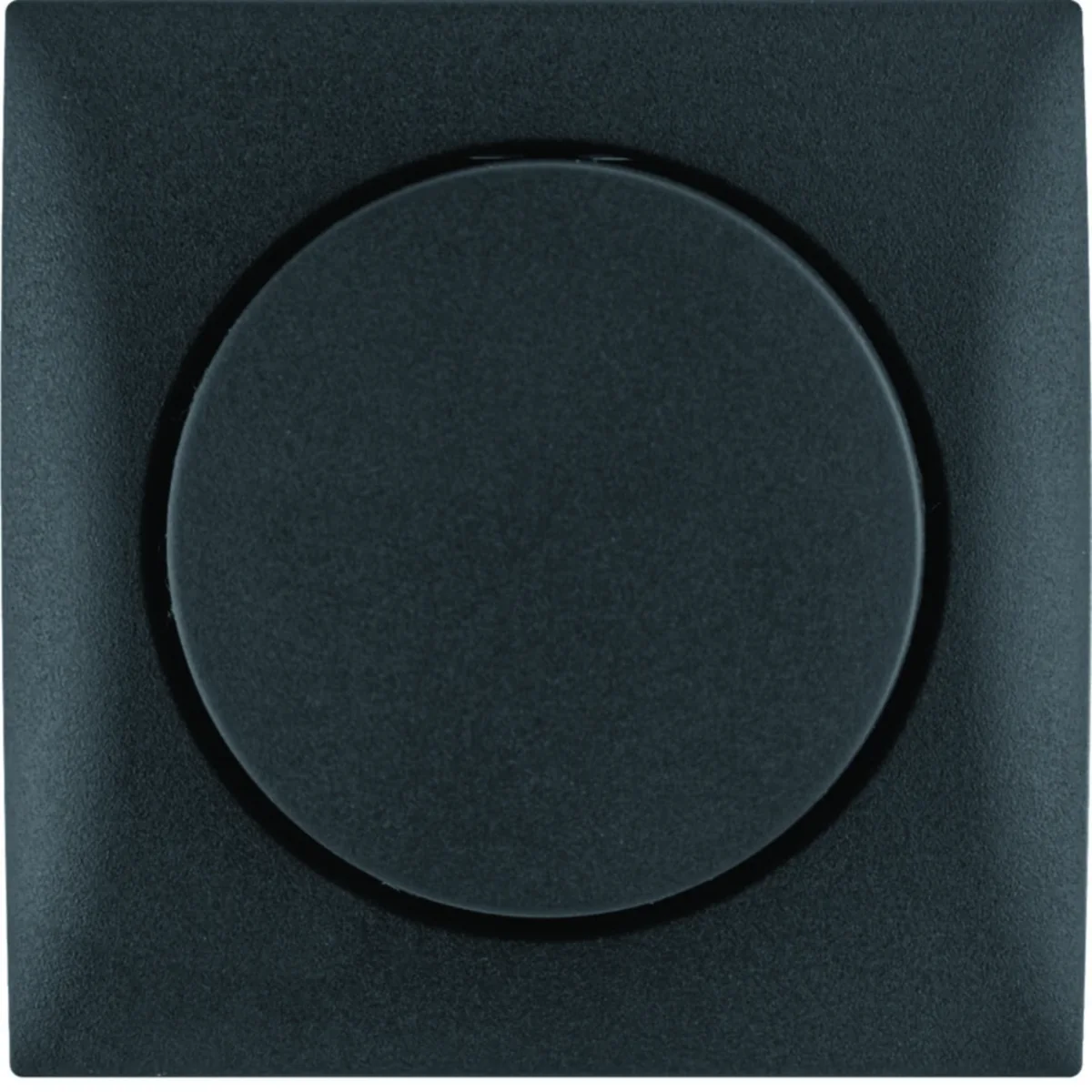

Electronic rotary potentiometer 1-10 V with adjustment knob anthracite, matt Integro Flow 928912505

Index local:
MMC002BERK
Numéro de catalogue:
928912505
Code EAN:
4011334265191
Producteur: BERKER
Number of keys: Knob
Color: Graphite
Shape: Round
Prix:
581,10 zł
gross / pcs.
(y compris la TVA 23%)
jusqu'à 10 semaines
Sur commande
Quantité pcs.
(plusieurs:
1
)
Ajouter à la demande de devis
Ajouter au presse-papiers
Imprimer

Description du produit

Electronic rotary potentiometer 1-10 V from the Integro Flow series, from Berker. Product part number is 928912505.

  • With adjustment knob.
  • For switching and control of EVG electronic ballasts and Tronic 1 transformers – 10V 105W.
  • Infinitely adjustable.
  • With backup fuse, short-circuit and overload protection (fuse).
  • Basic adjustable. illuminance.
  • Eg. for fluorescent lamps and low-voltage halogen lamps with push-button on/off switch.
  • In the case of too high inrush current, switch-on current limiters no. cat. 185. In order to ensure uniform illuminance, only EVG electronic ballasts and fluorescent lamps from the same manufacturers should be used. Fuse replacement is possible without removing the cover.

Données techniques

  • Number of keys
    Knob
  • Shape
    Round
  • Rated voltage [V]
    230
  • Type
    dimmers
  • Type
    Recessed Surface-mounted
  • Surface finish
    matte
  • Backlight
    NO
  • Terminal type
    Threaded
  • Color
    Graphite
  • Material
    Plastic
  • Rated current [A]
    6
  • Family
    INTEGRA FLOW
  • Version
    For halogen lighting
  • Accurate color
    anthracite
  • Mounting depth [mm]
    22
  • PKWIU
    27.90.60.0

Autres données techniques

  • Mounting method
    Built-in installation
  • Nominal voltage
    230 V
  • Dimming DALI
    No
  • Applicable with button
    No
  • Device width
    59.5 mm
  • Device depth
    58 mm
  • Rated current
    6 A
  • Frequency
    50 ... 60 Hz
  • Method of operation
    Turn/push button
  • Applicable with infrared button
    No
  • Device height
    59.5 mm

Détails du fabricant

Emballage en vrac

Une sorte de paquet Karton Pakiet Paleta
Quantité 10 pcs. 40 pcs. 1280 pcs.
poids (kg) 0,770 3,465 135,880
Largeur (m) 0,160 0,300 0,800
Longueur (m) 0,070 0,220 1,050
Profondeur (m) 0,270 0,400 1,200
