Double white frame 138129
local index:
MAR414BERK
Catalog No:
138129
EAN code:
4011334219101
Price:
27,75 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

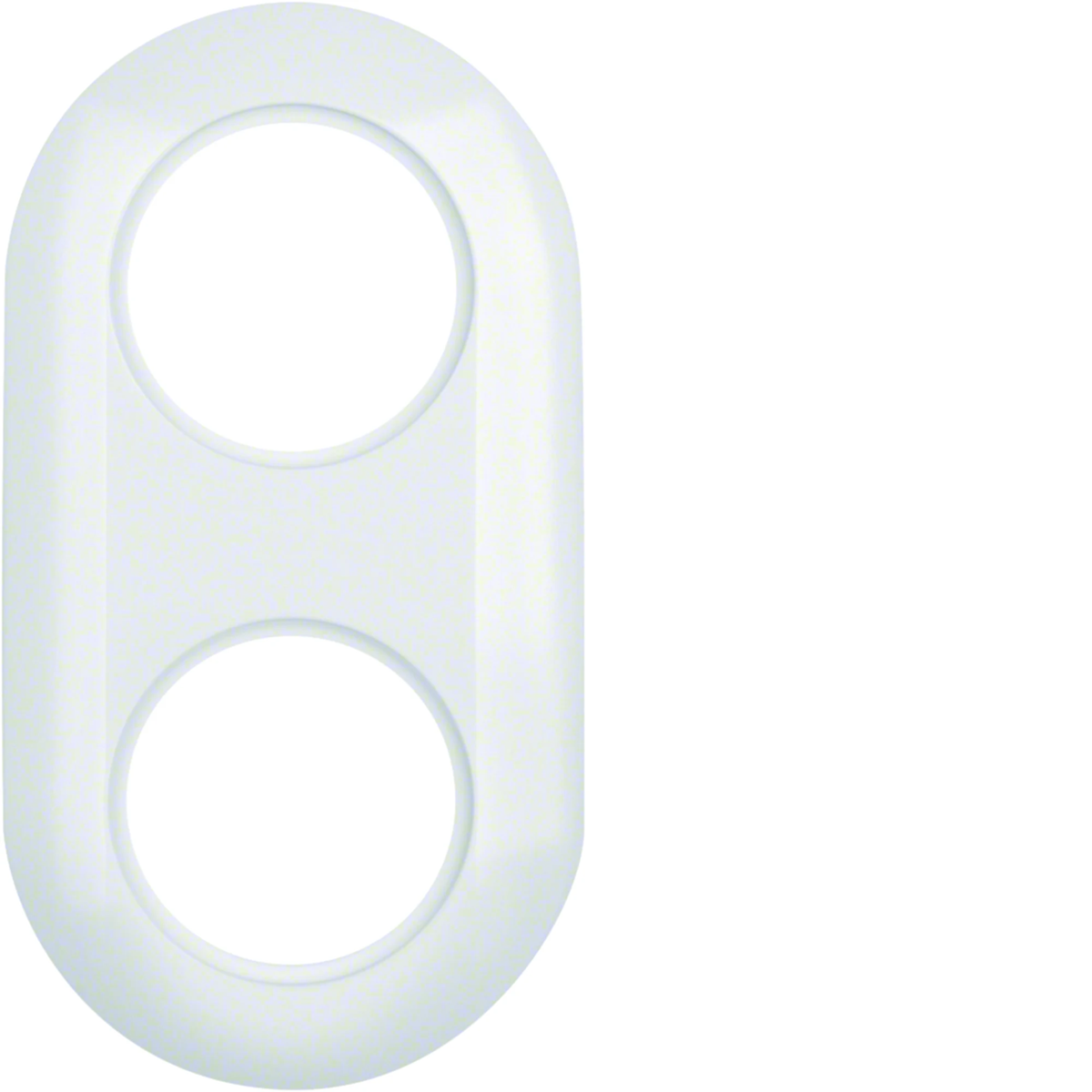

Double frame from 1930 series. The product part number is 138129.
SERIES DESCRIPTION
1930 Series is designed in accordance with Bauhaus philosophy.
Technical data
-
Depth [mm]9
-
ColorWhite
-
MaterialPlastic
-
Family1930
-
Surface protectionNatural
-
Accurate colorSnow white
-
For modular equipmentNot applicable
-
The shape of the matching accessoryRound
-
Number of modules2
-
ShapeOval
-
TypeStandard
-
Level of securityIP20
-
Surface finishShiny
-
Mounting directionUniversal
-
Exact materialDuroplastic
-
PKWIU27.12.40.0
Other technical data
-
Number of units2
-
Number of units horizontal2
-
Number of modules horizontal (module system)0
-
Liczba łączników2
-
Suitable for subfloor installation duct boxNo
-
Suitable for built-in installationYes
-
MaterialPlastic
-
Halogen freeYes
-
Surface finishingGlossy
-
RAL-number (similar)9010
-
With hinged lidNo
-
Impact strengthIK02
-
Width151 mm
-
Depth9 mm
-
Built-in height0 mm
-
Mounting directionHorizontal and vertical
-
Number of units vertical2
-
Number of modules vertical (module system)0
-
With mounting gridNo
-
Suitable for wall ductYes
-
Label space/information surfaceNo
-
Material qualityDuroplast
-
Surface protectionUntreated
-
ColourWhite
-
TransparentNo
-
Degree of protection (IP)IP20
-
Type of fasteningClamp mounting
-
Height80 mm
-
Built-in width0 mm
-
Diameter bore hole (opening)45 mm
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 2 pcs. | 120 pcs. | 3840 pcs. |
| Weight (kg) | 0,030 | 0,085 | 5,510 | 199,320 |
| Width (m) | 0,080 | 0,095 | 0,300 | 0,800 |
| Length (m) | 0,009 | 0,025 | 0,225 | 1,050 |
| Depth (m) | 0,151 | 0,170 | 0,400 | 1,200 |
