Double stereo speaker socket anthracite 457305
local index:
MJG002BERK
Catalog No:
457305
EAN code:
4011334387671
Price:
23,38 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

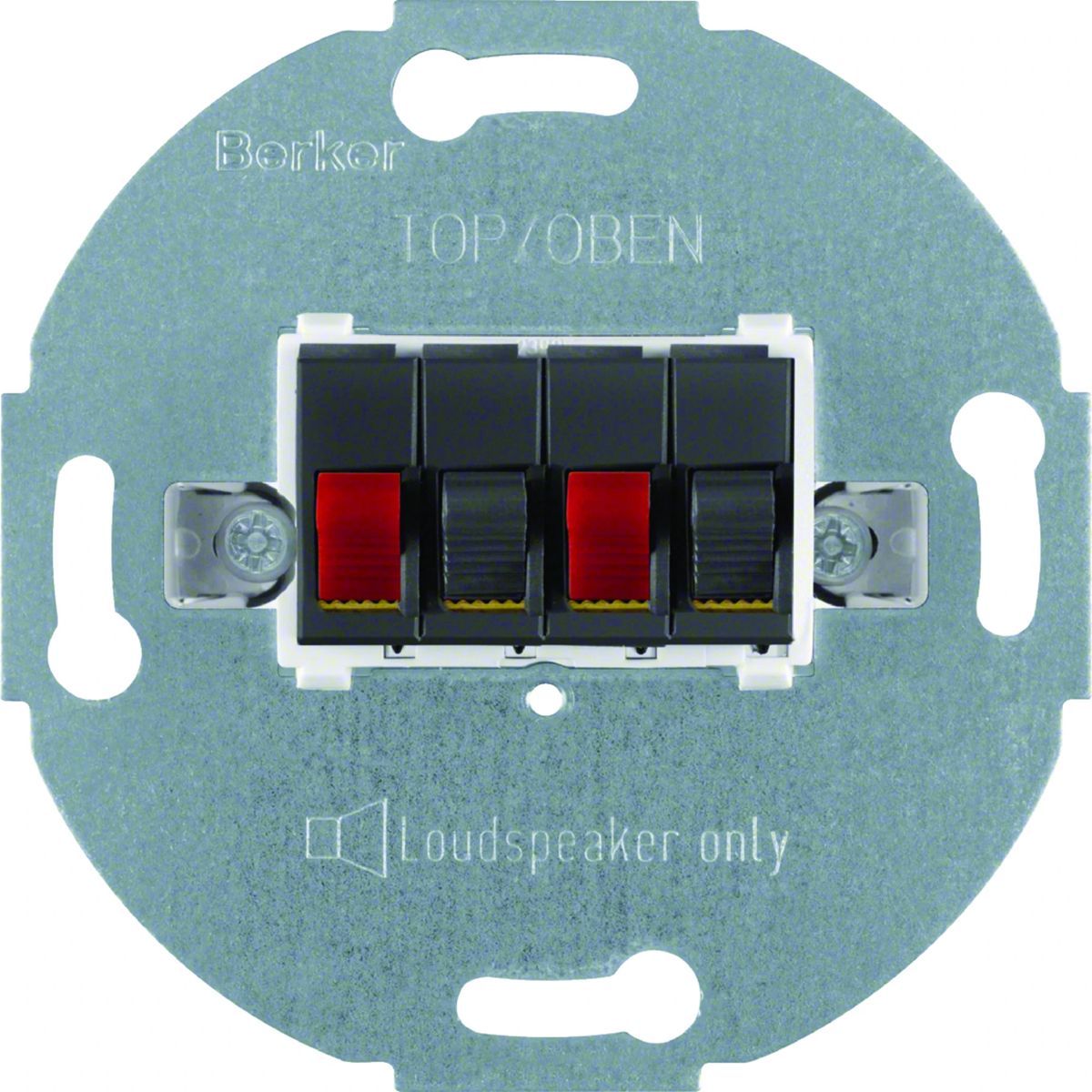

Stereo speaker jack mechanism from the one.platform series, from Berker. The product catalog number is 457305.
FEATURES
- 2-way socket. < li>Colour-coded polarity, also suitable as connection socket for safety low voltage.
- For order numbers 1033 .., 1040 ..
- With crimp contacts (rear side screw terminals).
- Rated voltage: 60 V DC.
Technical data
-
Number of sockets2
-
MaterialPlastic Metal
-
Typespeaker
-
Level of securityIP20
-
Surface finishmatte
-
Accurate colorAnthracite
-
VariantPin-type plugs
-
PKWIU27.33.13.0
-
Shapesquare Round
-
FixingWith spreaders
-
FamilyONE.PLATFORM
-
TypeSocket mechanism
-
Maximum conductor cross-section [mm²]10
-
BacklightNO
-
For the frame systemYes
Other technical data
-
Assembly arrangementBasic element
-
Support ringYes
-
With hinged lidNo
-
Mounting methodFlush-mounted
-
Material qualityOther
-
Surface protectionUntreated
-
ColourAnthracite
-
TransparentNo
-
Suitable for number of connectors2
-
Shielded busesNo
-
Suitable for degree of protection (IP)IP20
-
Device height71 mm
-
Min. depth of built-in installation box32 mm
-
UtilizationLoudspeaker connection
-
With dust coverNo
-
Imprintable labelWithout indication field
-
MaterialOther
-
Halogen freeYes
-
Surface finishingMatt
-
RAL-number (similar)7021
-
Type of fasteningMounting with claw
-
With strain reliefNo
-
Luster terminalNo
-
Device width71 mm
-
Device depth45 mm
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 10 pcs. | 40 pcs. | 960 pcs. |
| Weight (kg) | 0,055 | 0,640 | 2,995 | 94,880 |
| Width (m) | 0,071 | 0,175 | 0,315 | 0,800 |
| Length (m) | 0,045 | 0,080 | 0,215 | 1,050 |
| Depth (m) | 0,071 | 0,240 | 0,365 | 1,200 |
