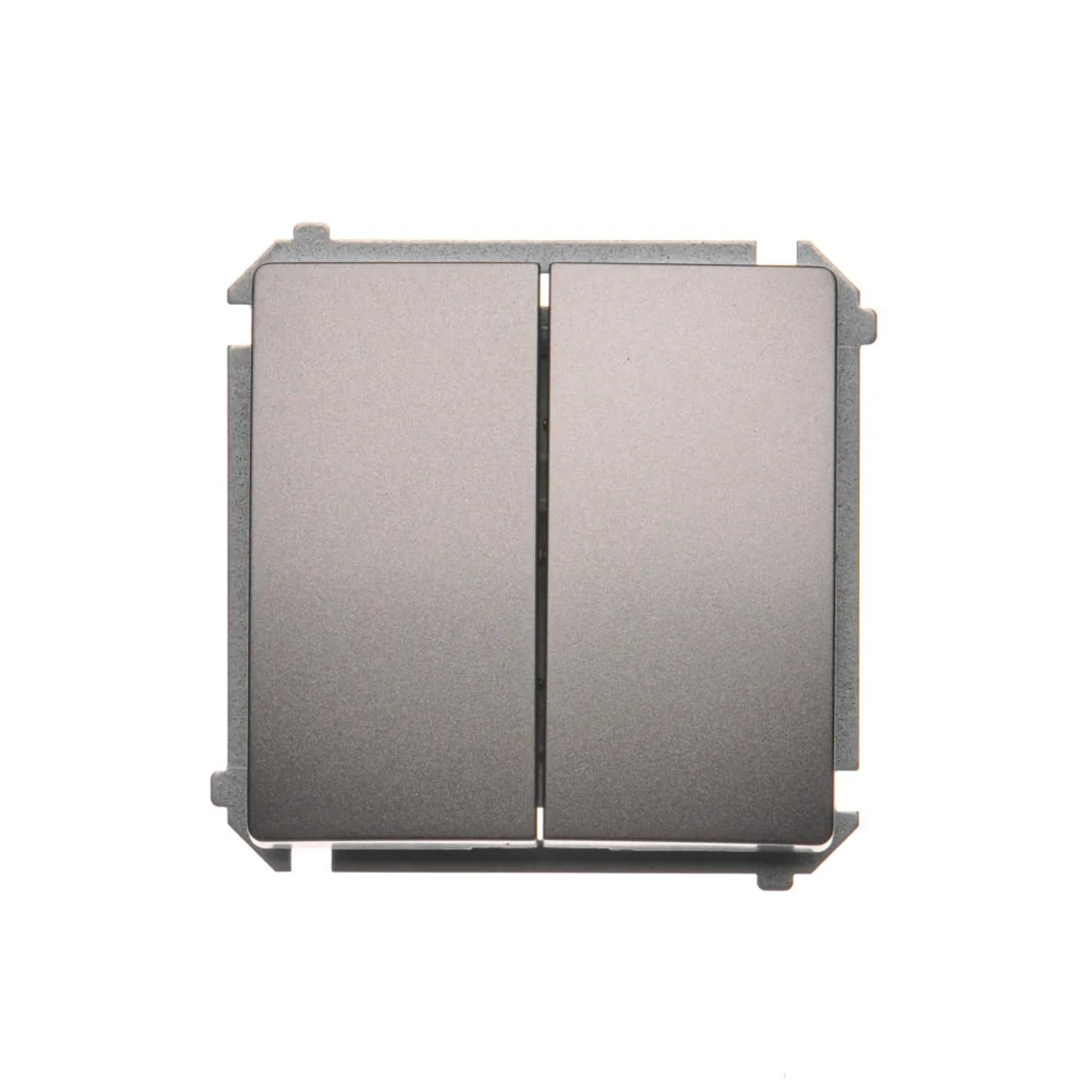

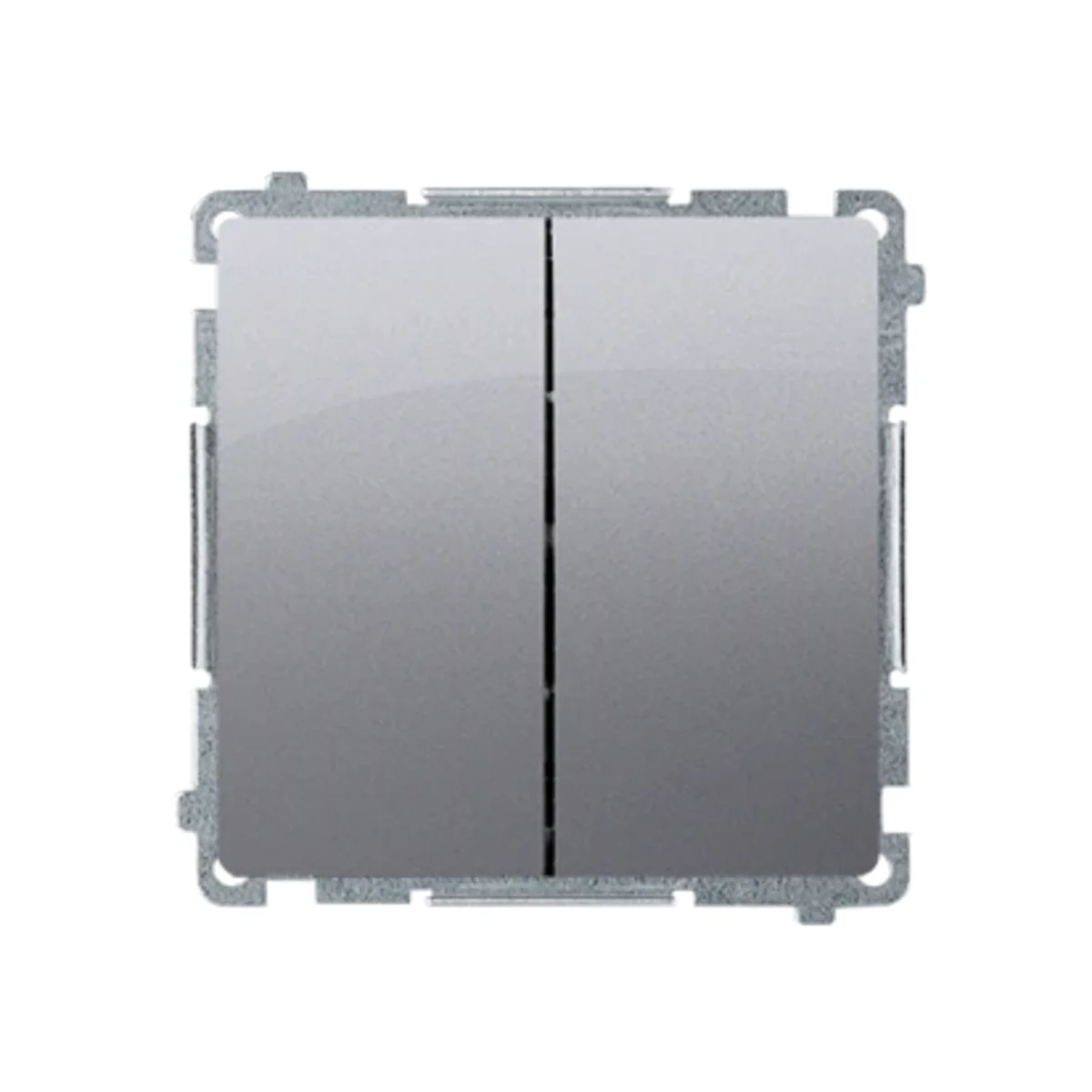

Double stair switch with backlight (module) 230V, metallic stainless steel BMW6/2L.01/21
local index:
MMS057KONT
Catalog No:
BMW6/2L.01/21
EAN code:
5902787543211
Price:
13,07 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Stair switch from the Simon Basic series, from the manufacturer Contact Simon. The product part number is BMW6/2L.01/21.
FEATURES
- Double.
- With built-in blue backlight for orientation (LED not replaceable).
- Module without frame.
- Screw terminals.
- inox color, metallic.
- Rated current of fluorescent lamps 10AX.
- Rated voltage 230V.
- Mounting flush< /strong>.
- Dimensions: 75 x 75 mm (height x width).
- Made of PC.
- To obtain the IP44 splash-proof class, use the IP44 NEOS frame: BMRC1B/...; BMRC2B/... or IP44 frame STANDARD: BMR1B/...; BMR2B/...; BMR3B/...
- To obtain the IP44 splash-proof class, additionally use a gasket under the keys: NU1W.
SERIES DESCRIPTION
Functionality and classic look are the hallmarks of the Simon Basic series, which will work in any space. The color palette makes it possible to subtly integrate switches and sockets into the design of an apartment, premises, living room or office.
Technical data
-
Halogen freeYes
-
Number of keys2
-
ShapeSquare
-
Fixingclaws Screws
-
Rated voltage [V]230
-
Typestairs
-
Level of securityIP20
-
TypeFlush-mounted
-
Surface protectionvarnishing
-
Accurate colorMetallized stainless steel
-
Mounting depth [mm]24
-
For the frame systemYes
-
Backlight typeOrientation LED
-
PKWIU27.33.11.0
-
Depth [mm]41
-
ColorSilver
-
MaterialPlastic
-
InstallationFlush-mounted
-
Rated current [A]10
-
FamilySIMON BASIC
-
Width [mm]75
-
Height [mm]75
-
Surface finishmatte
-
BacklightYes
-
Terminal typeThreaded
-
Exact materialPC
-
Backlight colorBlue
Other technical data
-
Method of operationRocker/button
-
Mounting methodFlush-mounted
-
Material qualityThermoplastic
-
Surface finishingMatt
-
Nominal voltage230 V
-
Connection typeScrewed terminal
-
Assembly arrangementBasic element with central cover plate
-
MaterialPlastic
-
Surface protectionLacquered
-
Suitable for degree of protection (IP)IP20
-
Switching current for fluorescent lamps10 AX
Bulk packaging
| A kind of package | Paczka | Karton | |
| Quantity | 1 pcs. | 1 pcs. | 10 pcs. |
| Weight (kg) | 0,084 | 0,084 | 0,935 |
| Width (m) | 0,075 | 0,110 | 0,190 |
| Length (m) | 0,075 | 0,045 | 0,230 |
| Depth (m) | 0,041 | 0,160 | 0,100 |
