Double stair switch with backlight (module) 230V, matt bronze metallic DW6/2L.01/46

Name: Double stair switch with backlight (module) 230V, matt bronze metallic
Brand: KONTAKT-SIMON
SKU: MMS098KONT
Price: 14.91 PLN

local index:

MMS098KONT

Catalog No:

DW6/2L.01/46

EAN code:

5902787833466

Double stair switch with backlight (module) 230V, matt bronze metallic

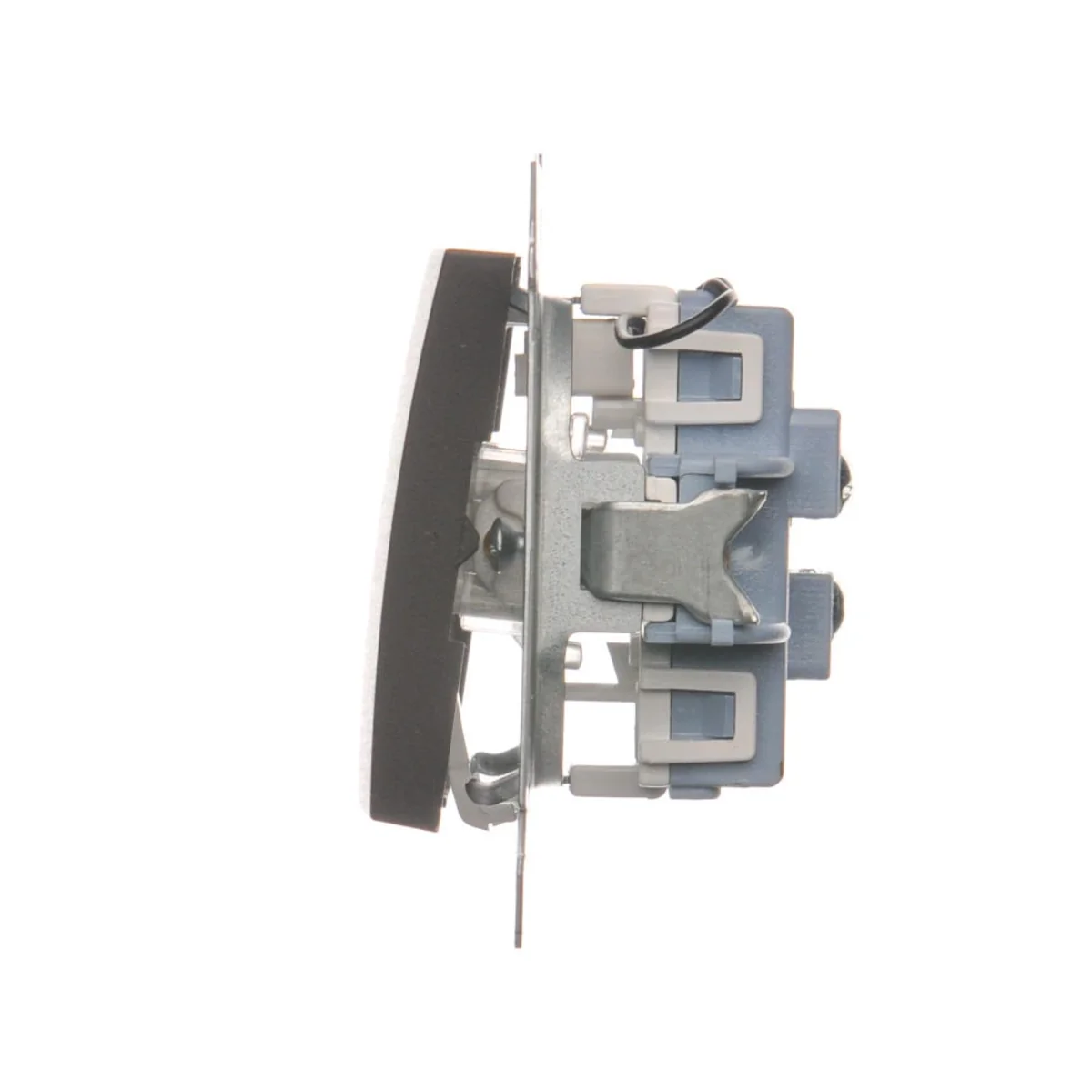

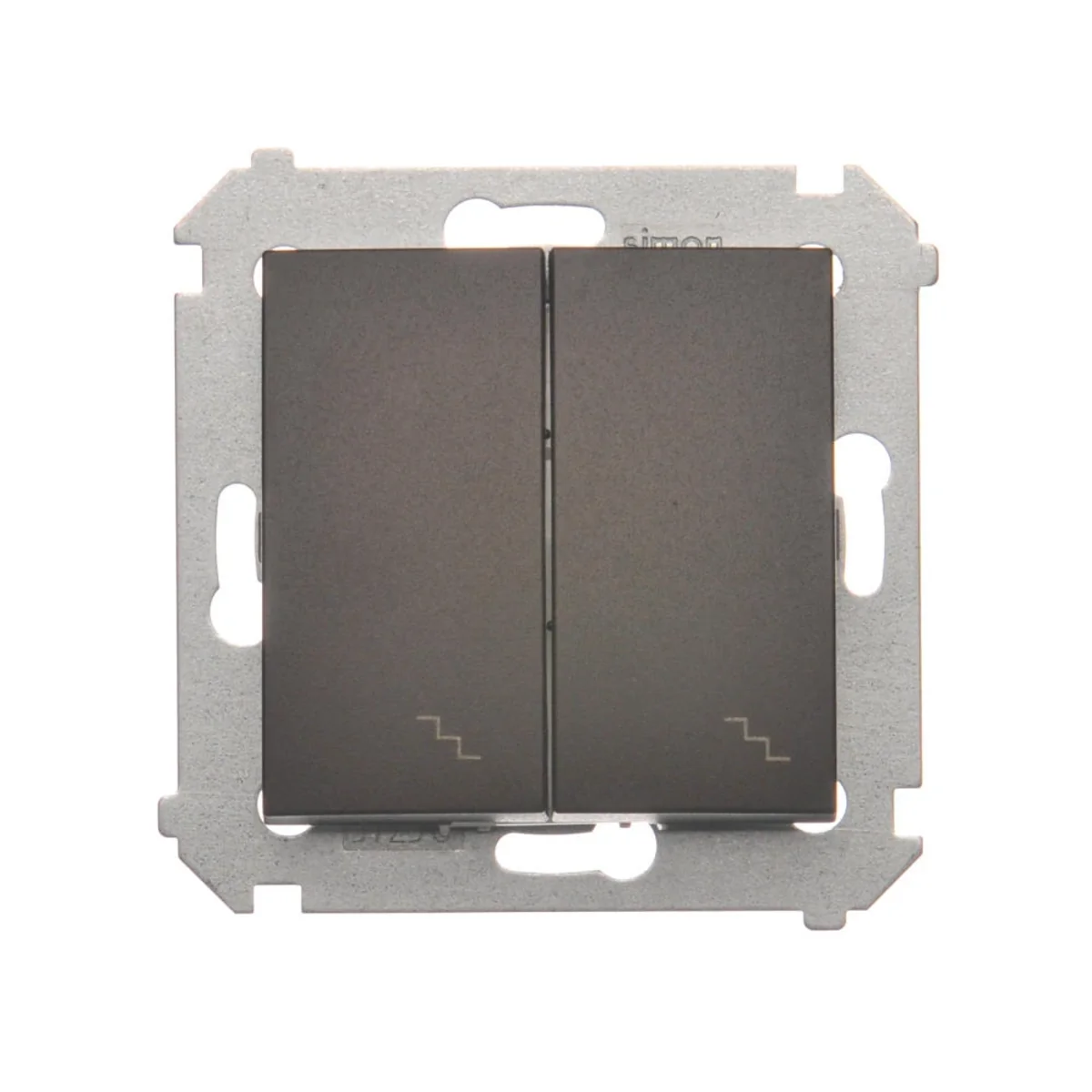

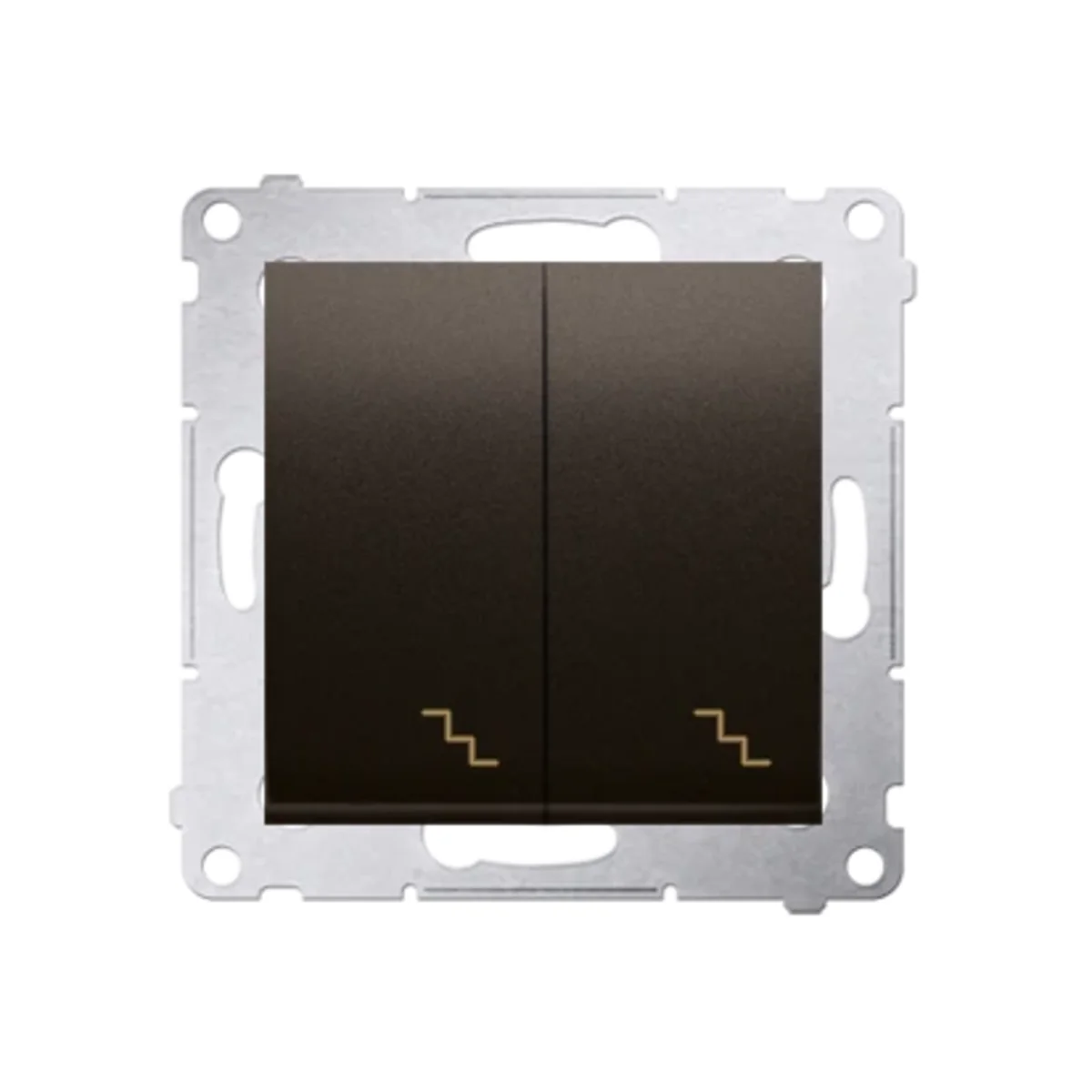

Click on the photo to enlarge

Manufacturer: KONTAKT-SIMON

Halogen free: Yes

Depth [mm]: 41

Number of keys: 2

See full description

Price:

14,91 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 2 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging

Product description

Stair switch from the Simon 54 series, from the manufacturer Contact Simon. The product part number is DW6/2L.01/46.

FEATURES

Double.
With built-in blue backlight for orientation (LED replaceable).
"Stairs" symbol on keys.
Module without frame.

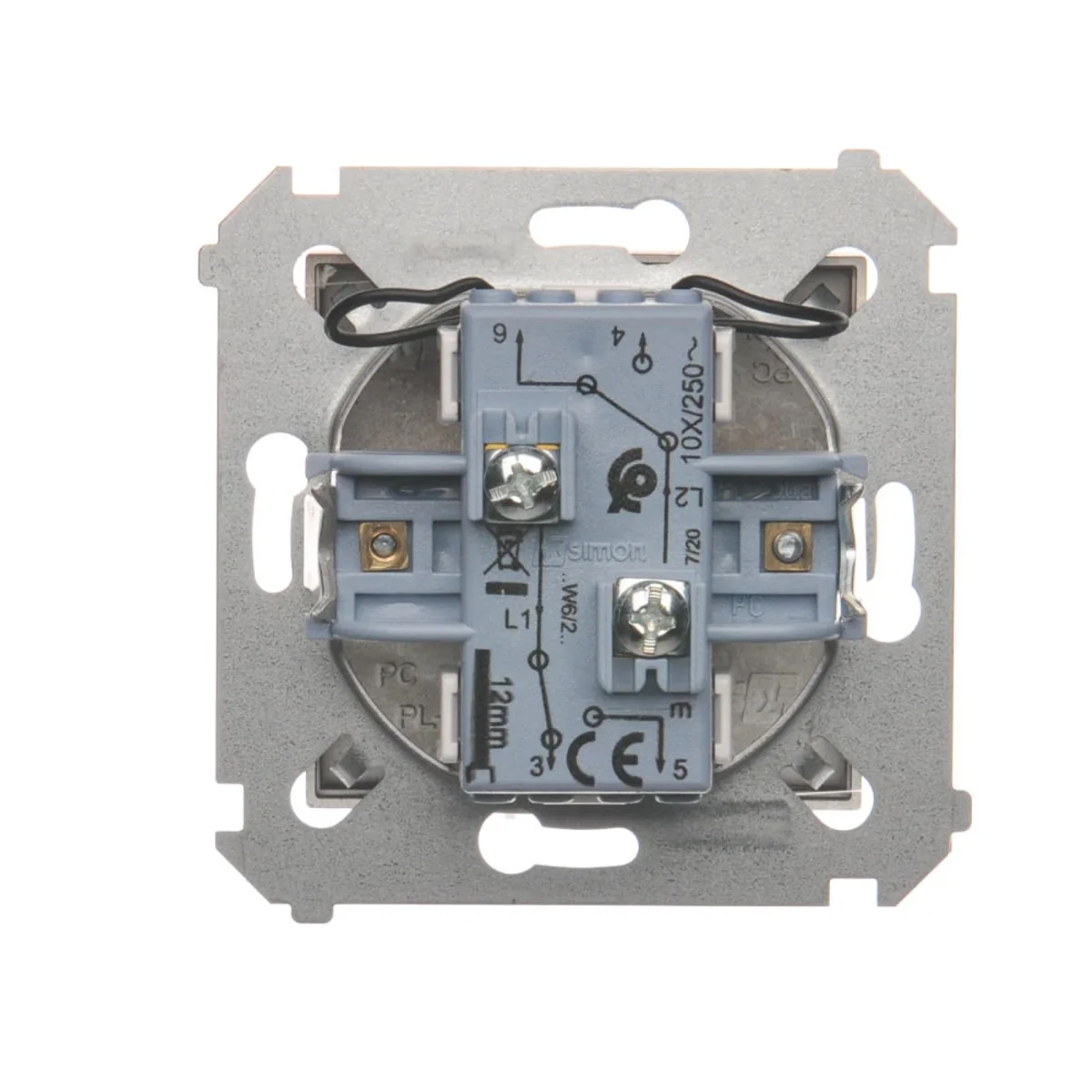

Screw terminals.
Color bronze matt, metallised.
Rated current of fluorescent lamps 10AX.
Rated voltage 230V.
flush mounting.
Dimensions: 75 x 75 mm (height x width).
Made of PC.
2x1-pole connector (bistable).
To obtain IP44 splash-proof class, use a frame gasket.

SERIES DESCRIPTION

SIMON 54 is a modern line of electrical installation equipment based on new, reliable and easy-to-install mechanisms , distinguished by a noble form and rich colors.

Technical data

Halogen free

Yes
Number of keys

2
Shape

Square
Fixing

claws Screws
Rated voltage [V]

230
Type

stairs
Level of security

IP20
Width [mm]

75
Height [mm]

75
Surface finish

matte
Backlight

Yes
Terminal type

Threaded
Exact material

PC
Backlight color

Blue

Depth [mm]

41
Color

Brown
Material

Plastic
Installation

Flush-mounted
Rated current [A]

10
Family

Simon 54
Symbol

Stairs
Type

Flush-mounted
Surface protection

varnishing
Accurate color

Metallic bronze matt
Mounting depth [mm]

26
For the frame system

Yes
Backlight type

Orientation LED
PKWIU

27.33.11.0

Other technical data

Wiring system

Off switch 2x1-pole
Assembly arrangement

Basic element with central cover plate
Material

Plastic
Surface protection

Lacquered
Colour

Brown
Nominal voltage

250 V
Connection type

Screwed terminal

Method of operation

Rocker/button
Mounting method

Flush-mounted
Material quality

Thermoplastic
Surface finishing

Matt
Suitable for degree of protection (IP)

IP20
Switching current for fluorescent lamps

10 AX

Manufacturer details

Manufacturer

KONTAKT - SIMON S.A.
Address

43-500 Czechowice-Dziedzice Bestwińska 21
Phone number

323246300
E-mail

info@kontakt-simon.com.pl
WWW

https://www.kontakt-simon.com.pl
Tax identification number

6520005366
GLN

5900009931105

Bulk packaging

A kind of package		Paczka	Karton
Quantity	1 pcs.	1 pcs.	10 pcs.
Weight (kg)	0,076	0,076	0,849
Width (m)	0,075	0,110	0,190
Length (m)	0,075	0,045	0,230
Depth (m)	0,041	0,160	0,100
