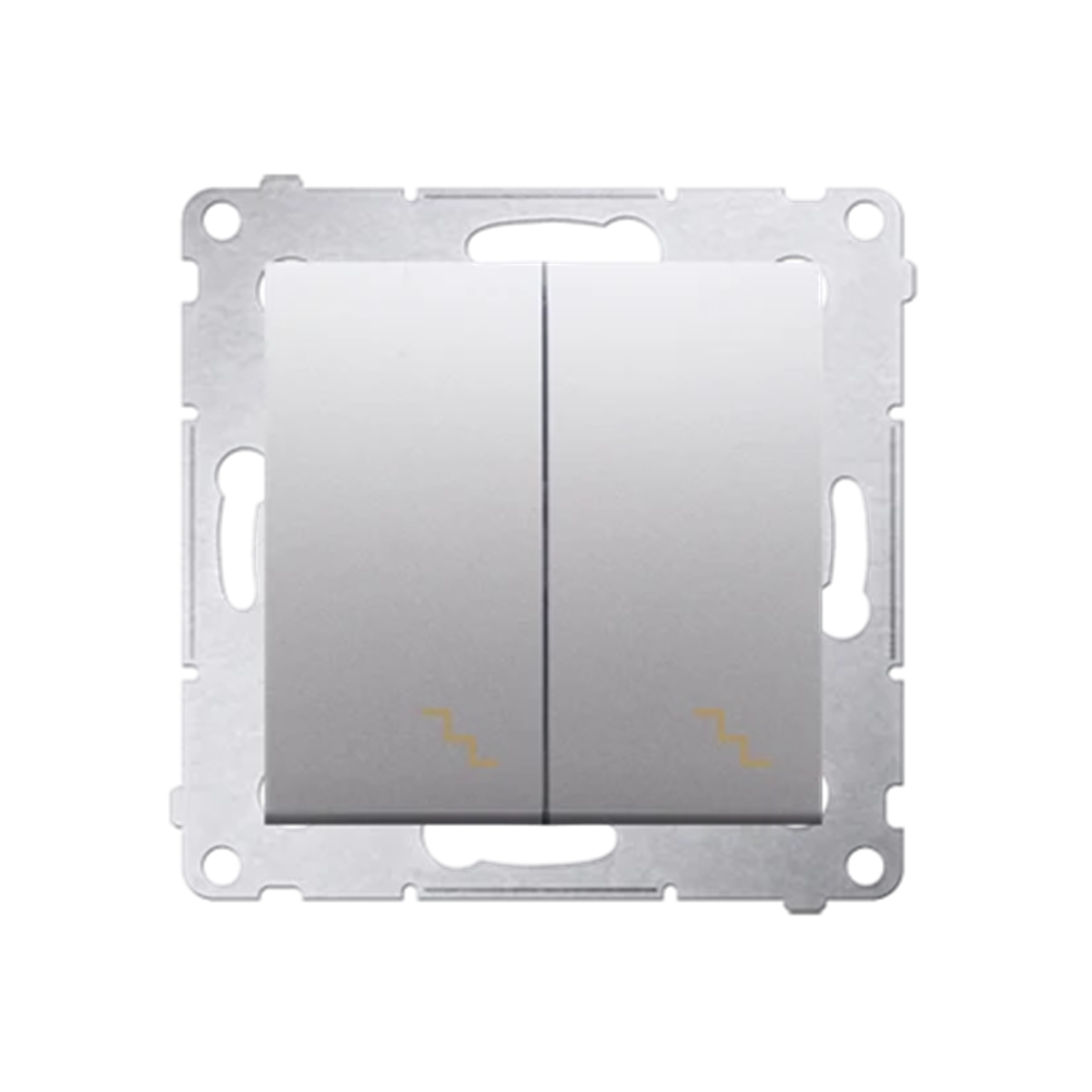

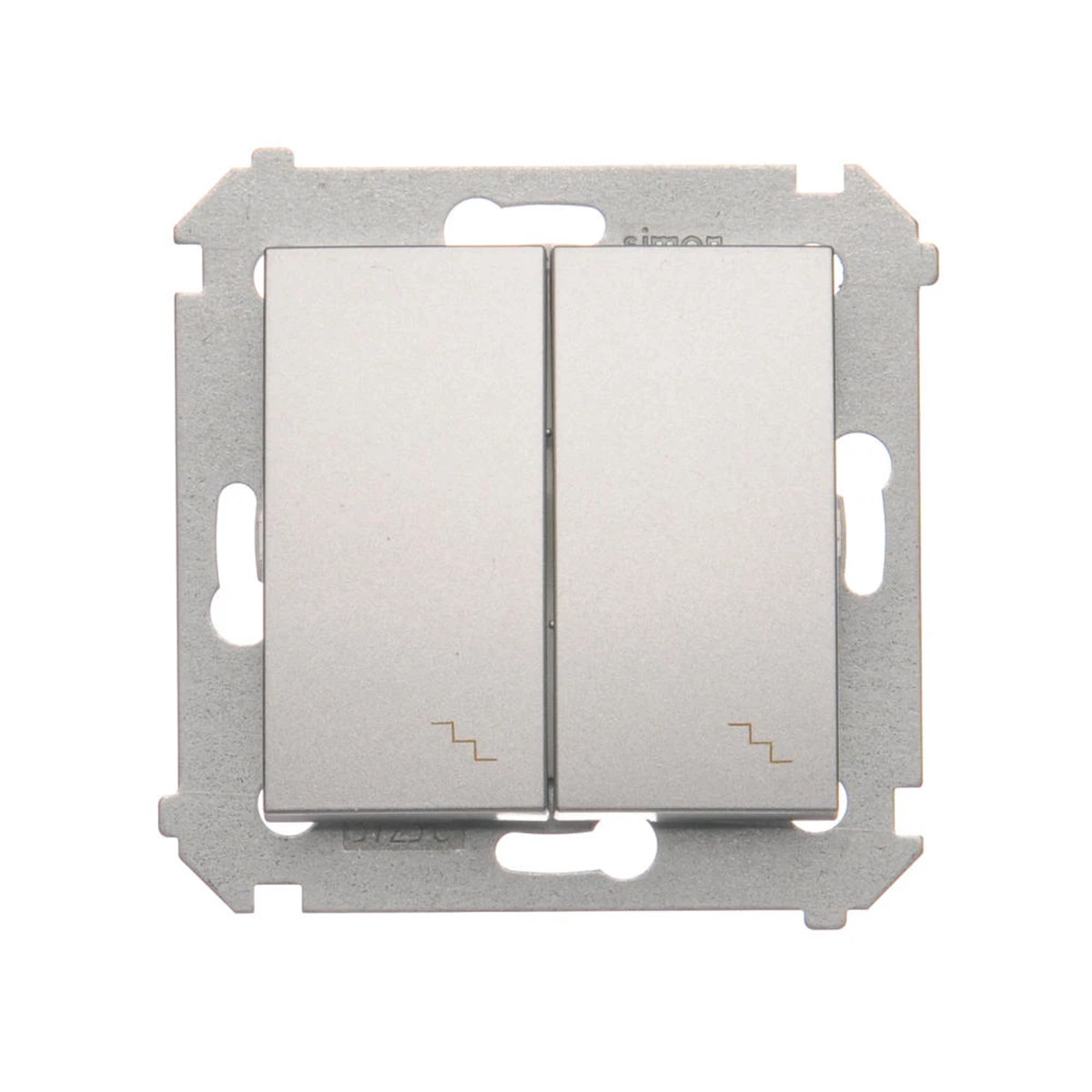

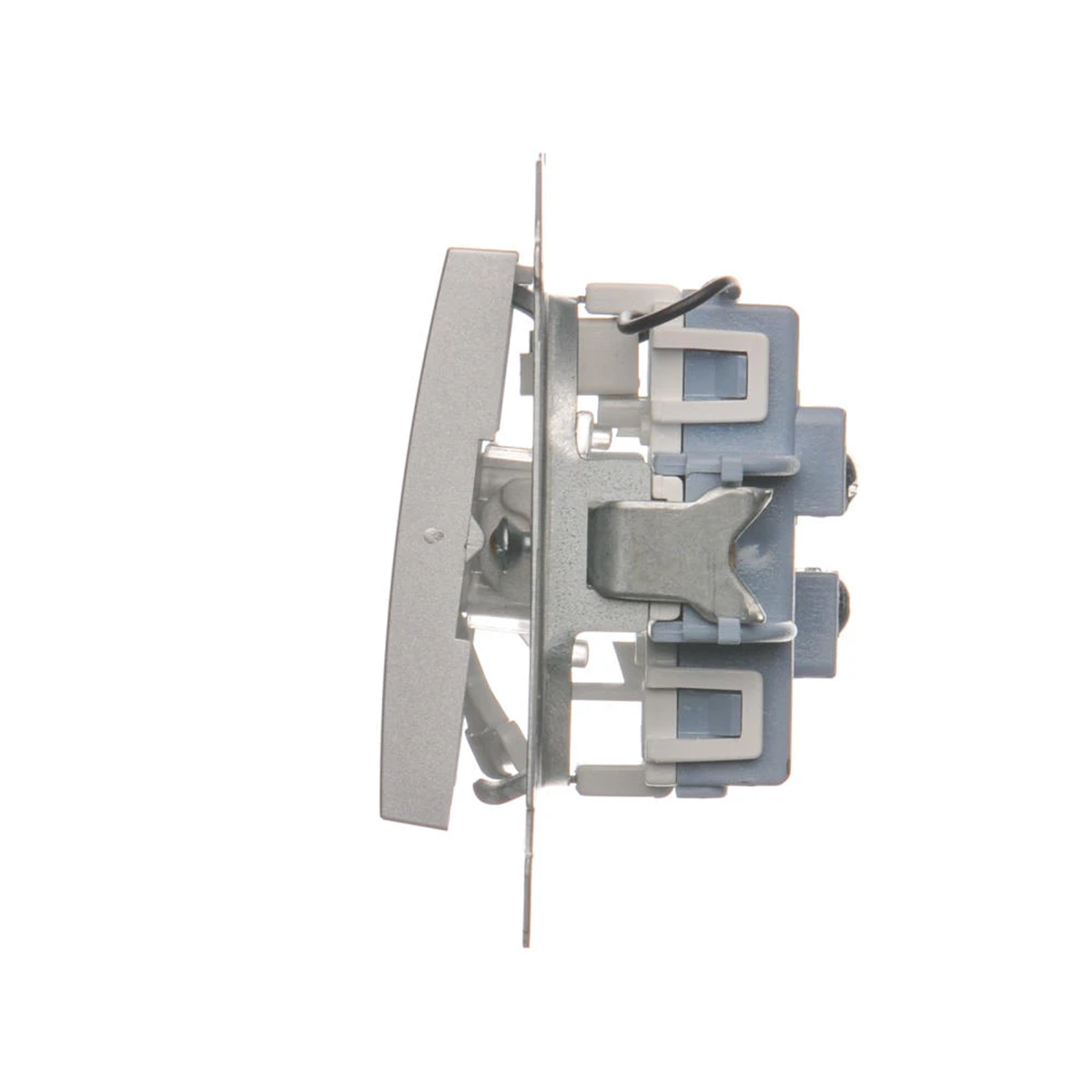

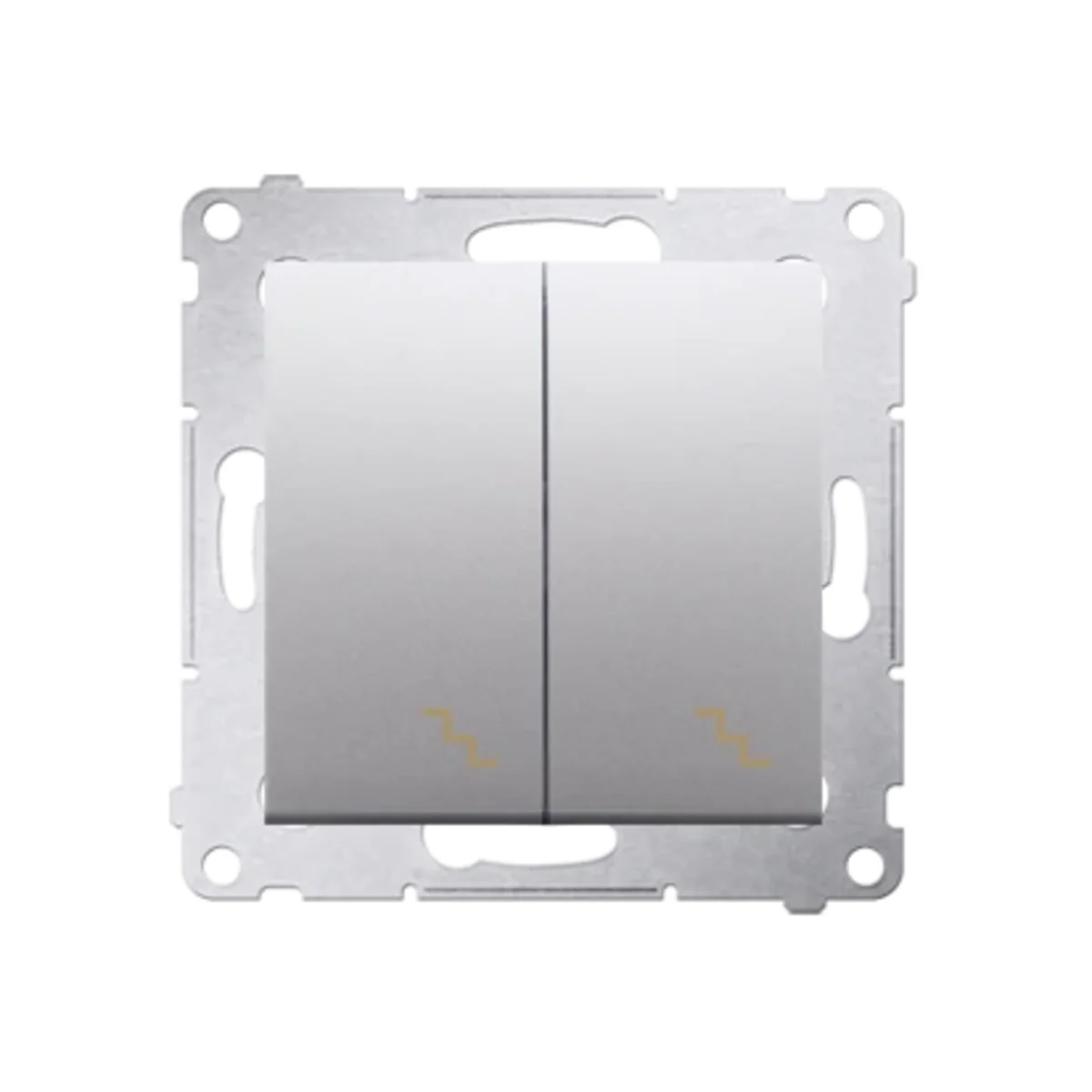

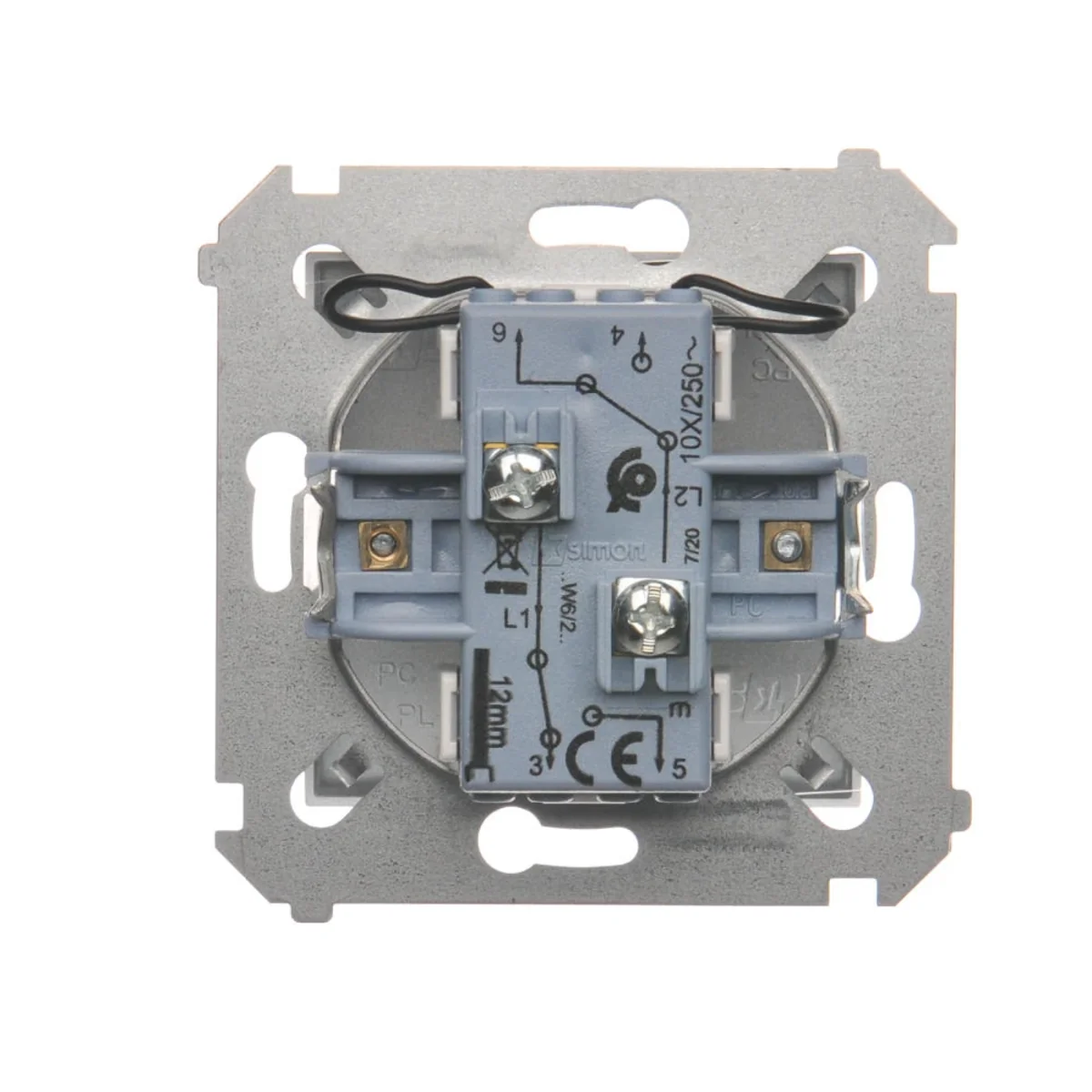

Double stair switch with backlight (module) 10A 250V screw terminals silver (metallic) DW6/2L.01/43

local index:
MMS096KONT
Catalog No:
DW6/2L.01/43
EAN code:
5902787822620
Manufacturer: KONTAKT-SIMON
Halogen free: Yes
Depth [mm]: 41
Number of keys: 2
Price:
15,29 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

Stair switch from the Simon 54 series, from the manufacturer Contact Simon. The product part number is DW6/2L.01/43.



FEATURES

  • Double.

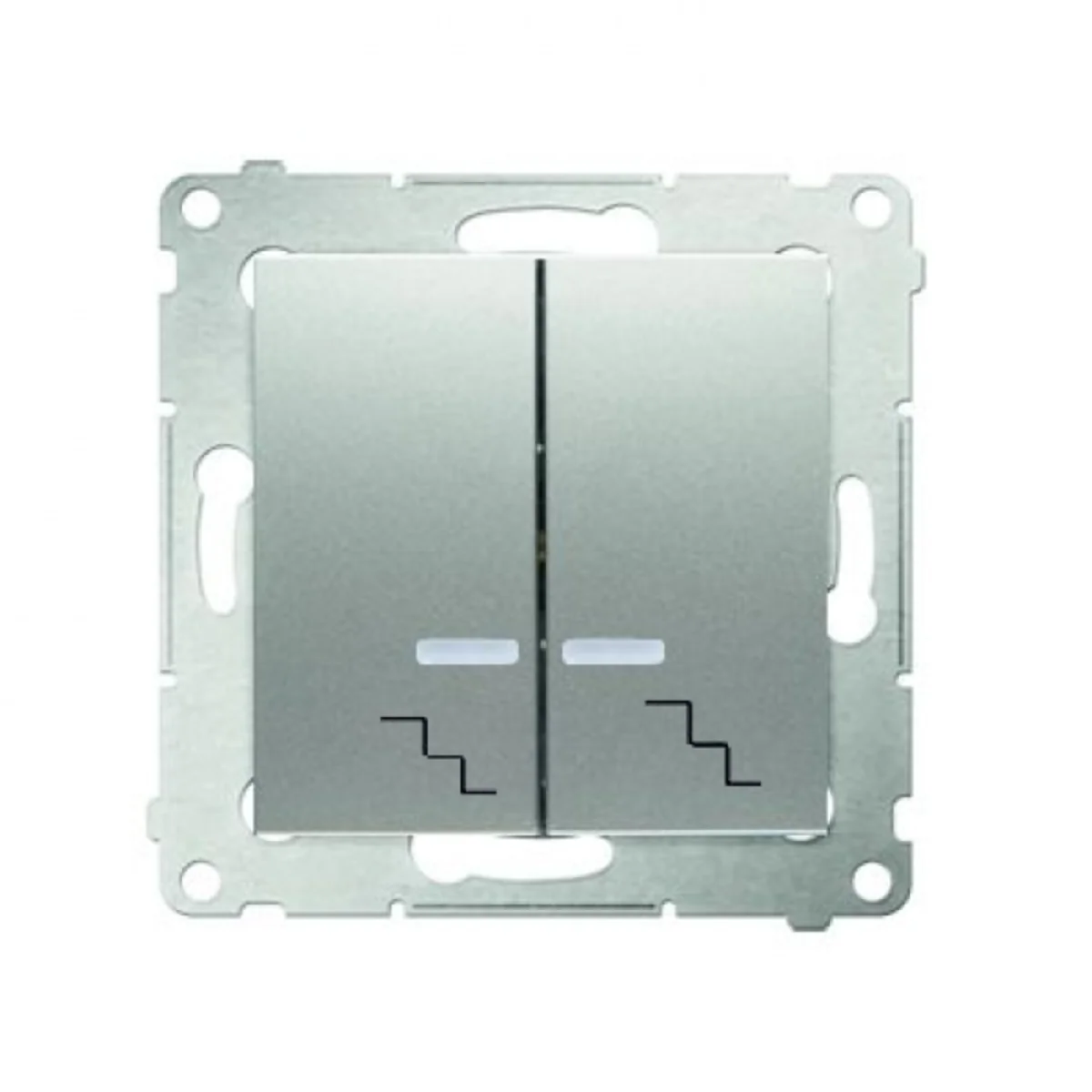

  • With built-in blue backlight for orientation (LED replaceable).
  • "Stairs" symbol on keys.
  • Module without frame.
  • Screw terminals.
  • Color silver matt, metallised.
  • Rated current of fluorescent lamps 10AX.
  • Voltage rated 230V.
  • flush mounting.
  • Dimensions: 75 x 75 mm (height x width).
  • Made of PC.
  • 2x1-pole connector (bistable).
  • To obtain IP44 splash-proof class, use a frame gasket.



SERIES DESCRIPTION

SIMON 54 is a modern line of electrical installation equipment based on new, reliable and easy-to-install mechanisms, distinguished by its noble form and rich colors.

Technical data

  • Halogen free
    Yes
  • Number of keys
    2
  • Shape
    Square
  • Fixing
    claws Screws
  • Rated voltage [V]
    230
  • Type
    stairs
  • Level of security
    IP20
  • Width [mm]
    75
  • Height [mm]
    75
  • Surface finish
    matte
  • Backlight
    Yes
  • Terminal type
    Threaded
  • Exact material
    PC
  • Backlight color
    Blue
  • Depth [mm]
    41
  • Color
    Silver
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    10
  • Family
    Simon 54
  • Symbol
    Stairs
  • Type
    Flush-mounted
  • Surface protection
    varnishing
  • Accurate color
    Silver metallic matt
  • Mounting depth [mm]
    26
  • For the frame system
    Yes
  • Backlight type
    Orientation LED
  • PKWIU
    27.33.11.0

Other technical data

  • Wiring system
    Off switch 2x1-pole
  • Assembly arrangement
    Basic element with central cover plate
  • Material
    Plastic
  • Surface protection
    Lacquered
  • Colour
    Silver
  • Nominal voltage
    250 V
  • Connection type
    Screwed terminal
  • Method of operation
    Rocker/button
  • Mounting method
    Flush-mounted
  • Material quality
    Thermoplastic
  • Surface finishing
    Matt
  • Suitable for degree of protection (IP)
    IP20
  • Switching current for fluorescent lamps
    10 AX

Bulk packaging

A kind of package Paczka Karton
Quantity 1 pcs. 10 pcs.
Weight (kg) 0,076 0,849
Width (m) 0,110 0,190
Length (m) 0,045 0,230
Depth (m) 0,160 0,100
