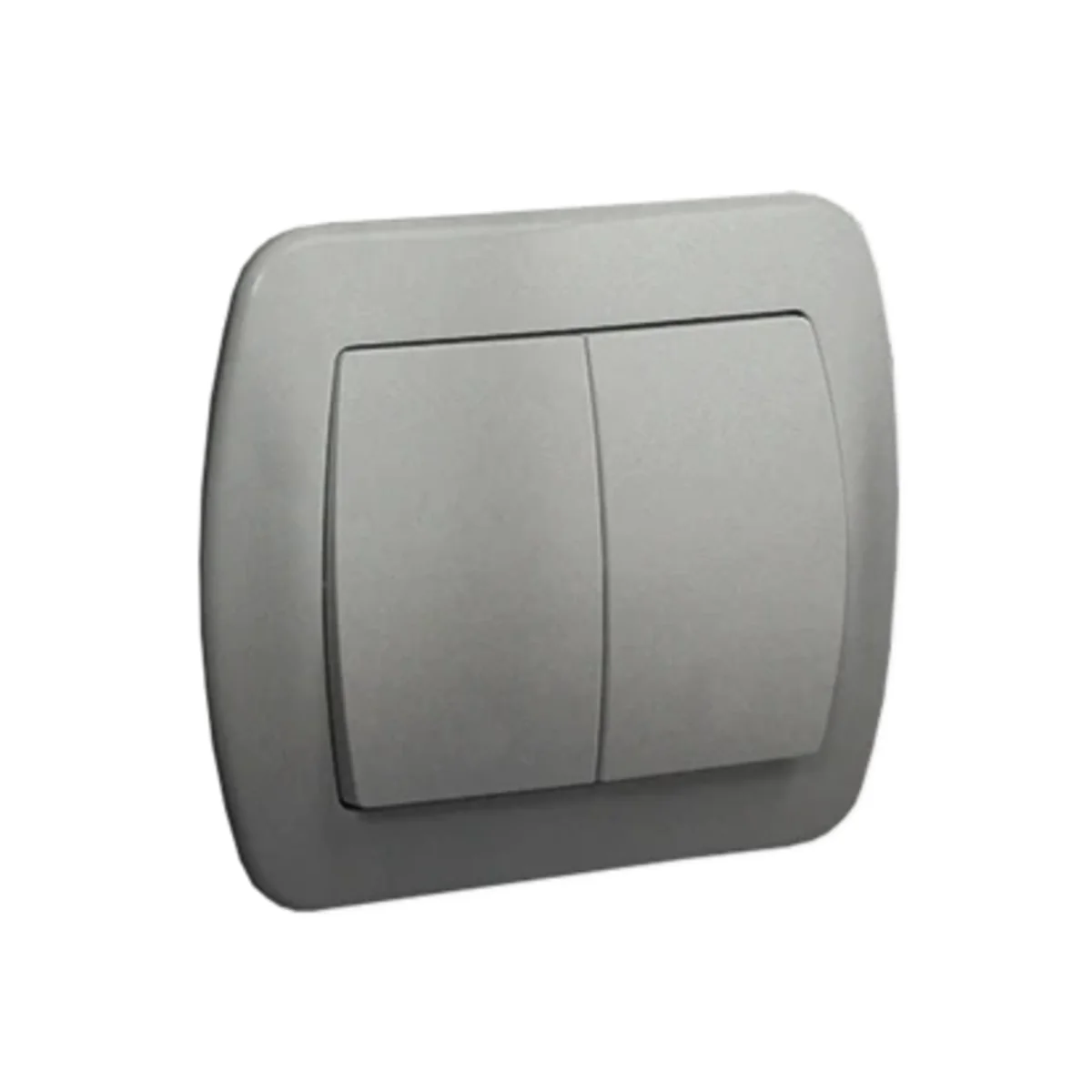

Double stair switch with backlight 230V, metallic silver AW6/2L/26

local index:
MMS040KONT
Catalog No:
AW6/2L/26
EAN code:
5902787801939
Manufacturer: KONTAKT-SIMON
Halogen free: Yes
Depth [mm]: 37.5
Number of keys: 2
Price:
14,32 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Stair switch from the Simon Akord series, from the manufacturer Contact Simon. The product part number is AW6/2L/26.



FEATURES

  • Doubleó bright.
  • With built-in backlight.
  • Complete product; with frame.
  • Screw terminals.
  • Color aluminium, metallised.
  • Rated current of fluorescent lamps 10AX.
  • Rated voltage 230V.
  • Ingress protection IP20< /strong>.
  • flushmount.
  • Dimensions: 80.5 x 90 mm (height x width).
  • Made of PC.
  • Rocker switch.
  • Toggle switch.



< h3>SERIES DESCRIPTION

The slightly longer line of the base and spine relative to the sides and clearly rounded corners of the frames distinguish the Chord series from others. Simon Chord is a monoblock, i.e. non-frame series. Economical, but tasteful colors combined with a characteristic oval shape will appeal to customers who expect originality and minimalism from functional details.

Technical data

  • Halogen free
    Yes
  • Number of keys
    2
  • Shape
    Rectangular
  • Fixing
    claws Screws
  • Rated voltage [V]
    230
  • Type
    stairs
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Surface protection
    varnishing
  • Accurate color
    Aluminum metallised
  • Mounting depth [mm]
    24.5
  • For the frame system
    NO
  • Backlight type
    Orientation Smoldering lamp
  • PKWIU
    27.33.11.0
  • Depth [mm]
    37.5
  • Color
    Silver
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    10
  • Family
    SIMON CHORD
  • Width [mm]
    90
  • Height [mm]
    80.5
  • Surface finish
    matte
  • Backlight
    Yes
  • Terminal type
    Threaded
  • Exact material
    PC
  • Backlight color
    Orange

Other technical data

  • Wiring system
    Two-way switch
  • Assembly arrangement
    Basic element with complete housing
  • Material
    Plastic
  • Surface protection
    Lacquered
  • Suitable for degree of protection (IP)
    IP20
  • Switching current for fluorescent lamps
    10 AX
  • Method of operation
    Rocker/button
  • Mounting method
    Flush-mounted
  • Material quality
    Thermoplastic
  • Surface finishing
    Matt
  • Nominal voltage
    250 V
  • Connection type
    Screwed terminal

Bulk packaging

A kind of package Paczka Karton
Quantity 1 pcs. 1 pcs. 10 pcs.
Weight (kg) 0,071 0,071 0,796
Width (m) 0,080 0,110 0,190
Length (m) 0,090 0,043 0,230
Depth (m) 0,038 0,165 0,100
