KONTAKT-SIMON

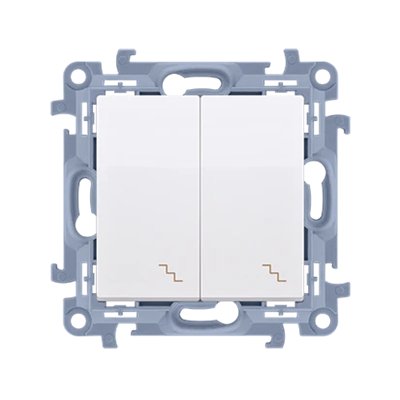

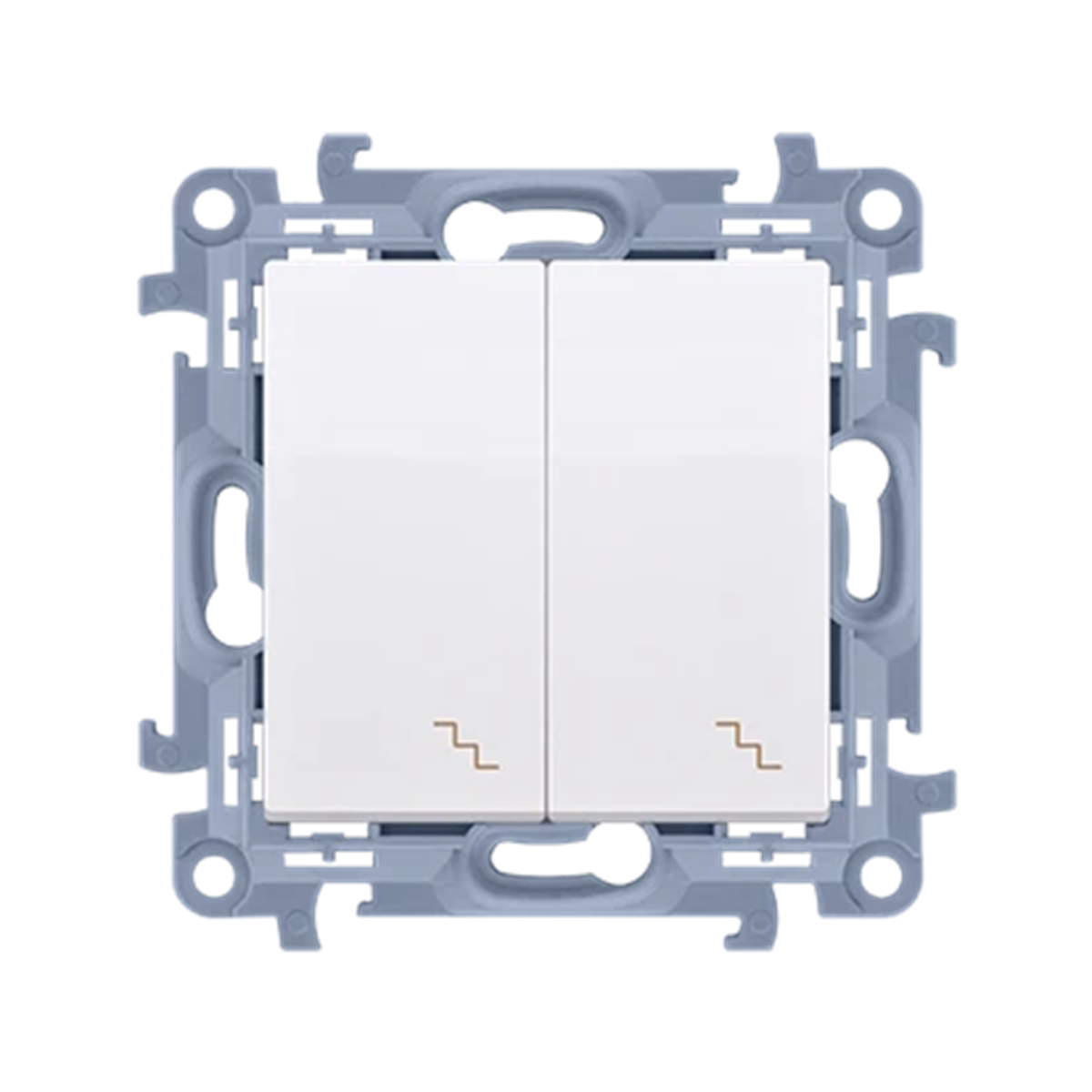

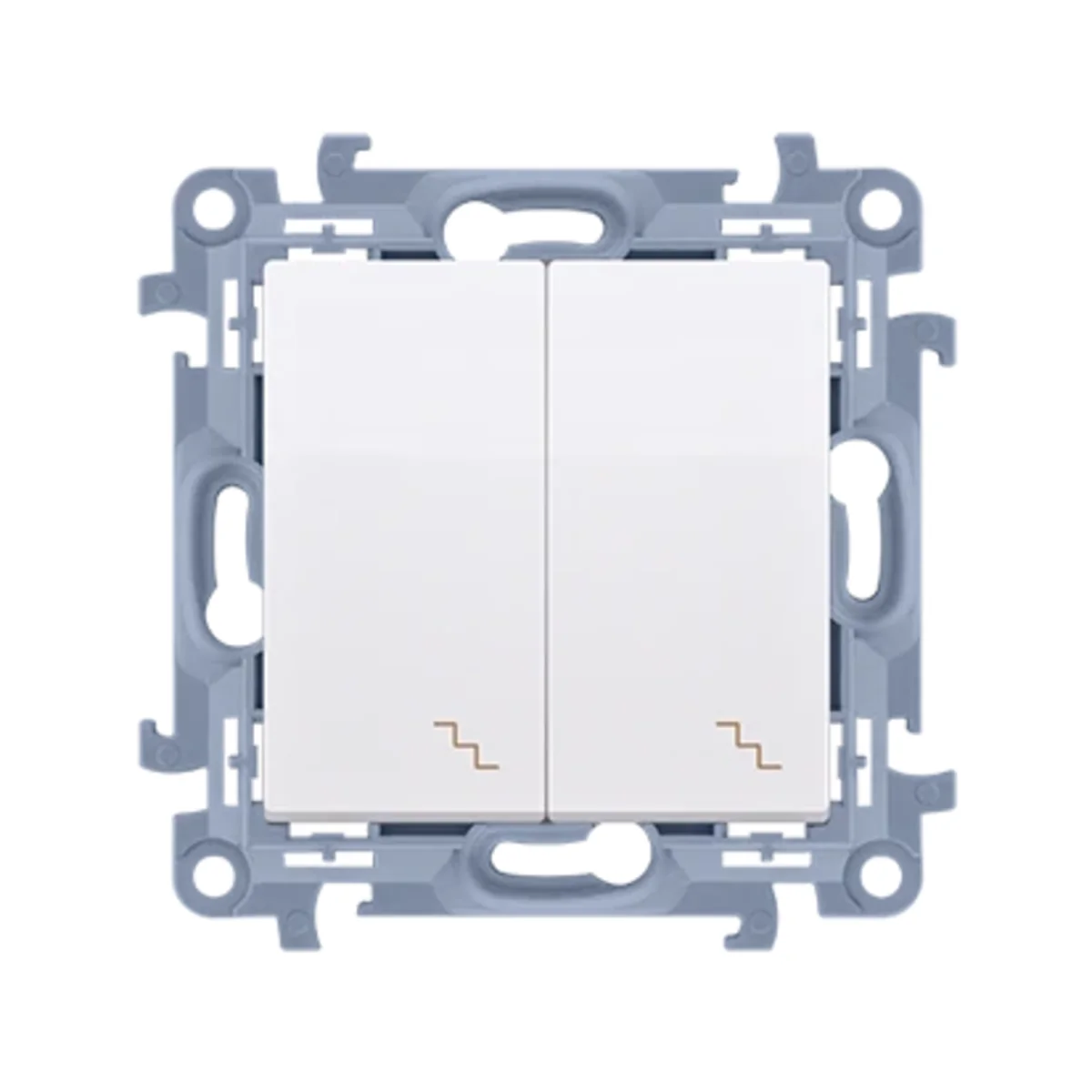

Double stair switch (module) 10AX 230V white CW6/2.01/11

local index:
MMS133KONT
Catalog No:
CW6/2.01/11
EAN code:
5902787841492
Price:
8,17 €
gross / pcs.
including VAT 23%
Availability:
up to 4 weeks (business days)
Delivery:
From 3,71 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

Stair switch from the Simon 10 series, from the manufacturer Contact Simon. The product part number is CW6/2.01/11.



FEATURES

  • Doubleó .
  • Symbol "stairs" on the keys.
  • Module without frame.
  • Screw terminals.
  • Color white.
  • Rated current for fluorescent lamps 10AX.
  • Rated voltage 230V.
  • Mounting flush.
  • Dimensions: 77 x 77  ;mm (height x width).
  • Made of PC.
  • Bistable switch.
  • To obtain IP44 splash-proof class, use gasket for keys and frame gasket.



SERIES DESCRIPTION

Simon 10 is an economical modular series for investments where different colors are not required. A full cross-section of the range of switches and sockets will allow you to comprehensively equip each apartment or office. The distinguishing element of this series is a non-conductive bridge made of high-quality plastic ensuring durability and flexibility as well as safety during assembly work.

Technical data

  • Halogen free
    Yes
  • Number of keys
    2
  • Shape
    Square
  • Fixing
    claws Screws
  • Rated voltage [V]
    230
  • Type
    stairs
  • Level of security
    IP20
  • Width [mm]
    77
  • Height [mm]
    77
  • Surface finish
    Shiny
  • Mounting depth [mm]
    26
  • For the frame system
    Yes
  • Depth [mm]
    42
  • Color
    White
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    10
  • Family
    Simon 10
  • Symbol
    Stairs
  • Type
    Flush-mounted
  • Surface protection
    Natural
  • Backlight
    NO
  • Terminal type
    Threaded
  • Exact material
    PC

Other technical data

  • Wiring system
    Two-way switch
  • Assembly arrangement
    Basic element with central cover plate
  • Material
    Plastic
  • Surface protection
    Untreated
  • Colour
    White
  • Nominal voltage
    250 V
  • Connection type
    Screwed terminal
  • Method of operation
    Rocker/button
  • Mounting method
    Flush-mounted
  • Material quality
    Thermoplastic
  • Surface finishing
    Glossy
  • Suitable for degree of protection (IP)
    IP20
  • Switching current for fluorescent lamps
    10 AX
