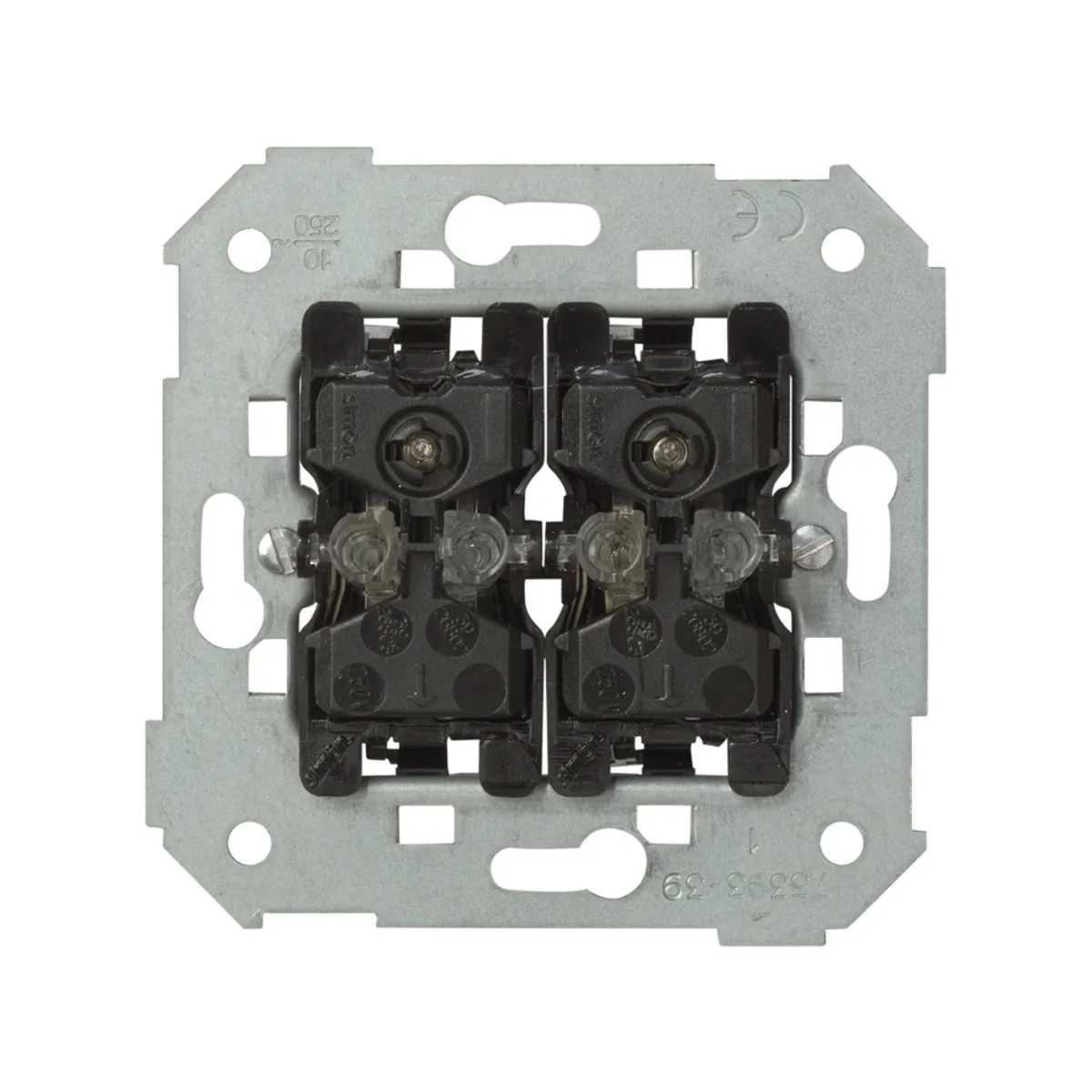

Double stair switch (for the candlestick switch) with 10AX backlight 75394-39
local index:
MPS009KONT
Catalog No:
75394-39
EAN code:
8421053036624
Price:
15,72 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Double stair switch mechanism from the Simon 82 series, from the manufacturer Contact Simon. The product catalog number is 75394-39.
- Switch with candlestick illumination.
- Quick connectors.
- To obtain a class splash-proof IP44, use a frame seal.
- Built-in backlight.
- 2x1-pole connector (bistable).
Technical data
-
Depth [mm]34
-
ShapeSquare
-
Fixingclaws Screws
-
Rated voltage [V]230
-
TypeStairs Candlestick
-
Level of securityIP20
-
TypeThe linkage mechanism
-
Surface protectionNatural
-
Mounting depth [mm]23
-
For the frame systemYes
-
Backlight colorRed
-
Number of keys2
-
MaterialMetal
-
InstallationFlush-mounted
-
Rated current [A]10
-
FamilySimon 82
-
Width [mm]75
-
Height [mm]75
-
BacklightYes
-
Terminal typeThreadless
-
Backlight typeOrientation Smoldering lamp
-
PKWIU27.33.11.0
Other technical data
-
Wiring systemOff switch 2x1-pole
-
Assembly arrangementBasic element with central cover plate
-
MaterialMetal
-
Suitable for degree of protection (IP)IP20
-
Switching current for fluorescent lamps10 AX
-
Method of operationRocker/button
-
Mounting methodFlush-mounted
-
Surface protectionUntreated
-
Nominal voltage250 V
-
Connection typePush-in clamp
Bulk packaging
| A kind of package | Paczka | Karton | |
| Quantity | 1 pcs. | 1 pcs. | 10 pcs. |
| Weight (kg) | 0,073 | 0,073 | 0,760 |
| Width (m) | 0,075 | 0,110 | 0,190 |
| Length (m) | 0,075 | 0,045 | 0,230 |
| Depth (m) | 0,034 | 0,160 | 0,100 |
