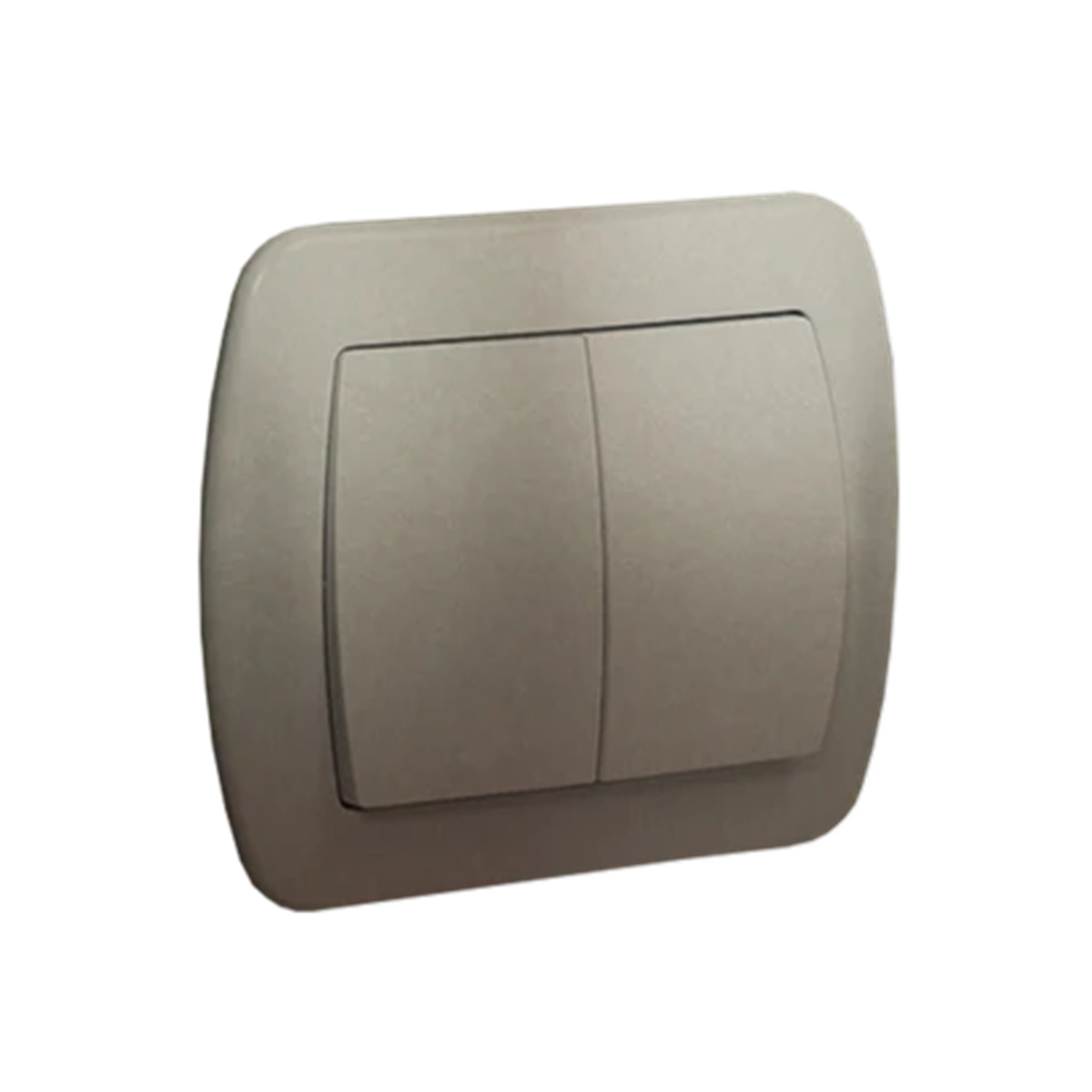

Double stair switch 230V, metallic satin AW6/2/29
local index:
MMS035KONT
Catalog No:
AW6/2/29
EAN code:
5902787597832
Price:
12,64 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Stair switch from the Simon Akord series, from the manufacturer Contact Simon. The product part number is AW6/2/29.
FEATURES
- Doubleó jny.
- Complete product; with a frame.
- Screw terminals.
- Colour satin, metallic.
- Rated current of fluorescent lamps 10AX.
- Rated voltage 230V.
- Ingress protection IP20< /strong>.
- flushmount.
- Dimensions: 80.5 x 90 mm (height x width).
- Made of PC.
- Rocker switch.
- Toggle switch.
< h3>SERIES DESCRIPTION
The slightly longer line of the base and spine relative to the sides and clearly rounded corners of the frames distinguish the Chord series from others. Simon Chord is a monoblock, i.e. non-frame series. Economical, but tasteful colors combined with a characteristic oval shape will appeal to customers who expect originality and minimalism from functional details.
Technical data
-
Halogen freeYes
-
Number of keys2
-
ShapeRectangular
-
Fixingclaws Screws
-
Rated voltage [V]230
-
Typestairs
-
Level of securityIP20
-
TypeFlush-mounted
-
Surface protectionvarnishing
-
Accurate colorSatin metallic
-
Mounting depth [mm]24.5
-
For the frame systemNO
-
PKWIU27.33.11.0
-
Depth [mm]37.5
-
ColorSilver
-
MaterialPlastic
-
InstallationFlush-mounted
-
Rated current [A]10
-
FamilySIMON CHORD
-
Width [mm]90
-
Height [mm]80.5
-
Surface finishmatte
-
BacklightNO
-
Terminal typeThreaded
-
Exact materialPC
Other technical data
-
Wiring systemTwo-way switch
-
Assembly arrangementBasic element with complete housing
-
MaterialPlastic
-
Surface protectionLacquered
-
Suitable for degree of protection (IP)IP20
-
Switching current for fluorescent lamps10 AX
-
Method of operationRocker/button
-
Mounting methodFlush-mounted
-
Material qualityThermoplastic
-
Surface finishingMatt
-
Nominal voltage250 V
-
Connection typeScrewed terminal
Bulk packaging
| A kind of package | Paczka | Karton | |
| Quantity | 1 pcs. | 1 pcs. | 10 pcs. |
| Weight (kg) | 0,068 | 0,068 | 0,774 |
| Width (m) | 0,080 | 0,110 | 0,190 |
| Length (m) | 0,090 | 0,043 | 0,230 |
| Depth (m) | 0,038 | 0,165 | 0,100 |
