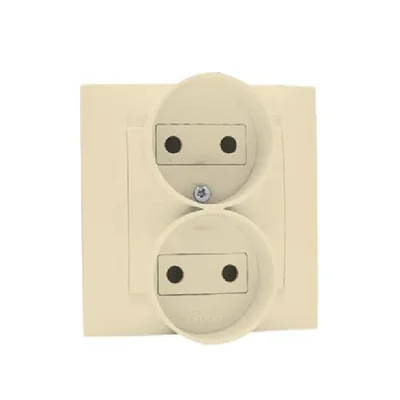

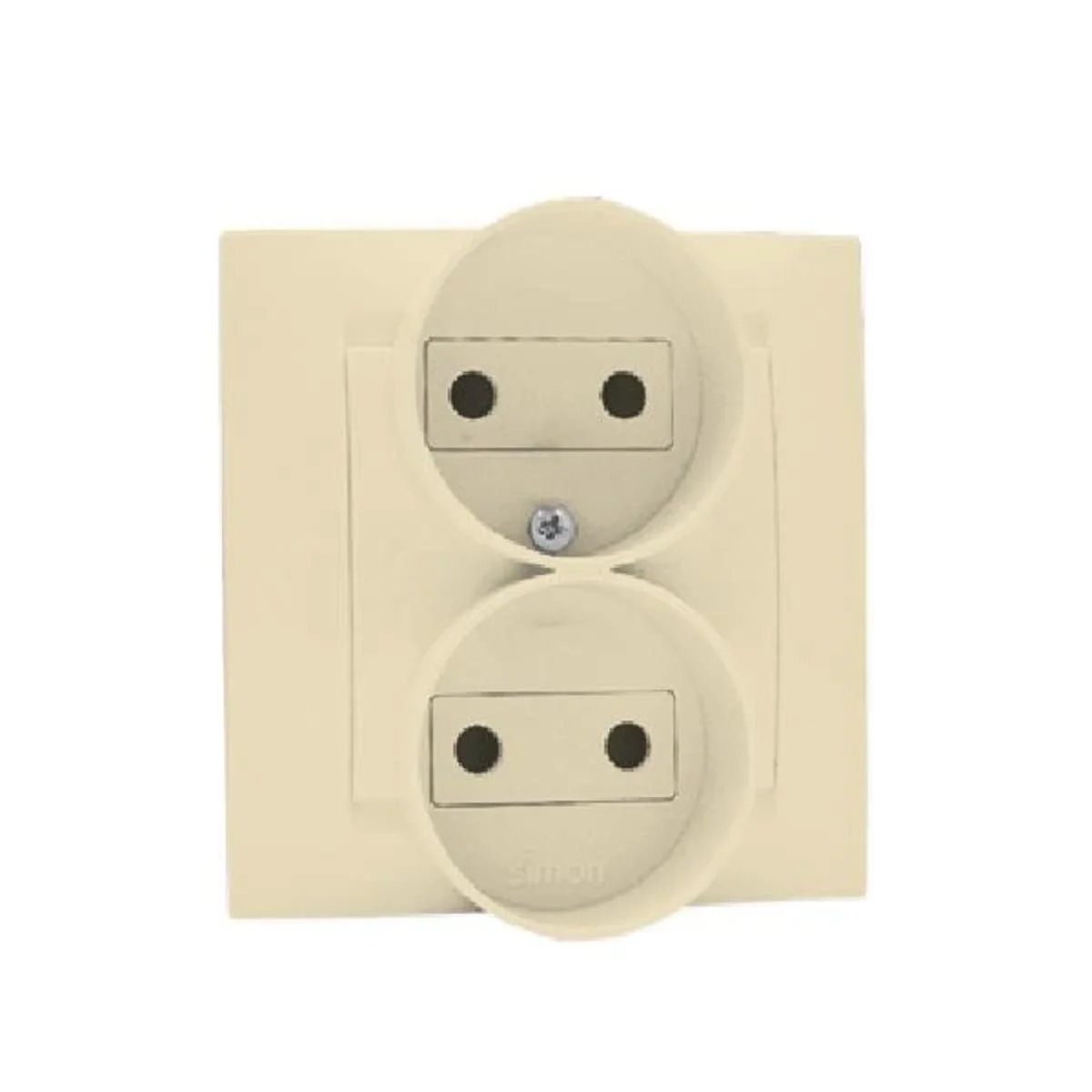

Double socket without earthing with shutters for current paths 16A 230V beige 1591452-031

Index local:
MEE035KONT
Numéro de catalogue:
1591452-031
Code EAN:
5902787547653
Producteur: KONTAKT-SIMON
Halogen free: Yes
Depth [mm]: 45
Number of sockets: 2
Prix:
21,59 zł
gross / pcs.
(y compris la TVA 23%)
En rupture de stock
Ajouter à la demande de devis
Imprimer

Description du produit

Double socket from the Simon 15 series, from the manufacturer Contact Simon. The product part number is 1591452-031. In beige.



FEATURES

  • Without grounding.
  • With shutters for current circuits.
  • Screw terminals.



SERIES DESCRIPTION

The Simon 15 series is an elegant and practical solutions. Thanks to the mild colors, the series gives the possibility of subtly adapting the accessories to the needs of a functional apartment or office. The clean design form guarantees a composition with many interiors.

Données techniques

  • Halogen free
    Yes
  • Number of sockets
    2
  • Shape
    Rectangular
  • Fixing
    claws Screws
  • Rated voltage [V]
    230
  • Type
    Electric
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Height [mm]
    80.5
  • Surface finish
    Shiny
  • Mounting depth [mm]
    20
  • Standard
    European
  • On the DATA key
    NO
  • Exact material
    PC
  • Depth [mm]
    45
  • Color
    Beige
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    16
  • Family
    Simon 15
  • Width [mm]
    74
  • Ground
    Lack
  • Surface protection
    Natural
  • Backlight
    NO
  • Terminal type
    Threaded
  • Shutters of current paths
    Yes
  • For the frame system
    NO
  • PKWIU
    27.33.13.0

Autres données techniques

  • Number of units
    2
  • Colour
    Beige
  • Material
    Plastic
  • Surface protection
    Untreated
  • Nominal voltage
    250 V
  • Suitable for degree of protection (IP)
    IP20
  • Connection type
    Screwed terminal
  • Mounting method
    Flush-mounted
  • Material quality
    Thermoplastic
  • Surface finishing
    Glossy
  • Frequency
    50 ... 60 Hz
