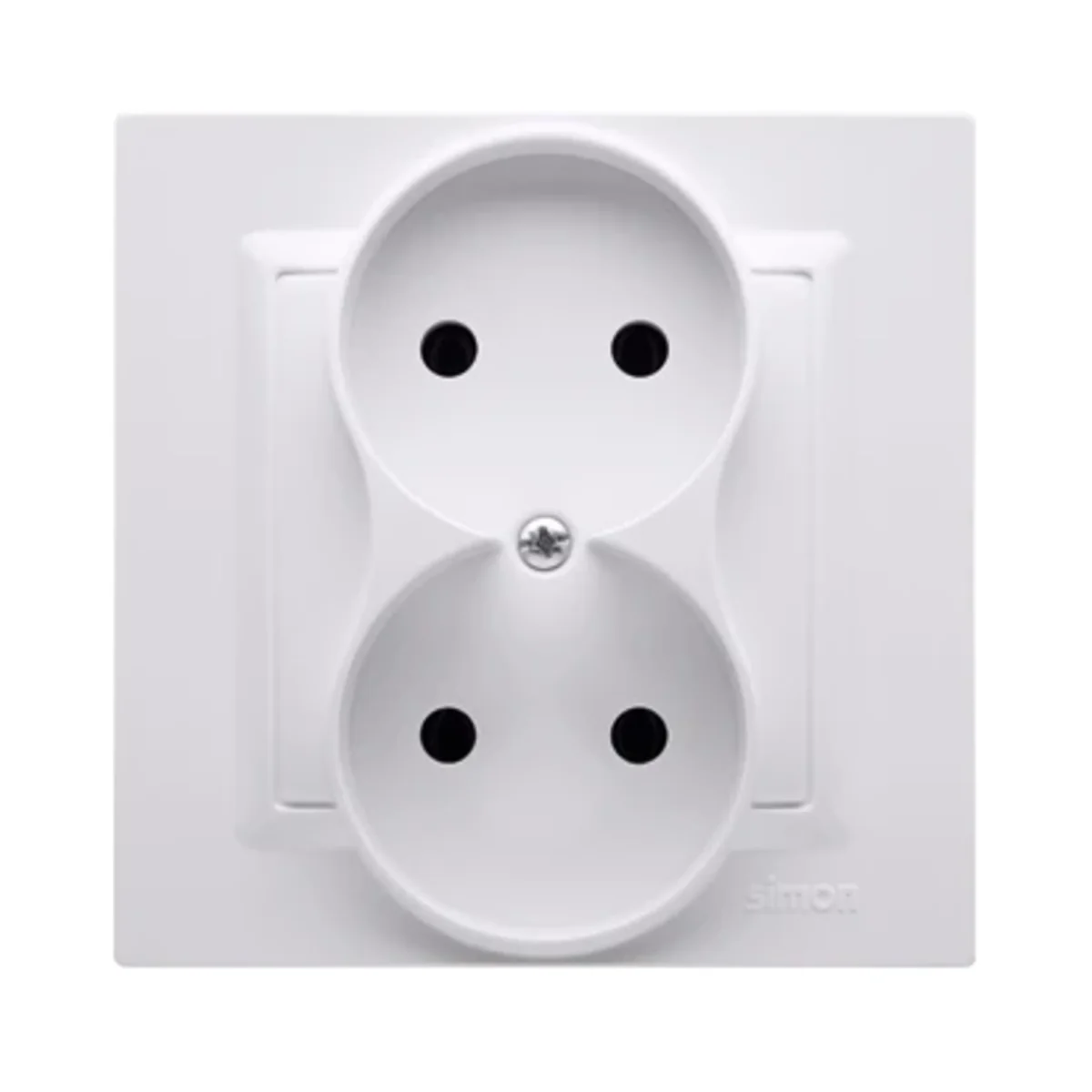

Double socket without earthing MONOBLOCK (module) 16A 230V complete white CG2/11

Indice locale:
MEE255KONT
Numero di catalogo:
CG2/11
Codice EAN:
5902787850814
Produttore: KONTAKT-SIMON
Halogen free: Yes
Depth [mm]: 43
Number of sockets: 2
Prezzo:
14,49 zł
gross / pezzi
(inclusa IVA 23%)
fino a 4 settimane
Su ordinazione
Quantità pezzi
(multiplo:
1
)
Aggiungi alla richiesta di preventivo
Aggiungi agli appunti
Stampa

Descrizione del prodotto

Plug series Simon 10, from the manufacturer Contact Simon. The product part number is CG2/11.



FEATURES

  • Double.
  • Ungrounded.
  • Screw terminals.
  • Complete; with frame.
  • Color white.
  • Rated current 16A.
  • Rated voltage 230V.
  • Ingress protection IP20.
  • Mounting flush.
  • Dimensions: 84 x 84 mm (H x W).
  • Material PC.

  ;

SERIES DESCRIPTION

Simon 10 is an economical modular series for investments where different colors are not required. A full cross-section of the range of switches and sockets will allow you to comprehensively equip each apartment or office. The distinguishing element of this series is a non-conductive bridge made of high-quality plastic ensuring durability and flexibility as well as safety during assembly work.

Dati tecnici

  • Halogen free
    Yes
  • Number of sockets
    2
  • Shape
    Square
  • Fixing
    claws Screws
  • Rated voltage [V]
    230
  • Type
    Electric
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Height [mm]
    84
  • Surface finish
    Shiny
  • Mounting depth [mm]
    26
  • Standard
    European
  • On the DATA key
    NO
  • Exact material
    PC
  • Depth [mm]
    43
  • Color
    White
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    16
  • Family
    Simon 10
  • Width [mm]
    84
  • Ground
    Lack
  • Surface protection
    Natural
  • Backlight
    NO
  • Terminal type
    Threaded
  • Shutters of current paths
    NO
  • For the frame system
    NO
  • PKWIU
    27.33.13.0

Altri dati tecnici

  • Number of units
    2
  • Connection type
    Screwed terminal
  • Colour
    White
  • Type of fastening
    Other
  • Surface finishing
    Glossy
  • Frequency
    50 ... 60 Hz
  • Number of modules (module system)
    1
  • With hinged lid
    No
  • Mounting method
    Flush-mounted
  • Surface protection
    Untreated
  • Nominal voltage
    250 V

Dettagli del produttore

Imballaggio sfuso

Una specie di pacchetto Paczka Karton
Quantità 1 pezzi 10 pezzi
Peso (kg) 0,058 0,670
Larghezza (m) 0,110 0,190
Lunghezza (m) 0,048 0,230
Profondità (m) 0,160 0,100
