el12 Electrical equipment Sockets System sockets 45x45, CIMA, SIMON 500, Mosaic Double socket S500 Schuko 2x230V 16A without signaling screw pure white
el12 Electrical equipment Sockets Electric sockets Double socket S500 Schuko 2x230V 16A without signaling screw pure white

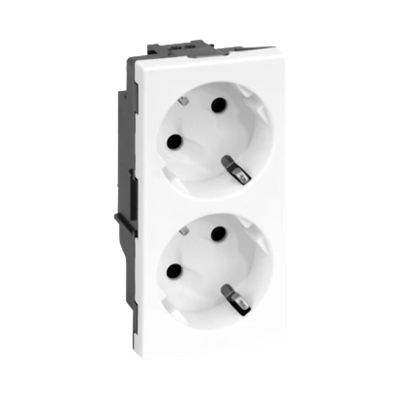

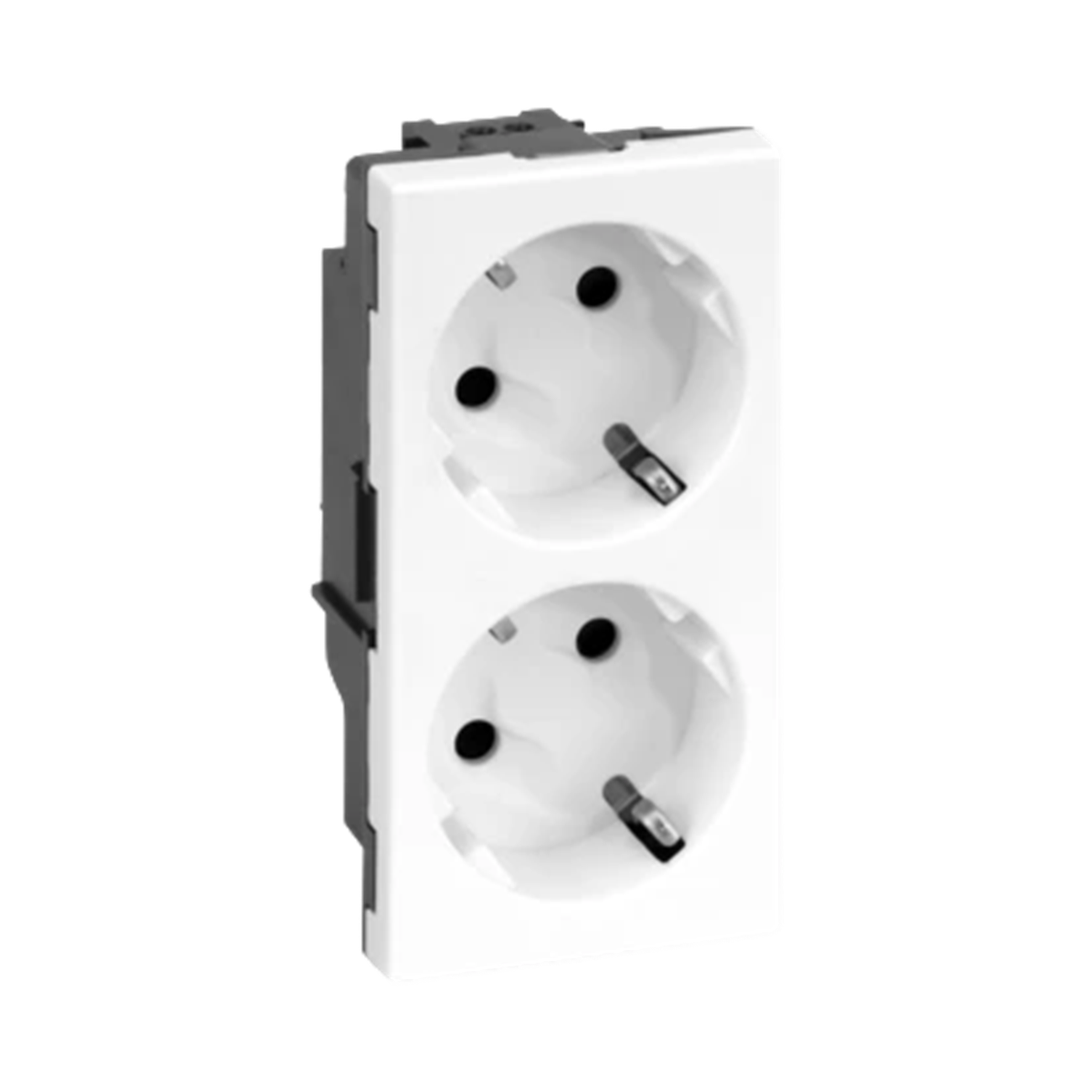

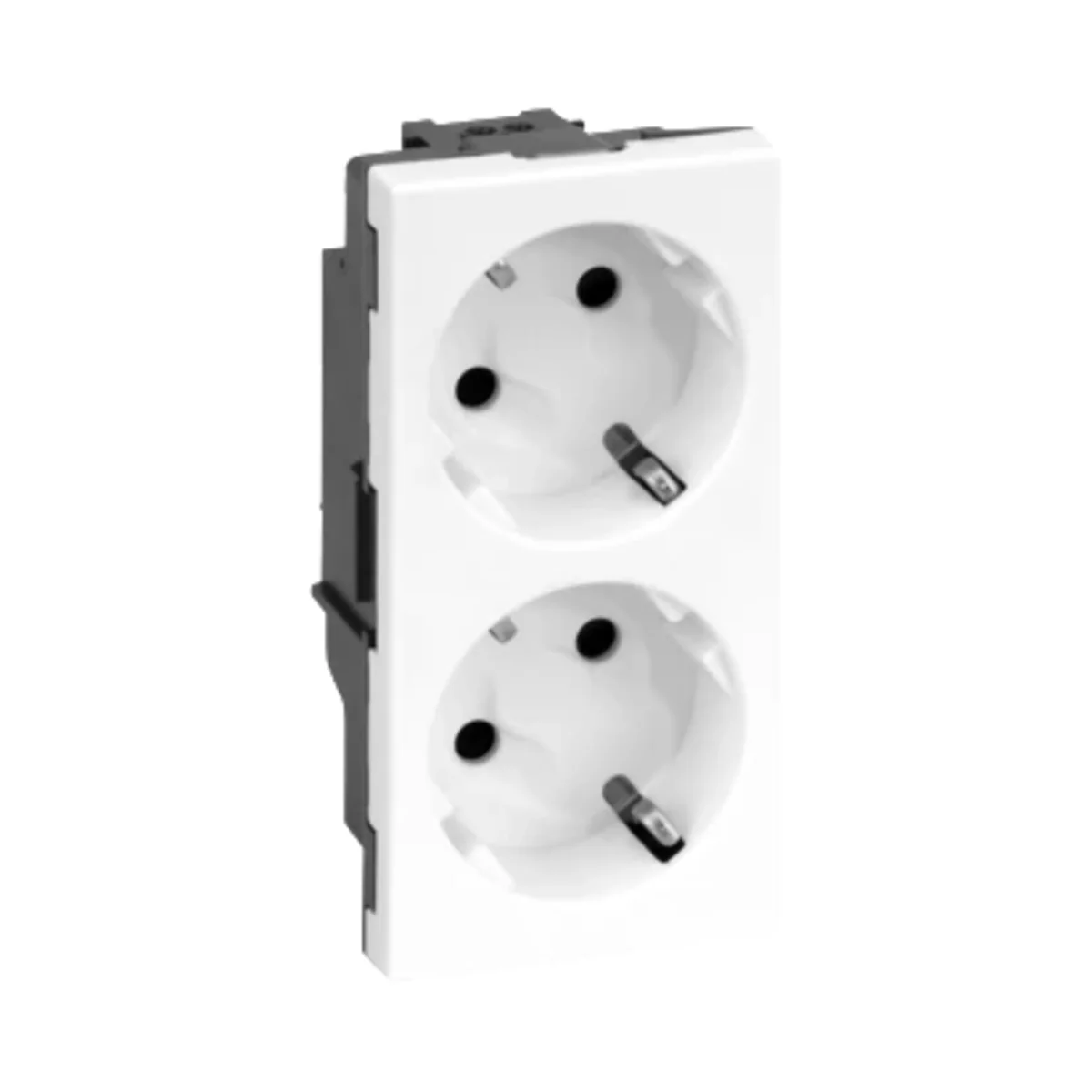

Double socket S500 Schuko 2x230V 16A without signaling screw pure white

Click on the photo to enlarge

Double socket S500 Schuko 2x230V 16A without signaling screw pure white
KONTAKT-SIMON

Double socket S500 Schuko 2x230V 16A without signaling screw pure white 50000472-030

local index:
MGE024KONT
Catalog No:
50000472-030
EAN code:
8421053093153
Price:
11,11 €
gross / pcs.
including VAT 23%
Availability:
up to 2 weeks (business days)
Delivery:
From 3,45 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details
Go to section:
Product description Technical data

Product description

Electric socket SIMON 500, from the manufacturer Contact Simon. The product catalog number is 50000472-030.

< p>

FEATURES

  • Double.
  • With SCHUKO grounding; Side earthing contact.
  • With shutters for current paths.
  • Angled 45°.
  • Complete product.
  • Color pure white.
  • Quick connectors/screw terminals.
  • Rated current 16A.
  • Rated voltage 230V.
  • Ingress protection IP20.
  • Mounting dimensions 100 x 50 mm.
  • Recessed.



SERIES DESCRIPTION

Electric sockets of the SIMON 500  standard have been designed to maximally speed up and streamline the assembly process.

Print the product sheet Report an error

Technical data

  • Halogen free
    Yes
  • Number of sockets
    2
  • Shape
    Rectangular
  • Installation
    Built-in
  • Rated current [A]
    16
  • Family
    Simon 500
  • Width [mm]
    50
  • Ground
    schuko
  • Surface protection
    Natural
  • Accurate color
    Pure white
  • Terminal type
    Threaded
  • Shutters of current paths
    Yes
  • For the frame system
    Yes
  • Depth [mm]
    46
  • Color
    White
  • Material
    Plastic
  • Rated voltage [V]
    230
  • Type
    Electric
  • Level of security
    IP20
  • Type
    Simon 500
  • Height [mm]
    100
  • Surface finish
    matte
  • Backlight
    NO
  • Standard
    European
  • On the DATA key
    NO

Other technical data

  • Connection type
    Push-in clamp
  • Mounting method
    Built-in installation
  • Surface protection
    Untreated
  • Nominal voltage
    250 V
  • Colour
    White
  • Material
    Plastic
  • Surface finishing
    Matt
  • Suitable for degree of protection (IP)
    IP20

Catalog cards, diagrams, certificates

2017_UES0052.pdf
AENOR 030-002299 20130514.pdf
simon_connect_katalog_2015_wyposazenie_simon_500_cima.pdf
ELECTRICAL SOCKETS.pdf
