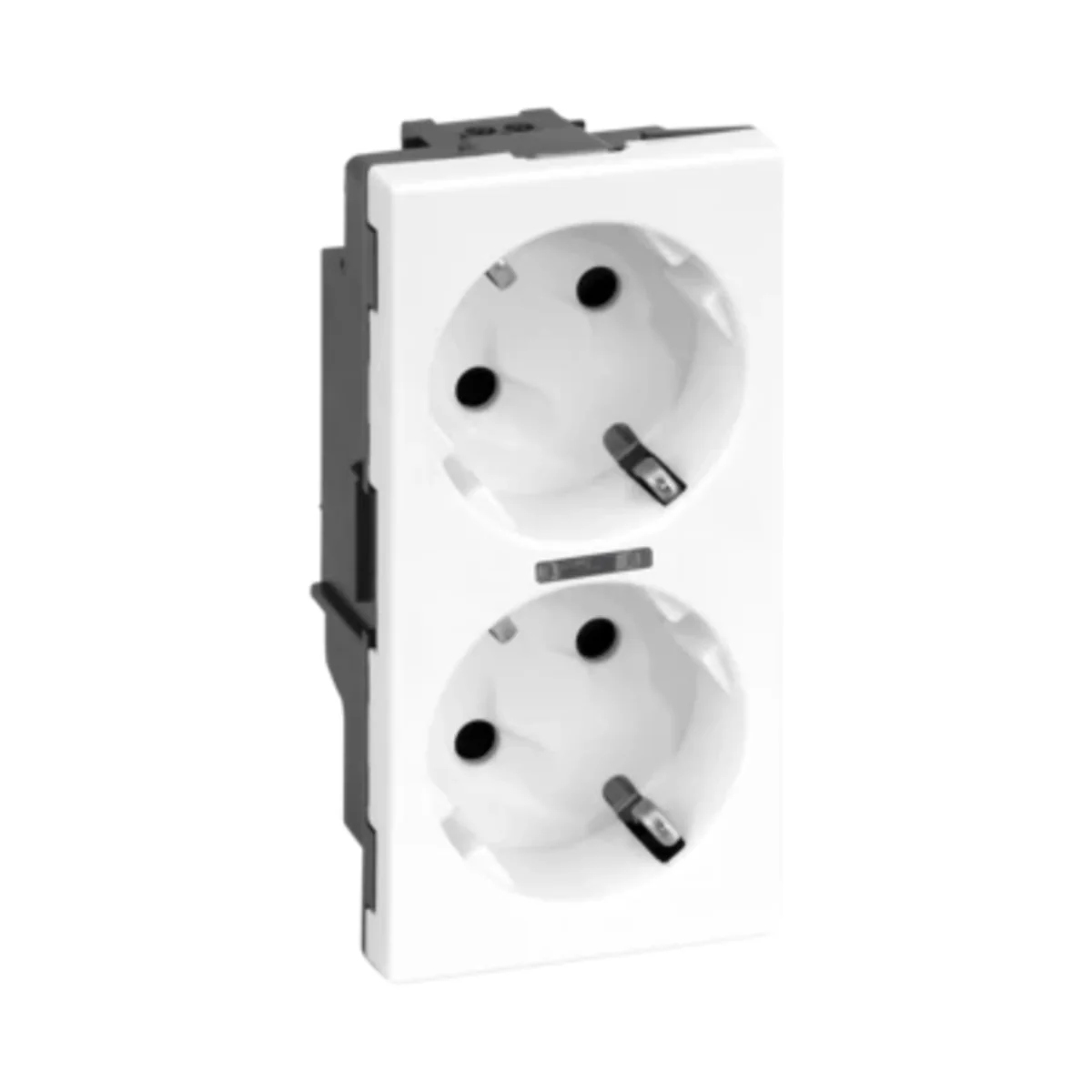

Double socket S500 Schuko 2x230V 16A with signaling pure white 50010472-030
local index:
MGE066KONT
Catalog No:
50010472-030
EAN code:
8421053093405
Price:
12,15 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Electric socket SIMON 500, from the manufacturer Contact Simon. The product catalog number is 50010472-030.
< p>FEATURES
- Double.
- With SCHUKO grounding; Side earthing contact.
- With shutters for current paths.
- With voltage signaling.
- Angled 45°.
- Complete product.
- Color pure white.
- Quick connectors/clamps screw.
- Rated current 16A.
- Rated voltage 230V.
- Ingress protection IP20.
- Mounting dimensions 100 x 50 mm.
- Recessed.
SERIES DESCRIPTION
Electric sockets of the SIMON 500 standard have been designed to maximally speed up and streamline the assembly process.< /p>
Technical data
-
Halogen freeYes
-
Number of sockets2
-
ShapeRectangular
-
InstallationBuilt-in
-
Rated current [A]16
-
FamilySimon 500
-
Width [mm]50
-
Groundschuko
-
Surface protectionNatural
-
Accurate colorPure white
-
Terminal typeThreaded
-
Shutters of current pathsYes
-
For the frame systemYes
-
PKWIU27.33.13.0
-
Depth [mm]46
-
ColorWhite
-
MaterialPlastic
-
Rated voltage [V]230
-
TypeElectric
-
Level of securityIP20
-
TypeSimon 500
-
Height [mm]100
-
Surface finishmatte
-
BacklightNO
-
StandardEuropean
-
On the DATA keyNO
-
Additional informationWith voltage indication
Other technical data
-
Connection typePush-in clamp
-
Mounting methodBuilt-in installation
-
Surface protectionUntreated
-
Nominal voltage250 V
-
ColourWhite
-
MaterialPlastic
-
Surface finishingMatt
-
Suitable for degree of protection (IP)IP20
Bulk packaging
| A kind of package | Paczka | Karton | |
| Quantity | 1 pcs. | 1 pcs. | 10 pcs. |
| Weight (kg) | 0,110 | 0,110 | 1,100 |
| Width (m) | 0,100 | - | 0,117 |
| Length (m) | 0,050 | - | 0,269 |
| Depth (m) | 0,046 | - | 0,112 |
