Double socket S500 DATA grounded 2x230V 16A without key without signaling knife red 50000469-037

local index:
MGE006KONT
Catalog No:
50000469-037
EAN code:
8421053097397
Manufacturer: KONTAKT-SIMON
Halogen free: Yes
Depth [mm]: 46
Number of sockets: 2
Price:
11,76 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

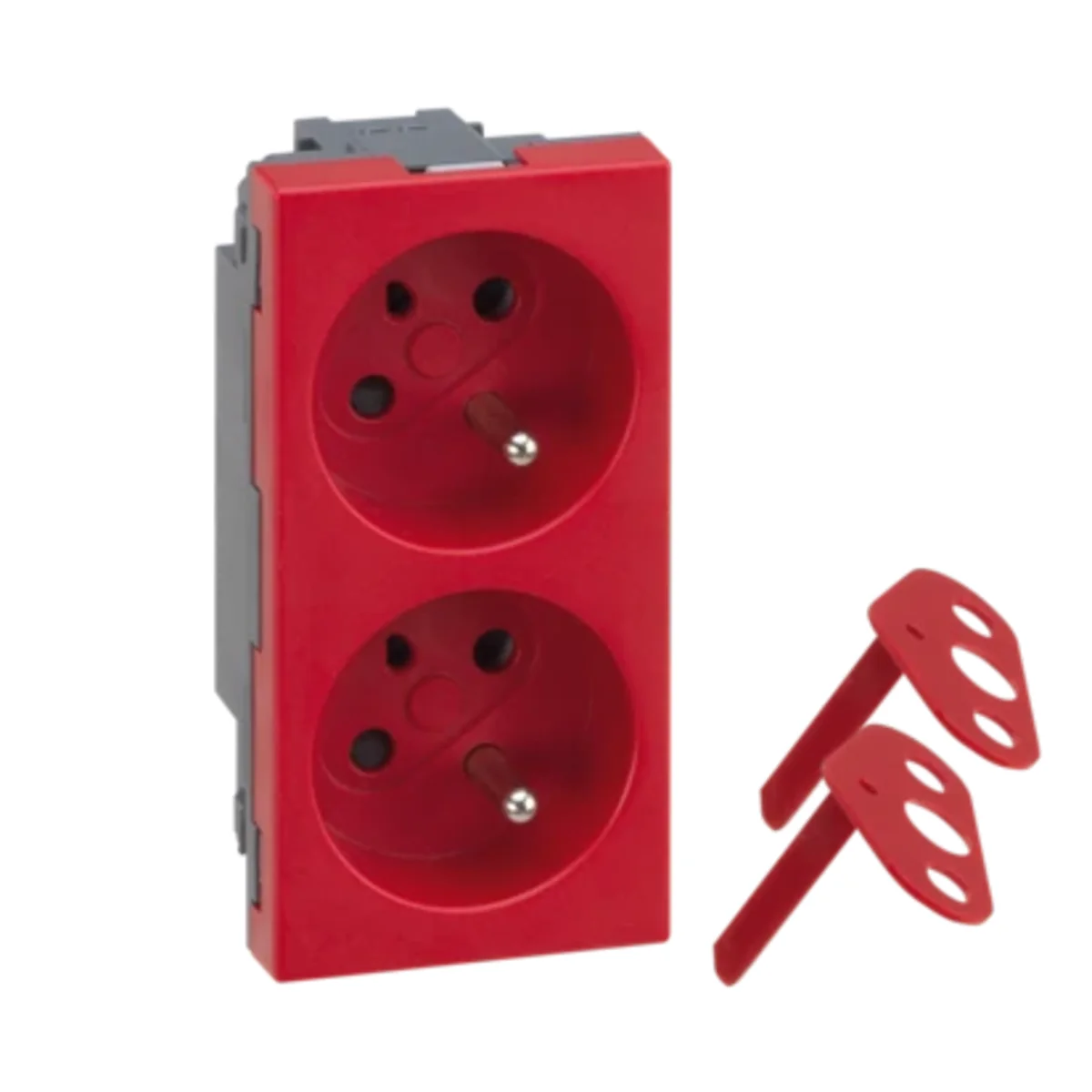

Electric socket SIMON 500, from the manufacturer Contact Simon. The product catalog number is 50000469-037.

< p>

FEATURES

  • Double.
  • DATE.< /li>
  • Grounded; grounding pin.
  • With shutters for the current paths.
  • Angular 45°.
  • Complete product.
  • Color red.
  • Quick/knife connectors.
  • Rated current 16A .
  • Rated voltage 230V.
  • Ingress protection IP20.
  • Mounting dimensions 100 x 50 mm.
  • Recessed.
  • Second emergency power supply (red).

 < /p>

SERIES DESCRIPTION

Electric socket of the SIMON 500 standard was designed to maximally speed up and streamline the assembly process.

Technical data

  • Halogen free
    Yes
  • Number of sockets
    2
  • Shape
    Rectangular
  • Installation
    Built-in
  • Rated current [A]
    16
  • Family
    Simon 500
  • Width [mm]
    50
  • Ground
    Hurt
  • Surface protection
    Natural
  • Backlight
    NO
  • Standard
    European
  • On the DATA key
    Yes
  • PKWIU
    27.33.13.0
  • Depth [mm]
    46
  • Color
    Red
  • Material
    Plastic
  • Rated voltage [V]
    230
  • Type
    Electric
  • Level of security
    IP20
  • Type
    Simon 500
  • Height [mm]
    100
  • Surface finish
    matte
  • Terminal type
    Knife IDC
  • Shutters of current paths
    Yes
  • For the frame system
    Yes

Other technical data

  • Connection type
    Push-in clamp
  • Mounting method
    Built-in installation
  • Surface protection
    Untreated
  • Nominal voltage
    250 V
  • Colour
    Red
  • Material
    Plastic
  • Surface finishing
    Matt
  • Suitable for degree of protection (IP)
    IP20

Bulk packaging

A kind of package Paczka Karton
Quantity 1 pcs. 1 pcs. 10 pcs.
Weight (kg) 0,111 0,111 1,100
Width (m) 0,100 - 0,117
Length (m) 0,050 - 0,269
Depth (m) 0,046 - 0,112
