Double socket outlet with grounding (module) 16A 230V white BMGZ2M.01/11

Name: Double socket outlet with grounding (module) 16A 230V white
Brand: KONTAKT-SIMON
SKU: MEE384KONT
Price: 5.23 PLN
Availability: InStock

local index:

MEE384KONT

Catalog No:

BMGZ2M.01/11

EAN code:

5902787575779

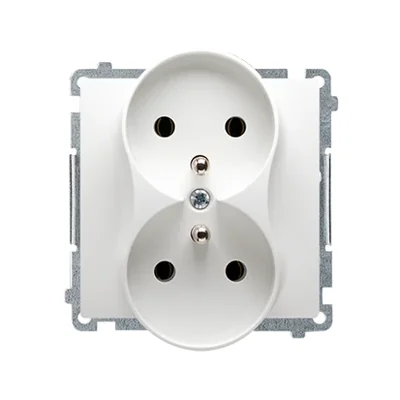

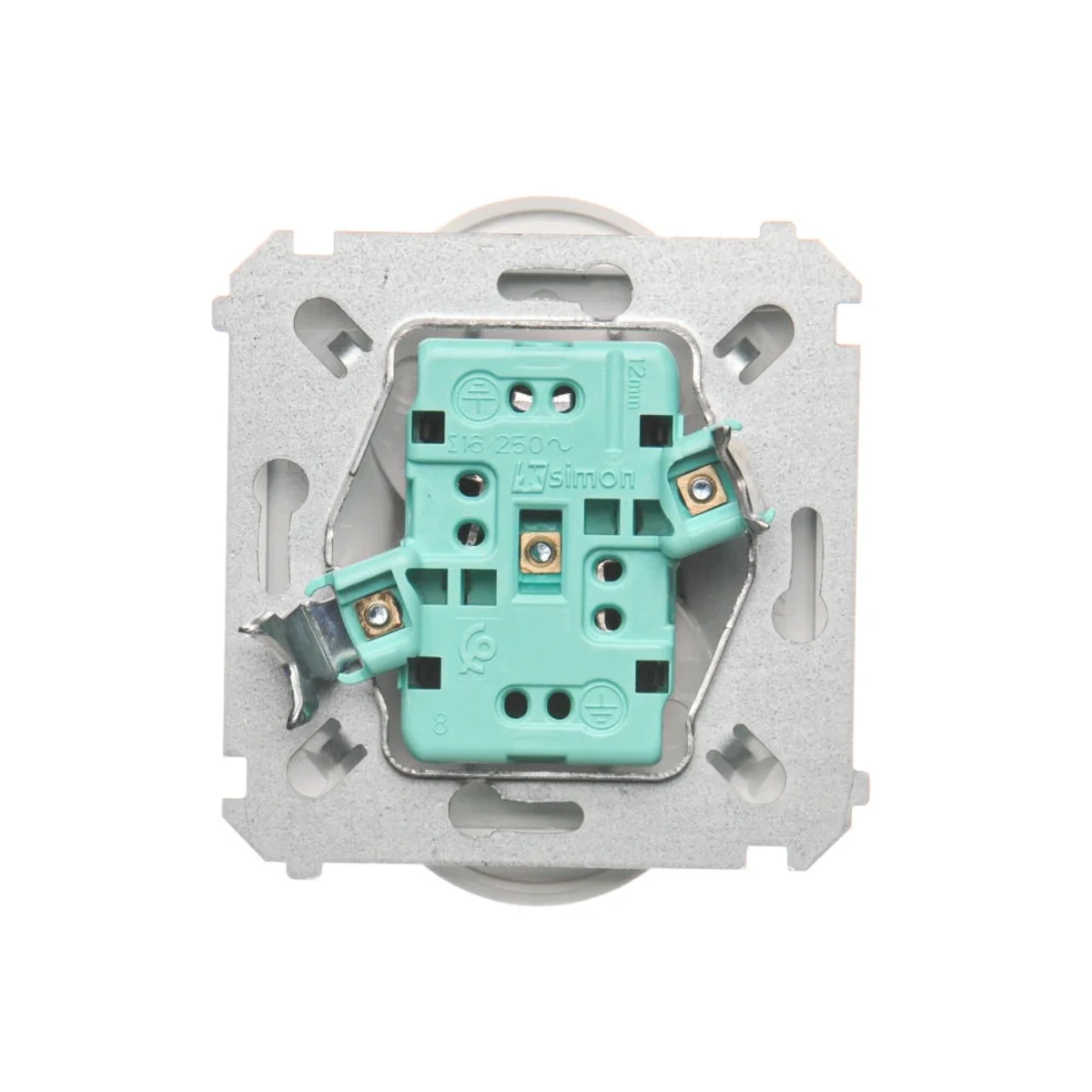

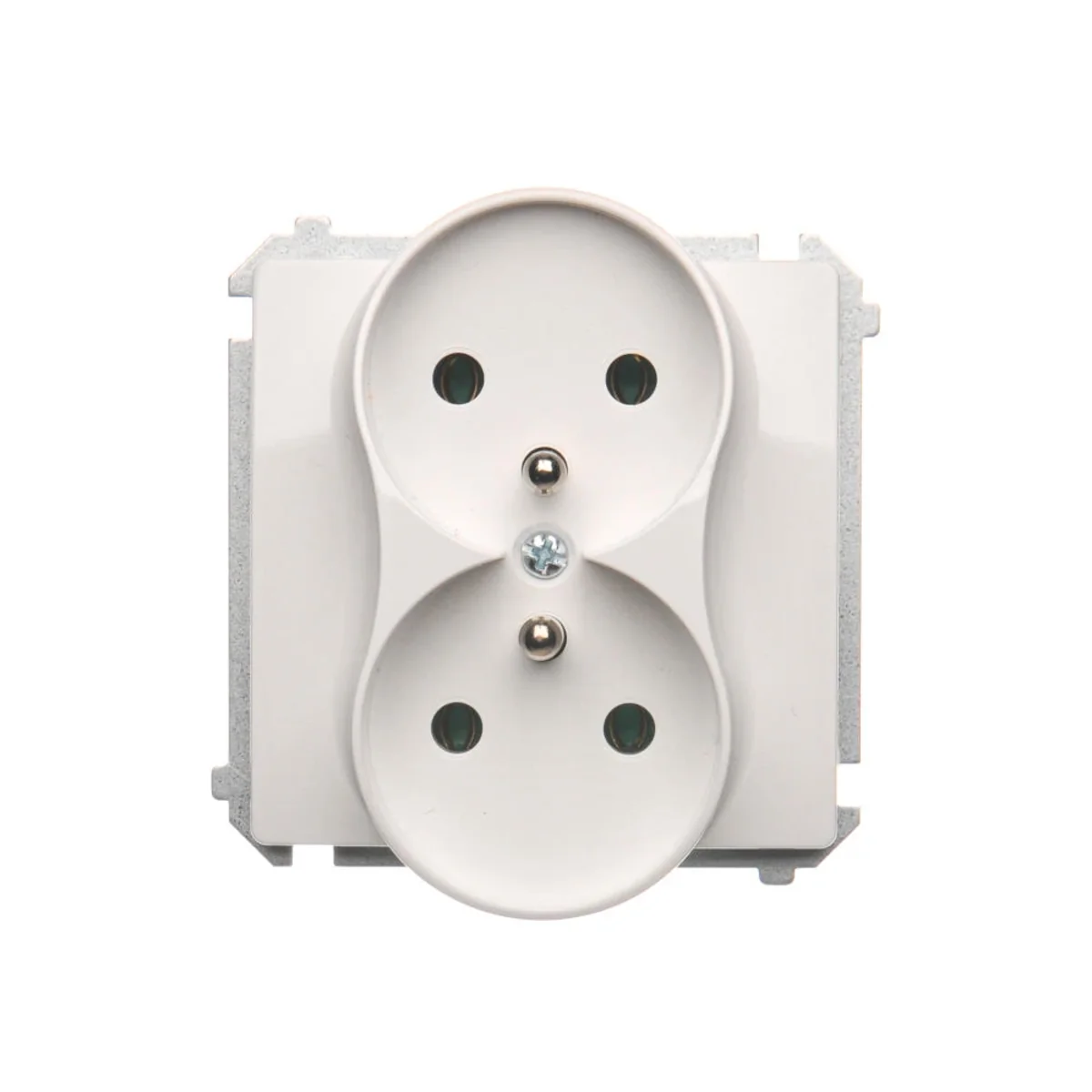

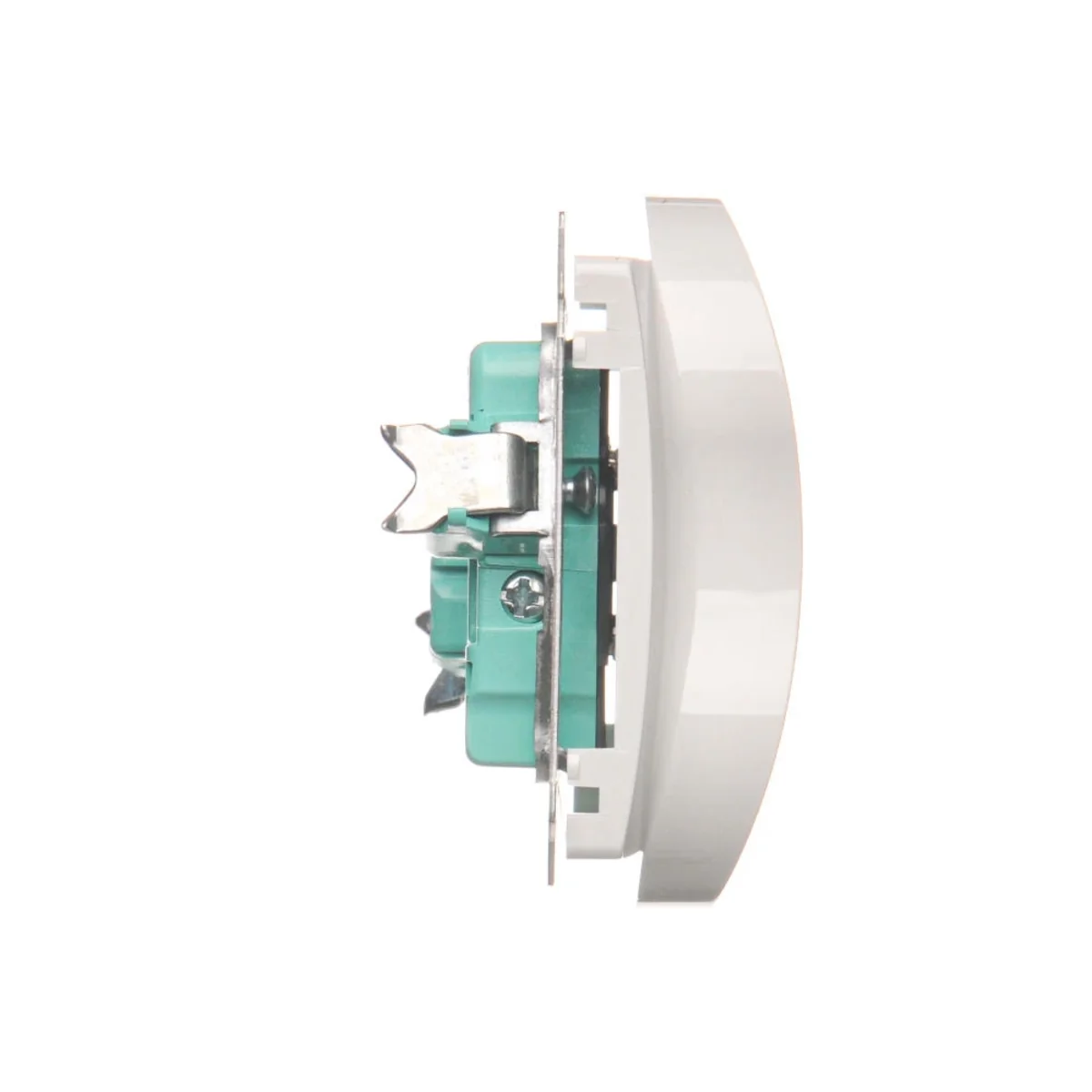

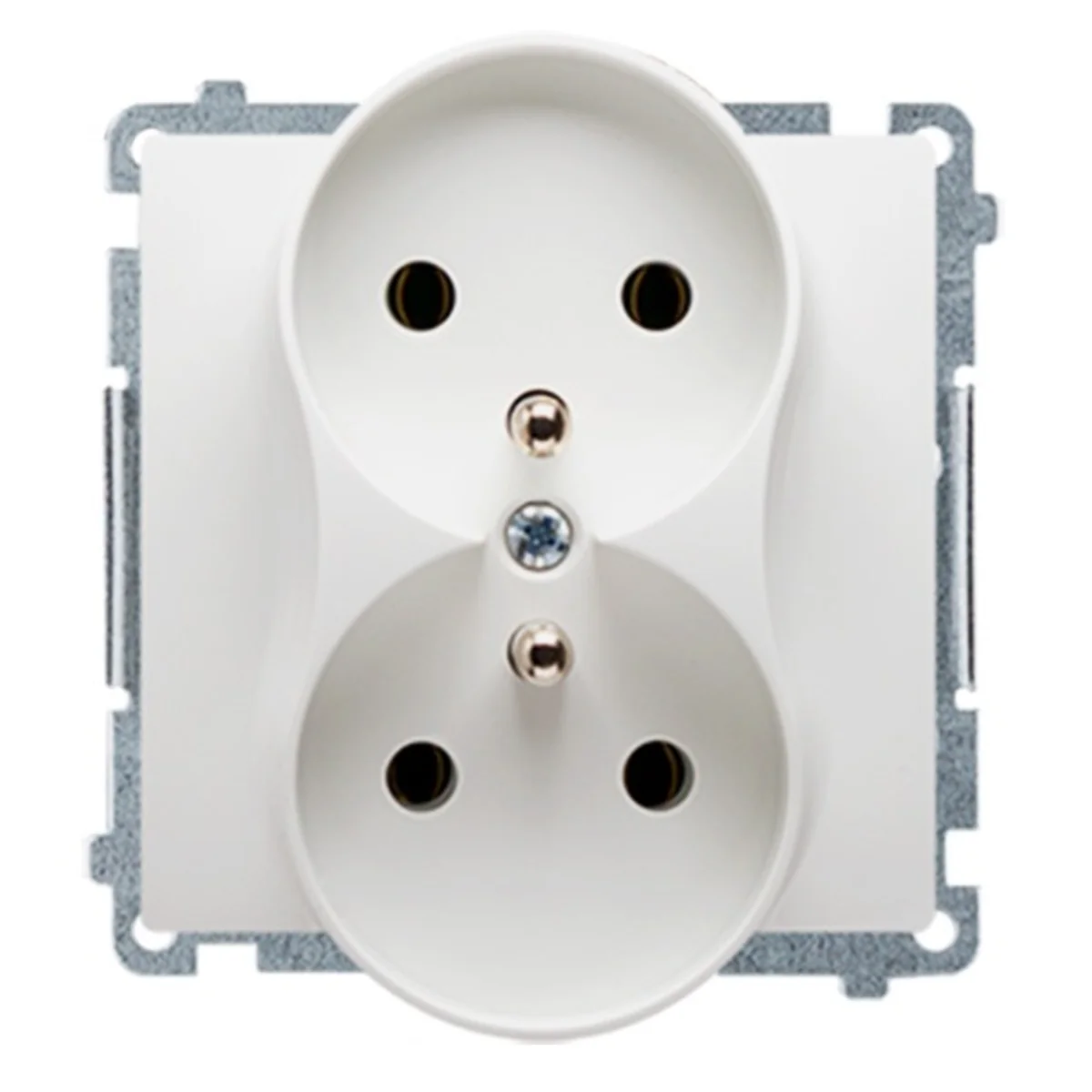

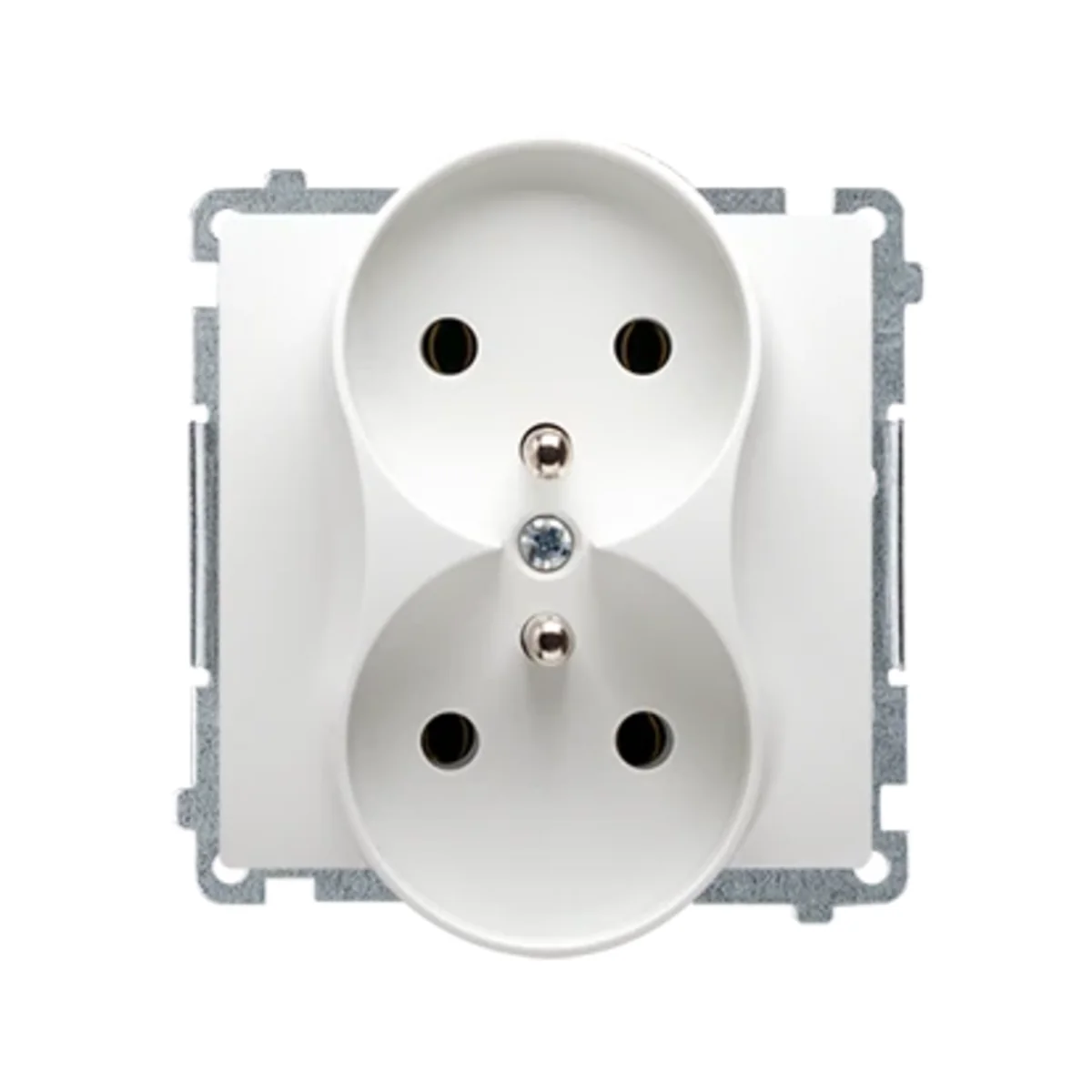

Double socket outlet with grounding (module) 16A 230V white

Click on the photo to enlarge

Manufacturer: KONTAKT-SIMON

Halogen free: Yes

Depth [mm]: 45

Number of sockets: 2

See full description

Price:

5,23 €

gross / pcs.

(including VAT 23%)

Accessible 329 pcs.

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

Electrical socket from the Simon Basic series, from the manufacturer Contact Simon. The product part number is BMGZ2M.01/11.

FEATURES

Doubleó jne.
Earth; Ground pin.
Screw terminals.
Module without frame.
Color white .
Rated current 16A.
Rated voltage 230V.
Mounting < strong>flush.
Made of PC.

SERIES DESCRIPTION
Simon Basic is a series of electrical accessories, which is based on a classic look and functionality. Electric socket has all the features of this unique series.

Technical data

Halogen free

Yes
Number of sockets

2
Shape

Rectangular
Fixing

claws Screws
Rated voltage [V]

230
Type

Electric
Level of security

IP20
Type

Flush-mounted
Height [mm]

80
Surface finish

Shiny
Mounting depth [mm]

21
Standard

European
On the DATA key

NO
Exact material

PC

Depth [mm]

45
Color

White
Material

Plastic
Installation

Flush-mounted
Rated current [A]

16
Family

SIMON BASIC
Width [mm]

75
Ground

Hurt
Surface protection

Natural
Backlight

NO
Terminal type

Threaded
Shutters of current paths

NO
For the frame system

Yes
PKWIU

27.33.13.0

Other technical data

Number of units

2
Colour

White
Material

Plastic
Surface protection

Untreated
Nominal voltage

250 V
Suitable for degree of protection (IP)

IP20

Connection type

Screwed terminal
Mounting method

Flush-mounted
Material quality

Thermoplastic
Surface finishing

Glossy
Frequency

50 ... 60 Hz

Manufacturer details

Manufacturer

KONTAKT - SIMON S.A.
Address

43-500 Czechowice-Dziedzice Bestwińska 21
Phone number

323246300
E-mail

info@kontakt-simon.com.pl
WWW

https://www.kontakt-simon.com.pl
Tax identification number

6520005366
GLN

5900009931105

Bulk packaging

A kind of package		Paczka	Karton
Quantity	1 pcs.	1 pcs.	10 pcs.
Weight (kg)	0,078	0,078	0,869
Width (m)	0,080	0,110	0,190
Length (m)	0,075	0,050	0,230
Depth (m)	0,045	0,160	0,100
