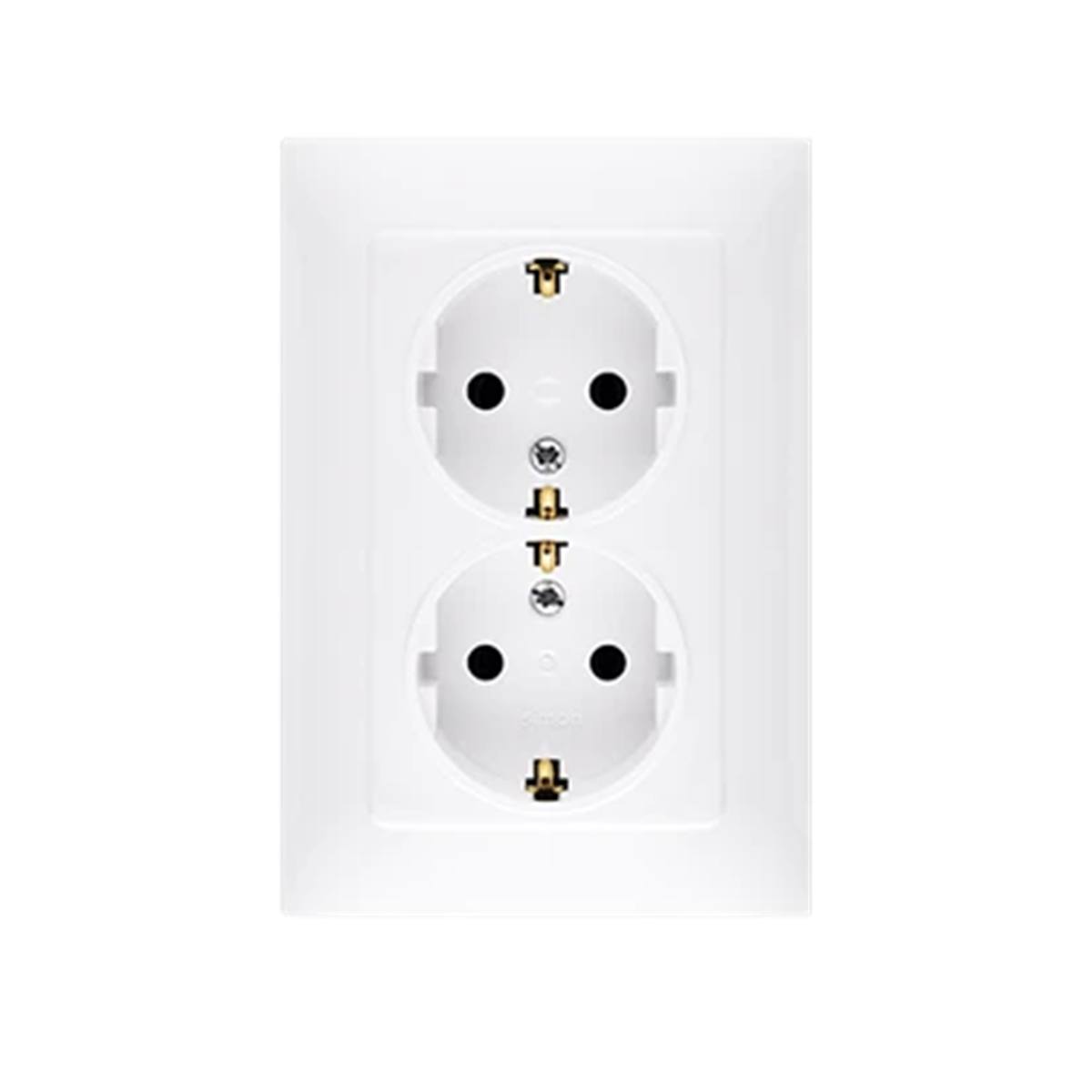

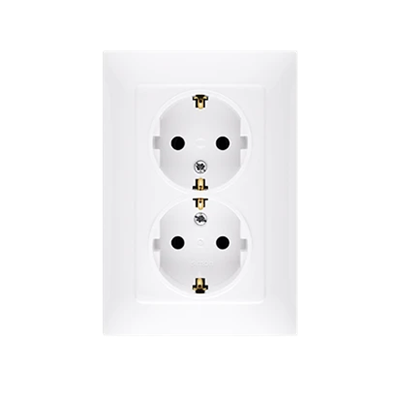

Double socket outlet with earthing schko with shutters for current paths (module) 16A 230V white CGSZ2Z/11
local index:
MEE268KONT
Catalog No:
CGSZ2Z/11
EAN code:
5902787842734
Price:
4,37 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Plug series Simon 10, from the manufacturer Contact Simon. The product part number is CGSZ2Z/11.
FEATURES
- Double.
- With schuko grounding.
- With shutters for current paths.
- Screw terminals.
- Complete product.
- Color white.
- Rated current 16A.
- Rated voltage 230V.
- Ingress protection IP20.
- flush installation.
- Dimensions: 120 x 83 mm (height x width).
- Material PC.
SERIES DESCRIPTION
Simon 10 is an economical modular series for investments where diversified coloring is not required. A full cross-section of the range of switches and sockets will allow you to comprehensively equip each apartment or office. The distinguishing element of this series is a non-conductive bridge made of high-quality plastic ensuring durability and flexibility as well as safety during assembly work.
Technical data
-
Halogen freeYes
-
Number of sockets2
-
ShapeRectangular
-
Fixingclaws Screws
-
Rated voltage [V]230
-
TypeElectric
-
Level of securityIP20
-
TypeFlush-mounted
-
Height [mm]120
-
Surface finishShiny
-
Mounting depth [mm]20.5
-
StandardEuropean
-
On the DATA keyNO
-
Exact materialPC
-
Depth [mm]48.5
-
ColorWhite
-
MaterialPlastic
-
InstallationFlush-mounted
-
Rated current [A]16
-
FamilySimon 10
-
Width [mm]83
-
Groundschuko
-
Surface protectionNatural
-
BacklightNO
-
Terminal typeThreaded
-
Shutters of current pathsYes
-
For the frame systemNO
-
PKWIU27.33.13.0
Other technical data
-
Number of units2
-
ColourWhite
-
MaterialPlastic
-
Surface protectionUntreated
-
Nominal voltage250 V
-
Suitable for degree of protection (IP)IP20
-
Connection typeScrewed terminal
-
Mounting methodFlush-mounted
-
Material qualityThermoplastic
-
Surface finishingGlossy
-
Frequency50 ... 60 Hz
Bulk packaging
| A kind of package | Paczka | Karton | |
| Quantity | 1 pcs. | 1 pcs. | 10 pcs. |
| Weight (kg) | 0,098 | 0,098 | 1,069 |
| Width (m) | 0,120 | 0,110 | 0,190 |
| Length (m) | 0,083 | 0,054 | 0,290 |
| Depth (m) | 0,049 | 0,160 | 0,100 |
