Double socket outlet with earthing and shutters (module) 16A 250V white DGZ2MZ.01/11

Name: Double socket outlet with earthing and shutters (module) 16A 250V white
Brand: KONTAKT-SIMON
SKU: MEE388KONT
Price: 8.11 PLN
Availability: InStock

local index:

MEE388KONT

Catalog No:

DGZ2MZ.01/11

EAN code:

5902787823863

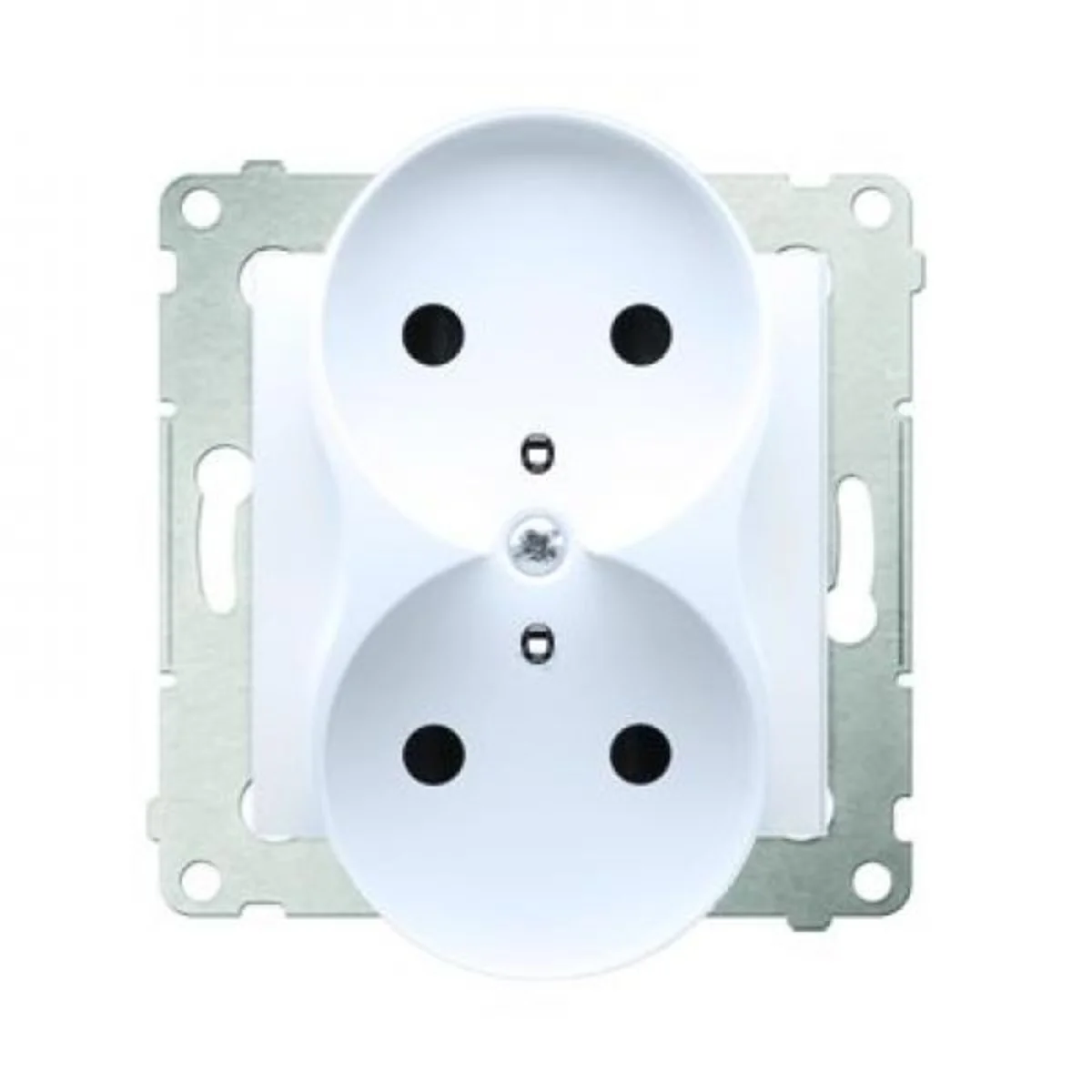

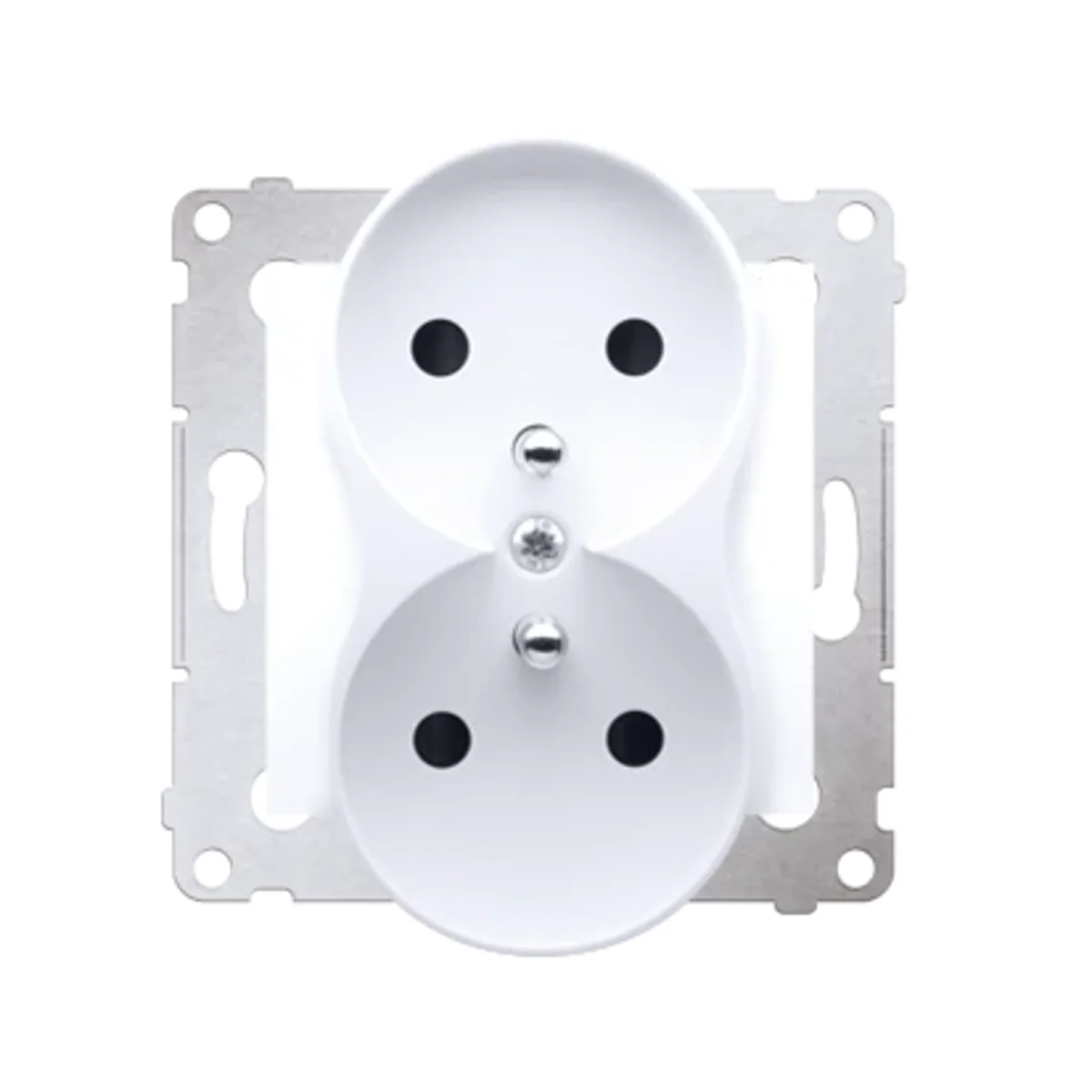

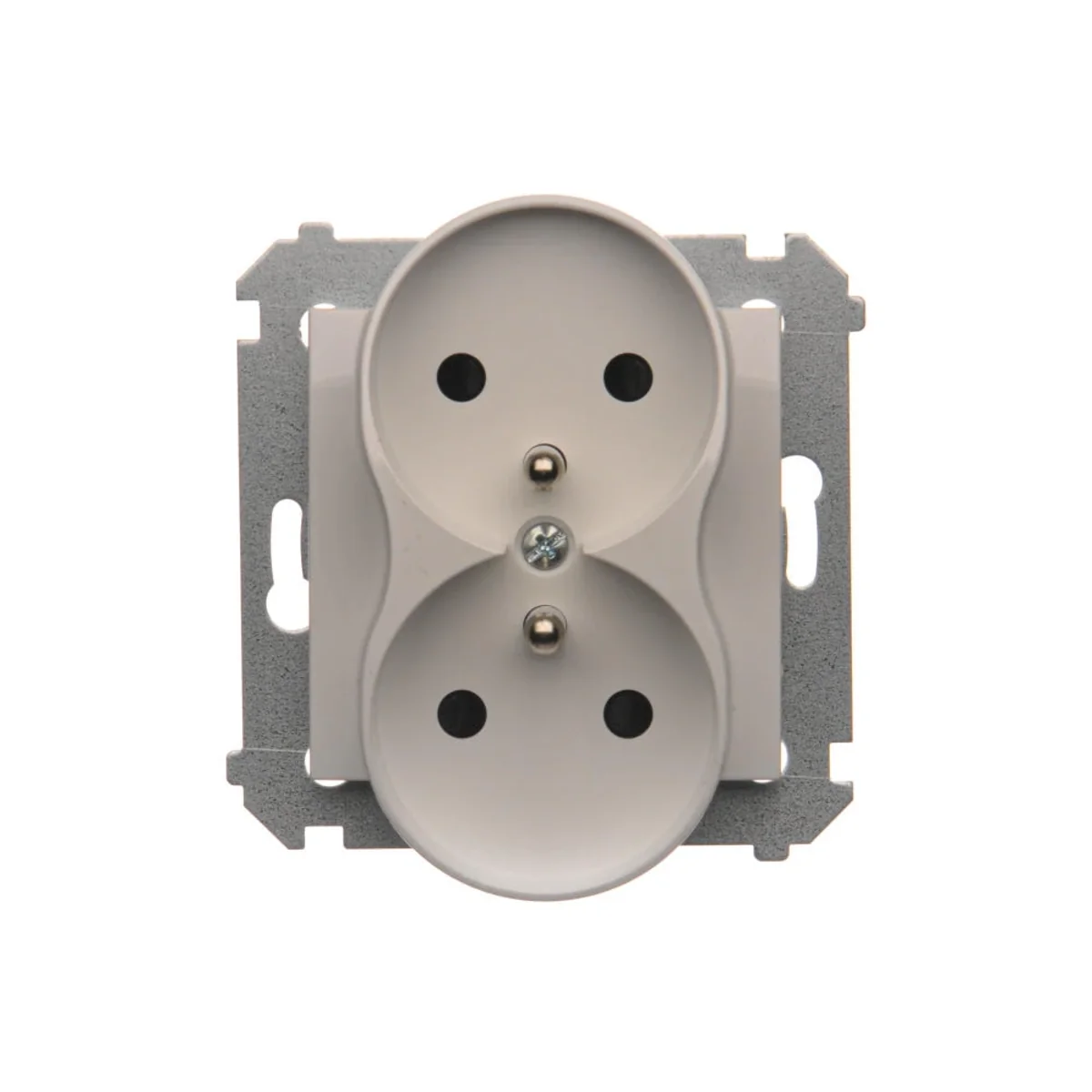

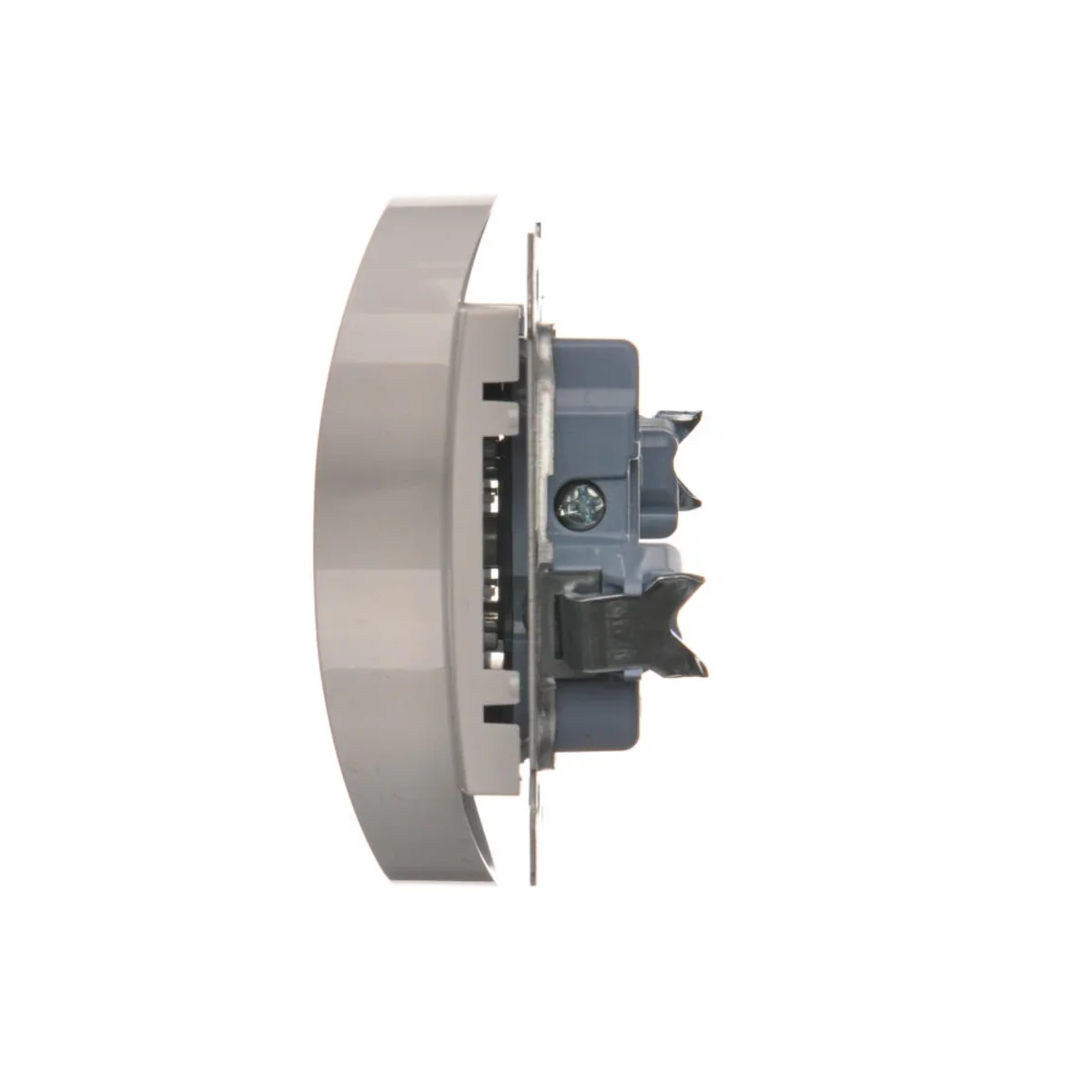

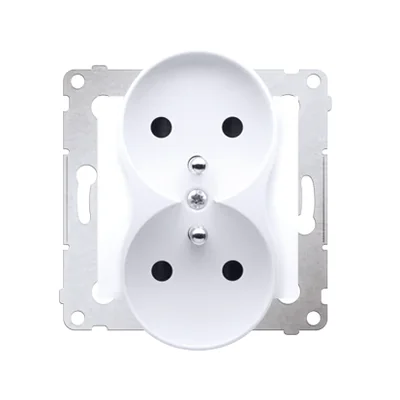

Double socket outlet with earthing and shutters (module) 16A 250V white

Click on the photo to enlarge

Manufacturer: KONTAKT-SIMON

Halogen free: Yes

Depth [mm]: 46

Number of sockets: 2

See full description

Price:

8,11 €

gross / pcs.

(including VAT 23%)

Accessible 286 pcs.

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging

Product description

Recessed electric socket from the Simon 54 series, from the manufacturer Contact Simon. The product catalog number is DGZ2MZ.01/11.

FEATURES

Doubleó jne.
Earth; ground pin.
With shutters for current paths.

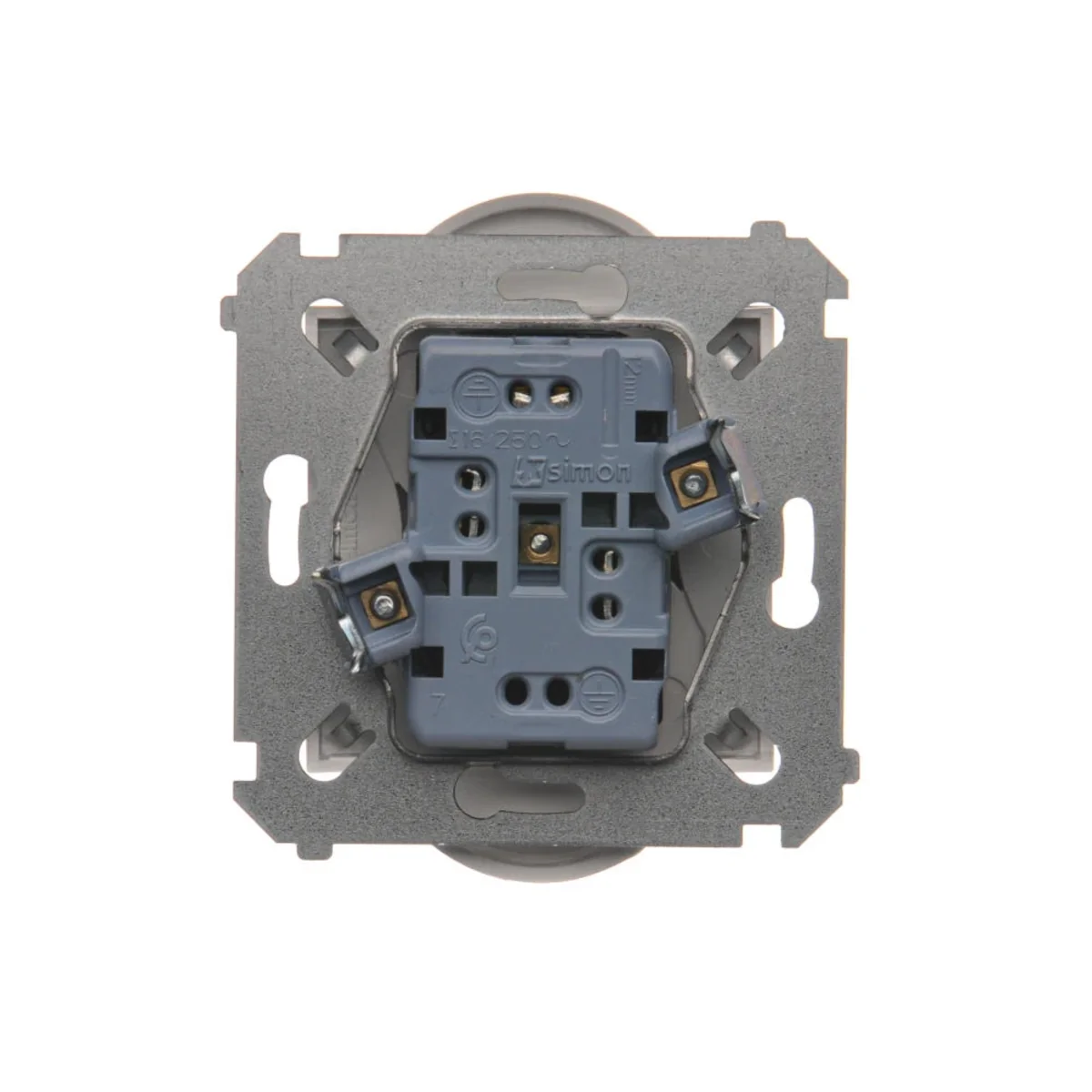

Screw terminals.
Module without frame; for Simon 54 Premium series frames.
Color white.
Rated current 16A.
Rated voltage 230V.
flush mounting.
Made of PC.

SERIES DESCRIPTION

SIMON 54 is a series of modern installation accessories, distinguished by reliable and easy to install mechanisms and a variety of colors. Concealed electrical socket characterizes the features of this unique series.

Technical data

Halogen free

Yes
Number of sockets

2
Shape

Rectangular
Fixing

claws Screws
Rated voltage [V]

230
Type

Electric
Level of security

IP20
Type

Flush-mounted
Height [mm]

81
Surface finish

Shiny
Mounting depth [mm]

20
Standard

European
On the DATA key

NO
Exact material

PC

Depth [mm]

46
Color

White
Material

Plastic
Installation

Flush-mounted
Rated current [A]

16
Family

Simon 54
Width [mm]

75
Ground

Hurt
Surface protection

Natural
Backlight

NO
Terminal type

Threaded
Shutters of current paths

Yes
For the frame system

Yes
PKWIU

27.33.13.0

Other technical data

Number of units

2
Colour

White
Material

Plastic
Surface protection

Untreated
Nominal voltage

250 V
Suitable for degree of protection (IP)

IP20

Connection type

Screwed terminal
Mounting method

Flush-mounted
Material quality

Thermoplastic
Surface finishing

Glossy
Frequency

50 ... 60 Hz

Bulk packaging

A kind of package		Paczka	Karton
Quantity	1 pcs.	1 pcs.	10 pcs.
Weight (kg)	0,079	0,079	0,879
Width (m)	0,081	0,110	0,190
Length (m)	0,075	0,048	0,230
Depth (m)	0,046	0,160	0,100
