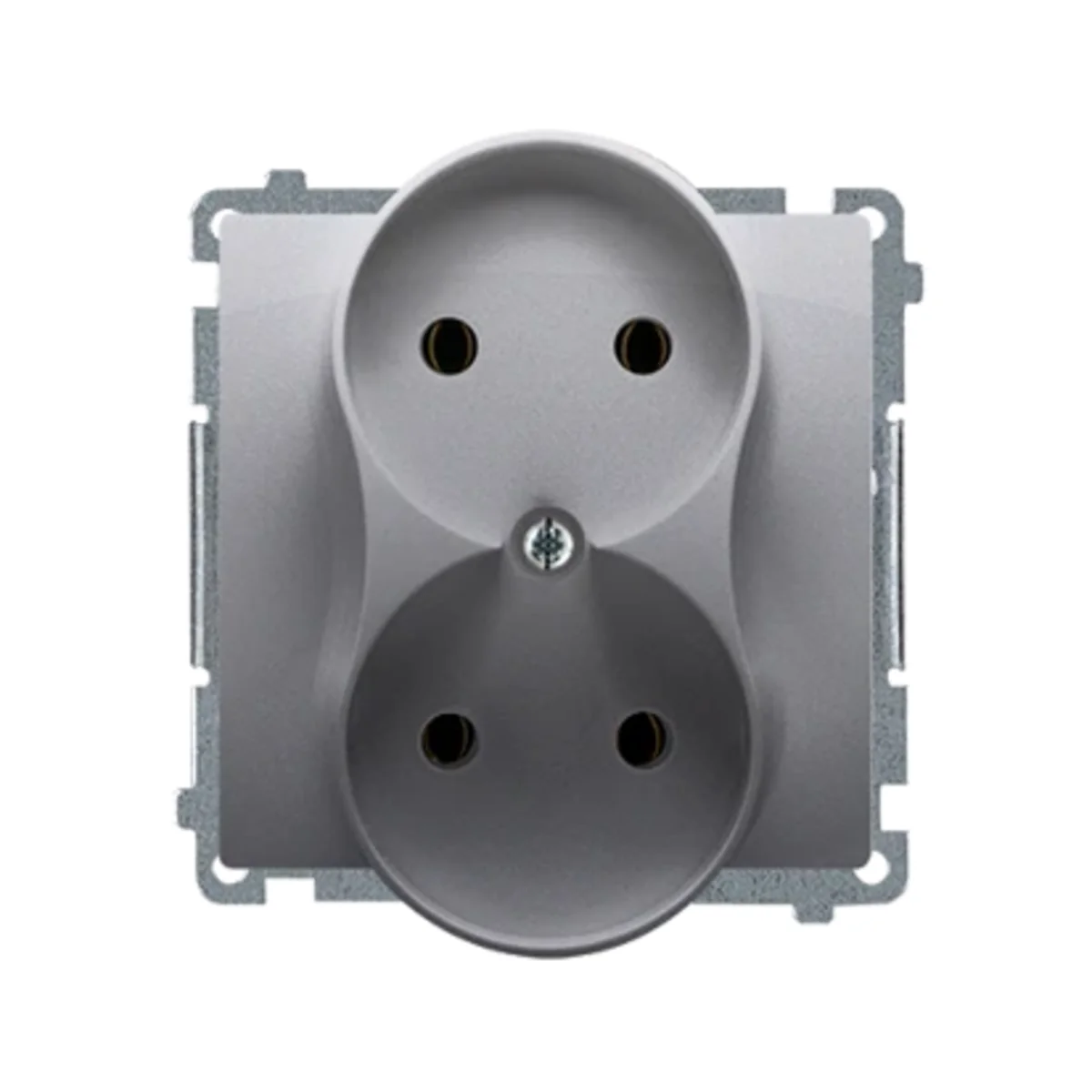

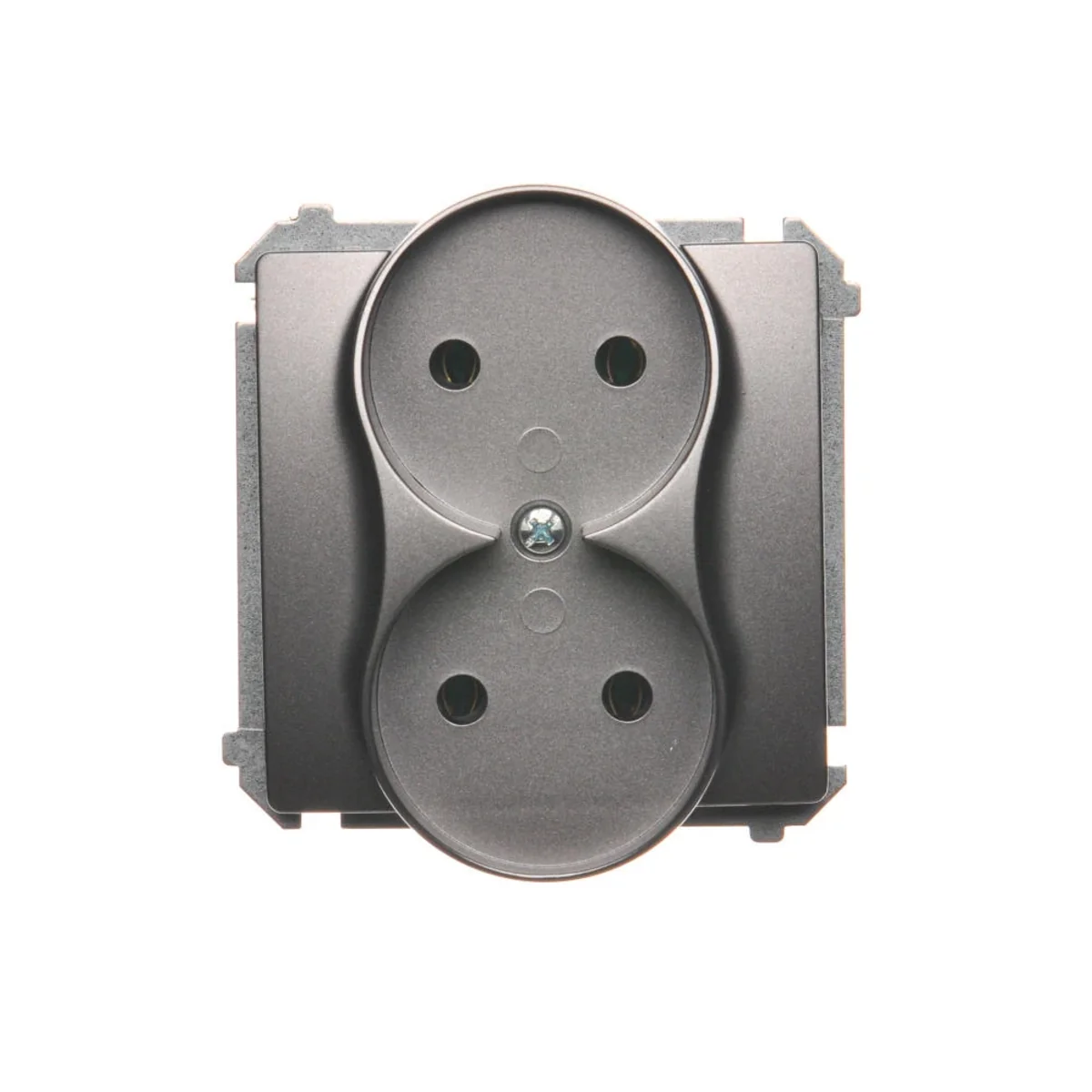

Double socket-outlet (module), 230V, metallic stainless steel BMG2M.01/21

Lokaler Index:
MEE145KONT
Katalognummer:
BMG2M.01/21
EAN-Code:
5902787813215
Hersteller: KONTAKT-SIMON
Halogen free: Yes
Depth [mm]: 45
Number of sockets: 2
Preis:
6,95 €
gross / stk.
(inklusive MwSt 23%)
Lieferung in 3h
bis zu 2 Wochen (Arbeitstage)
Abholung in 1 Stunde
Menge stk.
(mehrere:
1
)
Zur Zwischenablage hinzufügen
Drucken

Produktbeschreibung

Socket from the Simon Basic series, from the manufacturer Contact Simon. The product part number is BMG2M.01/21.



FEATURES

  • Double.
  • Ungrounded.

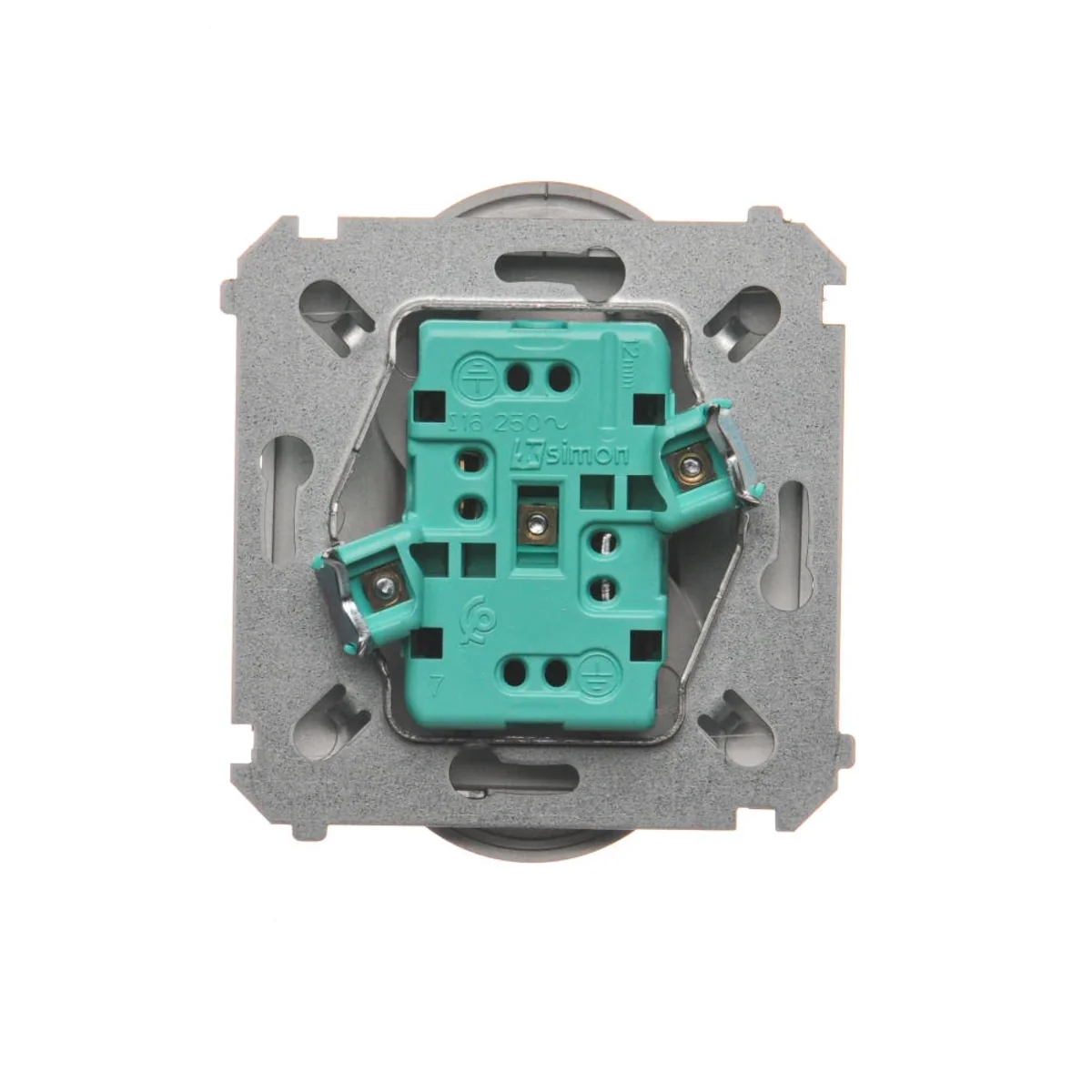

  • Screw terminals.
  • To be equipped with frame .
  • Color inox, metallic.
  • Rated current 16A.
  • Rated voltage 230V.
  • Ingress protection IP20.
  • flush mounting.
  • Dimensions: 80 x 75 mm (height x width).
  • Made of PC.



SERIES DESCRIPTION

Functionality and classic look are the hallmarks of the Simon Basic series, which will work in any space. The color palette makes it possible to subtly integrate switches and sockets into the design of an apartment, premises, living room or office.

Technische Daten

  • Halogen free
    Yes
  • Number of sockets
    2
  • Shape
    Rectangular
  • Fixing
    claws Screws
  • Rated voltage [V]
    230
  • Type
    Electric
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Height [mm]
    80
  • Surface finish
    matte
  • Backlight
    NO
  • Terminal type
    Threaded
  • Shutters of current paths
    NO
  • For the frame system
    Yes
  • PKWIU
    27.33.13.0
  • Depth [mm]
    45
  • Color
    Silver
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    16
  • Family
    SIMON BASIC
  • Width [mm]
    75
  • Ground
    Lack
  • Surface protection
    varnishing
  • Accurate color
    Metallized stainless steel
  • Mounting depth [mm]
    21
  • Standard
    European
  • On the DATA key
    NO
  • Exact material
    PC

Weitere technische Daten

  • Number of units
    2
  • Mounting method
    Flush-mounted
  • Material quality
    Thermoplastic
  • Surface finishing
    Matt
  • Frequency
    50 ... 60 Hz
  • Connection type
    Screwed terminal
  • Material
    Plastic
  • Surface protection
    Lacquered
  • Nominal voltage
    250 V
  • Suitable for degree of protection (IP)
    IP20

Hersteller-Details

Großpackungen

Eine Art Paket Paczka Karton
Menge 1 stk. 1 stk. 10 stk.
Gewicht (kg) 0,068 0,068 0,764
Breite (m) 0,080 0,110 0,190
Länge (m) 0,075 0,050 0,230
Tiefe (m) 0,045 0,160 0,100
