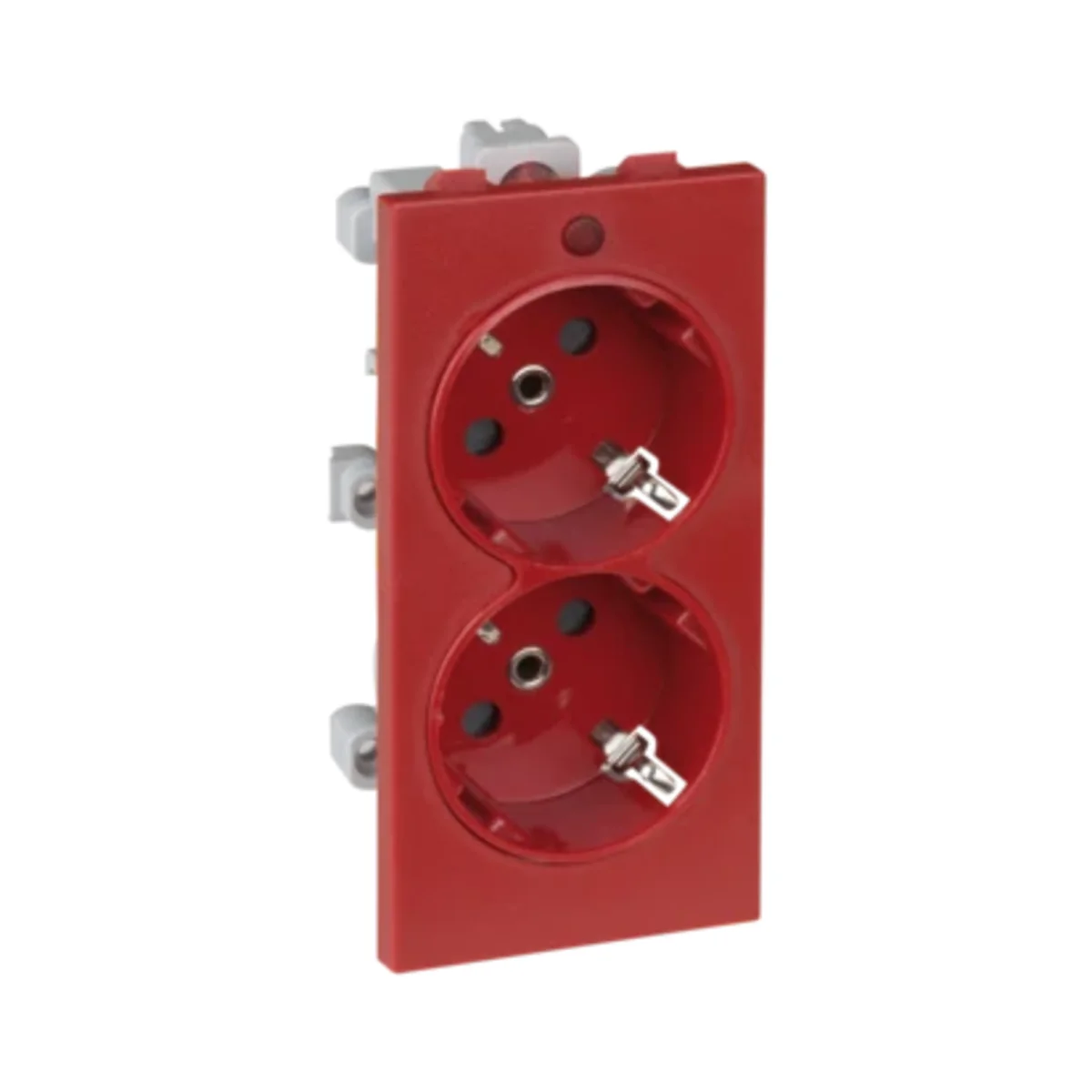

Double socket CIMA schuko 2x230V 16A red S1/6
local index:
MGE048KONT
Catalog No:
S1/6
EAN code:
8426436010253
Price:
13,73 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Electrical socket in CIMA standard, from the manufacturer Contact Simon. The product catalog number is S1/6.
FEATURES
- Double.
- With SCHUKO grounding; Side earthing contact.
- With voltage indication.
- Complete product.
- Color red.
- Screw terminals.
- Rated current 16 A.
- Voltage rated 230 V.
- Rating IP20.
- Mounting dimensions 108 x 52 mm.
- Mounting: to the ground, latches, screw.
Technical data
-
Halogen freeYes
-
Number of sockets2
-
ShapeRectangular
-
InstallationBuilt-in
-
Rated current [A]16
-
FamilyCIMA
-
Width [mm]52
-
Groundschuko
-
Surface protectionNatural
-
BacklightYes
-
StandardEuropean
-
On the DATA keyNO
-
Additional informationVoltage indication
-
Depth [mm]45
-
ColorRed
-
MaterialPlastic
-
Rated voltage [V]230
-
TypeElectric
-
Level of securityIP20
-
TypeCIMA
-
Height [mm]108
-
Surface finishmatte
-
Terminal typeThreaded
-
Shutters of current pathsYes
-
For the frame systemYes
-
PKWIU27.33.13.0
Other technical data
-
Connection typeScrewed terminal
-
Mounting methodBuilt-in installation
-
Surface protectionUntreated
-
Nominal voltage250 V
-
ColourRed
-
MaterialPlastic
-
Surface finishingMatt
-
Suitable for degree of protection (IP)IP20
Manufacturer details
-
ManufacturerKONTAKT - SIMON S.A.
-
Address43-500 Czechowice-Dziedzice Bestwińska 21
-
Phone number
-
E-mail
-
Tax identification number6520005366
-
GLN5900009931105
Bulk packaging
| A kind of package | Paczka | Karton | |
| Quantity | 1 pcs. | 1 pcs. | 10 pcs. |
| Weight (kg) | 0,112 | 0,112 | 1,120 |
| Width (m) | 0,108 | - | 0,121 |
| Length (m) | 0,052 | - | 0,264 |
| Depth (m) | 0,045 | - | 0,118 |
