Double shutter switch (module) 230V, quick connectors. , metallic anthracite DZW2.01/48

Name: Double shutter switch (module) 230V, quick connectors. , metallic anthracite
Brand: KONTAKT-SIMON
SKU: MMO081KONT
Price: 17.23 PLN

local index:

MMO081KONT

Catalog No:

DZW2.01/48

EAN code:

5902787823146

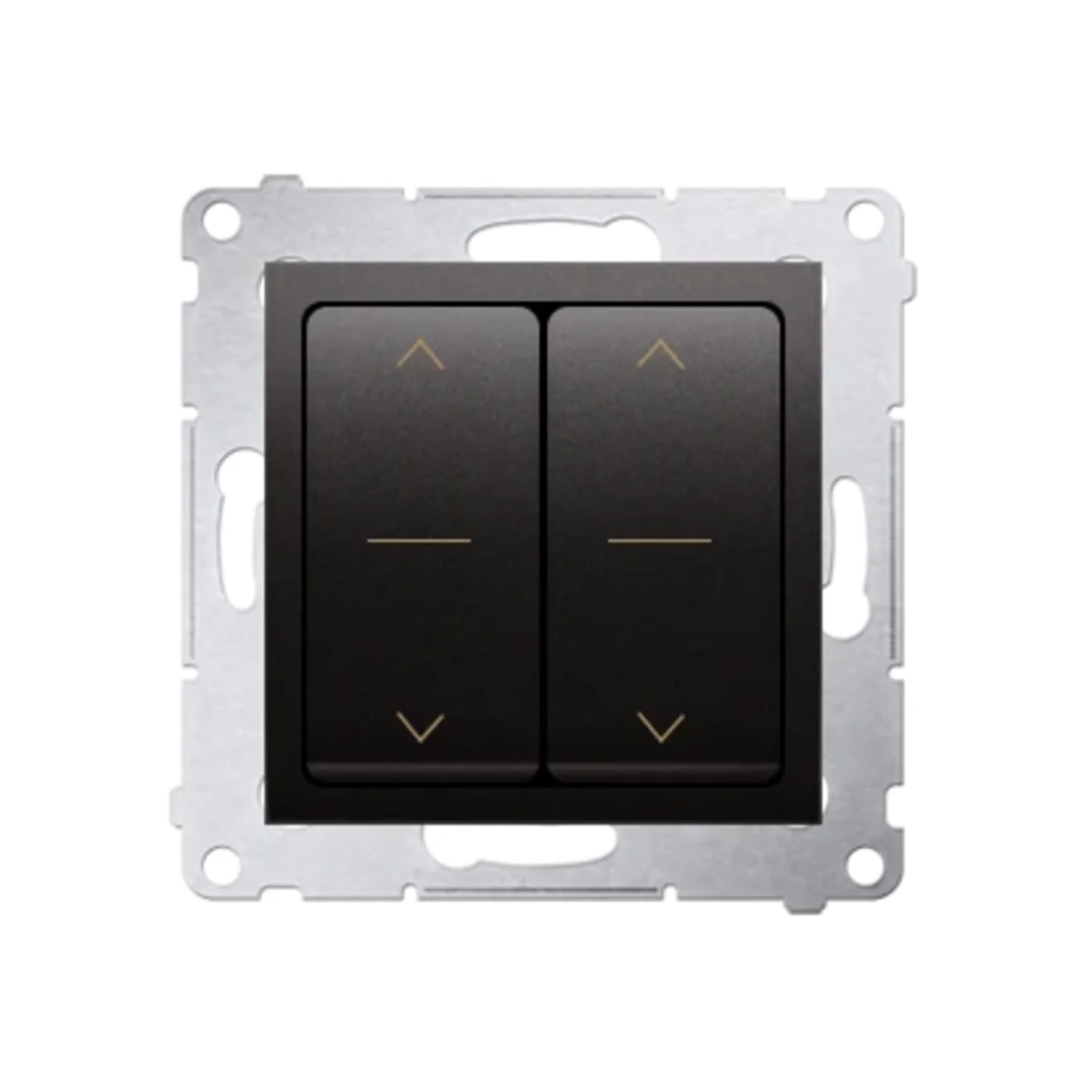

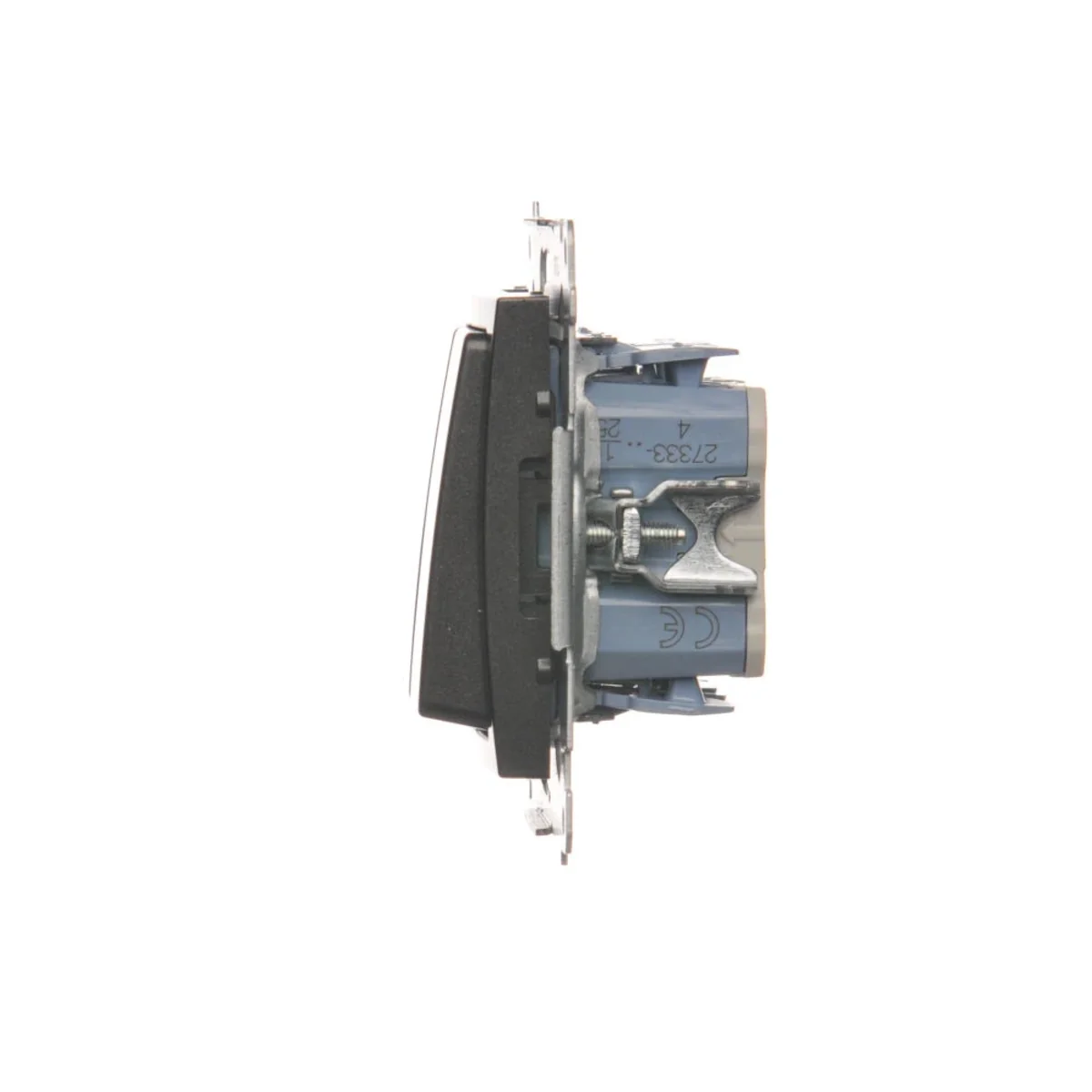

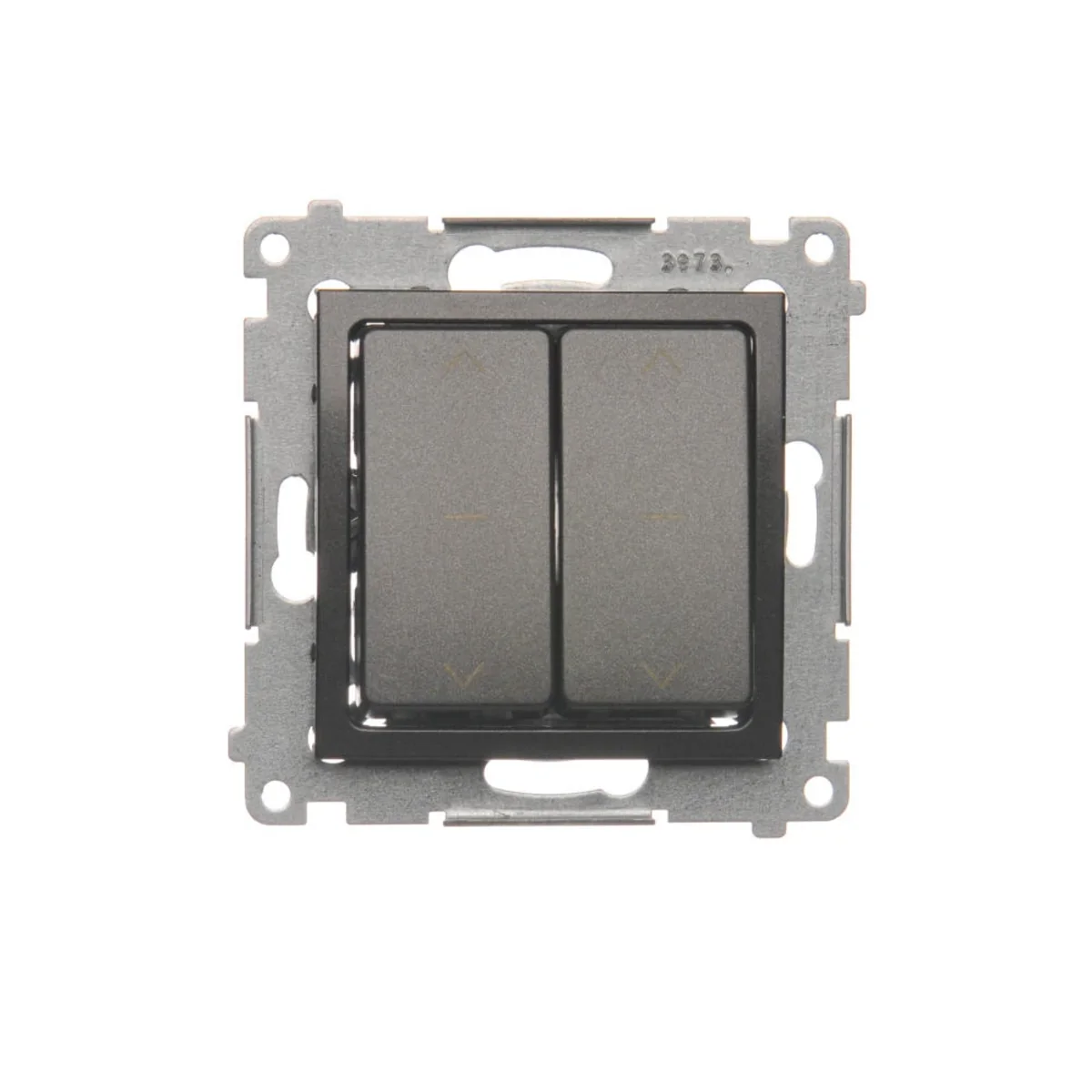

Double shutter switch (module) 230V, quick connectors. , metallic anthracite

Click on the photo to enlarge

Manufacturer: KONTAKT-SIMON

Halogen free: Yes

Depth [mm]: 41

Number of keys: 1

See full description

Price:

17,23 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to a week (working days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging

Product description

Louvre connector from the Simon 54 series, from the manufacturer Contact Simon. The product catalog number is DZW2.01/48.

FEATURES

Double.
Tri-position (1-0-2).

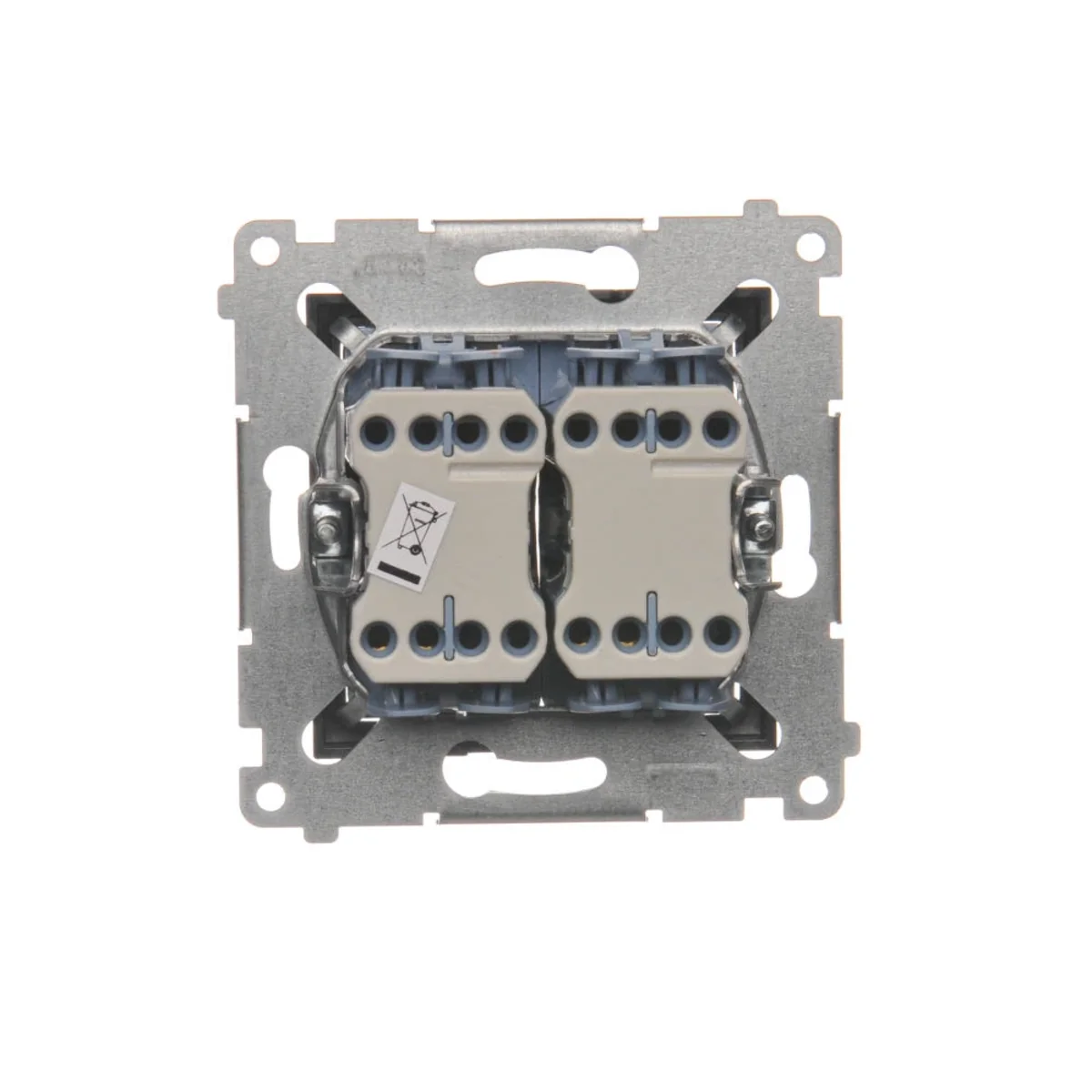

Quick connectors.
Comes with a decorative ring in the color of the module.

< p>

SERIES DESCRIPTION

Simon 54 is a series of modern installation accessories, distinguished by reliable and easy-to-install mechanisms and a variety of color. The shutter connector characterizes the features of this unique series.

Technical data

Halogen free

Yes
Number of keys

1
Shape

Square
Fixing

claws Screws
Rated voltage [V]

230
Type

Shutter
Level of security

IP20
Width [mm]

75
Version

Double
Surface protection

varnishing
Accurate color

Metallized anthracite
Mounting depth [mm]

26
Variant

Three-position
Exact material

PC

Depth [mm]

41
Color

Graphite
Material

Plastic
Installation

Flush-mounted
Rated current [A]

10
Family

Simon 54
Symbol

Blinds
Type

Flush-mounted
Height [mm]

75
Surface finish

matte
Backlight

NO
Terminal type

Threadless
For the frame system

Yes
PKWIU

27.33.11.0

Other technical data

Assembly arrangement

Basic element with central cover plate
Mechanical controllable

Yes
Material

Plastic
Surface protection

Lacquered
Colour

Anthracite
Nominal voltage

250 V

Model

Other
Mounting method

Flush-mounted
Material quality

Thermoplastic
Surface finishing

Matt
Suitable for degree of protection (IP)

IP20

Bulk packaging

A kind of package		Paczka	Karton
Quantity	1 pcs.	1 pcs.	10 pcs.
Weight (kg)	0,077	0,077	0,857
Width (m)	0,075	0,110	0,190
Length (m)	0,075	0,045	0,230
Depth (m)	0,041	0,160	0,100
